As the global electric vehicle (EV) market experiences rapid growth, more consumers are becoming interested in understanding the core technologies that power these vehicles. Among the complex electrical systems in an electric vehicle, the DC/DC converter is a critical yet often overlooked component. This article provides a comprehensive introduction to the function, operating principles, types, and importance of DC/DC converters in EV systems, helping you gain a deeper understanding of this essential technology.
What Is a DC/DC Converter?
A DC/DC converter, or direct current to direct current converter, is a power electronic device whose primary function is to convert DC electrical power from one voltage level to another. In electric vehicles, this seemingly simple function plays the crucial role of bridging the high-voltage system and the low-voltage system, making it an indispensable core component in the vehicle's electrical architecture.
Simply put, a DC/DC converter acts as a "voltage translator" inside an electric vehicle. It converts the electrical energy from the high-voltage traction battery to a voltage level suitable for the vehicle's low-voltage electrical accessories, ensuring the normal operation of all vehicle systems.
Why Do Electric Vehicles Need DC/DC Converters?
Traditional internal combustion engine vehicles use the engine to drive an alternator, which charges the 12V battery and powers the vehicle's lights, audio system, instrument cluster, and other low-voltage electrical devices. However, the situation is completely different for electric vehicles.
The traction battery pack in an electric vehicle typically operates at very high voltages, generally between 400V and 800V. This high-voltage system provides powerful output to drive the electric motor and propel the vehicle forward. However, most of the auxiliary electrical equipment in the vehicle, such as headlights, audio systems, climate control units, airbag systems, and body control modules, still use traditional 12V or 24V low-voltage power supplies.
This creates a fundamental challenge: the traction battery provides high-voltage DC power, while onboard electrical equipment requires low-voltage DC power. The DC/DC converter exists specifically to solve this voltage mismatch problem. It draws electrical energy from the high-voltage traction battery pack, converts it to 12V or 24V low-voltage DC power, charges the low-voltage auxiliary battery, and simultaneously powers all low-voltage electrical devices.
How Does a DC/DC Converter Work?

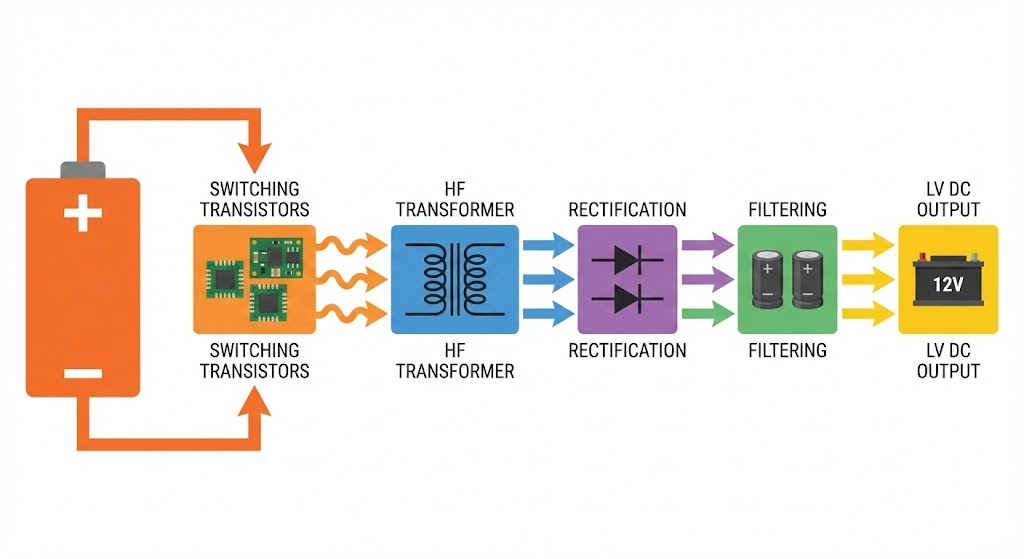

The operating principle of a DC/DC converter is based on switched-mode power supply technology. The core process can be divided into several key stages:
Input Stage: The converter receives high-voltage DC power from the traction battery (typically 400V-800V). The input side features filtering circuits to smooth the input voltage and reduce electromagnetic interference.
Switching Control: High-frequency switching elements, such as IGBTs (Insulated Gate Bipolar Transistors) or MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors), rapidly switch the input voltage on and off. These switches operate at very high frequencies (typically tens to hundreds of kilohertz), converting the DC power into a pulsed waveform.
Transformation and Isolation: Many DC/DC converters use high-frequency transformers to achieve voltage transformation and electrical isolation. The transformer's turns ratio determines the relationship between output and input voltage. Electrical isolation is critical for safety, as it physically separates the high-voltage and low-voltage systems, preventing dangerous high voltage from entering the low-voltage system.
Rectification and Filtering: The alternating pulses from the transformer output pass through a rectification circuit (typically using diodes or synchronous rectification technology) to convert back to DC power. Subsequently, output filtering circuits (including inductors and capacitors) smooth the pulsating DC into stable low-voltage DC output.
Feedback Control: The output voltage and current are continuously monitored and fed back to the control circuit. The control circuit adjusts the switching frequency or duty cycle based on feedback information, ensuring the output voltage remains stable at the target value (such as 14V for a 12V system), regardless of input voltage fluctuations or load changes.
The efficiency of this entire conversion process typically reaches over 90%, meaning energy loss is minimal, and most electrical energy is effectively transferred from the high-voltage system to the low-voltage system.
-28.jpg?w=1024&h=559)
Main Types of DC/DC Converters
Based on different classification criteria, DC/DC converters in electric vehicles can be categorized into several types:
Classification by Isolation Method:
Isolated DC/DC converters use transformers to achieve electrical isolation between input and output, providing higher safety and representing the most commonly used type in electric vehicles. Non-isolated converters do not use transformers, offering smaller size and lower cost but lacking electrical isolation protection, making them less common in EVs.

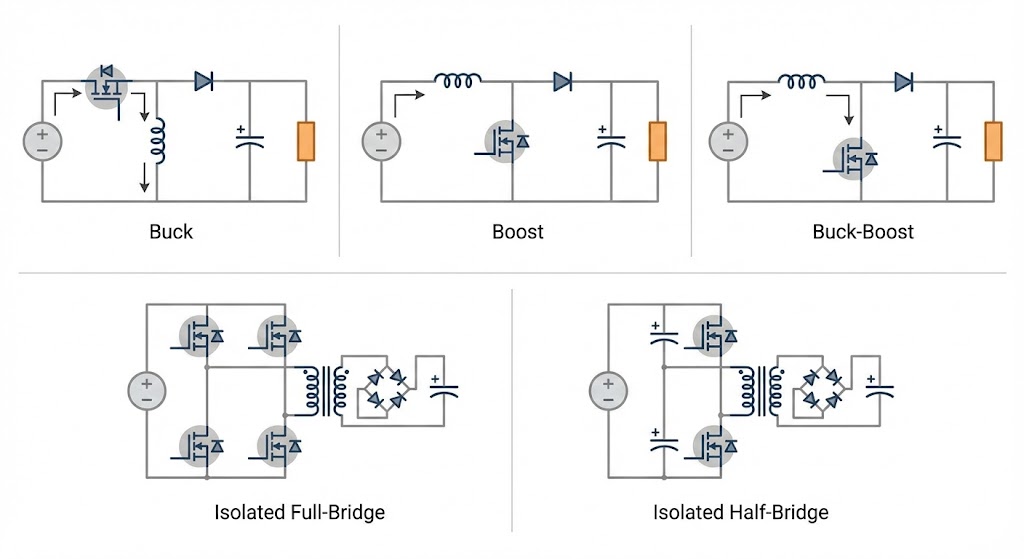

Classification by Topology:
Common topologies include buck (step-down) converters, boost (step-up) converters, buck-boost (step-up/down) converters, and various isolated topologies such as forward, flyback, push-pull, half-bridge, and full-bridge converters. Electric vehicles typically employ full-bridge or half-bridge isolated topologies because these structures provide excellent efficiency and reliability at high power levels.
Classification by Power Rating:
Low-power DC/DC converters (1-3kW) are suitable for conventional electric vehicles with traditional 12V systems; medium-power converters (3-5kW) are used in premium vehicles equipped with more electrical devices; high-power converters (5kW and above) are applied in commercial electric vehicles or vehicles with 48V systems.-27.jpg?w=1024&h=559)
Key Technical Parameters of DC/DC Converters
When selecting or evaluating a DC/DC converter, several key technical parameters require attention:
Input Voltage Range: This is the range of high-voltage input that the converter can accept, which must cover the voltage variations of the traction battery under various operating conditions, typically 250V-450V (for 400V systems) or 500V-900V (for 800V systems).
Output Voltage and Current: Standard 12V systems typically require an output voltage of 13.5V-14.5V to charge the 12V auxiliary battery. The output current capability determines the maximum load the converter can support, typically ranging from 100A to 300A.
Conversion Efficiency: This is the ratio of output power to input power. High efficiency means less energy waste and lower heat generation. Quality automotive DC/DC converters typically achieve efficiencies between 92%-96%.
Power Density: This represents the power output capability per unit volume or weight. Higher power density means more compact and lightweight design, which is very important for vehicles where both space and weight are precious resources.
Operating Temperature Range: Automotive-grade DC/DC converters must operate reliably within a temperature range of -40°C to +85°C or even wider to cope with various extreme climate conditions.
Electromagnetic Compatibility (EMC): The switching operation of the converter generates electromagnetic interference and must comply with strict automotive electromagnetic compatibility standards to avoid interfering with onboard communication systems, audio systems, and other sensitive electronic equipment.
Reliability and Service Life: Automotive-grade components typically require a service life of at least 15 years or 200,000 kilometers. DC/DC converters must undergo rigorous reliability testing and validation.
The Role of DC/DC Converters in Electric Vehicle Systems
DC/DC converters perform multiple critical functions in electric vehicles:
Powering the Low-Voltage System: This is its most fundamental function. The converter continuously provides stable power to all 12V electrical devices, including lighting systems, infotainment systems, instrument clusters, sensors, and control units.
Charging the Low-Voltage Auxiliary Battery: During vehicle operation, the DC/DC converter constantly charges the 12V auxiliary battery, maintaining it in good condition. This is particularly important because even when the vehicle is off, many systems still require power from the 12V battery, such as security systems and remote unlocking systems.
Supporting Vehicle Start-Up: When the driver starts the vehicle, the high-voltage system needs to be awakened and various control units initialized. The DC/DC converter ensures adequate low-voltage power supply during this process.
Emergency Power Supply: In certain fault situations, such as problems with the high-voltage system, the fully charged 12V auxiliary battery combined with the DC/DC converter can provide emergency power to critical safety systems.
Energy Management Optimization: Advanced DC/DC converters are equipped with intelligent control systems that can dynamically adjust output power based on load demand, maximizing overall vehicle energy efficiency while ensuring power supply.
Future Development Trends
As electric vehicle technology continues to advance, DC/DC converters are also evolving:
Bidirectional Power Flow: Traditional DC/DC converters can only transfer energy unidirectionally from high voltage to low voltage. Future bidirectional DC/DC converters will allow energy to flow in both directions, which is valuable in certain application scenarios, such as using the 12V auxiliary battery to provide temporary auxiliary power to the high-voltage system.
Higher Power Density: By adopting new semiconductor materials such as silicon carbide (SiC), along with advanced cooling and packaging technologies, future DC/DC converters will achieve smaller size, lighter weight, and higher power output.
Integrated Design: To simplify the vehicle's electrical architecture, DC/DC converters may be integrated with onboard chargers, motor controllers, and other components to form highly integrated power electronics modules.
Adaptation to 800V Architecture: As more electric vehicles adopt 800V high-voltage platforms to achieve faster charging and higher efficiency, DC/DC converters must be upgraded accordingly to handle higher input voltages.
Intelligence and Connectivity: Future DC/DC converters will be equipped with more powerful communication and diagnostic functions, enabling deep integration with vehicle control systems to achieve predictive maintenance and remote fault diagnosis.
Thermal Management Considerations
One often underappreciated aspect of DC/DC converter design is thermal management. Despite high conversion efficiencies, these devices still generate significant heat, especially when operating at maximum power. At 95% efficiency with a 3kW converter, 150W of heat must be dissipated.
Modern automotive DC/DC converters employ sophisticated cooling strategies, including liquid cooling integrated with the vehicle's thermal management system, forced air cooling using dedicated fans, or advanced heat sink designs with high-efficiency thermal interface materials. Proper thermal management is essential not only for maintaining efficiency and reliability but also for ensuring the longevity of semiconductor components, which can degrade rapidly when exposed to excessive temperatures.
Integration with Vehicle Architecture
The DC/DC converter doesn't operate in isolation but is deeply integrated into the vehicle's overall electrical architecture. It communicates with the Battery Management System (BMS) to understand the state of charge and health of the high-voltage battery, coordinating with the Vehicle Control Unit (VCU) to manage power distribution priorities during different driving modes.
For example, during regenerative braking, the converter may reduce its output as the motor controller feeds energy back into the high-voltage battery. During rapid acceleration, it ensures the low-voltage system remains stable despite the heavy draw from the high-voltage system. This level of coordination requires sophisticated communication protocols, typically using CAN (Controller Area Network) or LIN (Local Interconnect Network) buses.
Safety Features and Protection Mechanisms
Automotive DC/DC converters incorporate multiple layers of safety protection to ensure reliable operation under all conditions. These include overvoltage protection to prevent damage from voltage spikes on either the high-voltage or low-voltage side, overcurrent protection to limit output current during short-circuit conditions, overtemperature protection that reduces output or shuts down the converter if internal temperatures exceed safe limits, and under-voltage lockout that prevents operation if the input voltage falls below minimum thresholds.
Additionally, isolation monitoring systems continuously verify the integrity of the electrical isolation between high-voltage and low-voltage sides. Any degradation in isolation resistance triggers warnings or protective shutdowns to prevent potential safety hazards. These protection mechanisms work together to create a robust and fail-safe system that protects both the vehicle and its occupants.
Cost Considerations and Market Trends
The cost of DC/DC converters has been steadily declining as production volumes increase and manufacturing processes improve. However, they still represent a significant portion of the vehicle's power electronics budget, typically ranging from several hundred to over a thousand dollars depending on power rating and features.
Manufacturers are pursuing cost reduction through various strategies, including component standardization across vehicle platforms, increased use of automotive-qualified commercial components rather than custom parts, and design optimization to minimize material usage while maintaining performance. As the EV market matures and economies of scale continue to improve, converter costs are expected to decrease further, making electric vehicles more accessible to mainstream consumers.
Environmental Impact and Sustainability
Beyond their operational role, DC/DC converters contribute to the overall environmental profile of electric vehicles. High-efficiency converters minimize energy waste, directly extending vehicle range and reducing the environmental impact of electricity generation. The use of recyclable materials in converter construction and the development of designs that facilitate end-of-life disassembly and material recovery are becoming increasingly important considerations.
Some manufacturers are also exploring the use of more environmentally friendly materials, such as lead-free solders and recyclable enclosures, as part of broader corporate sustainability initiatives. As environmental regulations become more stringent and consumer awareness grows, the sustainability credentials of components like DC/DC converters will likely become important differentiators in the market.
Conclusion
While the DC/DC converter may not be as prominent as batteries or motors, it is an indispensable core component in electric vehicle electrical systems. It quietly connects the high-voltage traction system and the low-voltage auxiliary system, ensuring that every electrical device in the vehicle receives stable and reliable power. Understanding the working principles and importance of DC/DC converters helps us gain a more comprehensive understanding of electric vehicle technology architecture and enables more informed decisions when purchasing and using electric vehicles.
As electric vehicle technology continues to mature and the market expands, DC/DC converter technology will continue to advance, providing more efficient, reliable, and intelligent power solutions for electric vehicles, driving the entire industry toward a more environmentally friendly and sustainable future. For AC customers and industry professionals, staying informed about these developments is essential for making strategic decisions in this rapidly evolving market.
The DC/DC converter represents a perfect example of how seemingly simple components play vital roles in complex systems. Its evolution from basic power conversion to sophisticated, intelligent energy management reflects the broader transformation of the automotive industry. As we move toward an electrified transportation future, innovations in DC/DC converter technology will continue to enable new vehicle capabilities, improved efficiency, and enhanced user experiences.
