As electric vehicles (EVs) continue to become more popular worldwide, understanding how they are charged is essential. One of the most common questions new EV owners or those interested in EV technology ask is about the difference between AC and DC charging. While the terms might sound technical, the concepts behind them are accessible and play a critical role in how quickly and efficiently your EV battery charges. This article will explore the fundamental differences between Alternating Current (AC) and Direct Current (DC) charging for EVs, how each affects the charging process, and where each method fits best in everyday use..jpg?w=600&h=452)
Understanding the Basics of AC and DC Electricity in EV Charging
Electricity comes in two main types: alternating current (AC) and direct current (DC). The key difference lies in how electric charge flows. AC current continually reverses direction, switching back and forth in cycles. This is the kind of electricity supplied by power grids and used in homes and businesses around the world. It’s efficient for long-distance transmission because it can easily adjust voltage levels using transformers.
On the other hand, DC current flows in a single direction, steadily and consistently. Batteries, including those in electric vehicles, store and use electricity in DC form because it provides a stable flow of power.
When it comes to charging an electric vehicle, the battery inside can only store DC power. However, the electrical grid delivers power as AC. This means that somewhere in the charging process, AC electricity must be converted into DC before it can safely and effectively charge the EV battery..jpg?w=600&h=452)
AC Charging: How It Works and When It’s Best

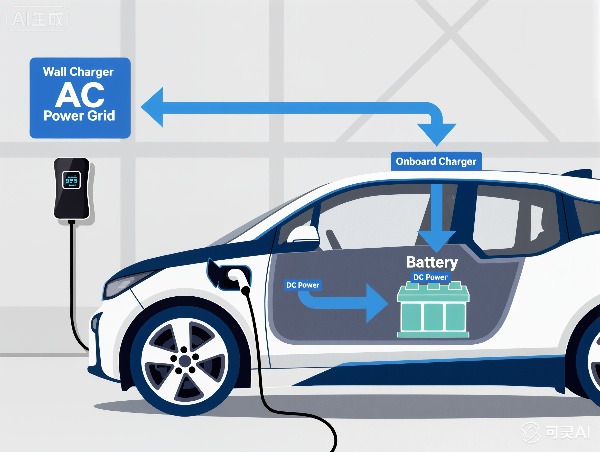

AC charging stations are the most common and widely used type of charging equipment. When an EV is plugged into an AC charger, alternating current from the grid flows into the computer systems inside the car, commonly called the onboard charger. This onboard charger then converts the AC electricity into DC electricity suitable for the battery.
Because the conversion happens inside the vehicle, the speed of AC charging depends significantly on the power of the onboard charger and the limits of electricity drawn from the outlet. For this reason, AC charging is generally slower compared to DC charging.
AC charging is ideal for home use, workplaces, or places where the vehicle can stay plugged in for longer periods—typically several hours or overnight. The slower charging speed is less of an issue in these settings, as the car has plenty of time to regain a full charge. It's also more affordable and easier to install compared to DC charging stations, which require complex infrastructure.
DC Charging: The Need for Speed
DC charging stations, often called fast chargers or rapid chargers, take a different approach. Instead of sending AC power into the vehicle and relying on the onboard charger to convert it, DC chargers contain powerful converters inside the charging station itself. These converters change AC power from the grid directly into DC power and then supply it straight to the vehicle's battery.
By bypassing the onboard charger, DC charging significantly speeds up the charging process. This method can add a significant amount of range to an EV in under an hour, making it perfect for public charging locations, highways, or situations where drivers need to recharge quickly to continue their journey.
However, this power and speed come at a cost. DC chargers are more expensive to install and maintain. They require high power supplies and sophisticated technology, making them less common in residential settings but essential for commercial charging networks and fast charging hubs.
Comparing AC and DC Charging: What Sets Them Apart?
| Feature | AC Charging | DC Charging |
|---|---|---|
| Type of Current | Alternating Current from the grid | Converted Direct Current from charger |
| Conversion Location | Inside the vehicle (onboard charger) | Inside the charging station |
| Charging Speed | Slower (hours to fully charge) | Faster (minutes to an hour) |
| Power Requirements | Lower—compatible with typical residential supply | Higher power supply needed |
| Installation Complexity | Simpler and less costly | Complex and more expensive |
| Common Use | Home, workplace, overnight charging | Public fast charging, highway rest stops |
| Impact on Battery Health | Generally gentler due to slower charge rates | Higher rates but designed for rapid top-ups |
Practical Considerations for EV Owners
Choosing between AC and DC charging isn’t always a question of which is better but rather what fits the situation best. Most EV owners will use AC chargers the majority of the time because these are abundant at homes and workplaces, and the vehicle’s onboard charger manages the conversion effectively. Overnight charging at home via AC power is convenient and sufficient for many daily driving needs.
DC fast chargers, meanwhile, serve a complementary role—providing a quick charge when time is limited. For example, when taking long trips or needing a rapid recharge between errands, DC charging stations help minimize downtime.
EV manufacturers also tailor their vehicles’ onboard chargers and battery management systems based on expected usage patterns. Some vehicles support higher power AC charging, reducing charge times at home, while others optimize rapid DC charging capability for highway travel.
The Future of EV Charging
EV technology is evolving, and so are charging methods. Advances in onboard chargers are enabling faster AC charging, and improvements in DC charger networks continue to spread, becoming more affordable and accessible. Wireless charging, vehicle-to-grid integration, and ultra-fast charging stations may also change how we think about powering electric vehicles.
Understanding the technical differences between AC and DC charging helps EV owners make informed choices about how, when, and where to charge their vehicles for maximum convenience and battery longevity.
In summary, AC charging uses alternating current supplied from the grid and converts it inside the vehicle, making it slower but simpler and cost-effective for everyday use. DC charging converts power outside the vehicle, delivering direct current straight to the battery for fast charging but requiring more complex and expensive infrastructure. Both have crucial roles to play in the growing electric vehicle ecosystem, complementing each other to meet different driving and charging needs.
