Main Features

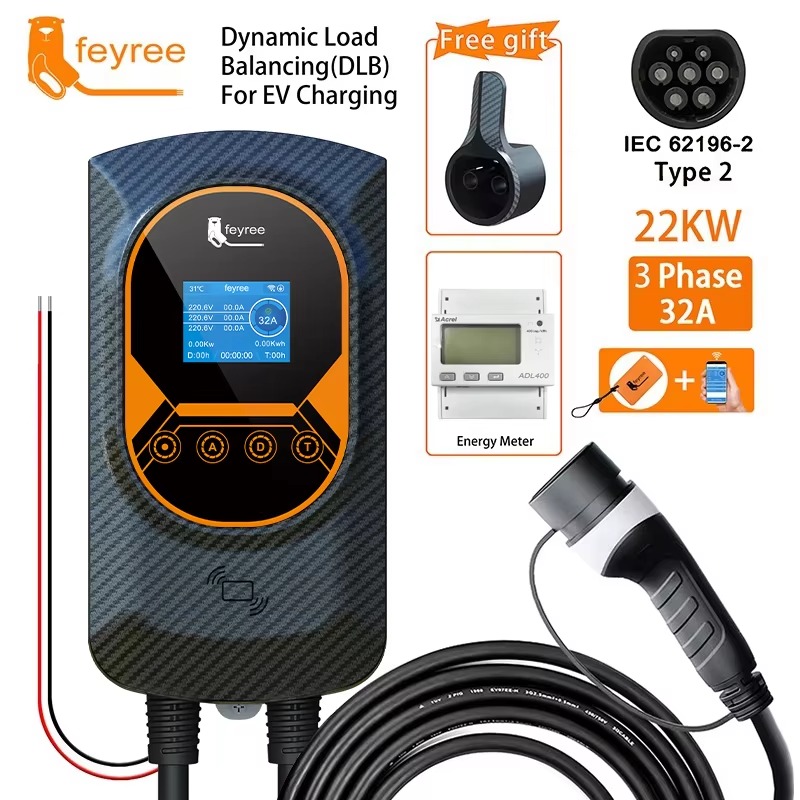

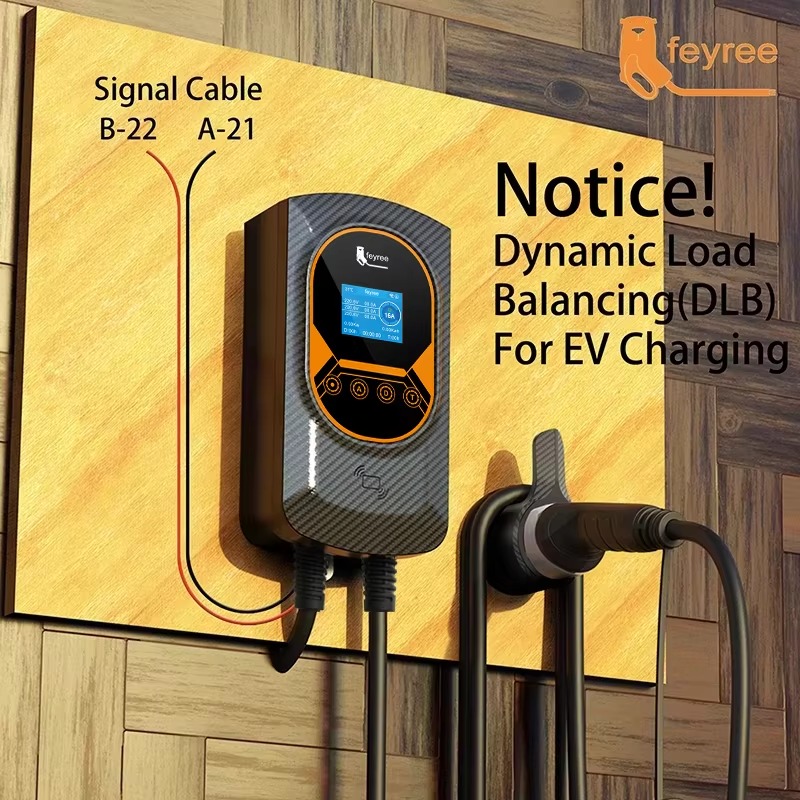

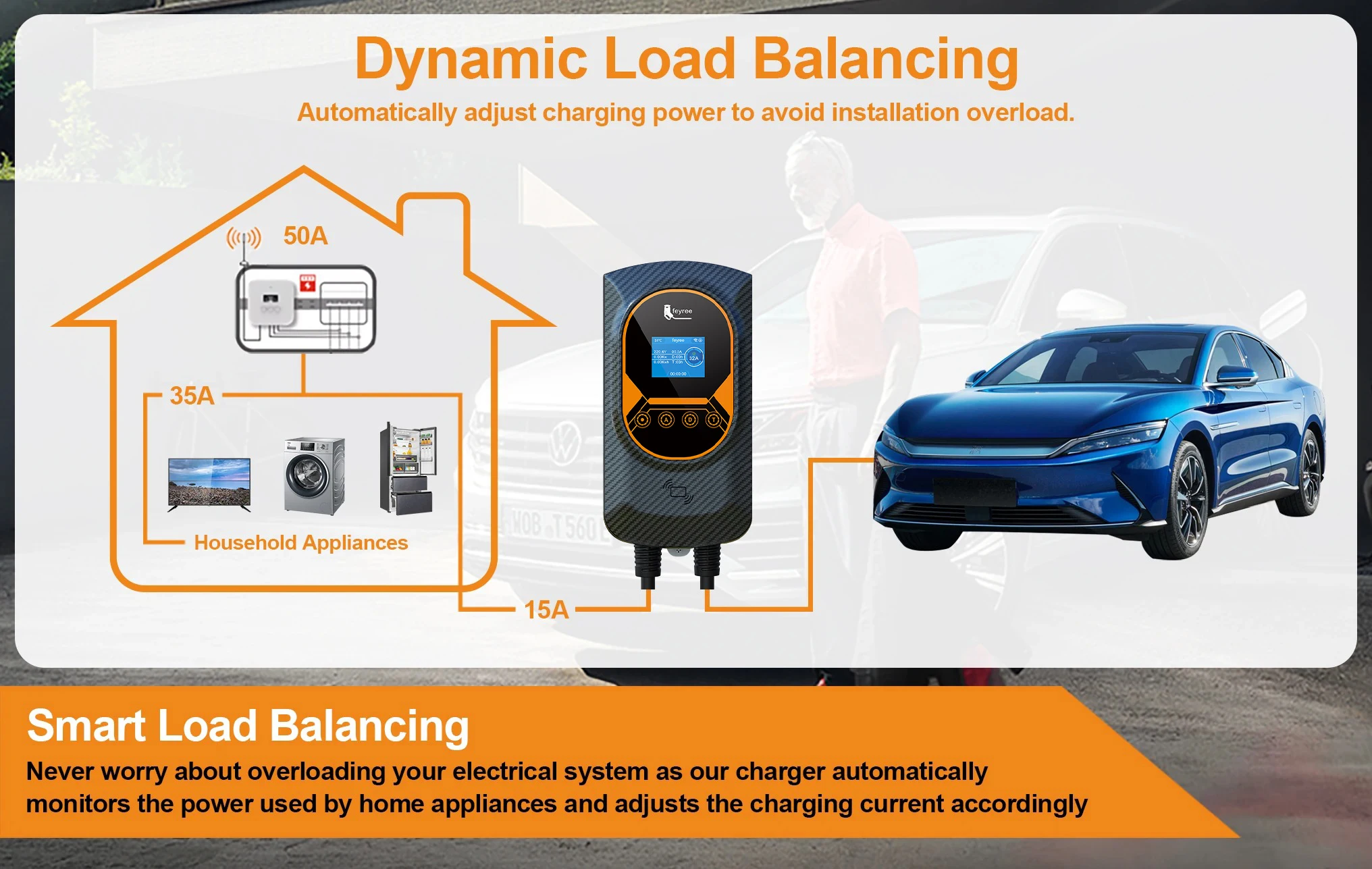

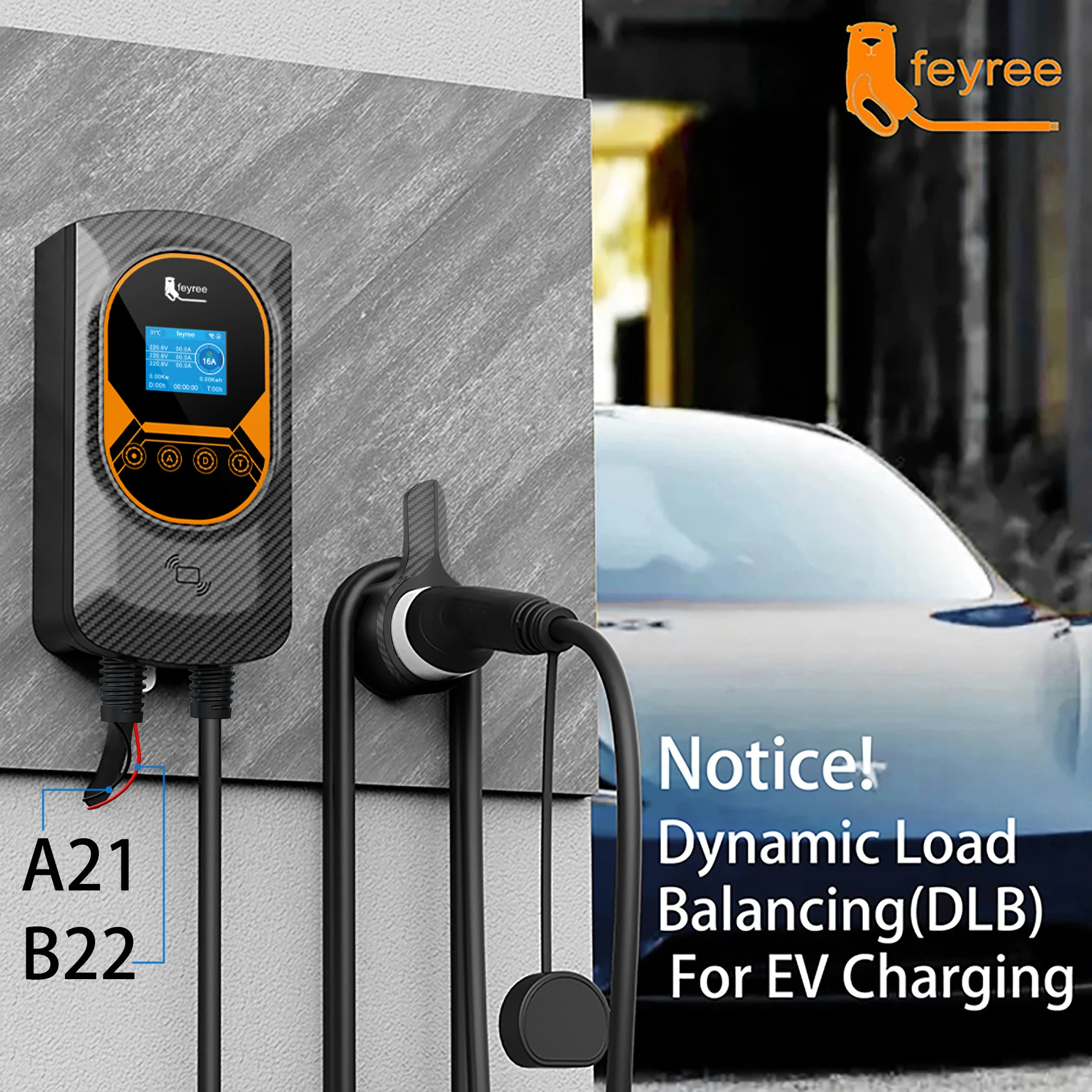

Dynamic Load Balancing Function (DLB)
It is a smart solution that allows you to safely balance the power consumption between your electric vehicle and your other electrical home appliances. The remaining available energy will be used to charge your car in the most efficient way.
- Automatically adjusts charging current to prevent overload
- Prevents network overload and electrical issues
- Maximizes charging speed while protecting your home circuit
- Saves installation cost of upgrading electrical infrastructure
- Real-time power monitoring and adjustment

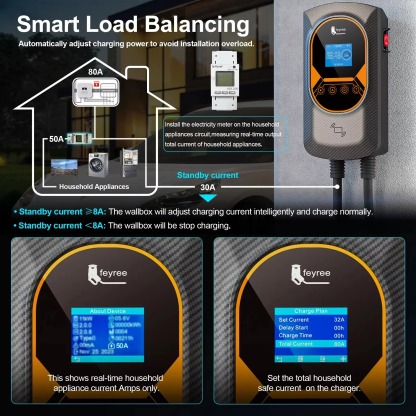

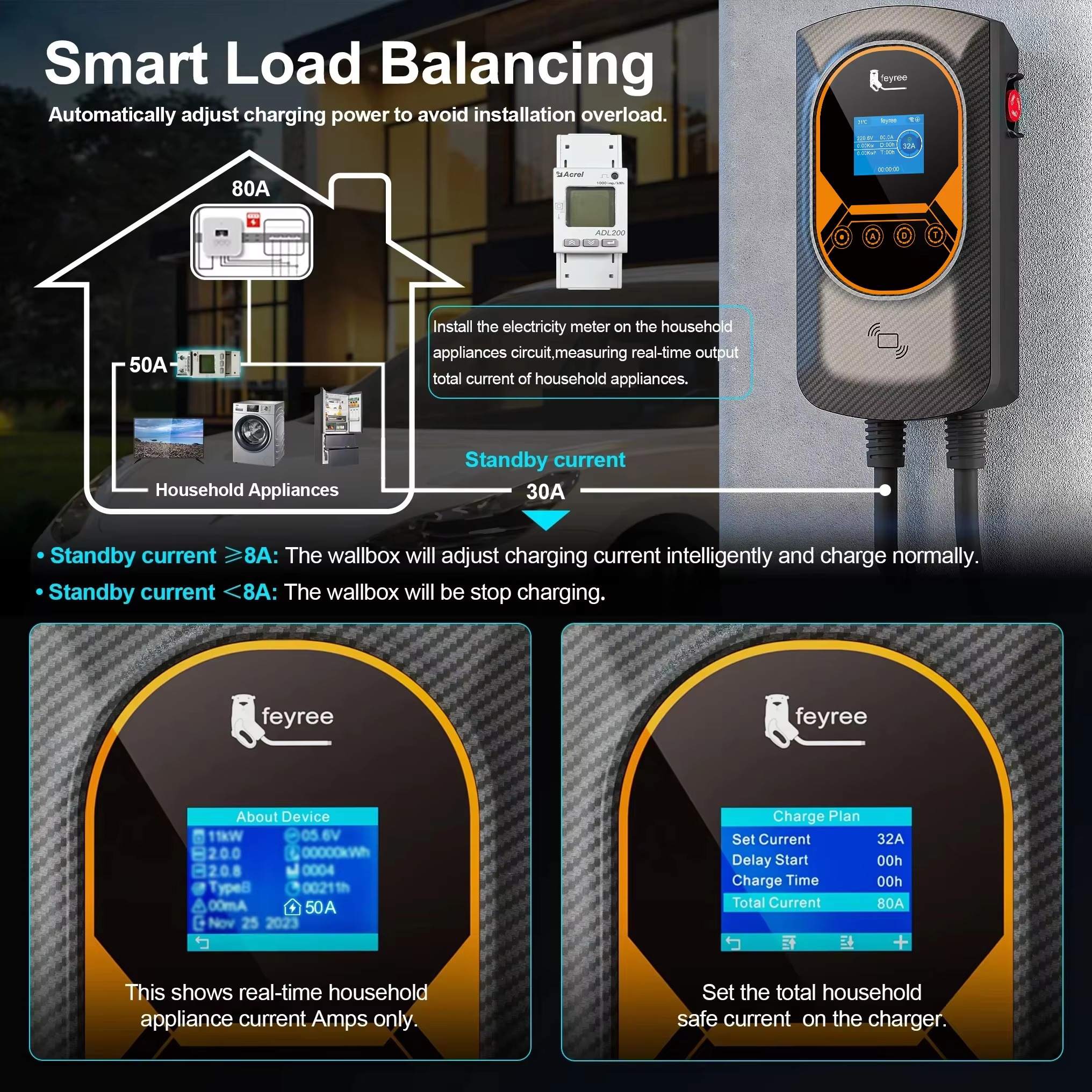

3 Dynamic Load Balancing Strategies
Standby Current refers to the remaining electrical capacity available for the EV charger after household appliances have used their share. It is calculated by subtracting real-time appliance usage from the home's total current limit, acting as a buffer to ensure the charger never overloads your circuit.
- Limited Charging: When the available standby current is between 8A and the set limit, the charger automatically reduces its power to match the remaining capacity.
- Full Power Charging: If standby current is sufficient, the charger operates at its maximum rated speed (32A for 7kW/22kW or 16A for 11kW) without restrictions.
- Charging Suspended: When the available standby current drops below 8A, the charger stops immediately and issues a warning to prevent a circuit overload.

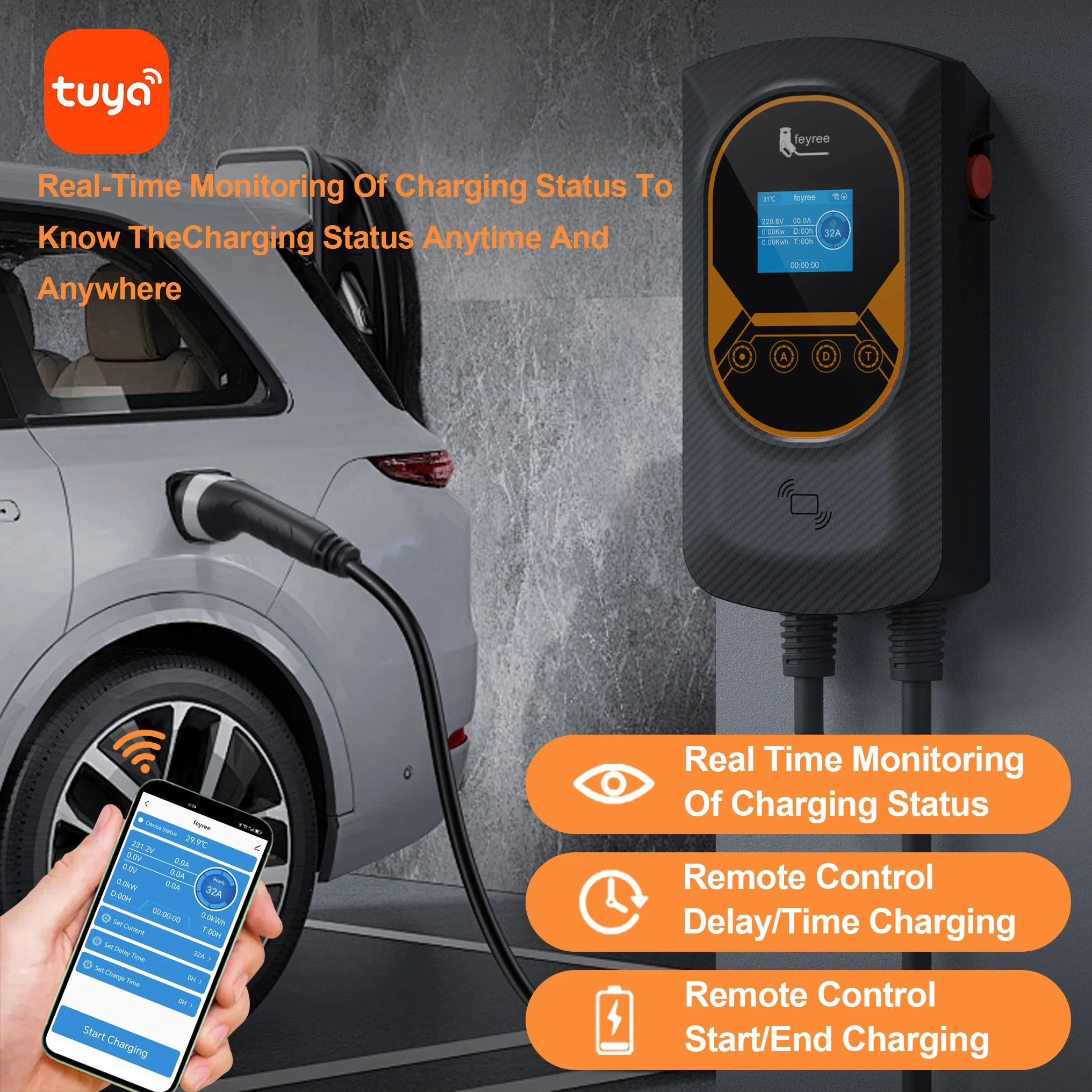

Remote Control via APP
Via the app, you can control the wallbox/charging station in the easiest and most effective way. The mobile application is free and can be accessed via the App Store and Google Play, valid for Android and iOS.
- Monitor charging status in real-time
- Start or stop charging process remotely
- Determine charging power or current
- Schedule charging for off-peak hours
- Compatible with Tuya Smart APP

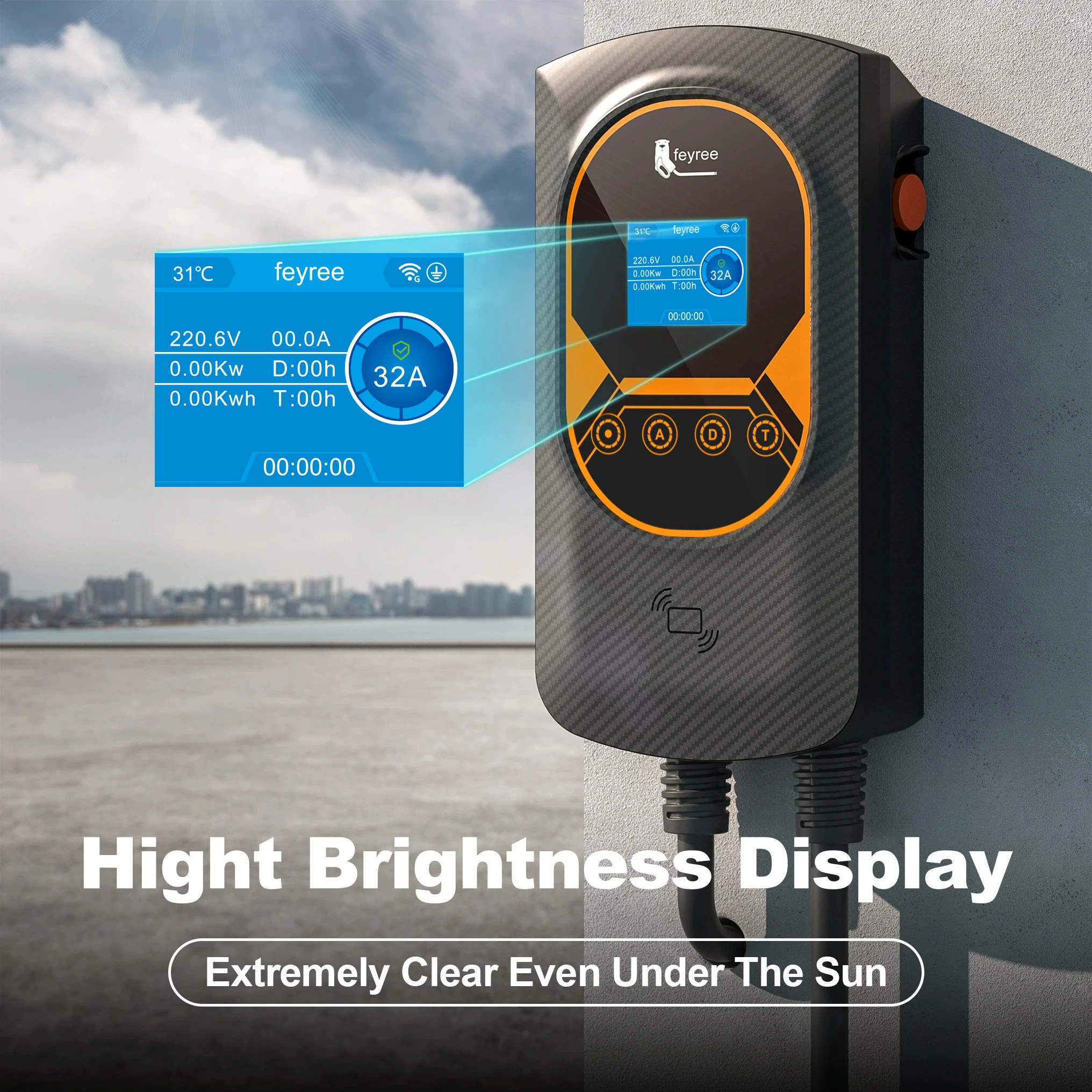

Large Screen and High Compatibility

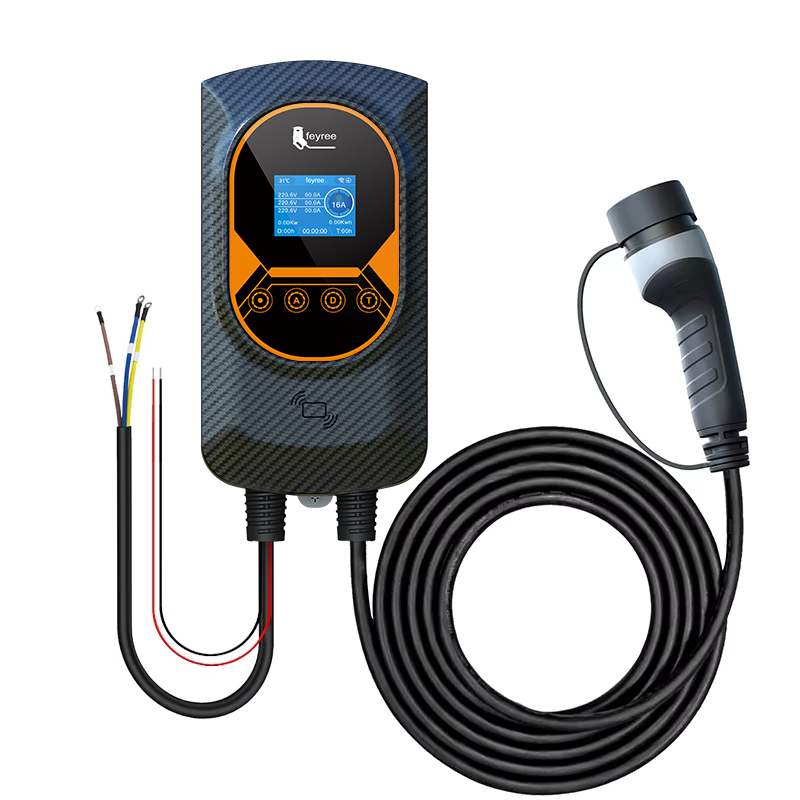

Screen showing charging current, charging voltage and temperature. The charging station also has a 5m charging cable and is equipped with a Type 2 plug (IEC62196-2).
- 2.8-inch high brightness LCD display
- Clear visibility even under direct sunlight
- Real-time display of voltage, current, and temperature
- 5-meter charging cable for flexible positioning
- Type 2 connector for universal compatibility
Easy Installation
Practical and intuitive wallbox/charging station for electric vehicles and plug-in hybrids, suitable for indoor and outdoor use thanks to IP66 certification (garage, carport).

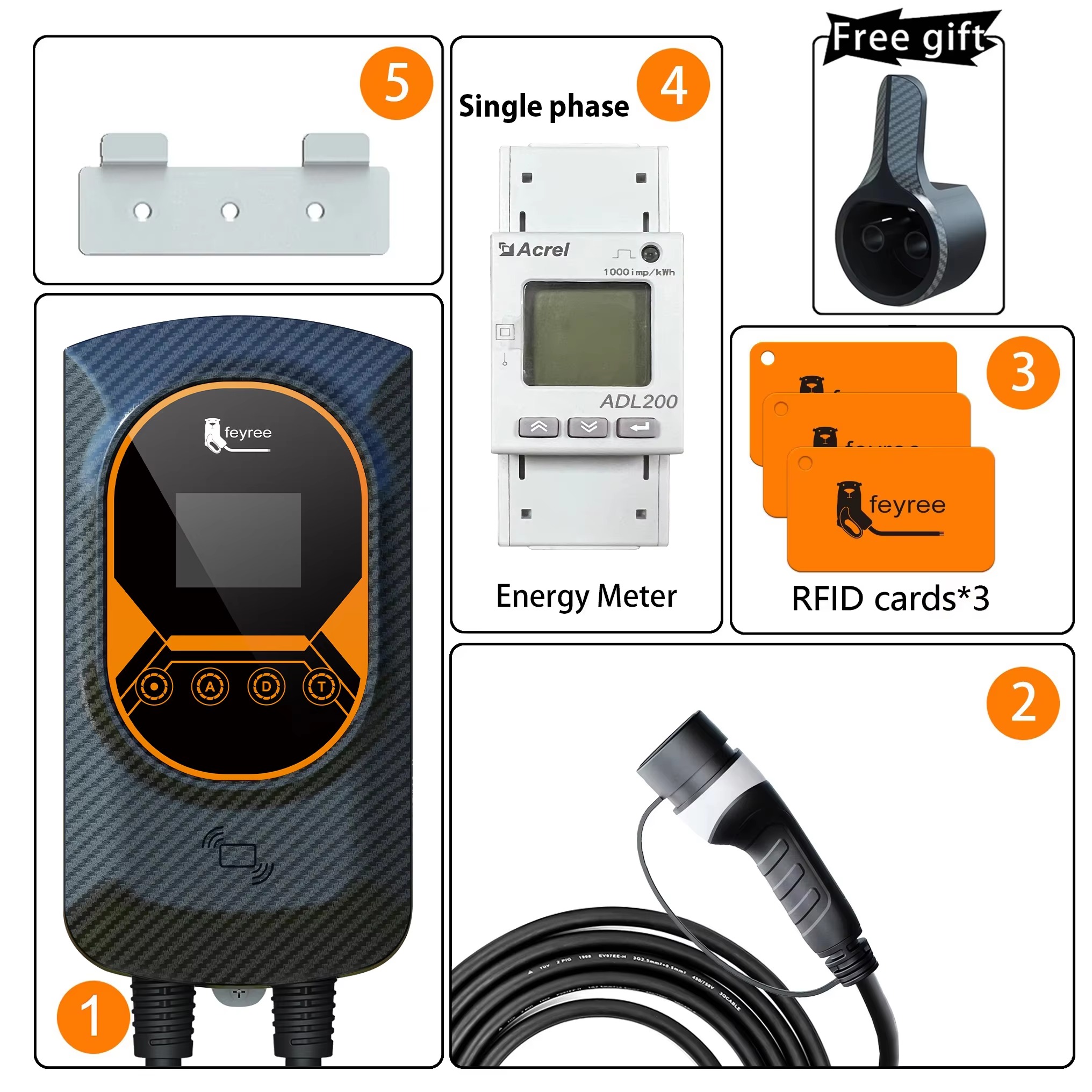

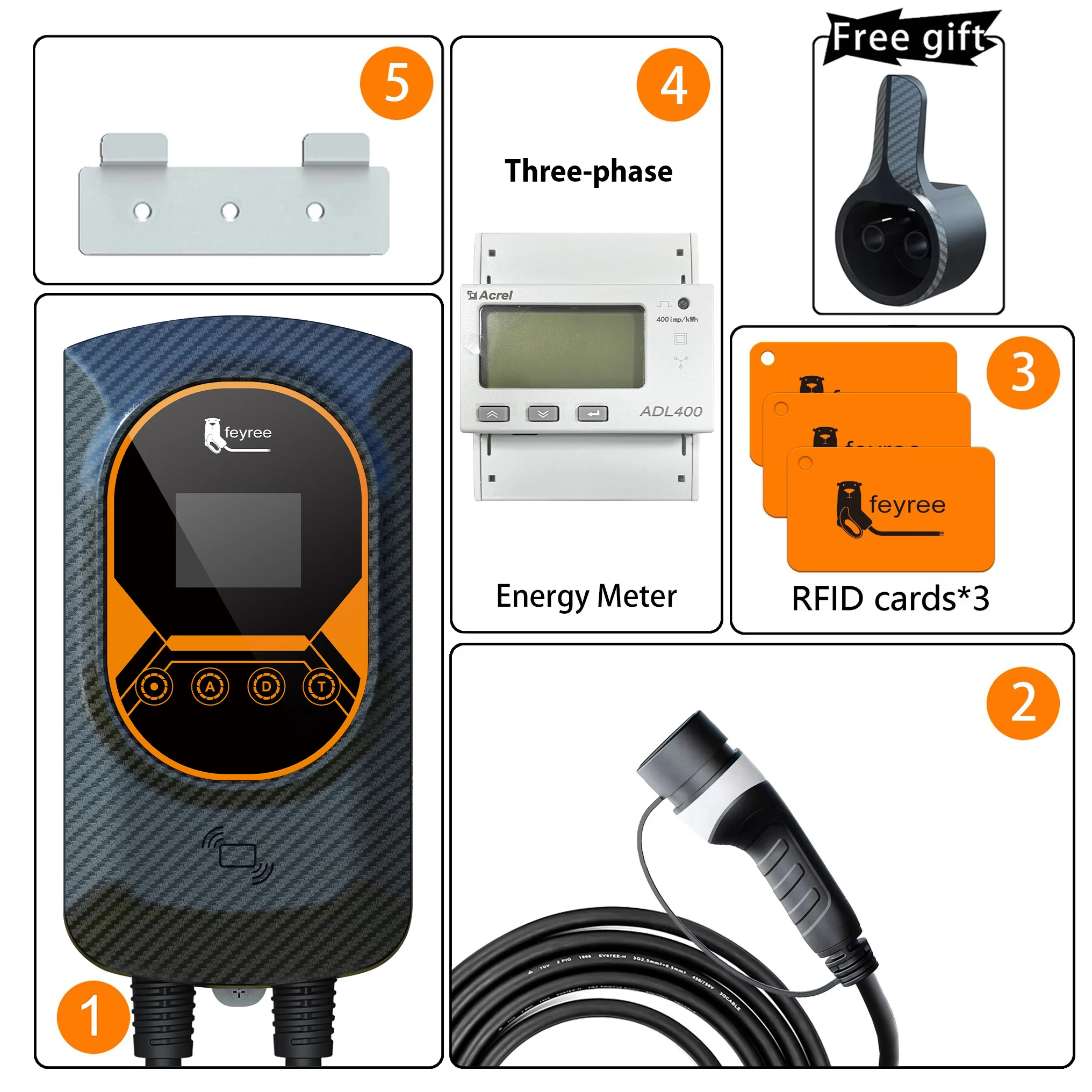

- Complete kit with all mounting accessories
- Three RFID cards included for access control
- Single-Phase & Three-Phase Energy Meter
- Mounting bracket and cable holder included
- Compatible with all household installations
- Works with all Type 2 electric vehicles

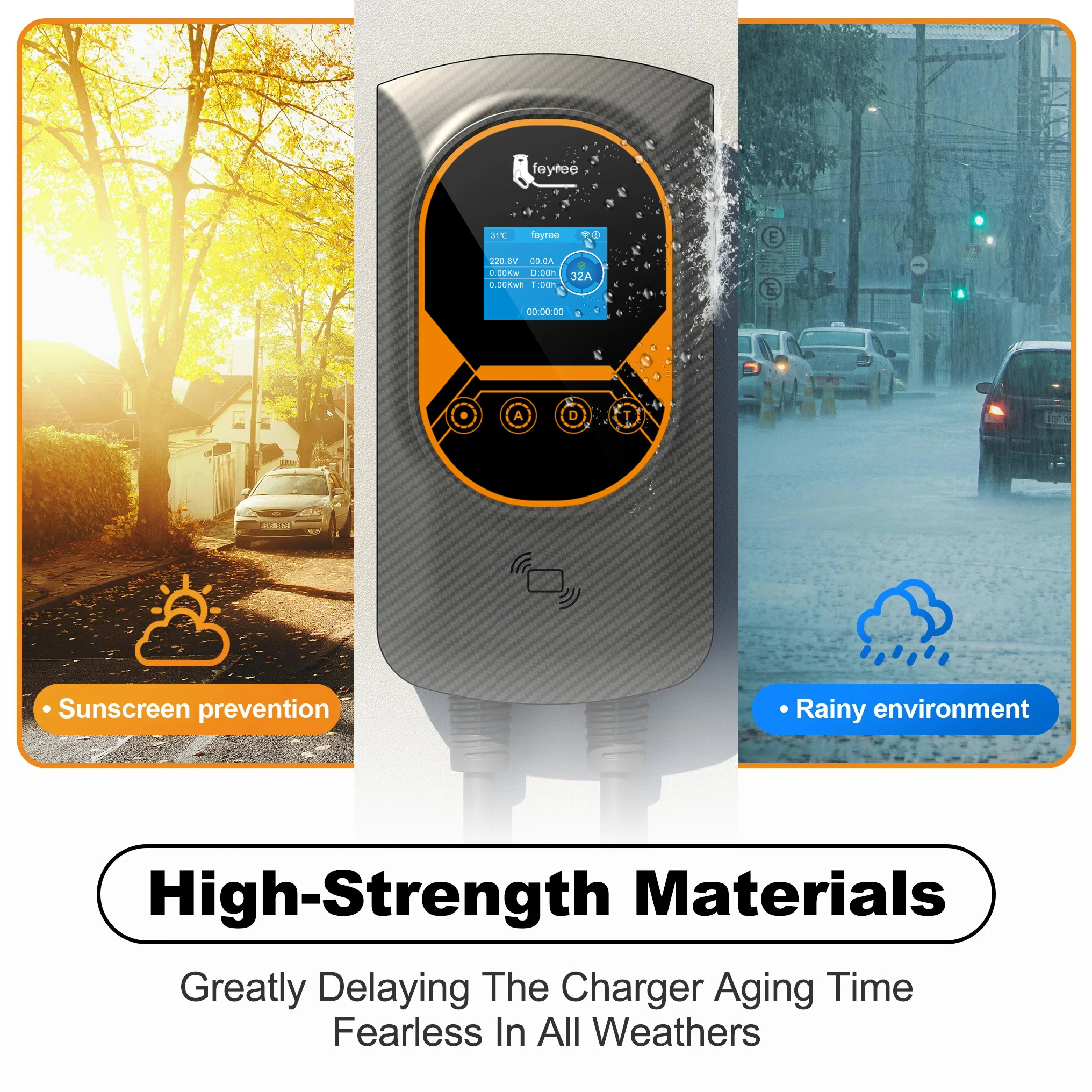

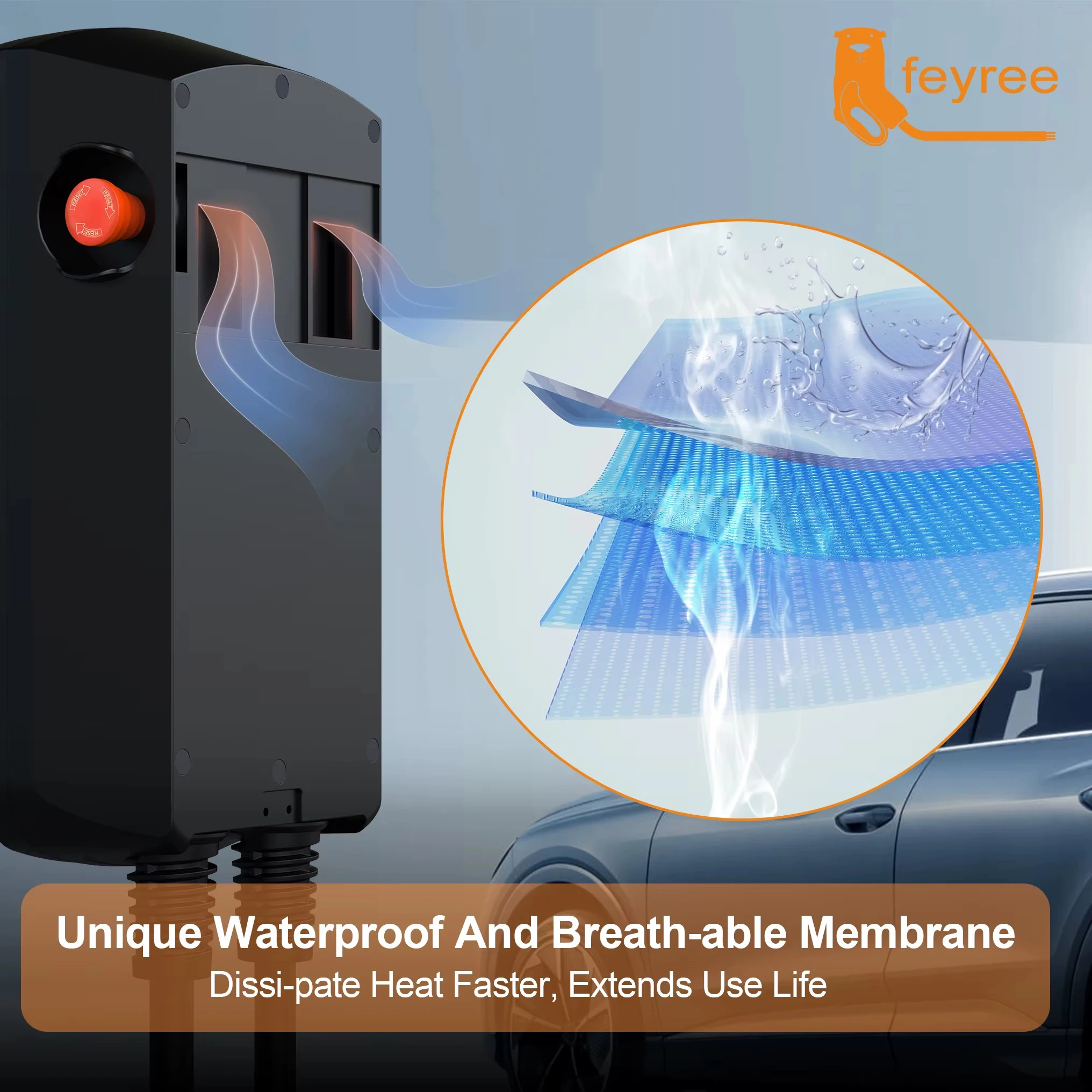

Weather and Heat Resistant
The connectors on both ends of the cable have achieved the effect of heat and drop resistance. High-quality cable provides good electrical conductivity and faster transmission speed, avoiding safety risks.
- IP66 protection against dust, rain and wind
- Operating temperature: -30°C to 55°C
- UV-resistant materials for sunscreen protection
- Waterproof design for outdoor installation
- Heat-resistant connectors and cables
- Safe long-term outdoor charging guaranteed

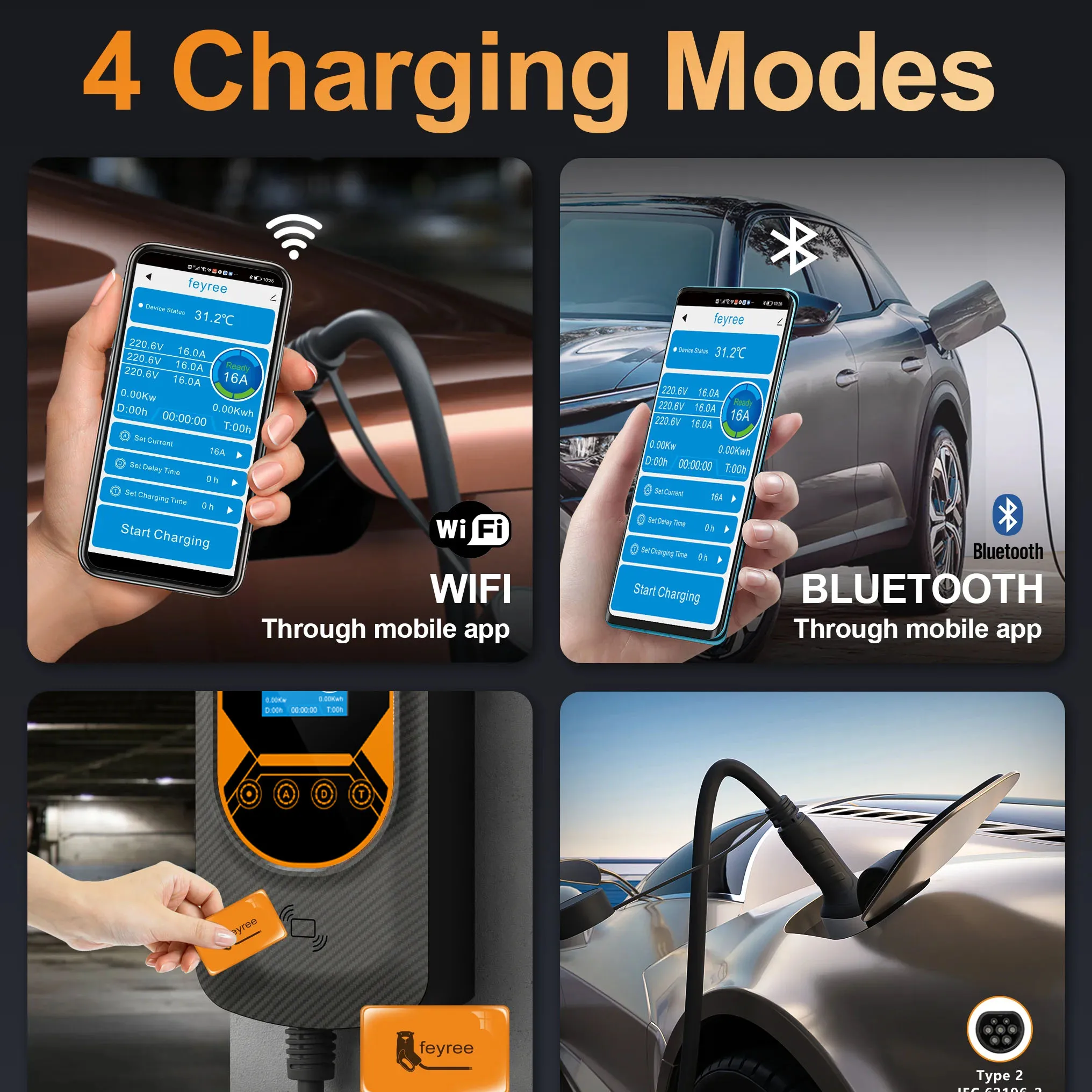

Multiple Charging Modes
Support Tuya APP wireless connection with mobile phone remote control. Flexible charging options to suit different user preferences.
- WiFi control through smart app
- Bluetooth connection (within 10 meters)
- RFID card access for security
- Direct Plug & Charge option

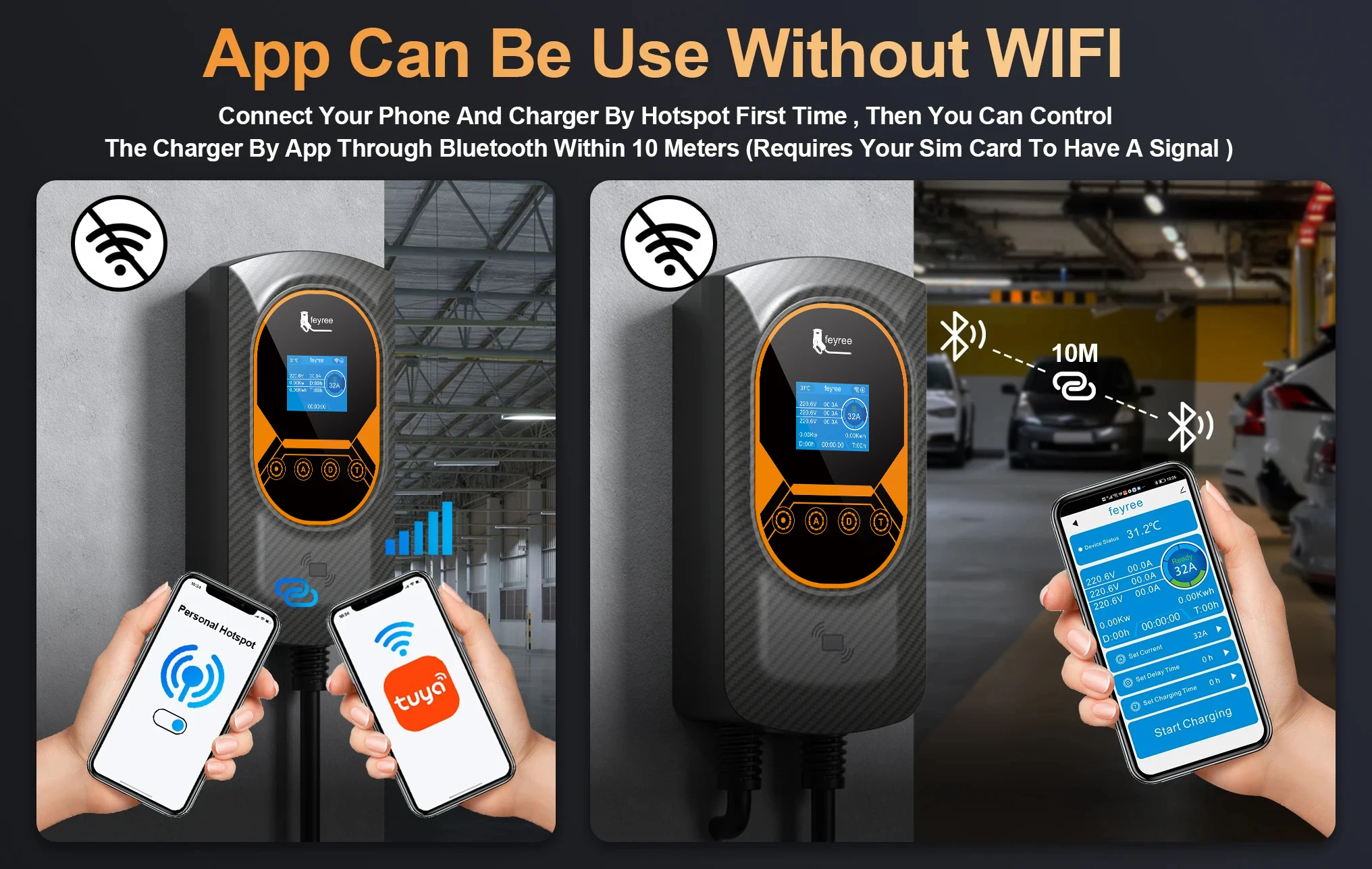

Flexible Connectivity: App Control Without WiFi
Enables full App control via Personal Hotspot and Bluetooth when standard WiFi is unavailable.
- Hotspot Initialization: Connect phone and charger via Personal Hotspot for initial setup
- Bluetooth Control: Supports direct control via Bluetooth after initial pairing.
- 10-Meter Range: Effective Bluetooth control range within 10 meters.
- Tuya Smart App: Uses the Tuya App for management even in non-networked environments (once paired).

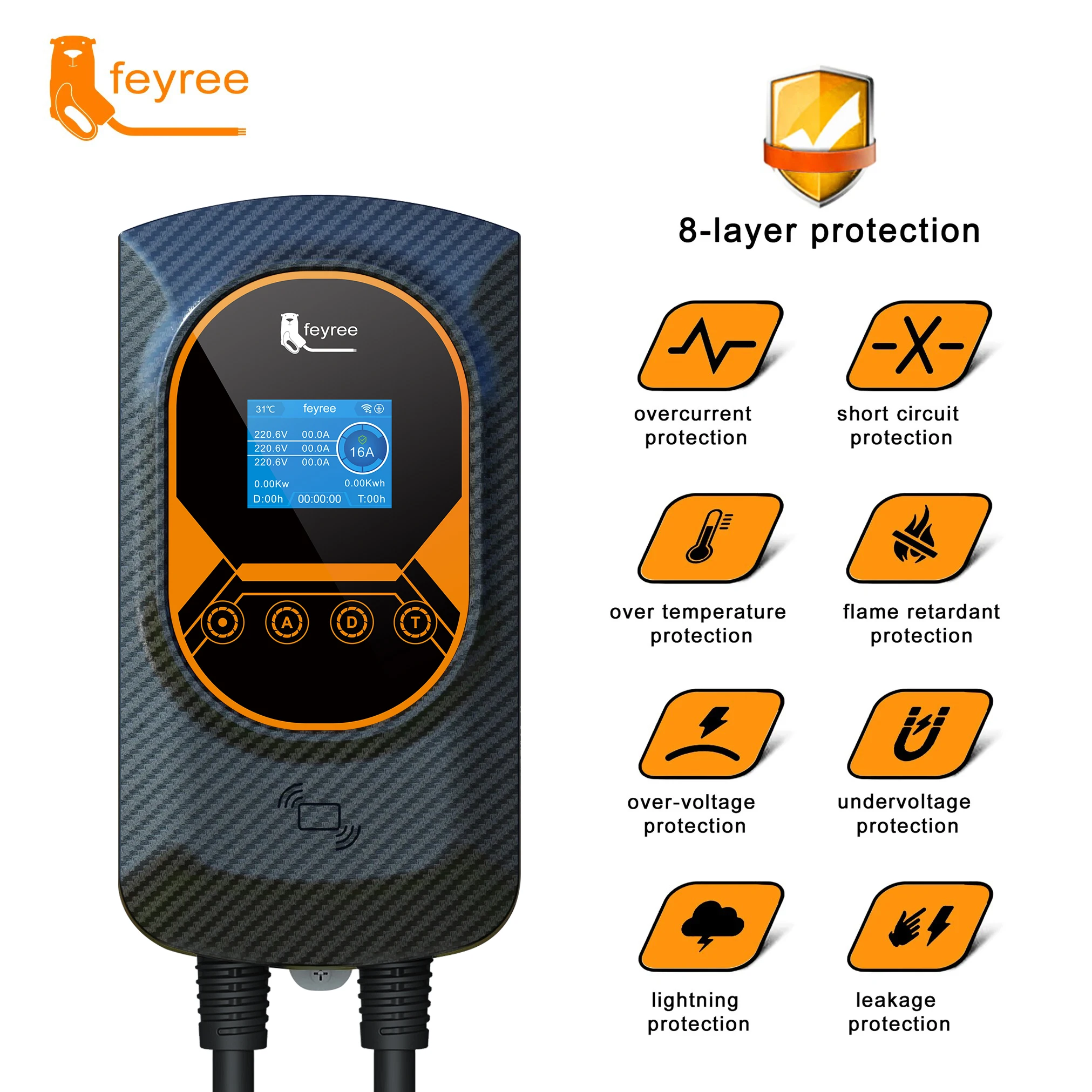

Comprehensive Safety Protection
8-layer protection system ensures maximum safety during charging. All protection features meet international safety standards.
- Leakage protection (restart recover)
- Over-voltage and under-voltage protection
- Lightning protection
- Over-current protection

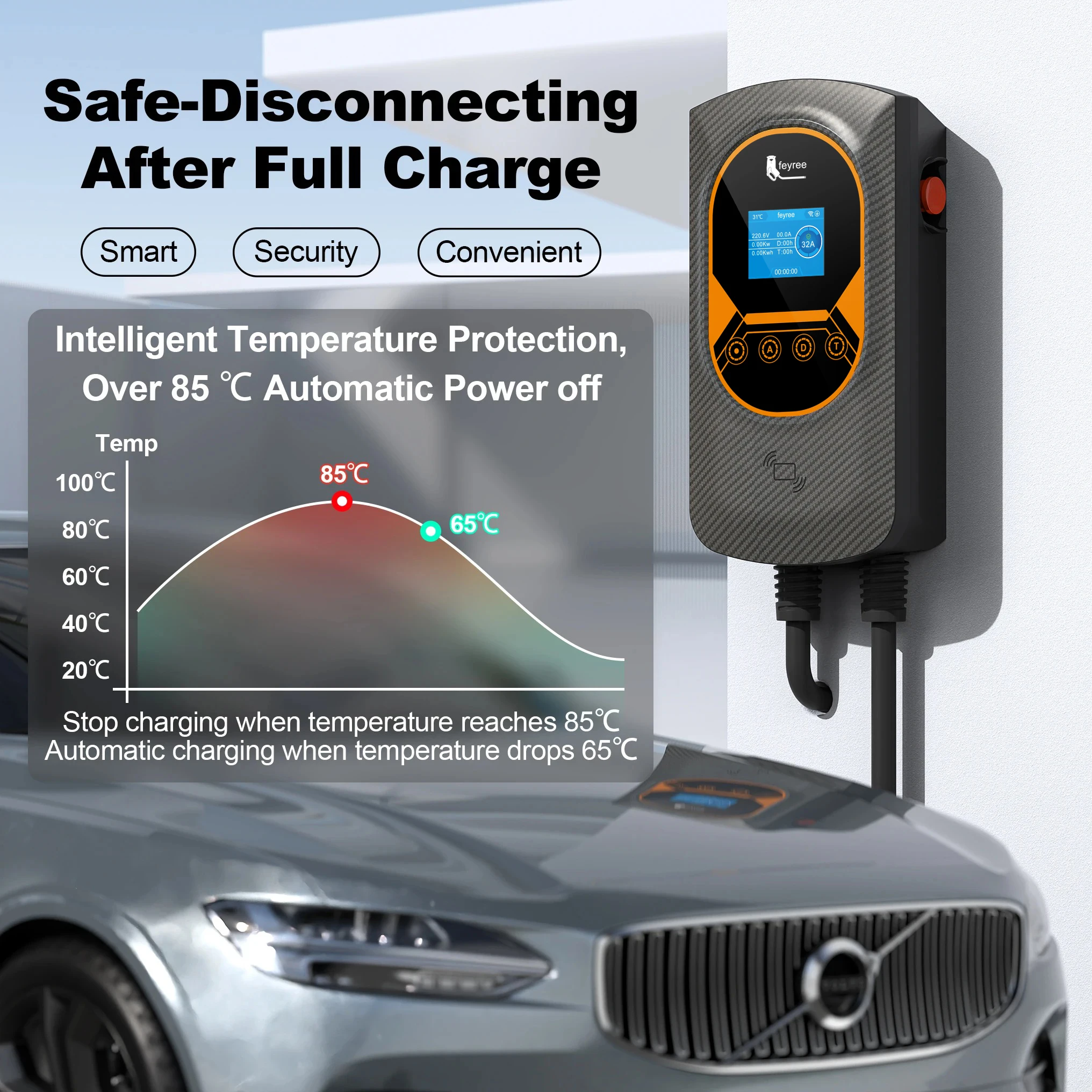

- Overheat protection with auto power reduction
- Ground protection
- Short circuit protection
- Flame retardant materials (UL94V-0)

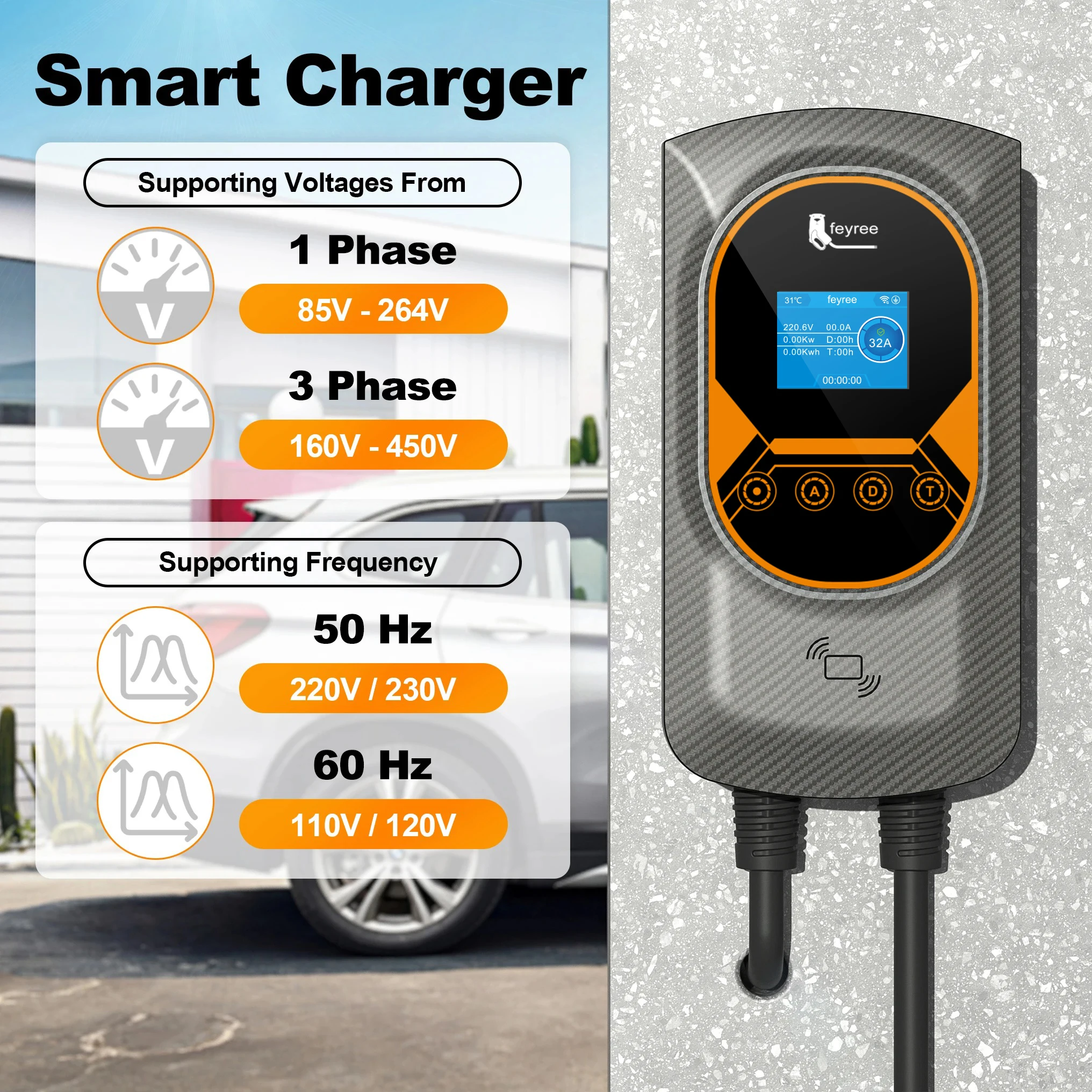

Global Voltage Compatibility
Feyree smart EV charger supporting wide voltage range for international use. Compatible with various power systems worldwide.
- Single-phase: 85V-264V AC support
- Three-phase: 160V-450V AC support
- 50Hz frequency (220V/230V) compatible
- 60Hz frequency (110V/120V) compatible
- Adjustable current: 8A/10A/13A/16A/20A/25A/32A
- Suitable for use in different countries

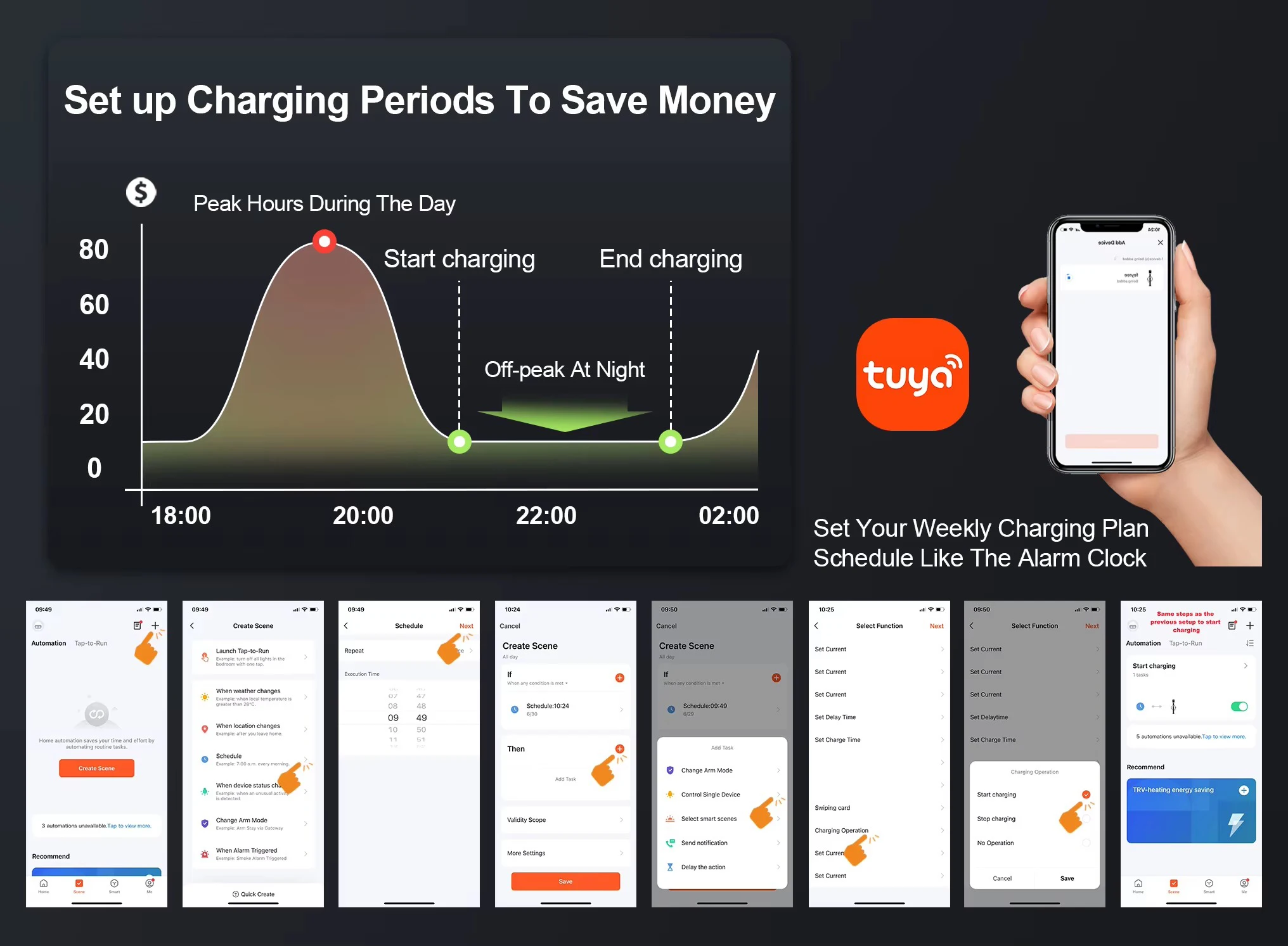

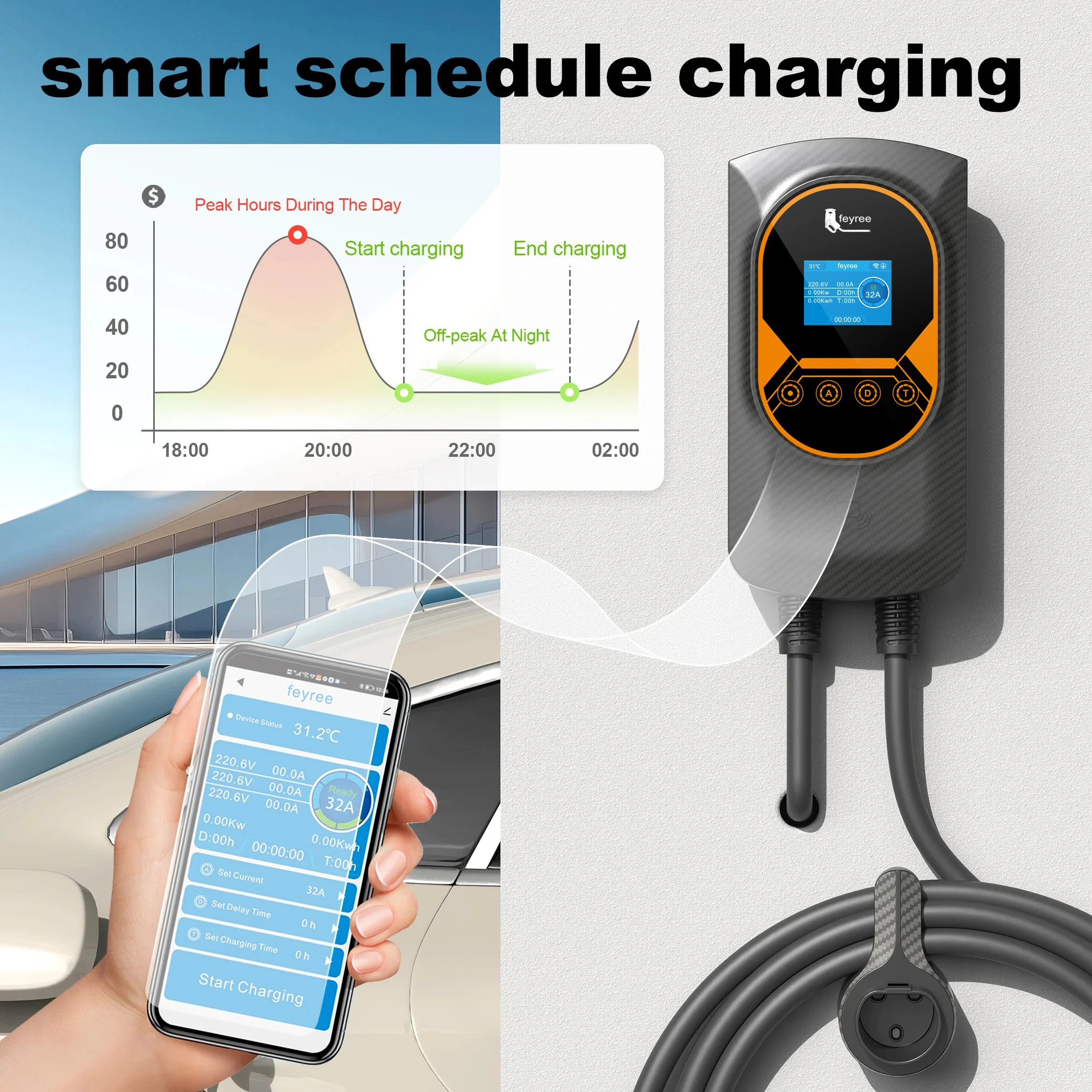

Smart Charging Scheduling for Cost Saving
Supports intelligent charging planning via the Tuya App, allowing users to schedule charging during off-peak hours to significantly reduce energy costs.
- Off-peak Charging: Automatically avoids daytime peak hours, utilizing low electricity rates at night
- Custom Schedule: Set start and end charging times easily, operating as simply as an alarm clock.
- Weekly Plan: Supports recurring weekly charging plans for automated convenience.
- App Integration: Full control via Tuya Smart App for creating scenes and automation tasks.
- Cost Efficient: Maximizes electricity bill savings by optimizing charging periods.

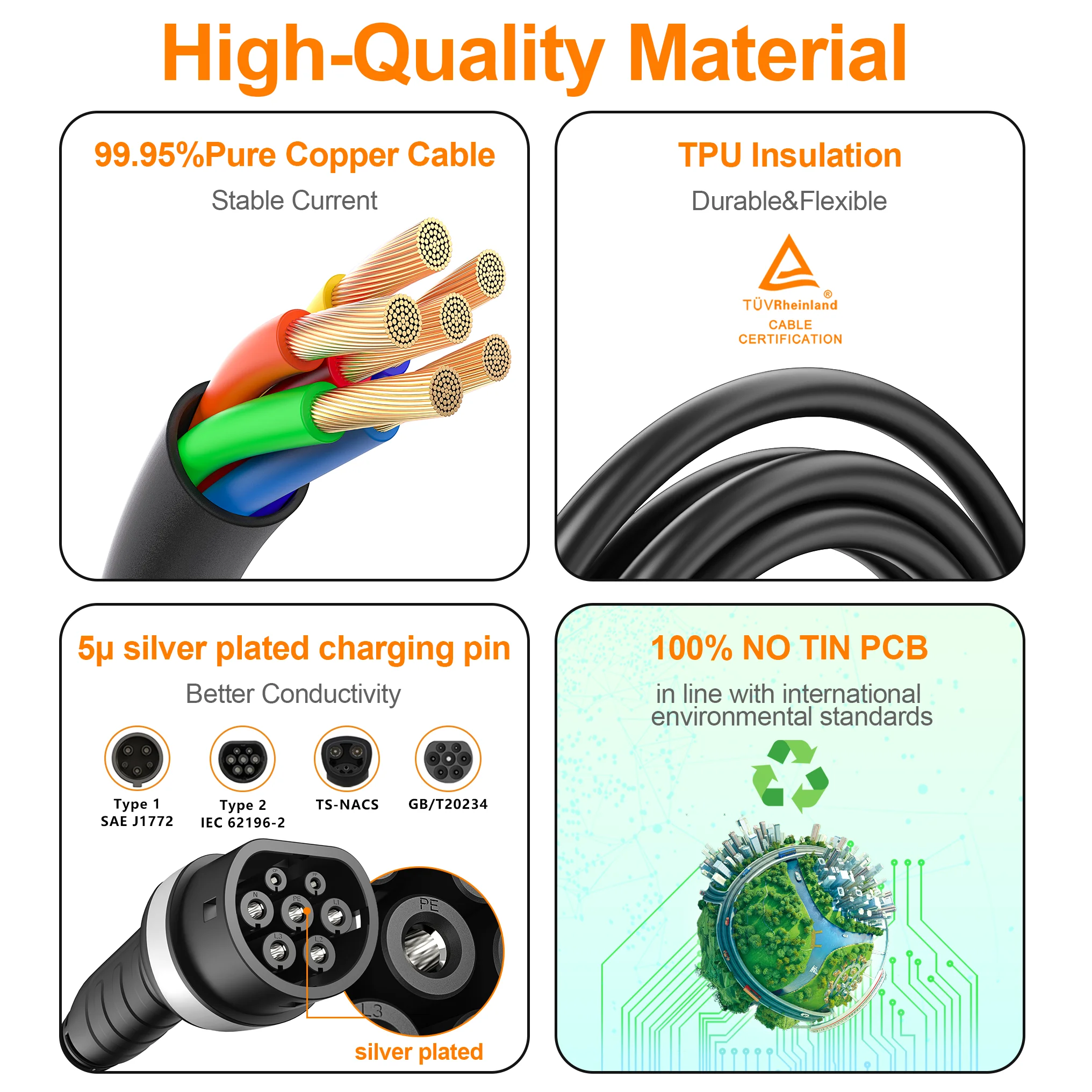

High-Quality Material Construction
Engineered with premium materials to ensure durability, safety, and superior electrical performance.
- 99.95% Pure Copper Cable: Ensures stable current transmission with high efficiency.
- TPU Insulation: Durable, flexible, and wear-resistant jacket; TÜV Rheinland certified.
- Silver-Plated Pins: 5μ silver plating enhances conductivity and reduces heat (Supports Type 1/Type 2/NACS/GB/T).
- Eco-friendly PCB: 100% No-Tin PCB design, strictly following international environmental standards.

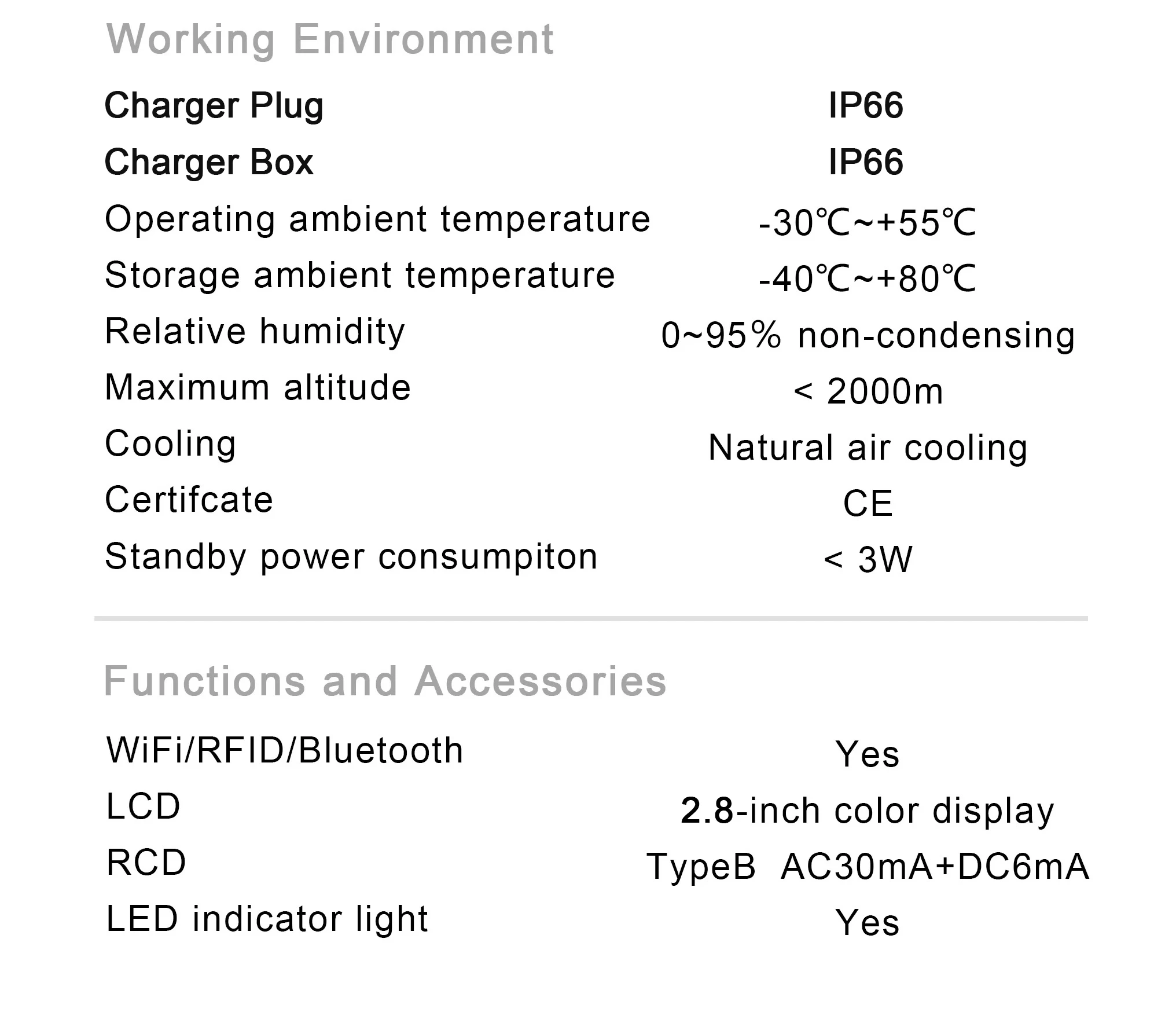

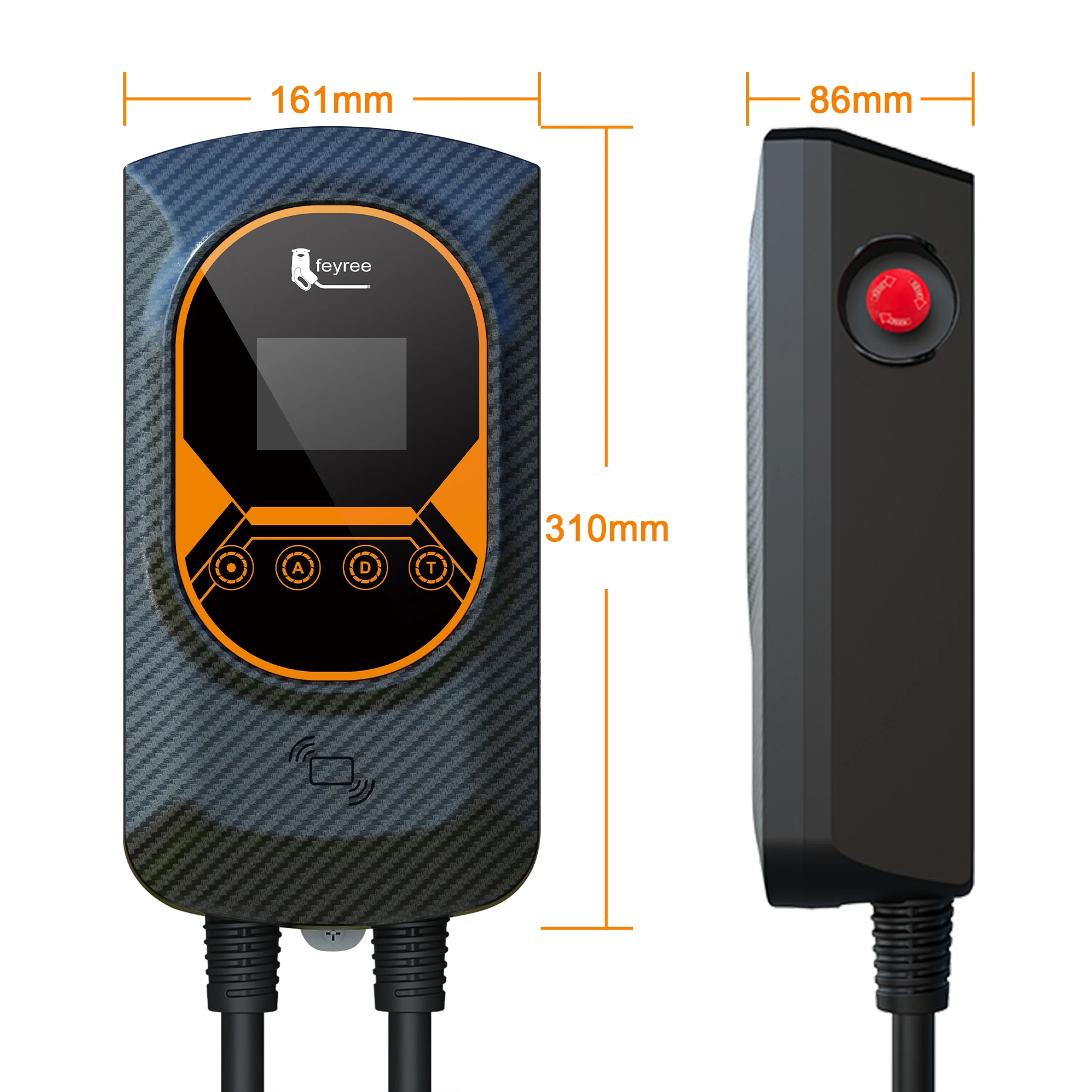

Technical Specifications

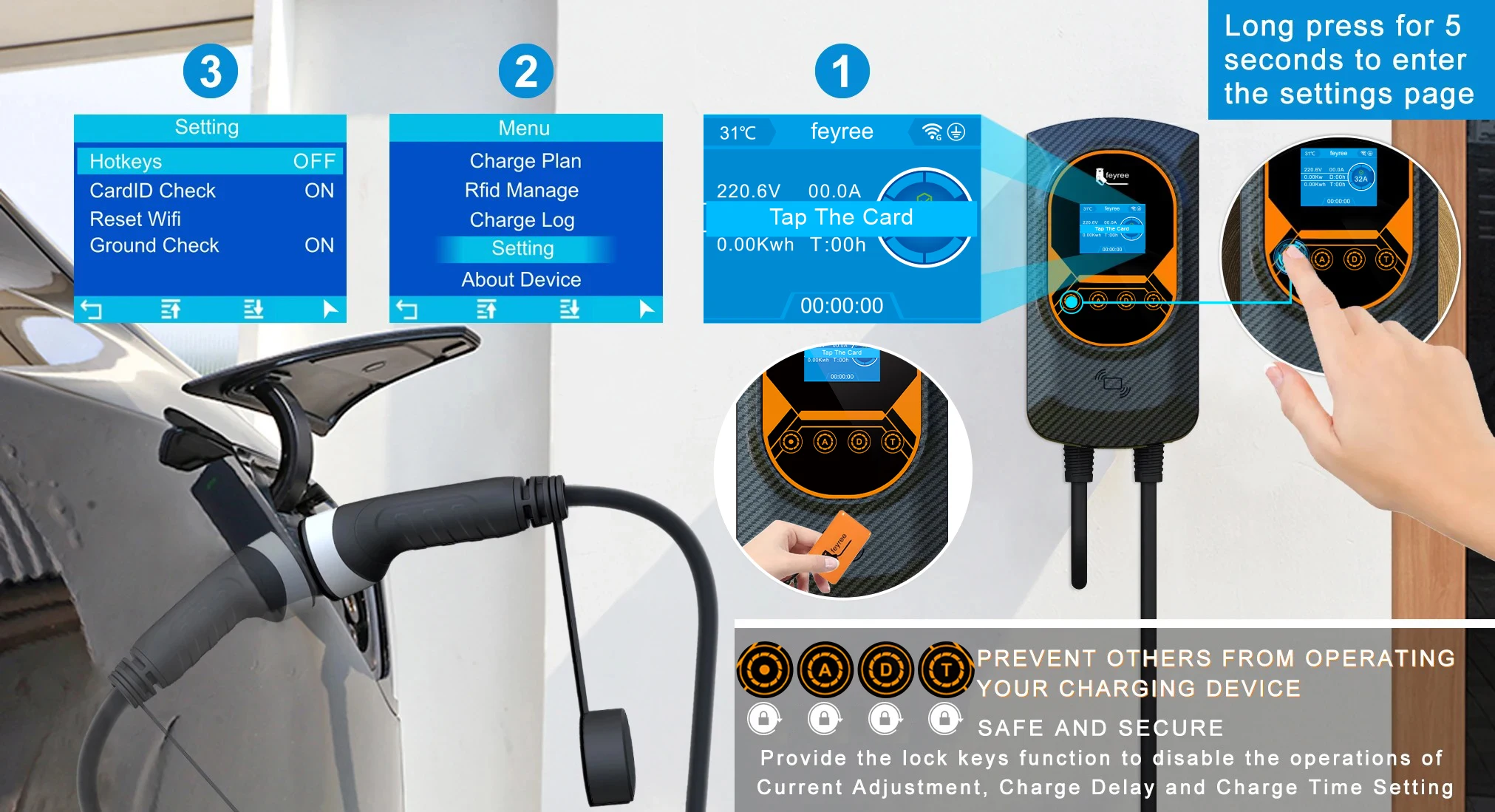

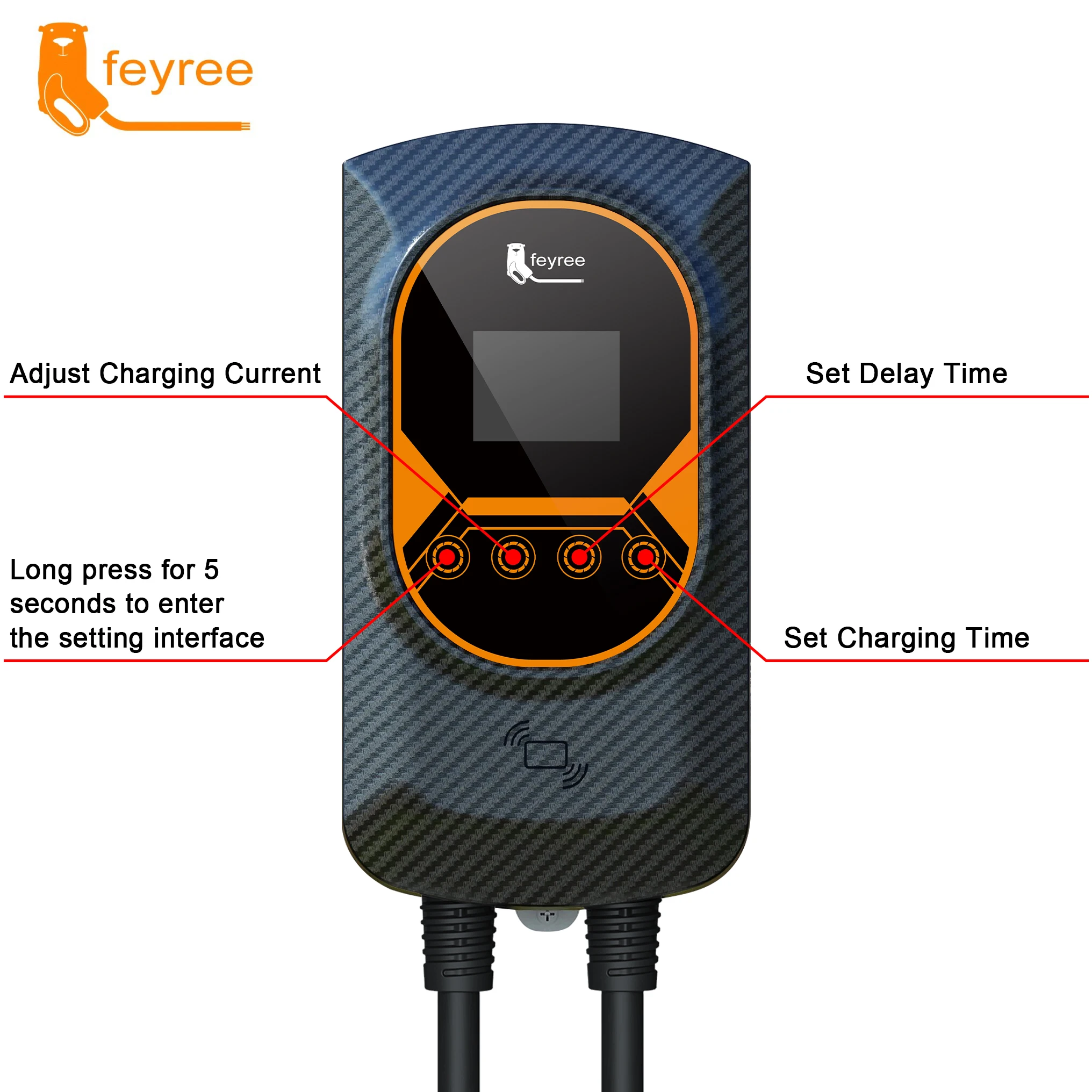

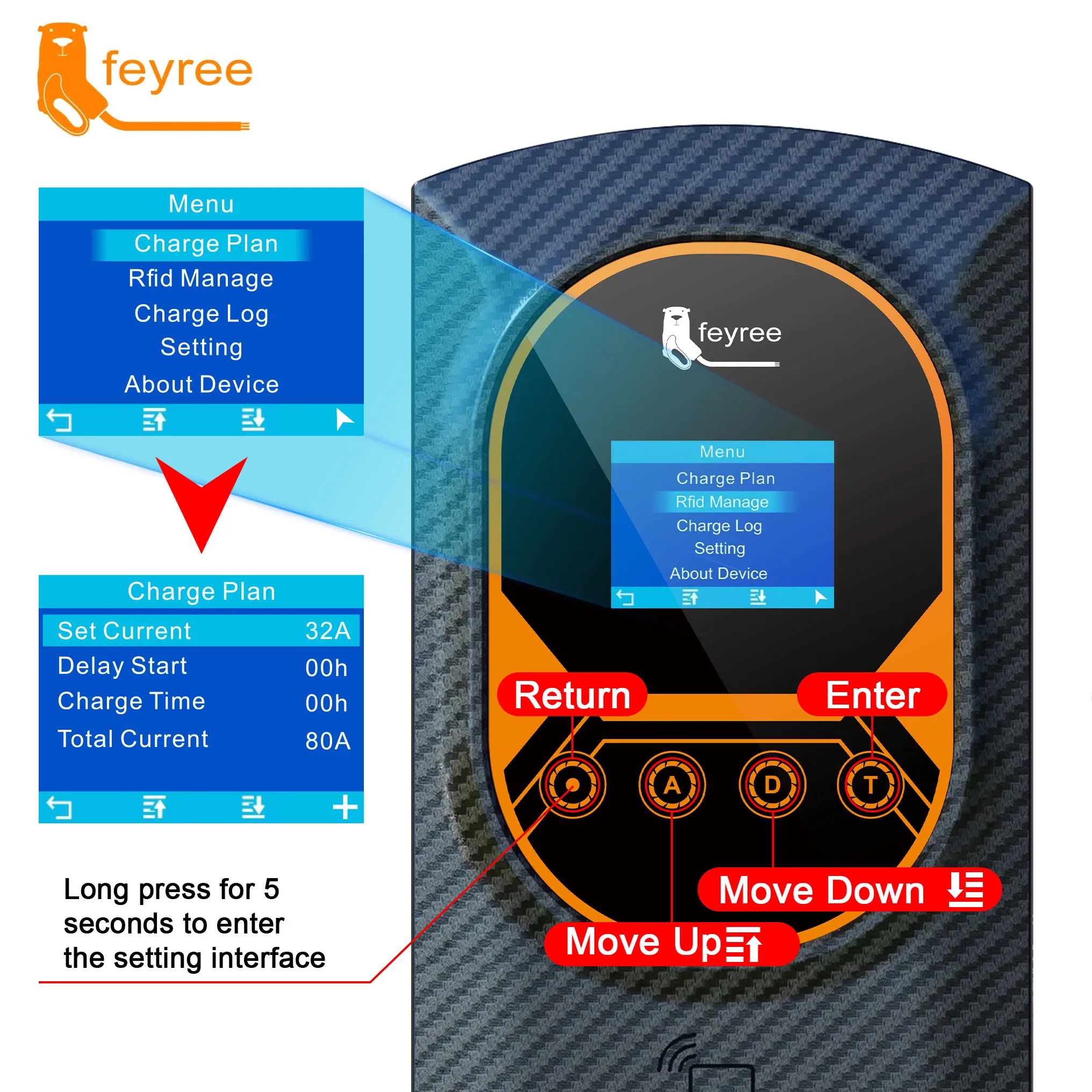

Feyree Charger: First-Time Setup & Button Controls

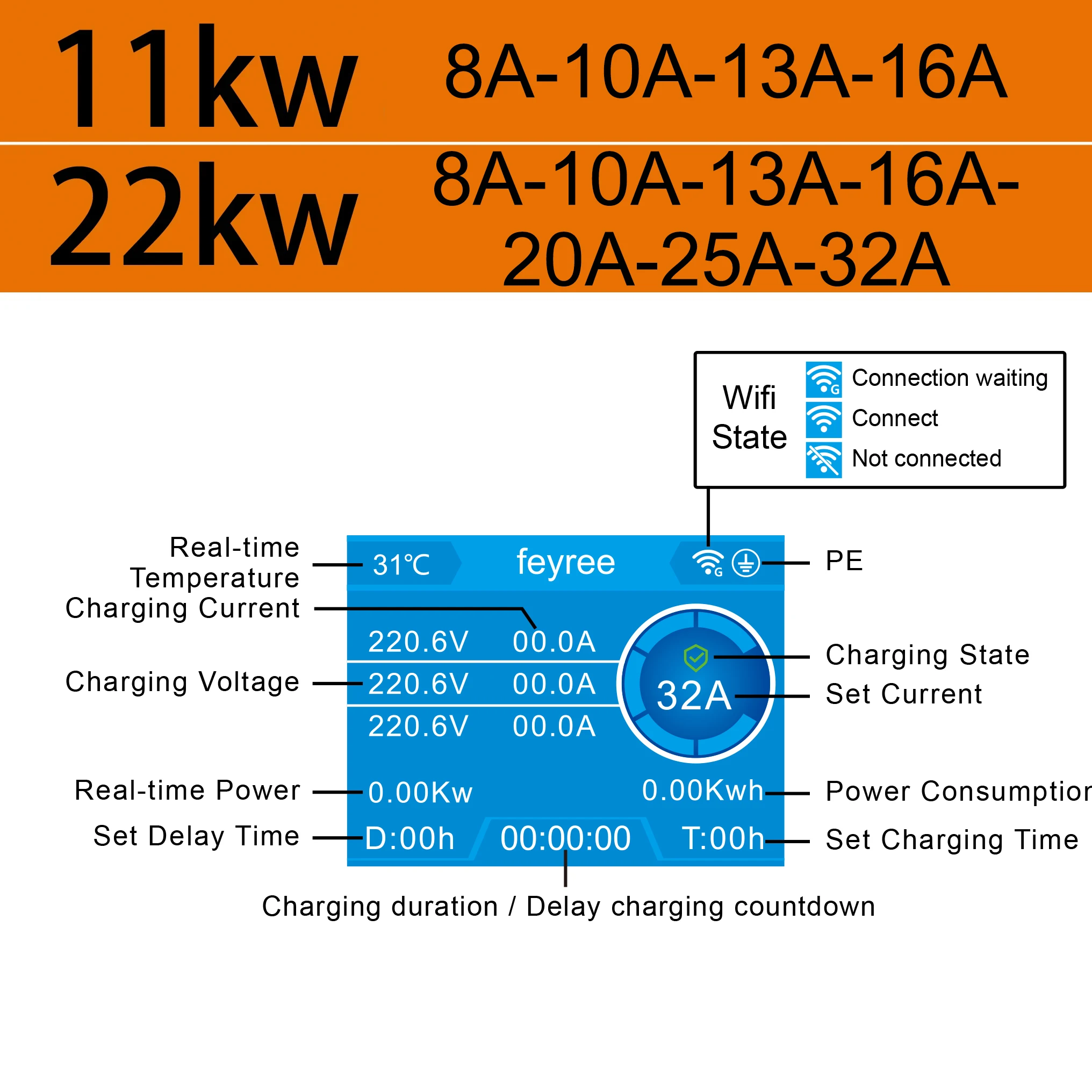

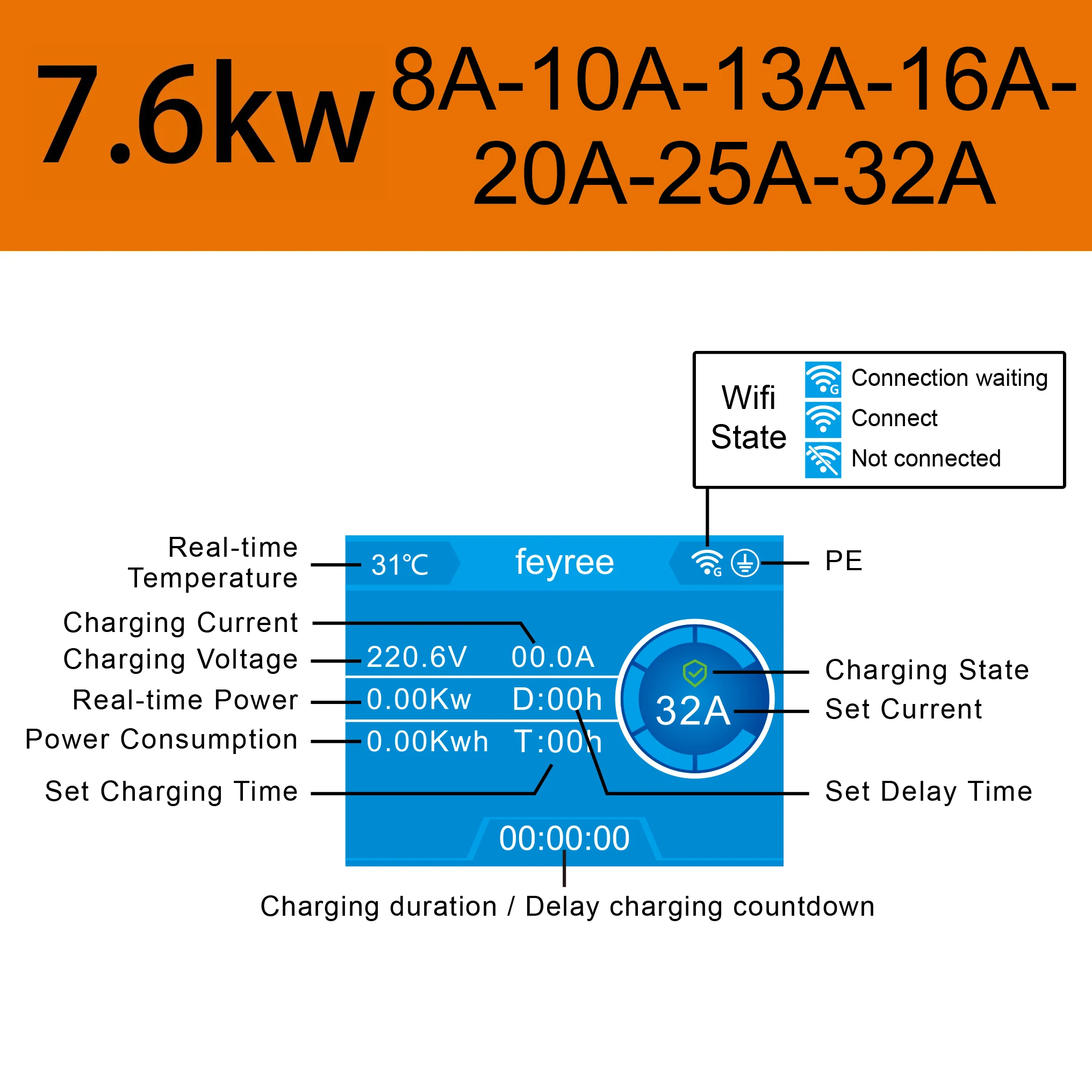

LCD Display Interface & Specifications

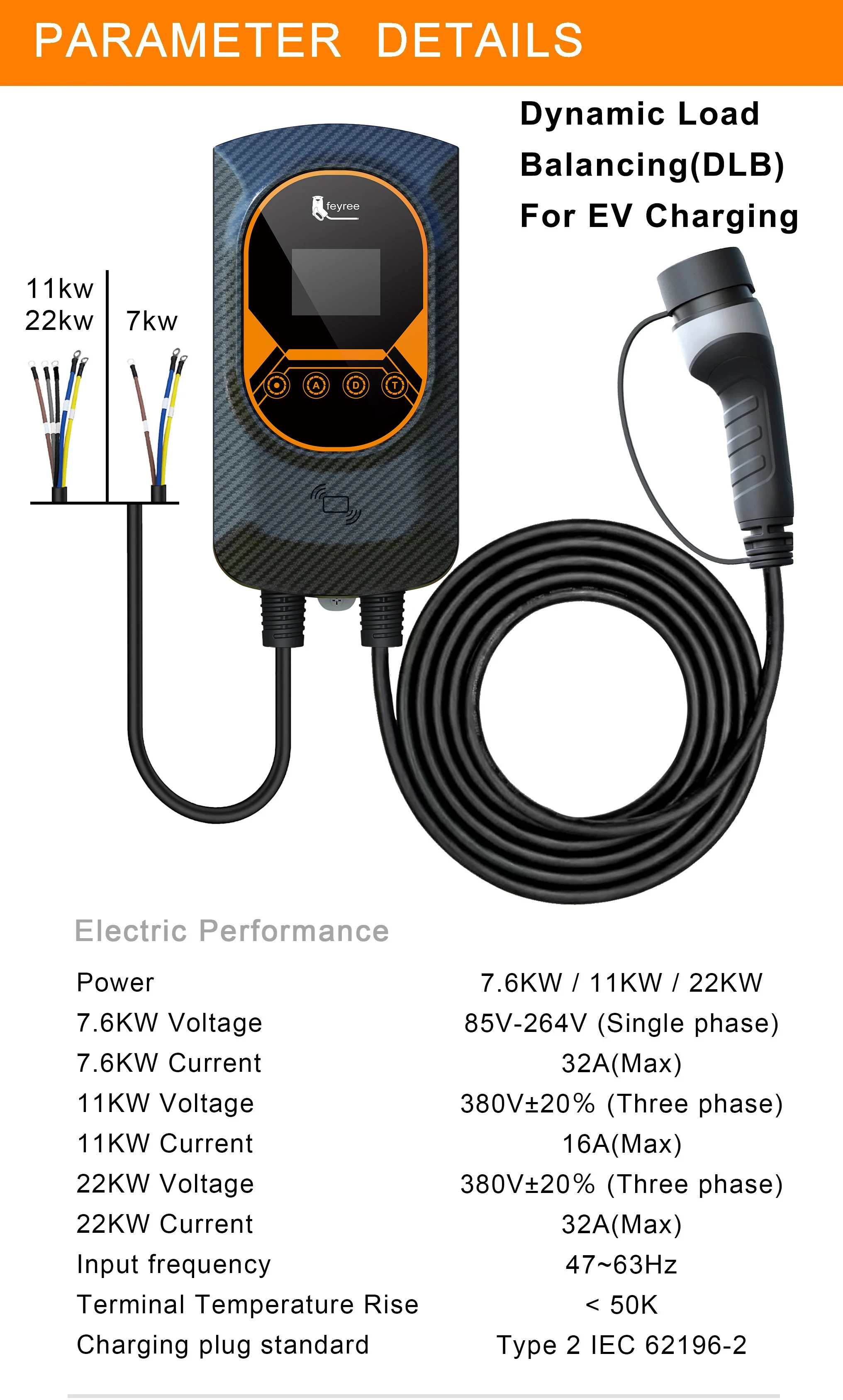

Parameter details

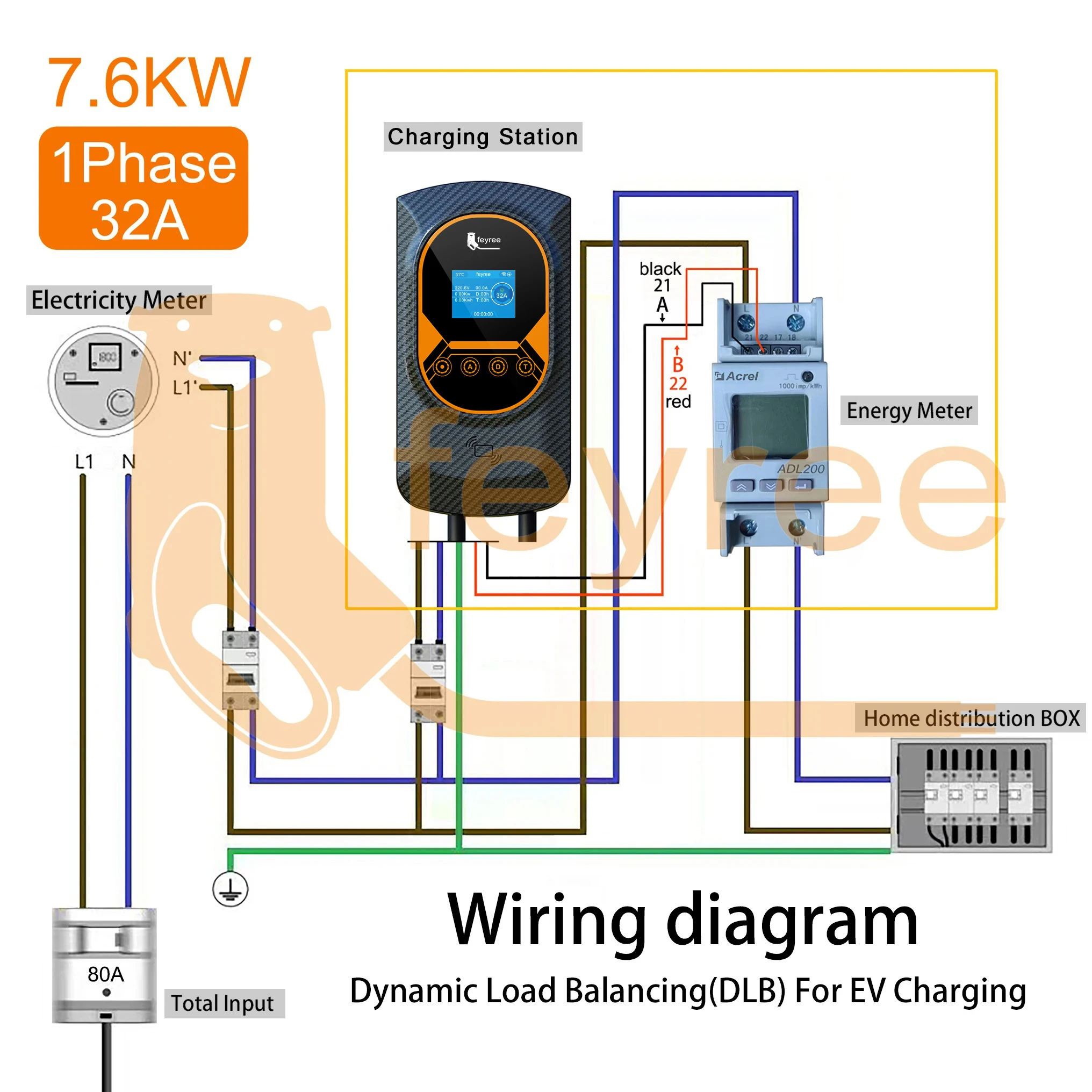

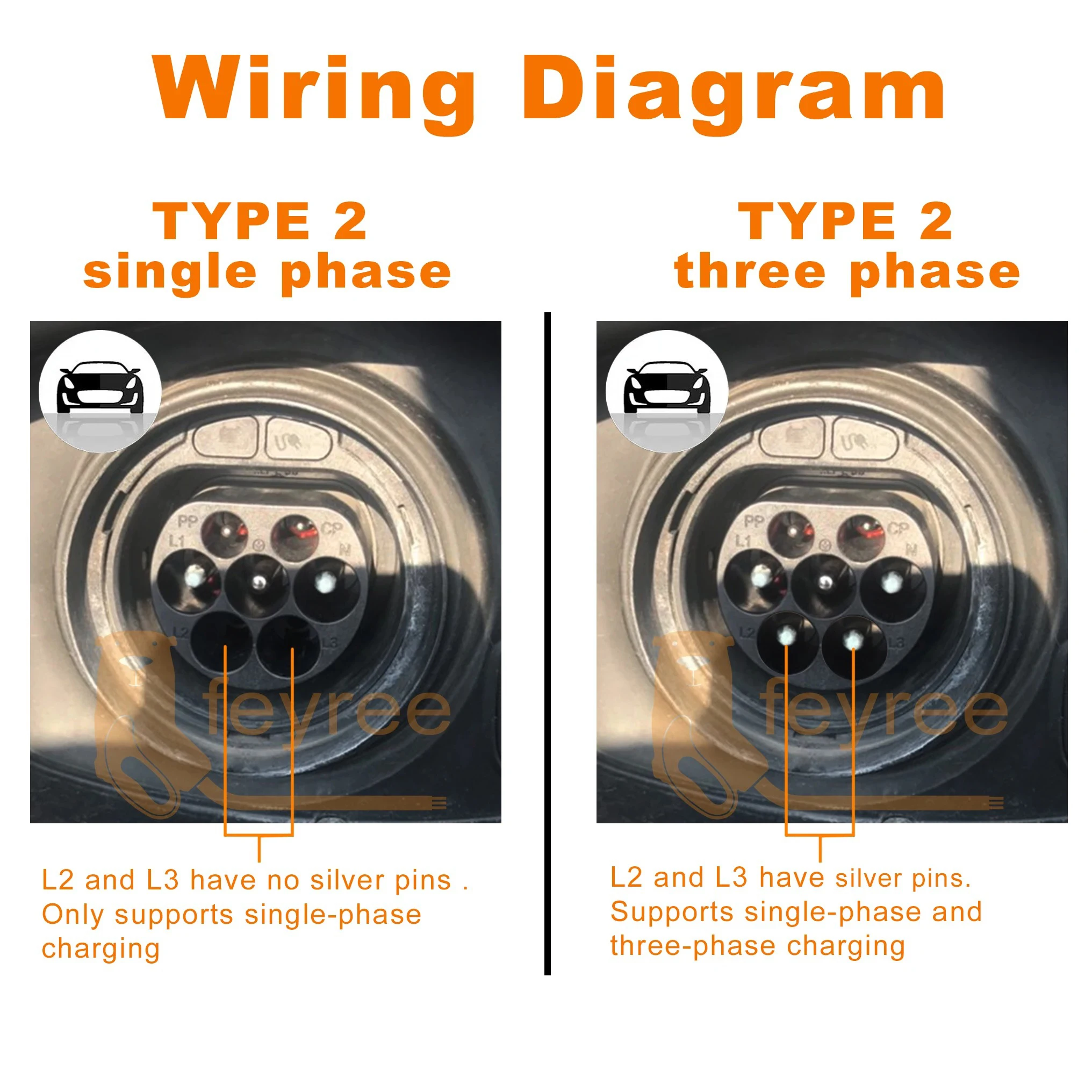

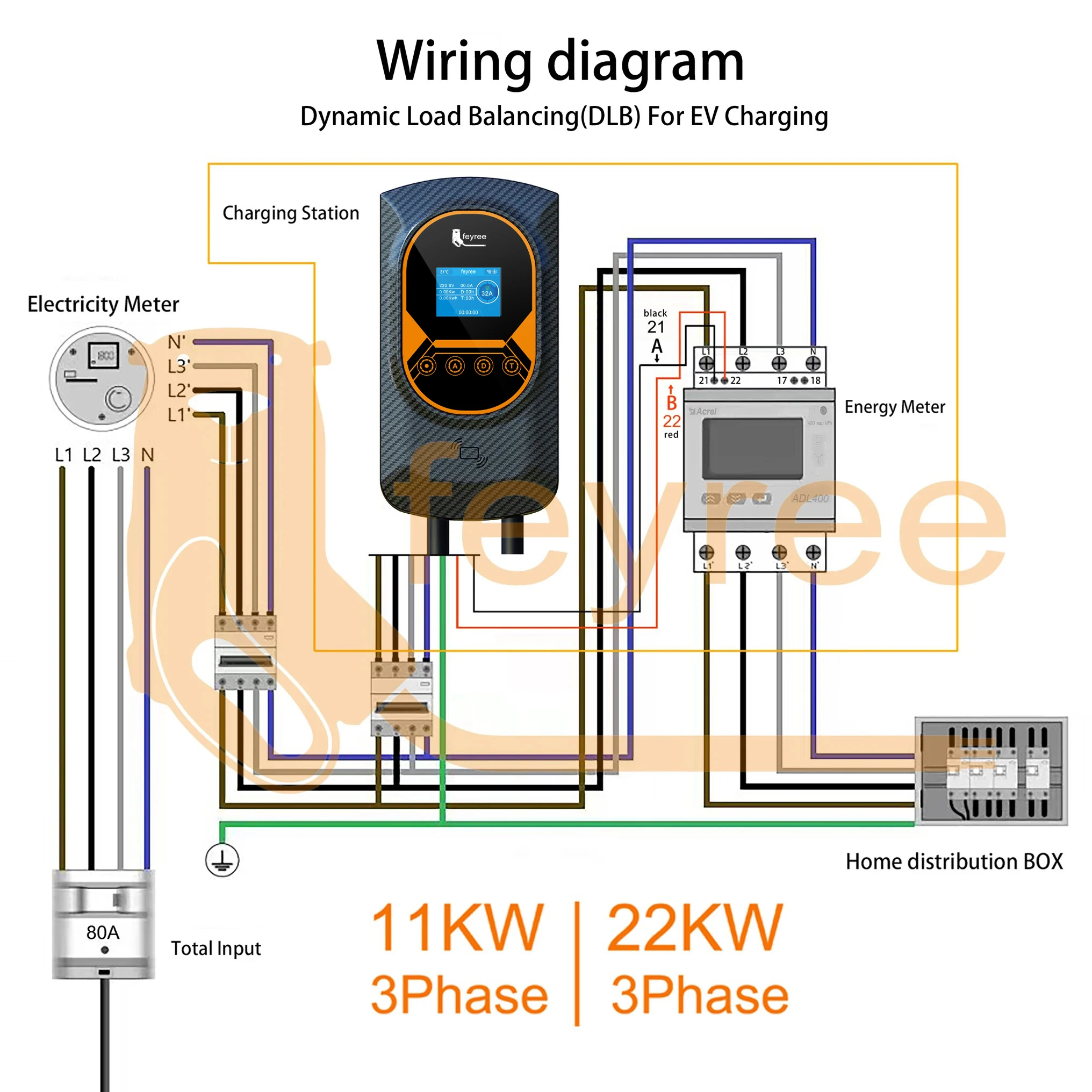

Wiring Diagram

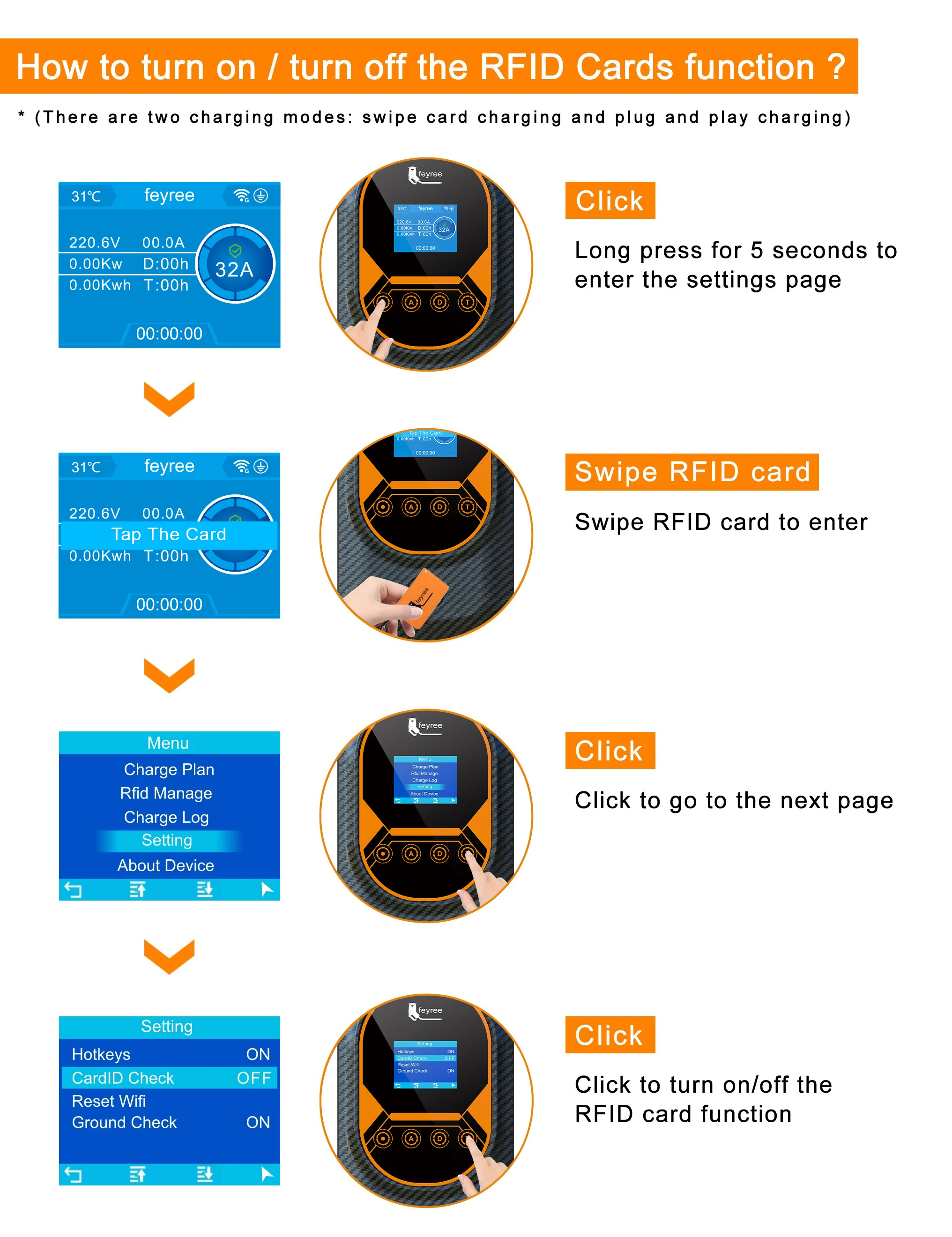

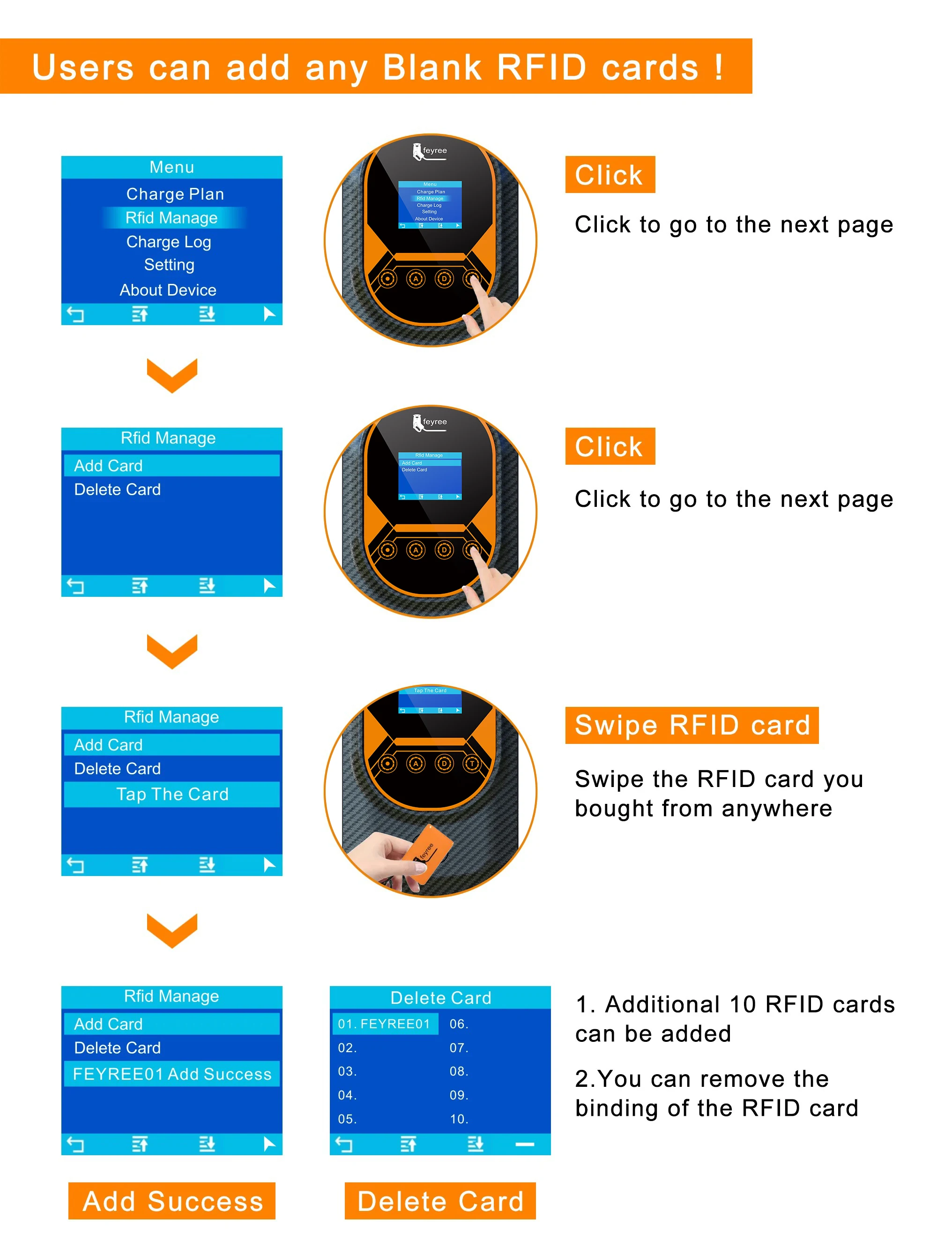

RFID Card Configuration & Management Guide

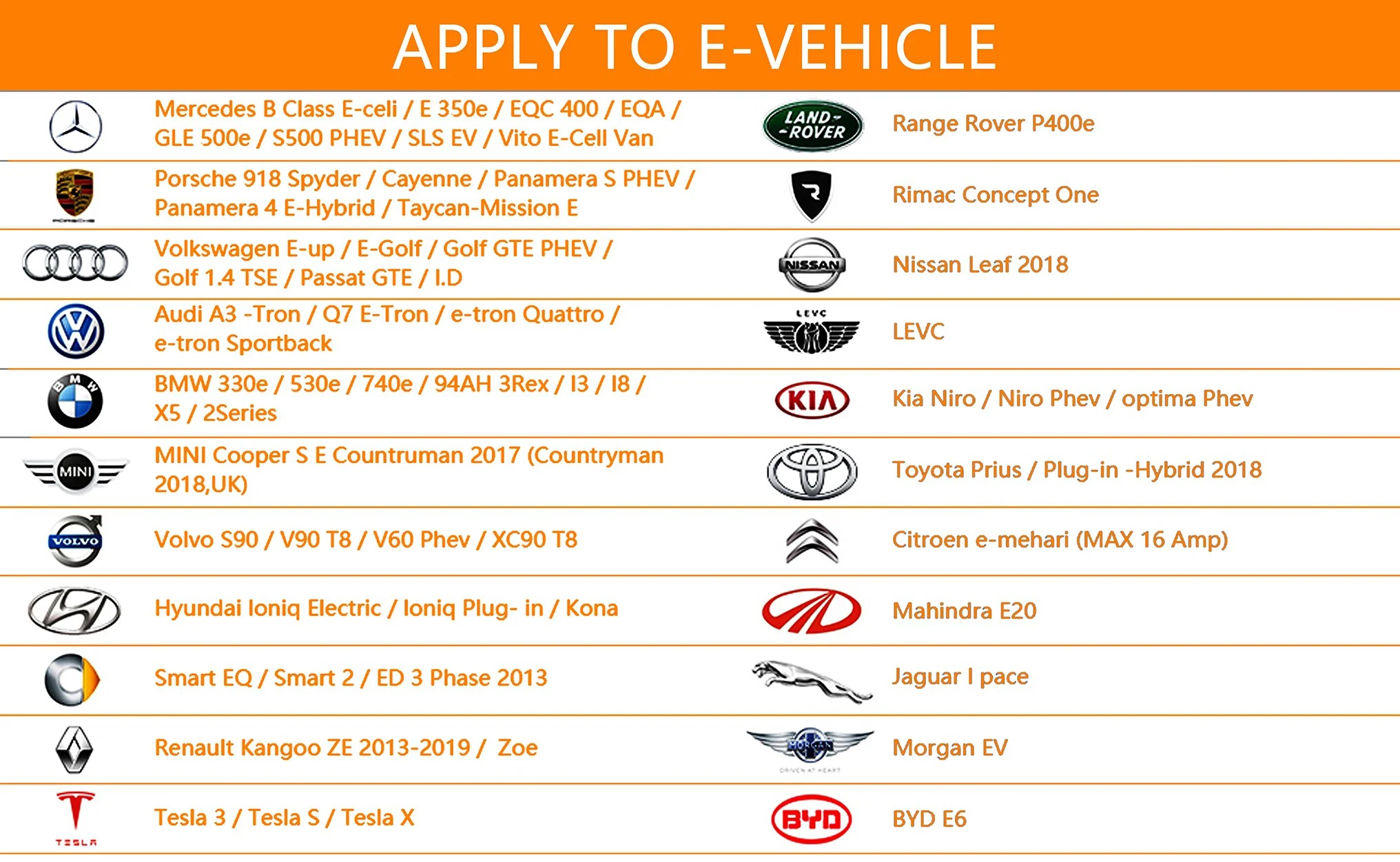

Applicable vehicle models
