Pulse Width Modulation (PWM) has become a cornerstone technology in modern battery charging systems, enabling precise control over charging parameters while maintaining high efficiency. This article explores the fundamental principles of PWM signals in charger operation and examines how this technology optimizes the charging process across various applications.
Understanding PWM Basics

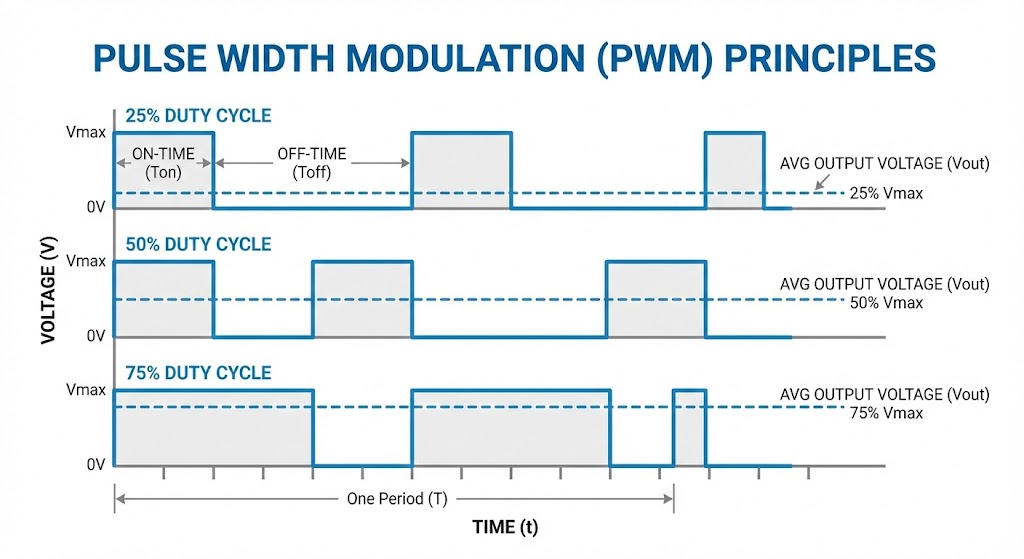

Pulse Width Modulation is a digital switching technique that controls the average power delivered to a load by rapidly toggling between on and off states. In charger applications, a PWM signal consists of a square wave with a fixed frequency but variable duty cycle. The duty cycle, expressed as a percentage, represents the proportion of time the signal remains in the "on" state during each cycle.
For instance, a 50% duty cycle means the signal is on for half the period and off for the other half. By adjusting this duty cycle, chargers can precisely regulate the effective voltage and current delivered to the battery without the energy losses associated with linear voltage regulation.
-21.jpg?w=1024&h=559)
PWM Signal Generation in Chargers
Modern chargers employ microcontrollers or dedicated PWM controller chips to generate these signals. The controller continuously monitors battery parameters such as voltage, current, and temperature through feedback loops. Based on this real-time data, the controller dynamically adjusts the PWM duty cycle to maintain optimal charging conditions.
The typical PWM frequency in battery chargers ranges from 20 kHz to several hundred kHz. Higher frequencies allow for smaller filter components and reduce audible noise, though they may increase switching losses in the power transistors.
Power Conversion Mechanism

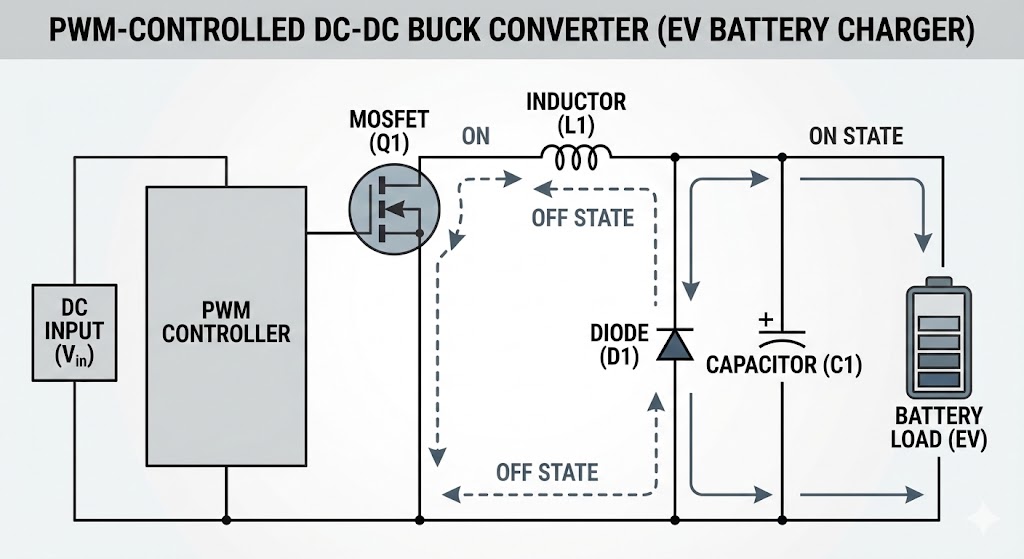

The PWM signal drives power switching devices, typically MOSFETs or IGBTs, which rapidly connect and disconnect the power source from the charging circuit. When the switch is on, energy flows from the power source through an inductor to the battery. When the switch turns off, the inductor's stored energy continues to flow to the battery through a freewheeling diode, maintaining current continuity.
This switching action, combined with an LC filter circuit (inductor and capacitor), converts the pulsed DC voltage into a smooth, regulated output. The average output voltage is proportional to the duty cycle: a higher duty cycle delivers more voltage, while a lower duty cycle reduces it.
-10.jpg?w=1024&h=559)
Charging Stage Control
PWM technology enables precise implementation of multi-stage charging algorithms essential for battery health and longevity:
Constant Current Stage: During initial charging, the PWM controller maintains a fixed charging current by adjusting the duty cycle as battery voltage rises. This prevents excessive current that could damage the battery or cause safety hazards.
Constant Voltage Stage: Once the battery reaches its target voltage, the controller transitions to constant voltage mode. Here, the PWM duty cycle decreases progressively to reduce current as the battery approaches full capacity, preventing overcharging.
Trickle Charge Stage: For certain battery chemistries, a maintenance charge with very low duty cycle keeps the battery topped off without degradation.
Efficiency Advantages
PWM-based chargers achieve superior efficiency compared to linear regulators because the switching transistors operate either fully on (low resistance, minimal voltage drop) or fully off (no current flow). This binary operation minimizes power dissipation in the switching elements themselves.
Typical PWM charger efficiencies exceed 85-95%, meaning minimal energy is wasted as heat. This efficiency translates to faster charging times, reduced cooling requirements, and lower operating costs, particularly important in high-power applications like electric vehicle charging.
Feedback and Regulation
Sophisticated PWM chargers incorporate multiple feedback mechanisms. Voltage feedback ensures the output voltage matches the target, while current sensing prevents overcurrent conditions. Temperature monitoring protects both the charger and battery from thermal damage.
The control loop samples these parameters thousands of times per second, making minute adjustments to the PWM duty cycle. This rapid response enables the charger to maintain tight regulation despite variations in input voltage, load conditions, or battery impedance changes during charging.
Electromagnetic Considerations
The rapid switching inherent in PWM operation generates electromagnetic interference (EMI). Quality chargers include filtering and shielding to minimize conducted and radiated emissions. Proper PCB layout, including ground planes and careful trace routing, further reduces EMI susceptibility and emission.
Conclusion
PWM signal technology represents a elegant solution to the complex challenge of efficient, precise battery charging. By converting continuous analog control problems into digital switching operations, PWM enables chargers that are simultaneously more efficient, more compact, and more capable than their linear predecessors. As battery technology continues to evolve, PWM control systems will remain central to delivering the sophisticated charging profiles required by modern energy storage applications, from smartphones to electric vehicles and grid-scale battery systems.
