Comprehensive Guide to EV Charging Adapters: Types, Speeds, and Global Applications

As the electric vehicle (EV) industry rapidly expands worldwide, charging infrastructure has become a critical factor driving this transformation. However, different countries and regions have adopted varying charging standards and connector types, making charging adapters essential knowledge for EV owners. This article comprehensively explores the technical specifications, charging speeds, and global applications of various charging adapters.

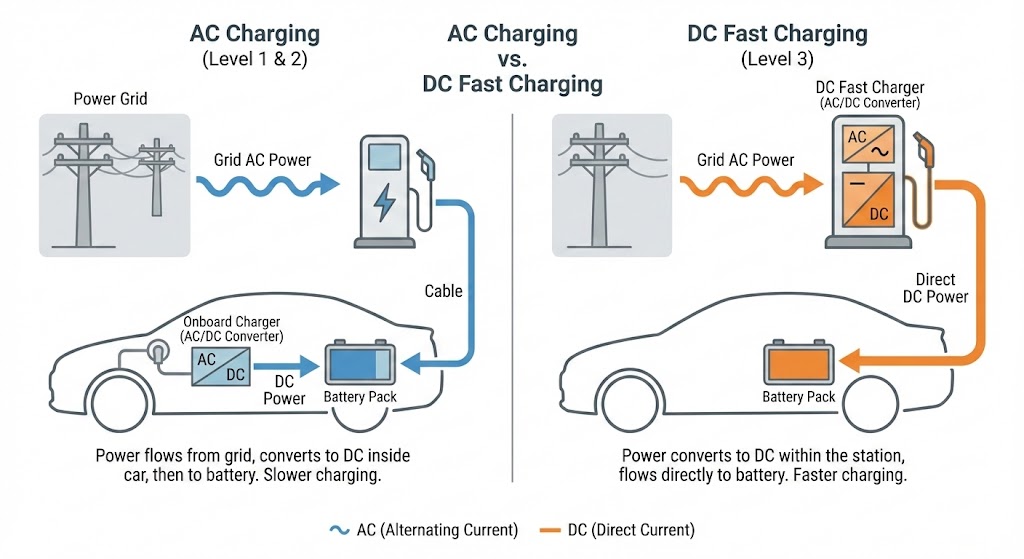

Understanding Charging Fundamentals: AC vs DC

Before diving into the various charging adapters, it's essential to understand the basic principles of EV charging. Electric vehicle charging primarily consists of two methods:

Alternating Current (AC) Charging

AC is the standard form of electricity delivered from the power grid to charging stations. When using AC charging, the current must be converted to direct current (DC) through the vehicle's onboard charger before being stored in the battery. This conversion process limits charging speed but makes AC charging equipment more economical and suitable for daily charging at home and workplace.
AC charging power typically ranges from 3.7 kW to 22 kW, adding approximately 15-50 miles of range per hour. Fully charging an EV with a 60 kWh battery usually takes 4-10 hours, making it ideal for overnight charging.

Direct Current (DC) Charging

DC fast charging bypasses the onboard charger, delivering converted DC directly to the battery. The conversion process occurs within the charging station, enabling higher power output. DC fast charging power ranges from 50 kW to 350 kW, adding 60-200 miles of range in just 20-30 minutes.
It's important to note that to protect battery health, fast charging speed decreases as the battery approaches 80% capacity. Therefore, DC fast charging is best suited for quick top-ups during long-distance travel, while AC charging remains recommended for daily use.

North American Charging Adapter Standards

SAE J1772 (Type 1)

The SAE J1772 standard is the mainstream AC charging standard in North America and Japan. This connector was designed in the early 2000s with 5 pins, supporting single-phase charging.
Technical Specifications:

• Voltage: 120V (Level 1) or 240V (Level 2)

• Maximum Power: 19.2 kW

• Maximum Current: 80 amperes

The J1772 connector uses control pilot signals to communicate with the vehicle, ensuring the connection is secure before allowing current flow, effectively preventing electric shock and misuse. Almost all EVs sold in North America (except Tesla) adopt this standard, including the Nissan Leaf, Chevrolet Bolt, Ford Mustang Mach-E, and others.
Charging Speed: Level 1 (120V) charging typically requires 40-50 hours to charge a BEV from empty to 80%; Level 2 (240V) can complete charging in 4-10 hours.

CCS1 (Combined Charging System Type 1)

CCS1 combines the J1772 connector with two additional high-speed charging pins, forming a combined connector that supports both AC and DC charging. This means vehicles need only one charging port to handle all charging scenarios.
Technical Specifications:

• Maximum Power: 350 kW

• Maximum Current: 500 amperes

• Voltage: Up to 1000V DC

CCS1 has become the primary standard for DC fast charging in North America, capable of delivering 360 kW at maximum power. When exceeding 200 amperes, charging stations require liquid-cooled cables to ensure safe operation.

NACS (North American Charging Standard)

Tesla's proprietary connector has now been designated as NACS (North American Charging Standard). This connector features a more compact design and can handle all charging speeds.
Brands including Ford, GM, Hyundai, Rivian, and Volvo will begin equipping new models with NACS connectors starting in 2025, signaling North America's move toward a unified charging standar

European Charging Adapter Standards

Type 2 (Mennekes)

The Type 2 connector, also known as the Mennekes connector, is Europe's primary AC charging standard. Compared to Type 1, it offers significant technical advantages.
Technical Specifications:

• Number of Pins: 7

• Maximum Power: 43 kW

• Supports single-phase and three-phase charging

• Maximum Current: 63 amperes (three-phase) or 70 amperes (single-phase)

• Maximum Voltage: 500V

A key feature of Type 2 is its built-in automatic locking mechanism that securely locks the connector to the vehicle during charging, preventing unauthorized disconnection. This design was established in 2003 according to the IEC 62196 specification and quickly became Europe's new standard.
Charging Speed: Using a 7 kW charger, a vehicle with a 40 kWh battery requires 4-6 hours to fully charge; using a 22 kW charger takes only 1-2 hours.

CCS2 (Combined Charging System Type 2)

CCS2 is the European version of the Combined Charging System, combining the Type 2 standard with two additional high-speed charging pins. It is currently the most popular DC fast charging standard in Europe.
Technical Specifications:

• Maximum Power: 350 kW

• Maximum Current: 500 amperes

The advantage of CCS2 is that vehicles need only one charging port to complete both AC and DC charging. The European Parliament attempted to promote only the CCS2 standard, gradually phasing out other connectors. Although this effort was not entirely successful, CCS2 still dominates in Europe.
Major automotive manufacturers including Audi, BMW, Daimler, Ford, GM, Porsche, and Volkswagen have adopted the CCS2 connector.

Asian Charging Adapter Standards

CHAdeMO

CHAdeMO is a DC charging standard developed by five Japanese automotive manufacturers including Nissan and Mitsubishi. The name derives from Japanese, meaning "the charging time is as short as a tea break."
Technical Specifications:

• Maximum Power: 400 kW

• Maximum Current: 400 amperes

• Current Common Power: 50 kW

Although Japanese automakers have attempted to promote CHAdeMO as a global standard since 2010, its application remains primarily limited to the Japanese market. The number of CHAdeMO charging stations grew from 10,000 in 2015 to 25,600 in 2019, with 9,200 in Europe and 7,600 in Japan.
Key Differences from CCS: CHAdeMO requires vehicles to have two charging ports (one for AC, one for DC), while CCS needs only one port to handle all charging types. This makes vehicle design more complex.
Vehicles supporting CHAdeMO include the Nissan Leaf, Mitsubishi Outlander PHEV, Honda Fit EV, and others. Going forward, Japanese automakers are gradually transitioning to the CCS standard for their models in North American and European markets.

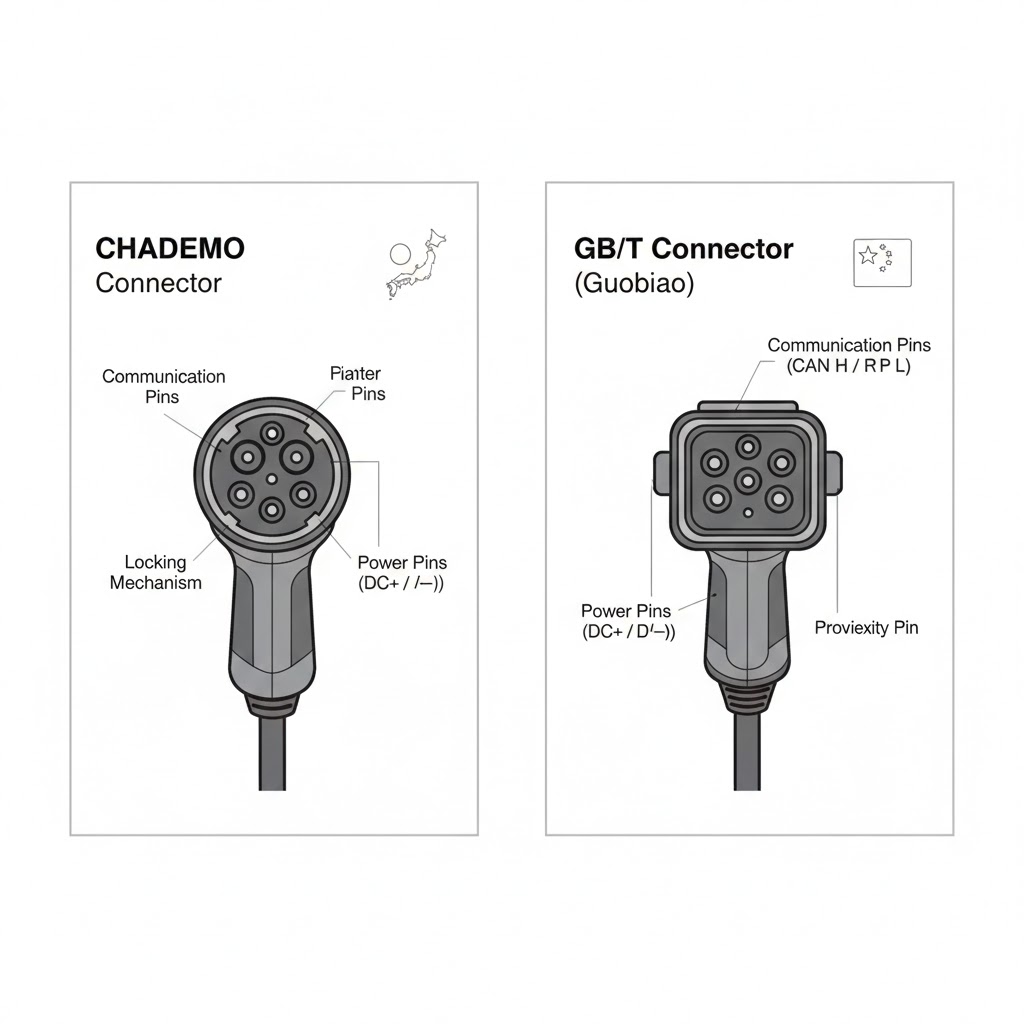

GB/T Standard

China has adopted its own charging standard system called GB/T (Guobiao), which includes two types: AC charging and DC charging.
Technical Specifications:

• DC Maximum Power: 250 kW

• Designed specifically for the Chinese market

The GB/T standard is fully adapted to China's domestic industry needs and has an extensive charging network in China. GB/T is currently collaborating with CHAdeMO to develop a third-generation connector, expected to deliver 900 kW of power.
This standard is incompatible with CCS and CHAdeMO as they use different communication protocols, requiring special adapters for interconnection, but such adapters are not easily obtainable.
Vehicles supporting GB/T include Chinese EV brands like XPeng and Geely.

Charging Adapter Compatibility and Usage

The Role and Limitations of Adapters

Charging adapters allow electric vehicles to charge at different types of charging stations, but it's important to understand several key limitations:
1.Physical Compatibility Doesn't Equal Faster Charging: Adapters only enable connection but don't change the vehicle's maximum charging acceptance capability. If your vehicle is limited to 7 kW AC charging, using a higher-power charging station with an adapter won't make it charge faster.

2.Communication Protocol Support: Some adapters only convert the physical plug without converting communication protocols. The vehicle and charging station must "speak the same language" to initiate charging.

3.Safety Certification: Only use adapters recommended by vehicle manufacturers or certified by regional authorities. Poorly made adapters may pose safety risks or damage charging equipment.

4.Limited DC Adapters: While AC adapters (such as J1772 to NACS, Type 2 to CCS) are widely available, DC fast charging adapters are limited, and not all vehicles or networks support them.



Common Adapter Types

Tesla Adapters: Tesla provides various adapters for its owners, enabling them to charge at J1772, CHAdeMO, and other charging stations. Non-Tesla owners can now also access Tesla's Supercharger network through adapters.
CCS to CHAdeMO Adapters: Allow vehicles equipped with CCS connectors to charge at CHAdeMO stations, but these adapters are not easily obtainable due to different communication protocols.
Type 1 to Type 2 Adapters: Particularly useful for vehicles imported from North America to Europe, or vice versa.

Factors Affecting Charging Speed

Beyond the connector type itself, several factors influence actual charging speed:

Vehicle Hardware Limitations

Many entry-level electric vehicles have a maximum charging speed of 50 kW, unable to reach maximum power even when connected to a 350 kW ultra-fast charging station. Premium electric vehicles typically support faster charging speeds, up to 350 kW.

Battery Temperature

The electrochemical reactions of charging and using batteries work best at room temperature. In cold weather, these reactions slow down, reducing charging speed. Many modern EVs are equipped with battery preconditioning features that can heat the battery before charging to improve charging efficiency.

Battery State of Charge

As the battery approaches full capacity, charging speed decreases to protect battery health. This is like pouring water into a glass—you can pour quickly at first, but need to slow down near the top to prevent overflow.

Charging Station Load

During peak hours, the system distributes power so everyone can charge, prioritizing vehicles with lower battery levels. This means if other vehicles are using the same charging station, your vehicle may not receive maximum charging speed.

Future Development Trends

Standardization

The EV charging industry is moving toward a more unified experience. Starting in 2025, many brands will include NACS connectors on new models, helping to simplify the charging process for future EV owners.

Extreme Fast Charging (XFC) Technology

High-power XFC charging stations use liquid-cooled connectors compliant with CCS standards, which will be backward compatible with EVs that don't support XFC technology, ensuring both new and older vehicles can benefit.

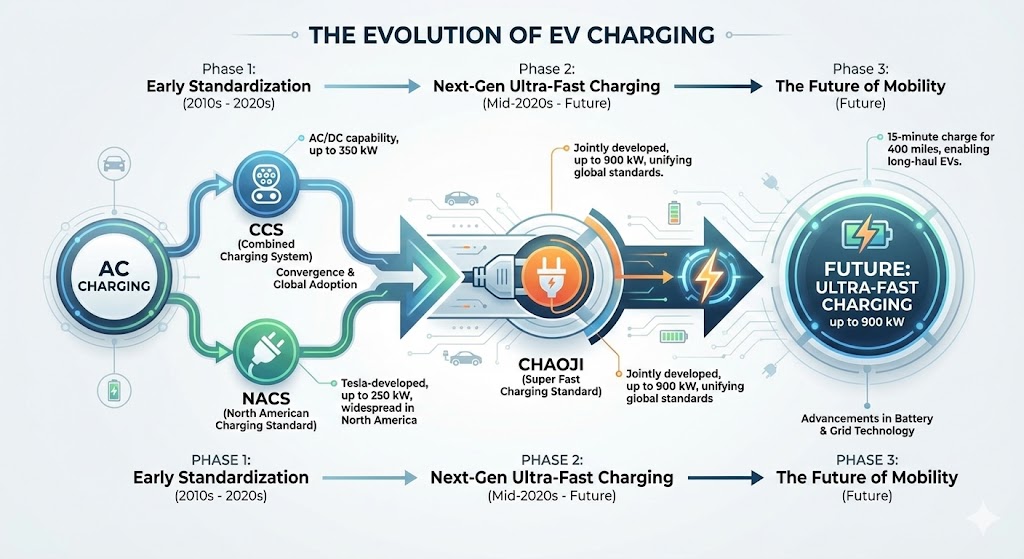

ChaoJi Technology

The ChaoJi technology being developed through collaboration between CHAdeMO and GB/T aims to deliver 900 kW of power, which will significantly reduce charging time, making the EV experience more comparable to traditional fuel vehicles.

Practical Charging Recommendations

1. Know Your Vehicle: Check the owner's manual or manufacturer's website to confirm supported connector types and charging speeds.

2. Carry Appropriate Adapters: Based on your routes and commonly used charging stations, keep necessary certified adapters in your vehicle.

3. Use Different Charging Types Wisely: Use AC charging for daily charging to protect battery lifespan; use DC fast charging to save time during long-distance travel.

4. Focus on Charging to 80%: DC fast charging is best up to 80%, after which charging speed slows significantly. At this point, switching to an AC Level 2 charger is more efficient.

5. Plan Ahead: Before long trips, check the types of charging stations along your route, confirm your vehicle's compatibility, and adapter requirements.

Conclusion

The diversity of EV charging adapters and standards reflects the development journey of this emerging industry. From North America's J1772 and CCS1, to Europe's Type 2 and CCS2, to Asia's CHAdeMO and GB/T, each standard has its specific application scenarios and technical advantages.
As the industry matures, we see standards moving from "diversification" toward "consolidation." The widespread adoption of NACS in North America, CCS's dominance in Europe, and the continued development of China's GB/T standard all indicate that future charging experiences will become simpler and more unified.
For EV owners, understanding these standards and adapters not only aids in daily charging but also provides confidence when traveling across regions. Regardless of how technology evolves, choosing the appropriate charging method, using certified adapters, and balancing charging speed with battery health according to actual needs will always be key to achieving the best EV experience.
As global charging networks continue to expand and technology advances, EV charging will become faster, more convenient, and more accessible, paving the way for a sustainable transportation future.
