Leakage Protector in EV Chargers: An In‑Depth Guide

As electric vehicles (EVs) become more common, safety features inside charging systems are essential. A key component helping keep users safe is the leakage protector (also called leakage protection or leakage current protection). This article explains what leakage protection is, how it works, why it matters for EV chargers, potential consequences of leakage, and how to choose and implement this safety feature.

What is leakage protection?

Leakage protection is a safety mechanism that detects unwanted or abnormal currents leaking from electrical equipment into earth or other conductive paths. In EV charging, leakage protection monitors the current and voltage between the charger, the vehicle, and the connected electrical system. If a leakage current—often described as a small, unintended flow of current outside the intended circuit—is detected, the protection device acts to reduce or cut off power to prevent harm.
Common implementations include Residual Current Devices (RCDs) and specialized leakage protection modules inside or around EV charging stations. Type of device and sensitivity depend on local standards and the specific charging scenario (home, public, or industrial charging).

Why leakage protection matters for EV charging

• Safety for people: Leakage currents can create the risk of electric shock. When leakage above a specified threshold is detected, the protector interrupts the current to prevent harm.

• Protection for equipment: Leakage can damage charger electronics or vehicle charging interfaces. Early detection minimizes damage and helps extend the life of hardware.

• Fire risk mitigation: Some leakage paths can increase fire risk; rapid disconnection reduces this risk.

Regulatory and industry standards often require leakage protection in EV charging installations. Devices such as Type B RCDs are frequently recommended or mandated because they can detect both AC and DC leakage paths that may occur in EV systems.

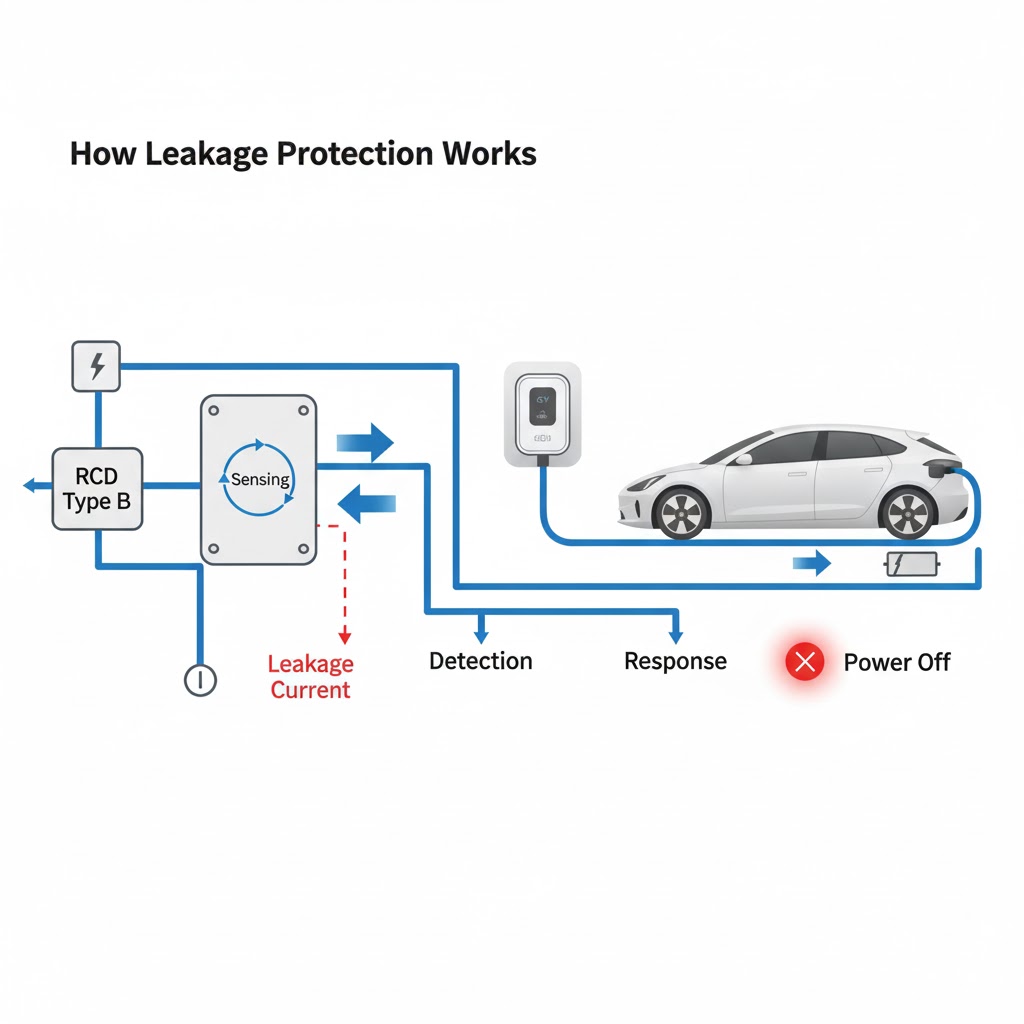

How leakage protection works (high-level overview)

1. Sensing: The leakage protector continuously monitors electrical parameters such as current, voltage, and sometimes power quality metrics across the charging circuit.

2. Detection: If the device detects leakage currents that exceed its preset threshold (e.g., 6 mA, 30 mA, etc., depending on the standard and device), it identifies a potential fault.

3. Response: The protector trips a switch or interrupts the circuit, disconnecting power to the charger or the outlet to stop the leakage path.

4. Diagnostics and reset: After a trip, the system often provides fault indicators for inspection and requires a manual reset after addressing the fault.

In EV contexts, leakage protection must handle both AC leakage and, in many cases, DC leakage paths that can occur inside chargers or between the charger and vehicle electronics.

What levels of protection exist

• AC leakage protection: Guards against alternating current leaks that occur in most home wiring and appliances.

• DC leakage protection: Important for EV charging because the battery system and charging equipment can produce DC leakage paths. Type B RCDs cover AC, pulsating DC, and smooth DC leaks, making them a common choice for EV chargers.

• Hybrid/advanced leakage protection: Some systems integrate leakage monitoring with charger control logic to modulate output before a hard disconnection, potentially reducing nuisance trips while maintaining safety.

Potential consequences of leakage (what could go wrong if not protected)

• Electric shock risk: Direct contact with live components due to leakage can cause shock or electrocution, especially in damp or outdoor environments.

• Damage to vehicle or charger: Leakage can stress insulation, connectors, or control electronics, leading to premature failure or unsafe operation.

• Fire hazards: In certain fault conditions, leakage can ignite flammable materials or overheat components.

• Interference with other devices: Uncontrolled leakage paths can cause tripping of upstream protection or disrupt sensitive electronics nearby.

How to implement leakage protection in EV charging installations

• Follow local codes and standards: Depending on your country or region, standards may require or recommend leakage protection (e.g., RCD Type B for EV charging). Check national electrical codes and manufacturer guidance.

• Choose appropriate protection type: For EV charging, Type B RCDs are often favored because they detect AC and DC leakage. Ensure compatibility with your charger model and installation environment.

• Install at the right point: Leakage protection can be placed at the main electrical panel or integrated into the EV charger itself, depending on design and local regulations.

• Regular testing and maintenance: Periodically test RCDs and leakage protection devices using built-in test buttons or professional testers. Replace devices that fail or show degraded performance.

• Protection coordination: Ensure the leakage protection works in harmony with other protective devices (fuses, breakers) to avoid nuisance trips while maintaining safety.

Real-world considerations and caveats

• Sensitivity settings matter: Very low thresholds may trigger nuisance trips in normal operation (e.g., during charging transients). Work with qualified electricians to set appropriate levels.

• Outdoor and wet environments: Outdoor EV charging stations require robust leakage protection rated for moisture, dust, and temperature variations.

• Maintenance footprint: Leakage protection devices have a service life and may require periodic calibration or replacement to maintain performance.

Summary

• Leakage protection guards people and equipment by detecting unwanted current leaks and interrupting power when needed.

• EV charging often relies on devices capable of detecting both AC and DC leakage, with Type B RCDs being common for robust protection.

• Proper installation, regular testing, and adherence to local standards are essential for effective leakage protection in EV charging systems.
