Why Copper Matters in Charging Cables : The Unsung Hero of Electric Vehicle Charging

Introduction

The electric vehicle revolution is reshaping the global transportation landscape at an unprecedented pace. Automakers are racing to deliver longer range, faster charging, and more affordable EVs, while governments pour billions into public charging infrastructure. Amid all this technological excitement — the battery breakthroughs, the smart grid integrations, the sleek vehicle designs — one humble material quietly underpins the entire ecosystem: copper.
Inside every EV charging cable, from a basic Level 1 home cord to a high-powered DC fast charger, copper does the essential work of moving electricity safely and efficiently from the grid to the vehicle's battery. It is not glamorous, but it is indispensable. Understanding why copper matters — and why the choices made around it directly affect charging performance, safety, longevity, and cost — is fundamental to appreciating how EV charging technology actually works.

The Physics of Conductivity: Why Copper Leads the Field

At the most fundamental level, a charging cable is an electrical conductor, and its primary job is to carry current with as little resistance as possible. Among all commercially viable metals, copper offers the best balance of electrical conductivity, mechanical workability, and cost.
Copper has an electrical resistivity of approximately 1.68 × 10⁻⁸ Ω·m — second only to silver among pure metals, and far superior to aluminum (2.82 × 10⁻⁸ Ω·m) or steel. In practical terms, this means that for any given cross-sectional area and cable length, a copper conductor will dissipate significantly less energy as heat compared to alternatives.
Why does this matter so much for EV charging? Consider a DC fast charger operating at 400 amperes — a common figure for 150 kW charging stations. Even a small increase in conductor resistance translates directly into wasted energy and heat generation, which degrades insulation, accelerates connector wear, reduces charging efficiency, and in worst-case scenarios, creates fire risks. Copper's low resistivity keeps resistance — and therefore heat — to a minimum, making it the natural choice for the high-current demands of modern EV charging.
Beyond raw conductivity, copper possesses excellent oxidation resistance. While aluminum quickly forms a highly resistive aluminum oxide layer at connection points — leading to increased contact resistance and potential failure — copper's surface oxide is far less problematic. This makes copper connections more stable and reliable over thousands of charge cycles, a crucial quality consideration for charging hardware expected to last a decade or more.

Inside an EV Charging Cable: How Copper Is Used

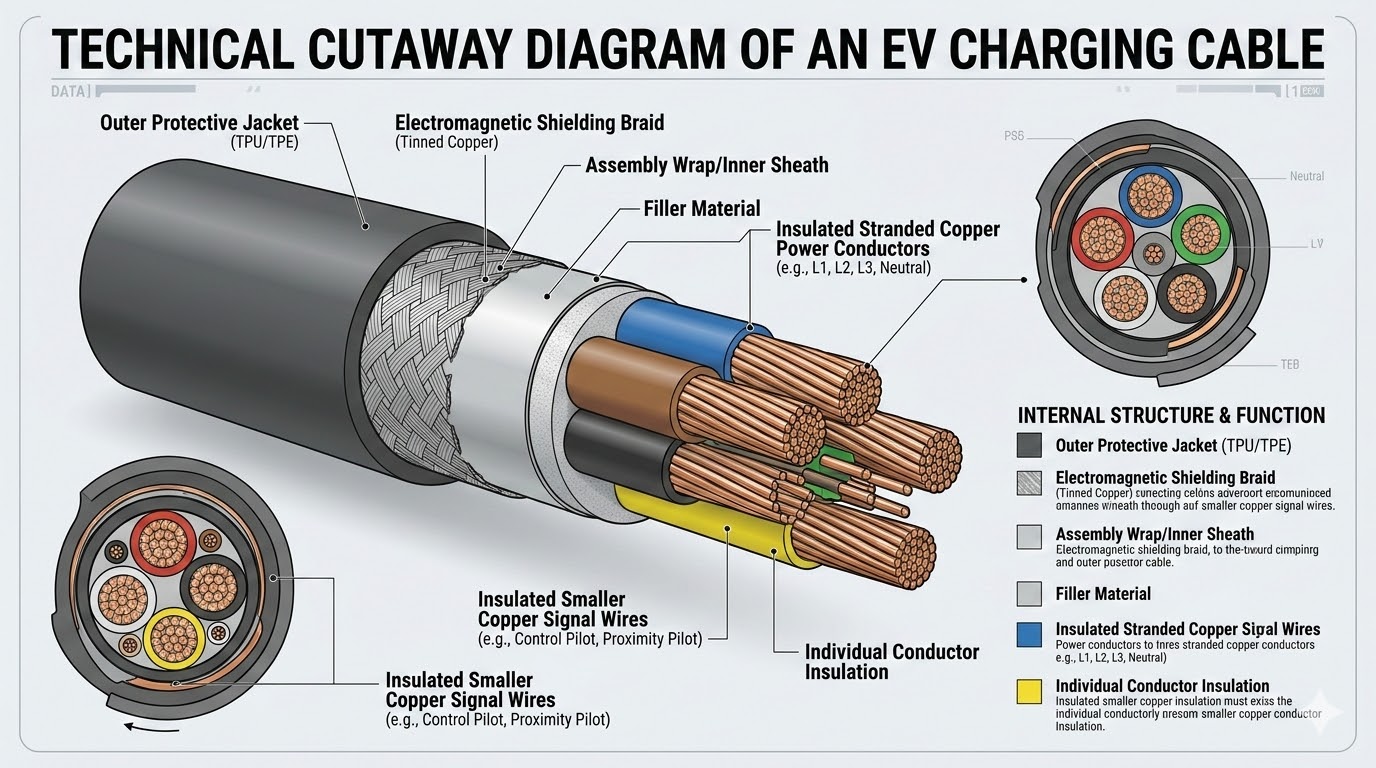

An EV charging cable is not simply a wire — it is an engineered system composed of multiple functional layers, and copper plays a critical role in several of them.
Power Conductors
The core of any charging cable consists of stranded copper conductors — multiple thin copper wires twisted together rather than a single solid rod. This stranded construction is deliberate: it dramatically increases flexibility, allowing the cable to be coiled, bent, and manipulated during daily use without the conductor cracking or fatiguing. A rigid, solid copper cable of sufficient cross-section for EV charging would be impossibly stiff and impractical. Stranding solves this problem while preserving full conductivity.
The cross-sectional area of these conductors is specified to match the intended charging power level. A Level 2 AC charger operating at 32A might use conductors of 6 mm², while a high-power DC fast charger handling 500A or more may require conductors of 50 mm² or larger. Getting this specification right is not merely a performance question — undersized conductors running at high current overheat, which degrades insulation and creates serious safety hazards.
Signal and Communication Wires
Modern EV charging cables also contain smaller copper signal wires that carry communication data between the charger and the vehicle. Protocols such as CCS (Combined Charging System) and CHAdeMO use these signal lines to negotiate charging power, monitor battery state of charge, and manage safety shutoffs. Though these wires carry only milliamperes of current, their reliability is equally important — a corrupted signal can cause charging to halt unexpectedly or fail to activate at all.
Electromagnetic Shielding
Many charging cables incorporate a copper braid or foil shield around the signal conductors to protect them from electromagnetic interference (EMI) generated by the high-power conductors running in close proximity. This shielding ensures that communication signals remain clean and accurate, even in electrically noisy environments like parking garages with multiple simultaneous fast chargers operating nearby.

Copper and Charging Speed: The Connection Is Direct

One of the most visible metrics in the EV world is charging speed — how quickly can a depleted battery be restored to full? Copper's role in this equation is direct and significant.
Higher charging power requires higher current, which in turn demands larger copper conductors. As charging standards have evolved from 50 kW to 150 kW, 350 kW, and beyond, the copper cross-sections required have grown accordingly. Ultra-high-power chargers now face a difficult engineering tradeoff: the copper conductors needed to handle 500A or more at acceptable resistive losses would make the cable so heavy and stiff as to be unusable by ordinary consumers.

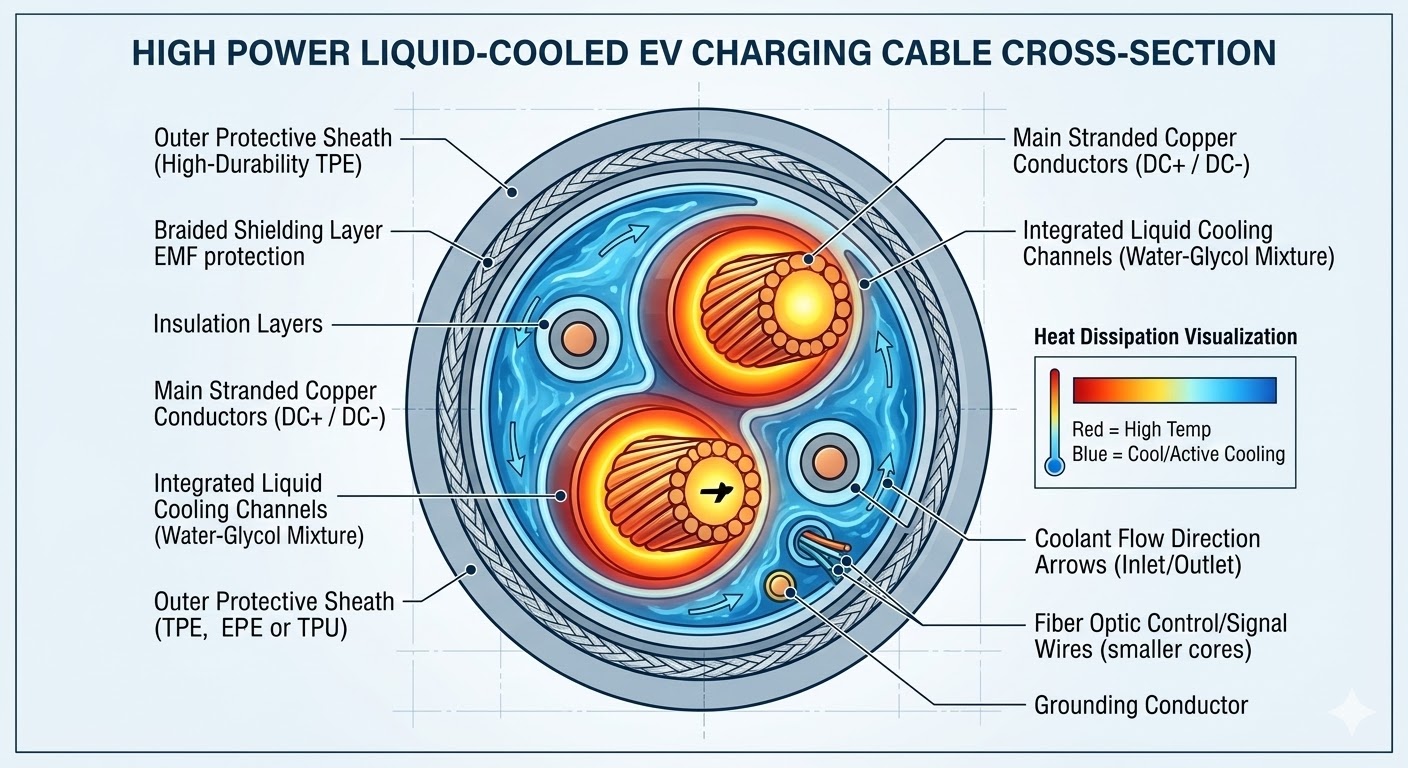

This challenge has driven the development of liquid-cooled charging cables, a technology now standard on the most powerful fast chargers worldwide. In a liquid-cooled cable, a coolant circuit runs alongside the copper conductors, actively removing heat during charging. This allows the use of thinner — and therefore lighter and more flexible — copper conductors than would otherwise be required, because the cooling system compensates for the increased resistive heating. The result is a cable that can deliver 350 kW or more while remaining manageable for everyday users.
The key insight here is that even in liquid-cooled designs, copper remains the conductor of choice. The innovation is not in replacing copper but in engineering around its thermal limitations at extreme power levels — which speaks to how central it is to the entire system architecture.

Safety, Standards, and Material Quality

The safety of an EV charging cable is not merely a matter of good design — it is governed by stringent international standards including IEC 62893, UL 2594, and SAE J1772. These standards specify minimum conductor cross-sections, insulation thickness, temperature ratings, and bend cycle performance, among many other parameters. Copper's well-understood physical properties make it the baseline material around which these standards are written.
Material quality within the copper itself is equally critical. Oxygen-free copper (OFC), which contains less than 0.001% oxygen, offers superior electrical performance and improved resistance to hydrogen embrittlement compared to standard electrolytic tough pitch (ETP) copper. For premium charging cables — particularly those used in high-cycle commercial environments — OFC conductors provide a meaningful advantage in long-term reliability.
Tinned copper conductors, where each strand is coated with a thin layer of tin before stranding, are another common variant. The tin coating improves corrosion resistance in humid environments and makes soldering easier during manufacturing. Tinned copper is widely used in portable EV charging cables that are routinely exposed to weather over their service life.
Poor-quality or counterfeit cables, by contrast, often use conductors with insufficient copper content — sometimes substituting copper-clad aluminum (CCA) in place of pure copper without disclosure. CCA conductors have significantly higher resistance than pure copper, and their aluminum core expands and contracts at different rates from the copper cladding when heated, leading to fatigue cracking over time. In a charging cable carrying hundreds of amperes, this is not a theoretical risk — it is a documented cause of failures, overheating incidents, and fires.

Copper vs. Aluminum: The Ongoing Debate

The electrical utility industry has used aluminum conductors extensively for decades, particularly in overhead transmission lines and large-gauge building wiring, where weight savings justify the tradeoffs. Could aluminum play a larger role in EV charging cables?
At the current state of technology, the answer is mostly no — at least for portable and moderate-length charging cables. Aluminum's lower conductivity means that an aluminum conductor must have approximately 1.6 times the cross-sectional area of a copper conductor to carry the same current with equivalent resistive losses. For a charging cable that users must pick up, carry, and plug in multiple times per day, this increase in size and weight is a significant practical penalty.
Aluminum is also far less flexible than copper. Aluminum strands work-harden with repeated bending and can fracture — a potentially catastrophic failure mode in a cable handling hundreds of amperes. Copper's superior ductility makes it intrinsically better suited to the mechanical demands of a repeatedly flexed charging cable.
There is ongoing research into aluminum alloys and composite conductors that might close this performance gap, and in stationary high-current busbar applications within charging stations, aluminum does have a place. But for the cable that runs from charger to car, copper's combination of conductivity, flexibility, and connection reliability makes it the clear engineering choice for the foreseeable future.

The Supply Chain Dimension: Copper's Strategic Importance

The rise of EVs is not just a technology story — it is also a materials story. A single electric vehicle contains roughly 2.5 to 4 times more copper than a conventional internal combustion engine vehicle, primarily in the motor windings, battery interconnects, and charging infrastructure. The International Energy Agency projects that meeting global EV adoption targets will require dramatic increases in copper mining and refining capacity over the coming decades.
This supply-demand dynamic has significant implications for the charging industry. Copper prices are notoriously volatile, and cost pressures drive ongoing engineering efforts to use copper as efficiently as possible — specifying precisely the right conductor cross-section for each application, optimizing cable geometry to minimize total copper content, and improving manufacturing yields to reduce scrap. The best charging cable designs use exactly as much copper as the application requires: no more, no less.
The strategic importance of copper also explains why material substitution research continues. If an alternative conductor could match copper's performance profile at lower cost or with reduced supply chain risk, it would represent a major competitive advantage for the entire EV charging industry. For now, no such alternative exists at scale for EV charging cable applications.

Looking Ahead: Copper in the Ultra-High-Power Future

The trajectory of EV charging technology points relentlessly toward higher power levels. Megawatt charging (MCS), currently being standardized for electric trucks and commercial vehicles, will push current levels beyond 3,000 amperes — figures that would have seemed extraordinary even a decade ago. At these extremes, thermal management of copper conductors becomes the central engineering challenge, and liquid cooling alone may not be sufficient.
Emerging approaches include active forced-air cooling, phase-change cooling systems, and novel cable geometries that maximize the surface area available for heat dissipation. Some researchers are also investigating the potential of high-temperature superconductors for extreme-power charging applications, though practical deployment of such systems remains many years away.
In all of these future scenarios, copper remains the starting point — the baseline conductor against which all alternatives are measured, and the material that will carry the vast majority of EV charging current for decades to come.

Conclusion: The Indispensable Metal

The story of EV charging is, at its core, a story of energy — vast amounts of electrical energy transferred quickly, safely, and reliably, day after day, year after year. Copper is the material that makes this energy transfer possible. Its electrical conductivity, mechanical flexibility, connection reliability, and well-established manufacturing ecosystem place it at the center of every charging cable ever made.
As charging power levels continue to rise, as cable designs grow more sophisticated, and as the global EV fleet expands into the hundreds of millions, the engineering challenges around copper will only intensify. How to use it more efficiently, how to protect it more effectively, how to source it more sustainably — these are among the most important practical questions facing the EV infrastructure industry today.
For engineers, procurement professionals, and consumers alike, understanding why copper matters is not an academic exercise. It is the foundation for making informed decisions about the charging hardware on which the electric future depends. In a technological landscape full of high-profile innovations, copper remains the quiet constant — the reason the electrons actually move.
