Electric vehicles (EVs) represent a transformative shift towards cleaner and more sustainable transportation. At the heart of EV adoption is the efficient and safe charging infrastructure that powers these vehicles. As EV chargers deal with significant electrical power, incorporating robust safety mechanisms against electrical faults is critical. Two fundamental protections often discussed in electrical systems, which are essential for EV chargers, are overcurrent protection and overvoltage protection.
Understanding these protections, their working principles, and their specific role in EV chargers is vital for manufacturers, installers, engineers, and even EV users who want to grasp the safety mechanisms behind reliable charging. This article aims to present a comprehensive, clear, and relatable explanation of overcurrent and overvoltage protection in the context of EV charging technology.
What Is Overcurrent Protection?
Overcurrent occurs when the current flowing through an electrical circuit exceeds the designed or safe current limit. This can happen due to overloads, short circuits, or ground faults.
Why Overcurrent Protection Matters
Every electrical component—from wiring to chargers and batteries—is designed to operate safely within specified current limits. Exceeding these limits can cause overheating, equipment damage, insulation breakdown, fires, or even injury to users.
Overcurrent protection systems detect when current rises beyond safe thresholds and then take immediate action to interrupt or reduce the current flow. This act of protection prevents a minor fault from causing catastrophic damage.
How Overcurrent Protection Works
There are several devices and methods used for overcurrent protection:
- Fuses: These devices contain a metal wire or strip that melts when excessive current passes through, interrupting the circuit literally by breaking the electrical path.
-
Circuit breakers: Mechanical switches that trip and open the circuit when detecting overcurrent. They can be manually or automatically reset, making them reusable.
-
Relays and electronic sensors: These use electromagnetic principles or semiconductor technology to sense overcurrent and send signals to interrupt power automatically.
Overcurrent Conditions
Overcurrent protection caters mainly to two fault types:
1.Overload: This is a sustained current higher than the circuit’s rating, often due to too many devices drawing power simultaneously or malfunctioning equipment.
2.Short circuit: A dangerous condition where unintended low-resistance paths cause currents much higher than normal, leading to immediate hazards.
3.Ground faults: Occur when current takes an unintended path to earth, often causing safety risks.
-4.jpg?w=1024&h=1024)
Overcurrent Protection in EV Chargers
In an EV charger, overcurrent protection ensures that the charging current does not exceed the limits safe for the charger’s components, the charging cables, and the EV’s battery. For example, if a thermal fault or a wiring short develops, the protection system rapidly shuts off the current, preventing overheating, fires, or damage to the expensive battery pack.
Both AC chargers and DC fast chargers require overcurrent protection at different points in their circuitry. AC chargers need it on the input and output sides, while DC chargers especially emphasize protection on the high-power DC output side.
Most EV chargers feature an overcurrent trip point set between 110% and 150% of the rated current. This range balances safety and charger usability, preventing nuisance trips from normal current surges while responding promptly to faults.
In addition to basic fuses or breakers, modern EV chargers may use electronic overcurrent protection integrated within their power electronics, providing rapid fault detection and precise current control.
What Is Overvoltage Protection?
Overvoltage refers to a voltage spike or surge beyond the normal operation voltage. These spikes are often transient but can cause significant damage.
Why Is Overvoltage Protection Important?
Electronic components in chargers and EV batteries are sensitive to voltage spikes. Such spikes often come from:
- Lightning strikes nearby
-
Grid switching operations causing transient surges
-
Faulty or unstable power sources
Uncontrolled overvoltages can degrade or destroy sensitive power electronics, cause insulation damage, and lead to charger or battery failure.
How Overvoltage Protection Works

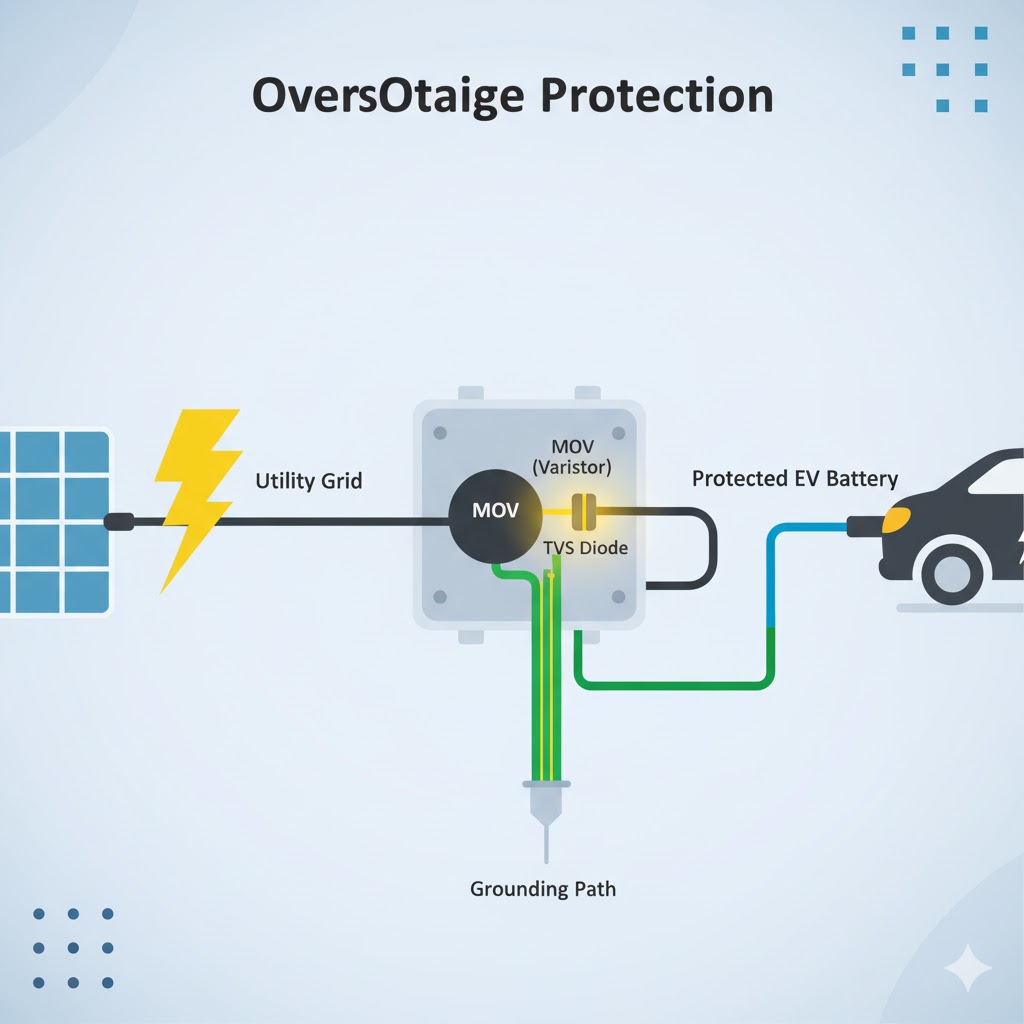

Overvoltage protection devices are designed to limit voltage spikes by absorbing, diverting, or clamping excess voltage to safe levels. These devices include:
- Varistors: Often metal oxide varistors (MOVs), act as voltage clamps, conducting heavy current only when voltage exceeds predetermined limits.
-
Gas discharge tubes: These rapidly conduct large surge currents to ground when a voltage spike occurs.
-
Transient voltage suppressor (TVS) diodes: Semiconductor devices that react extremely fast to transients, absorbing surges to protect delicate circuits.
-
Zener diodes and voltage limiters: Maintain voltages within safe bounds via electronic regulation.
-
Lightning arresters: Devices specifically designed to protect from lightning-induced surges, directing the surge safely to ground.
Overvoltage Protection in EV Chargers
Charging stations require overvoltage protection to maintain the longevity and reliability of the control electronics and power converters inside the charger, as well as the battery management systems of the vehicle.
Transient voltage spikes are clipped or diverted to the earth ground, preventing sudden electrical stress on components. This is important in outdoor or industrial environments where grid disturbances are relatively more common.
Standards often require EV chargers to include overvoltage protection components to ensure safety and compliance.
Comparing Overcurrent vs. Overvoltage Protection
| Aspect | Overcurrent Protection | Overvoltage Protection |
|---|---|---|
|
What it protects |
Prevents excessive current flow that can cause overheating or damage |
Prevents voltage spikes that can harm components |
|
Common causes addressed |
Overloads, short circuits, ground faults |
Lightning strikes, grid surges, transient spikes |
|
Devices used |
Fuses, circuit breakers, relays |
Varistors, gas discharge tubes, TVS diodes |
|
Typical response time |
Fast (milliseconds to seconds) |
Very fast (microseconds to milliseconds) |
|
Key role in EV chargers |
Avoids current-related damage and fire hazards |
Protects sensitive electronics from voltage stress |
Extended Protections and Integration in Modern EV Chargers
Today's EV charging systems integrate overcurrent and overvoltage protections with broader safety features like:
- Ground fault detection: Protects users by detecting leakage currents.
-
Thermal overload protection: Prevents overheating by monitoring temperature.
-
Communication protocols: Allow remote monitoring of faults and protection status.
-
Smart controls: Dynamically adjust charging parameters for safe operation.
Advanced chargers incorporate solid-state protections that operate faster and more reliably than mechanical devices, enabling high safety standards even in fast and ultra-fast charging applications.
Practical Benefits for EV Owners and Infrastructure
-
Enhanced Safety: Protection mechanisms reduce risks of electrical fires, shock, and equipment damage, safeguarding property and lives.
-
Longevity of Equipment: Well-protected chargers and batteries last longer, providing better investment returns.
-
Regulatory Compliance: Adhering to electrical safety standards ensures legal compliance and insurance validity.
-
User Convenience: Reduced failures and faults mean minimal interruptions and maintenance needs.
Conclusion
Overcurrent and overvoltage protection are essential safety pillars that underpin the reliable, efficient, and safe operation of EV chargers. Their distinct yet complementary roles help prevent electrical faults from escalating into hazards or damaging crucial components. Whether through simple fuses or sophisticated electronic safeguards, these protections are integrated into modern EV charging technology to ensure the transition to electric mobility is safe and sustainable.
With EV adoption rising globally, deepening our understanding of these fundamental protection mechanisms helps all stakeholders—from engineers and manufacturers to consumers—appreciate the invisible safety nets keeping EV charging infrastructure secure and dependable
