When using charging equipment, it is common for temperatures to rise to 60°C, but is this temperature within a safe and normal range? This question concerns the safety, efficiency, and lifespan of charging systems. This article will provide an in-depth exploration of temperature's impact on chargers, including performance changes in high and low temperature environments, with analysis based on specific climate conditions across different European regions.
Part One: Defining the 60°C Temperature Level—Establishing Normal Operating Range
Charger Safety Temperature Standards
According to international safety certification standards, safe operating temperatures for chargers have clearly defined limits. Chinese 3C safety certification specifies that the charger surface temperature must not exceed 70°C, and internal temperature must not exceed 90°C. These limits are determined based on the temperature tolerance of various charger components:
The plastic external housing can tolerate approximately 110°C, while the printed circuit board (PCB) tolerates about 130°C. Surface-mounted components can withstand over 150°C, and connectors tolerate approximately 100°C. When charger temperature exceeds 100°C, components may melt or burn, creating serious safety hazards.
The Specific Meaning of 60°C
When a charger reaches 60°C, this temperature is within the normal operating range but has approached the warning threshold,making temperature-stable charging equipment a more reliable option in such conditions.. This indicates the charger is operating under relatively high-load conditions. In lithium battery charging systems, charger heat should ideally not exceed 60°C. Therefore, 60°C represents acceptable operation, though users should monitor subsequent temperature changes to prevent further escalation.
Part Two: High Temperature Impact on Chargers and Batteries
High Temperature Effects on Charging Efficiency
High temperature environments significantly reduce charging system efficiency. Research data shows that when ambient temperature rises from normal room temperature (25°C) to 45°C, the charging efficiency of nickel-metal hydride batteries drops from 100% to 35-40%; at 60°C, charging efficiency further declines to approximately 45%. For lithium-ion batteries, while rapid charging is still possible in high temperatures, efficiency clearly decreases and charging acceptance capacity is severely limited.
Specifically, when lithium batteries operate at 45°C, they can only accept 70% of their charging capacity; at 60°C, charging acceptance is restricted to below 45%. This means that in high temperature environments, the same charging current can only deliver approximately half of the expected energy to the battery.
High Temperature Effects on Battery Lifespan—Accelerated Degradation
High temperature is the battery's greatest enemy. Rising temperature accelerates chemical reaction speeds inside the battery, triggering multiple harmful processes.
Regarding capacity degradation acceleration, research demonstrates that after 200 charging cycles at 45°C, batteries may lose approximately 6.7% of capacity, compared to only 3.3% at 25°C. This means the capacity degradation rate at high temperatures is approximately double that of normal temperature conditions.
Regarding calendar aging deterioration, high temperature affects not only cycle life but also calendar life. For lithium iron phosphate (LFP) batteries, calendar lifespan is 5-6 years when stored at 35-40°C, but when temperature rises above 45°C, calendar lifespan drops dramatically to merely 1-2 years. This exponential degradation indicates that for every 10°C temperature increase, the degradation rate may increase 2-4 times.
The internal reaction acceleration occurs because high temperature promotes electrolyte oxidation, solid electrolyte interphase (SEI) film growth, and other harmful side reactions. These reactions increase internal resistance, further accelerating battery capacity degradation.
High Temperature Risks for Chargers
High temperature environments cause charger overheating through multiple pathways. Increased environmental heat load directly raises charger operating temperature. When ambient temperature reaches 35°C, even if the charger experiences only moderate heating, its surface temperature may approach 65-70°C. During high temperature seasons, air conditioning systems operate at full capacity, increasing electrical grid load and causing voltage drop phenomena, which require charging systems to handle higher currents, generating additional heat. Chargers rely on ambient air for heat dissipation, and in high temperature environments, the thermal gradient decreases and cooling efficiency drops noticeably.
In extreme situations, chargers may experience plastic shell melting or insulation layer damage, creating serious safety hazards.-10.jpg?w=1024&h=559)
Part Three: Low Temperature Impact on Chargers and Batteries
Charging Challenges in Low Temperature Environments
Low temperature impacts charging systems as severely as high temperature, though through different mechanisms. When temperature drops below 0°C:
Chemical reaction speeds decline significantly. Low temperature markedly slows chemical reactions inside batteries. The diffusion rate of lithium ions into the negative electrode drops substantially, causing battery internal resistance to increase significantly.
Charging is prohibited by standards. According to international standards, lithium-ion batteries are strictly prohibited from charging below freezing temperature (0°C). Although charging equipment may appear to operate normally, charging in low temperatures causes metal lithium to precipitate on the negative electrode—a phenomenon called lithium plating—resulting in permanent performance degradation and safety hazards. This lithium plating phenomenon makes batteries more susceptible to failure under vibration or other stress conditions.
Charging time extends considerably. In low temperature conditions, charging time increases significantly. Using Norway as an example, winter charging requires 40-60% longer than normal temperature charging. This not only reduces charging convenience but also increases user waiting costs.
Low Temperature Hardware Damage
Low temperature environments create direct threats to charger physical and electrical performance. Traditional TPE (thermoplastic elastomer) and TPU (thermoplastic polyurethane) cables become brittle and easily fracture in extreme cold (such as -30°C), potentially causing safety hazards or charging interruption. Charger exterior and internal component contraction in cold may compromise waterproof and dustproof sealing effectiveness. Accumulated ice around connection points and buttons may obstruct normal usage. Standard LCD displays may malfunction in extreme low temperatures and require professional low-temperature displays with anti-freeze coatings to maintain functionality.
Specific Adaptation Solutions in Cold Regions
In Nordic countries like Norway and Finland, winter temperatures may drop to -30°C or even lower. Addressing these extreme conditions, advanced charging station designs implement several measures. Active heating systems in certain high-end chargers can preheat critical components in extreme cold, preventing freeze damage. Liquid antifreeze agents such as ethylene glycol or professional oils are used in charging cables and internal liquid cooling circuits. Integrated temperature sensors monitor device temperature in real-time, automatically adjusting charging parameters according to conditions and even pausing charging to prevent damage.

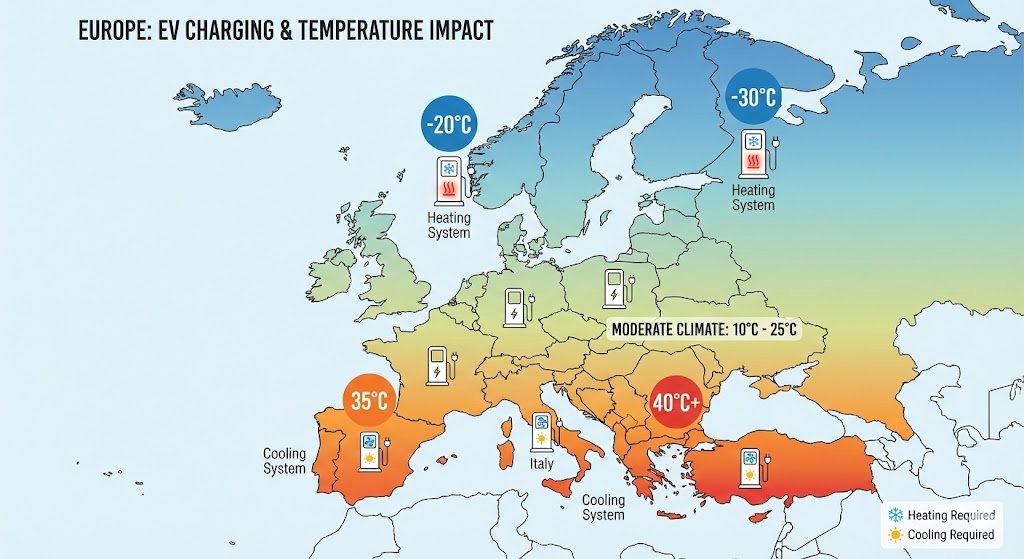

Part Four: European Regional Temperature Context and Charging Impact
Climate Diversity Across Europe
Europe spans vast territories with diverse climate types, directly affecting charging system operating conditions.
Western European oceanic climate includes regions like the United Kingdom, Ireland, and the Netherlands, characterized by relatively mild winters. Winter temperatures (December-February) average 0-5°C, while summer temperatures (June-August) average 14-24°C. This relatively stable temperature range represents an ideal operating environment for charging systems.
Central European continental climate encompasses Germany, Poland, and the Czech Republic, with greater temperature fluctuations. Winters may drop to -4°C while summers reach 25°C. This requires chargers to possess broader adaptive capability.
Northern European cold climate affects Finland, northern Sweden, and Norway, where winter temperatures may fall below -10°C, with certain regions experiencing -30°C or colder. This represents an extreme test for charging systems.
Southern European Mediterranean climate includes southern Italy, Spain, and Greece, where summer heat is pronounced. Summer average temperatures reach 28-35°C, with certain areas exceeding 38°C. This high temperature environment presents enormous challenges to charger cooling efficiency.
Specific Location Case Studies
Amsterdam in the Netherlands maintains relatively mild temperatures year-round, with winter averaging -1 to 5°C and summer averaging 15-22°C. This stable temperature condition allows Amsterdam's charging infrastructure to maintain excellent performance. Chargers rarely experience extreme temperature stress here, permitting standard equipment configuration. However, since Amsterdam experiences frequent winter rain, waterproofing and moisture resistance remain important considerations.
Berlin in Germany experiences winter temperatures (December-February) averaging -3 to 2°C, with summer (June-August) averaging 16-24°C, creating an annual temperature range of approximately 27°C. This temperature fluctuation requires chargers to possess good thermal expansion adaptation capability. In winter, charging speed may decrease 20-30%, while in summer, chargers require superior cooling design.
Helsinki in Finland presents winter average temperatures of -10 to -5°C with potential drops to -20°C or below, and summer averaging 15-21°C. This extreme temperature differential (possibly exceeding 40°C) represents enormous challenges for charger mechanical strength and electrical performance. Based on Norwegian experience (similar latitude), many charging stations are equipped with -35°C low-temperature ratings and active heating systems.
Madrid in Spain experiences winter averaging 3-9°C and summer averaging 23-35°C, with maximum temperatures exceeding 40°C. Unlike Nordic challenges, the primary concern is high temperature. During summer, charger surface temperature may reach 70°C or higher, approaching the safety threshold. Consequently, Madrid charging stations typically feature active cooling systems or shade canopies.
Lisbon in Portugal maintains winter average temperatures of 8-14°C and summer averaging 24-33°C, with slightly lower temperatures than Madrid. Year-round abundant sunshine means accumulated high temperature effects may accelerate calendar aging, impacting charger lifespan.
Oslo in Norway can experience winter temperatures dropping to -25°C, representing one of the most extreme low-temperature environments among major European cities. However, because electric vehicle adoption in Norway is exceptionally high (91.3% of new vehicle registrations in 2023), related infrastructure and best practices are most mature. Norwegian experience demonstrates that through preheating, intelligent thermal management, and high-quality design, EV charging systems can operate safely and reliably in extreme cold conditions.-9.jpg?w=1024&h=559)
Part Five: Temperature Impact Mechanisms on Different Charging Systems
Temperature Sensitivity of Lithium-Ion Batteries
Lithium-ion battery temperature sensitivity stems from complex electrochemical mechanisms. The safe battery operating temperature range is 0°C to 45°C. Outside this range:
Beyond 45°C, electrolyte decomposition accelerates, SEI film stability decreases, and gas production increases, potentially causing cylindrical battery venting or soft-pack battery swelling. Most commercial chargers prohibit charging above 50°C.
Below 0°C, lithium-ion diffusion rates decline dramatically (potentially to 1% of normal temperature levels), negative electrode interface impedance increases sharply, and lithium plating risk increases significantly. Charging acceptance capacity becomes severely restricted.
Thermal Accumulation in Charger Components
Chargers are not single heat sources. During charging processes, multiple heat generation occurs. AC/DC conversion and step-up/step-down circuits produce heat. Power conversion efficiency typically ranges from 85-95%, meaning 5-15% of input power converts to heat. Inductors and resistance in charging cables, connectors, and internal PCB traces generate Joule heat (I²R). In high-power charging situations (exceeding 3.3kW) this effect is particularly pronounced.
When chargers have poor ventilation or are placed in high-temperature environments, heat cannot dissipate promptly, causing multiple components to heat simultaneously, leading to rapid overall temperature increases.
Importance of Thermal Management Systems
Modern high-power charging systems (such as 350kW ultra-rapid chargers) typically employ liquid cooling systems to manage heat. Liquid cooling system advantages include superior cooling efficiency—water's heat capacity is 3500 times that of air, making liquid cooling approximately 10 times more efficient than air cooling. The system enables precise temperature control, maintaining internal temperatures approximately 10°C lower than air-cooled systems. Compact system design allows smaller, lighter connectors and cables through more effective heat dissipation. System lifespan extends significantly through maintaining optimal temperatures.
Liquid cooling systems typically include pumps, heat exchangers, and thermal sensors forming closed-loop feedback control, dynamically adjusting cooling flow based on detected thermal load.
Part Six: Calendar Aging Versus Cycle Aging—Temperature's Dual Impact
Distinguishing Between Two Degradation Mechanisms
Battery deterioration occurs through two distinct mechanisms: calendar aging and cycle aging.
Calendar aging represents capacity reduction occurring simply with passage of time, independent of battery use. This degradation is primarily determined by storage temperature and storage state, unrelated to usage.
Cycle aging represents capacity reduction caused by charge-discharge operations. This depends on discharge depth (DoD), charge-discharge rate, and working temperature.
Nonlinear Temperature Effects on Calendar Aging
Temperature's impact on calendar aging follows the Arrhenius equation, exhibiting exponential relationships. At 25°C storage, lithium-ion battery annual degradation rate is approximately 2-3%, while at 35°C it rises to 5-8%, and at 45°C it accelerates to 10-15%.
For LFP batteries (common in commercial charging systems), storage at 25°C yields calendar lifespan of 12-15 years, whereas storage at 35-40°C reduces calendar lifespan to 5-6 years, and storage above 45°C yields merely 1-2 years lifespan.
This signifies that in high-temperature regions (such as Southern Europe), charging equipment battery packs may require more frequent maintenance or earlier replacement.
Compound Temperature Effects on Cycle Aging
Cycle aging's relationship with temperature is equally critical. Batteries cycled at 45°C may achieve only half the cycle lifespan of 25°C operation. Reasons include increased mechanical stress where high temperature accelerates electrode expansion/contraction cycling, causing active material fracture. Enhanced SEI film repair requirements occur because more lithium ions precipitate into SEI film each cycle requiring repair. Increased electrolyte convection at high temperatures produces more decomposition products, intensifying electrode reactions.
Part Seven: Best Practices for Temperature Management in Practical Applications
User-Level Temperature Management
To optimize charger performance and extend service life, users should implement several measures.
Avoiding high-temperature environments involves not placing chargers in direct sunlight, avoiding placement in hot indoor spaces (such as garages during hot weather), and ensuring adequate air circulation around chargers.
Winter prevention measures require that in extremely cold regions (such as Nordic countries), users preheat vehicles and chargers before connecting. Norwegian experience shows that connecting to household chargers and activating vehicle heating for 5-10 minutes significantly improves low-temperature charging performance. Avoiding rapid charging when temperatures fall below 0°C prevents damage.
Temperature monitoring involves regularly checking charger surface temperature; if exceeding 60°C despite moderate environmental temperature, charging should pause for equipment inspection. Users should observe for abnormal phenomena such as unusual odors, vibration, or noise.
System Design Level Improvements
For charging infrastructure operators and manufacturers, high-temperature region solutions involve installing shade canopies or relocating to shaded areas, integrating active cooling systems (fans or liquid cooling), and selecting components with high-temperature ratings (recommended at least -20°C to +60°C).
Low-temperature region solutions require using specially certified low-temperature cables (capable of withstanding below -35°C), integrating thermal management systems and preheating mechanisms, and enhancing anti-icing design with hydrophobic coatings and antifreeze liquids.
Universal improvements include employing advanced insulation materials (such as PC-V0 fire-resistant flame-retardant materials), integrating temperature sensors and intelligent control systems, and conducting regular maintenance and inspections, particularly during extreme seasons.
Part Eight: European Charging Infrastructure's Temperature Adaptation Solutions
Standardized Temperature Ratings
Advanced charging equipment in Europe typically employs standardized operating temperature ranges. Standard working range is -20°C to +50°C, storage range is -30°C to +60°C, with Nordic advanced solutions reaching -35°C to +55°C.
These range selections are based on extreme climate conditions across Europe.
Regional Adaptation Examples
Nordic regions including Norway, Finland, and Sweden deploy chargers (such as ABB Terra HP) typically rated to -40°C, equipped with heating elements and anti-freeze coatings, and using specialized low-temperature cable designs.
Central European regions including Germany, Austria, and the Czech Republic feature chargers with typical temperature ranges of -20°C to +50°C, employing active cooling (fans) in summer and insulation design preventing freeze damage in winter.
Southern European regions including Spain, Italy, and Greece emphasize charger cooling efficiency in design, widely adopting liquid cooling systems for high-power charging stations, and commonly installing shade canopies or underground charging stations to prevent overheating.
Conclusion
Final Answer Regarding 60°C
Yes, charger temperature rising to 60°C is generally normal, but this indicates the charger operates under relatively high-load conditions. Users should monitor subsequent temperature changes, preventing escalation to dangerous levels (greater than 70°C).
Comprehensive Temperature Impact on Charging Systems
High temperature dangers include significantly reduced charging efficiency (declining to 45% or below at 60°C), accelerated battery capacity degradation (with degradation rates double those of normal temperature), and shortened equipment lifespan.
Low temperature challenges involve extended charging times, prohibition of charging below 0°C (preventing lithium plating), and physical damage to charger hardware.
Geographic factors hold considerable importance. Climate variation across Europe is substantial. Both Northern European extreme cold and Southern European high temperatures require specialized charging infrastructure design.
Active thermal management becomes necessary. Modern high-power charging systems must employ liquid cooling, temperature sensing, and intelligent control to address temperature challenges.
Prevention and maintenance through simple user preventive measures (such as avoiding extreme environments and regular inspection) significantly extend charger and battery service life.
Forward-Looking Perspective
As electric vehicle adoption spreads widely, charging infrastructure must adapt to diverse global climate conditions. European climate diversity presents opportunities to design universal, climate-adaptive charging solutions. Future development directions include developing more efficient thermal management systems capable of maintaining optimal charging environments under extreme temperatures, implementing AI-based predictive maintenance predicting equipment failure based on temperature history, creating more durable materials and components functioning across broader temperature ranges, and developing intelligent load balancing that automatically reduces charging power during high-temperature periods to protect equipment.
Through understanding and addressing temperature's multidimensional impacts, we can construct safer, more efficient, and more durable global electric vehicle charging ecosystems.
