Installing an EV charger by yourself can be a rewarding and cost-saving project, but it requires careful attention to safety, compatibility, and correct procedures. Understanding the essential factors before starting the installation ensures that the charger works efficiently and safely for your electric vehicle. Below is a comprehensive guide with key considerations to keep in mind during the installation process.
Choosing the Right EV Charger for Your Needs
Selecting the appropriate EV charger is the first step. Factors to consider include the charger’s power rating (measured in kW), compatibility with your vehicle’s charging port, and whether you want a portable or fixed charger. For example, some chargers support fast charging with three-phase power, while others are suitable for slower, single-phase charging. Ensure the charger you select matches your home’s electrical capacity and your car’s charging requirements.
Assessing Your Home’s Electrical Capacity

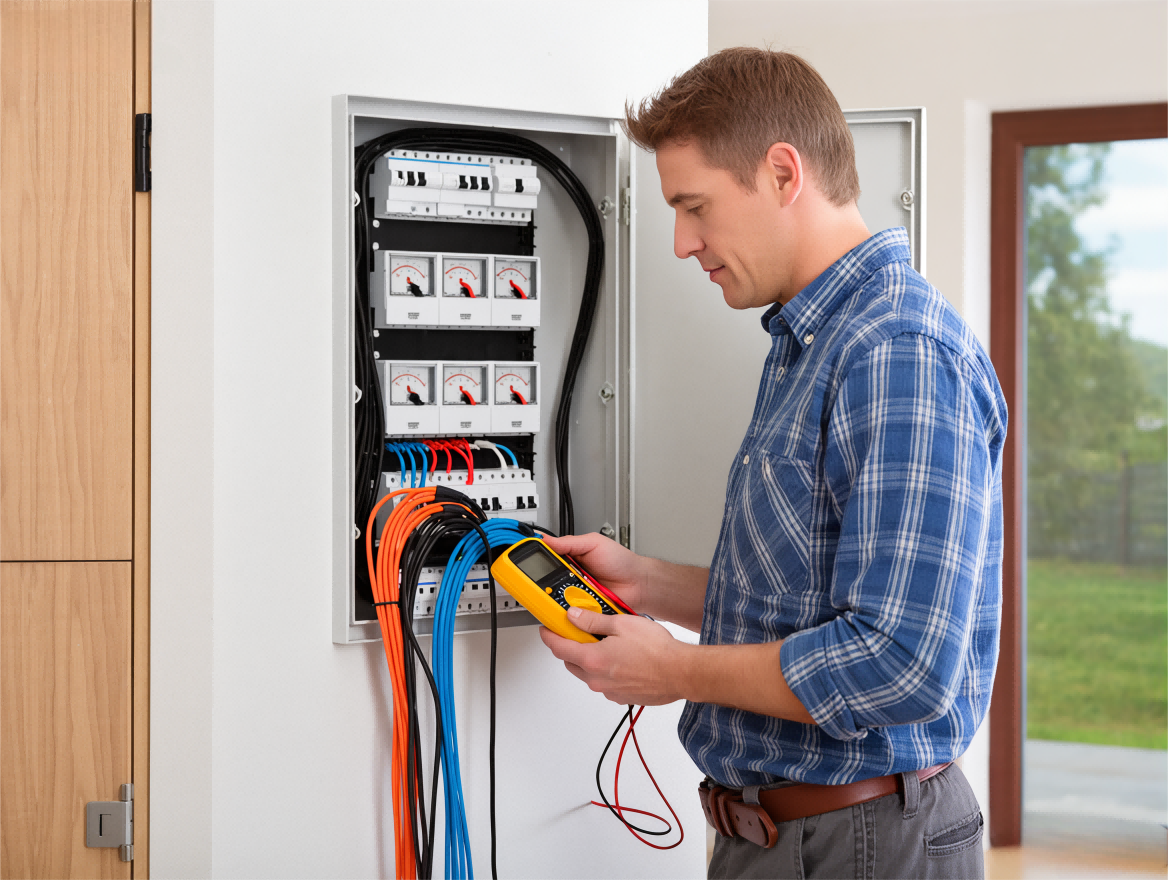

Before installation, assess your home’s electrical system to ensure it can support the charger’s power needs. This may involve checking your circuit breaker panel capacity, wiring gauge, and availability of dedicated circuits. Higher-powered chargers such as 22kW units often require a dedicated three-phase circuit and upgrades to your electrical panel. Consulting with an electrician might be necessary to evaluate if additional upgrades are needed.
.png?w=1168&h=880)
Selecting an Appropriate Installation Location

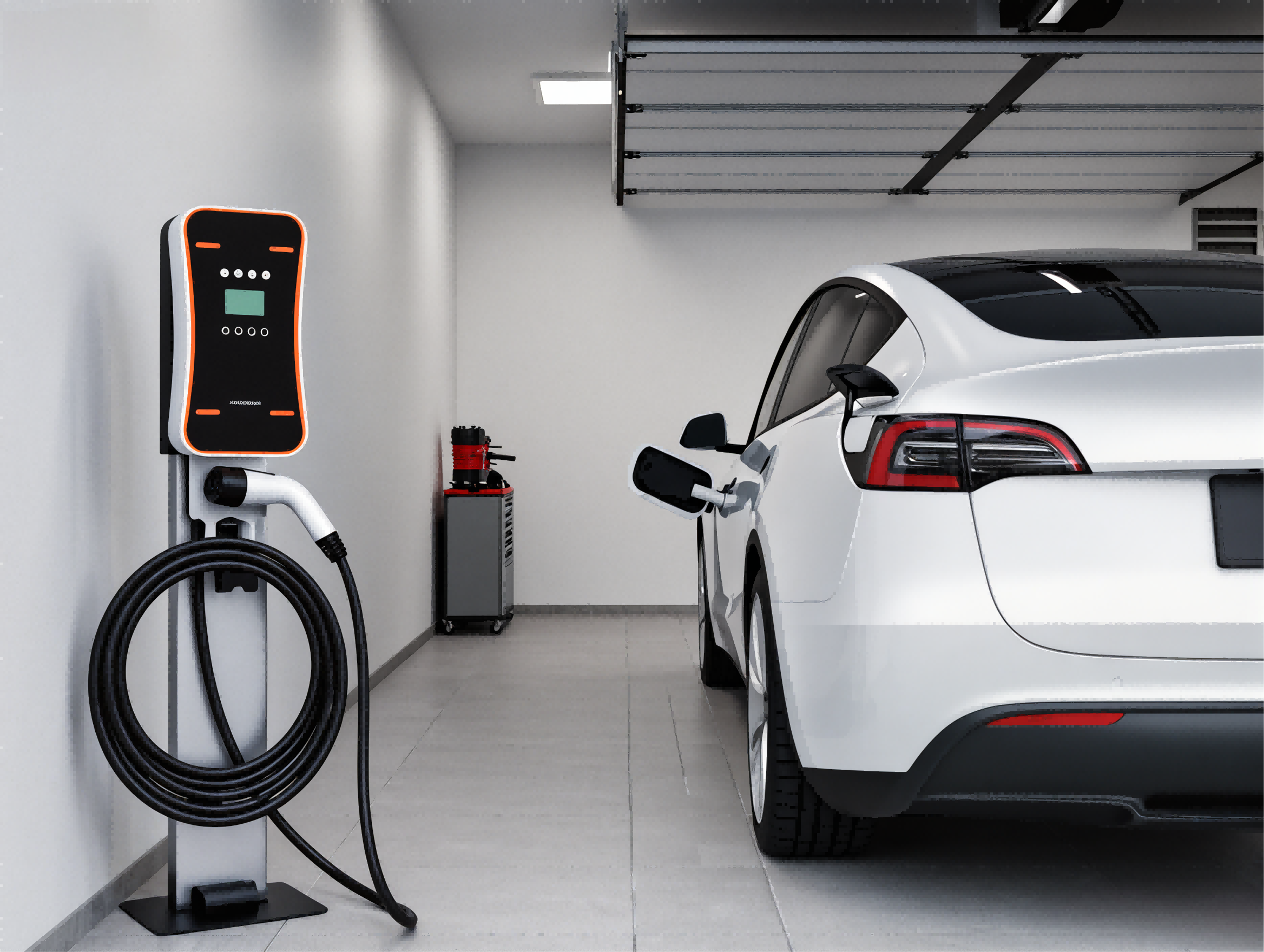

Choosing the right location for the EV charger is crucial for convenience and safety. The charger should be installed close to where you park your vehicle, typically in a garage or driveway. Considerations include protection from weather if installed outdoors, ease of access to power supply, and ensuring the cable length is sufficient to reach your car’s charging port without strain or obstruction.
.png?w=2336&h=1760)
Understanding Electrical Safety Precautions
Safety is paramount when installing an EV charger. Ensure the circuit you connect to is properly grounded and protected by a circuit breaker or a ground fault circuit interrupter (GFCI). Avoid working in wet or damp conditions and use insulated tools. If you lack electrical experience, it is safer to hire a qualified electrician to handle wiring, connections, and any modifications to your electrical system.
Following Local Regulations and Permitting Requirements
Installation of EV chargers may be subject to local building codes and electrical regulations. Before starting, check with your local authority regarding permits or inspections required for the installation. Complying with these regulations ensures your installation is legal, safe, and eligible for any available rebates or incentives.
Mounting and Wiring the Charger Properly
Proper mounting and wiring are essential to ensure the longevity and functionality of your EV charger. Follow the manufacturer’s installation instructions carefully for mounting height, securing cables, and making electrical connections. Ensure all wires are correctly sized for the load and securely connected. Use cable management accessories to prevent tripping hazards and damage to charging cables.
Testing the Charger and Electrical System
After installation, thoroughly test the charger and the connected electrical system. Verify that the charger powers on correctly, and the vehicle begins charging without error messages. Check the circuit breaker does not trip and wiring does not heat excessively. Many smart EV chargers provide app controls to monitor the charging status and diagnose issues.
Maintaining Your EV Charger for Safe Operation
Regular maintenance helps keep your EV charger in good working order. Periodically inspect cables for wear, check connections for tightness, and clean the charger case to prevent dust buildup. Follow any maintenance instructions provided by the manufacturer to ensure your charger remains safe and efficient over its lifespan.
