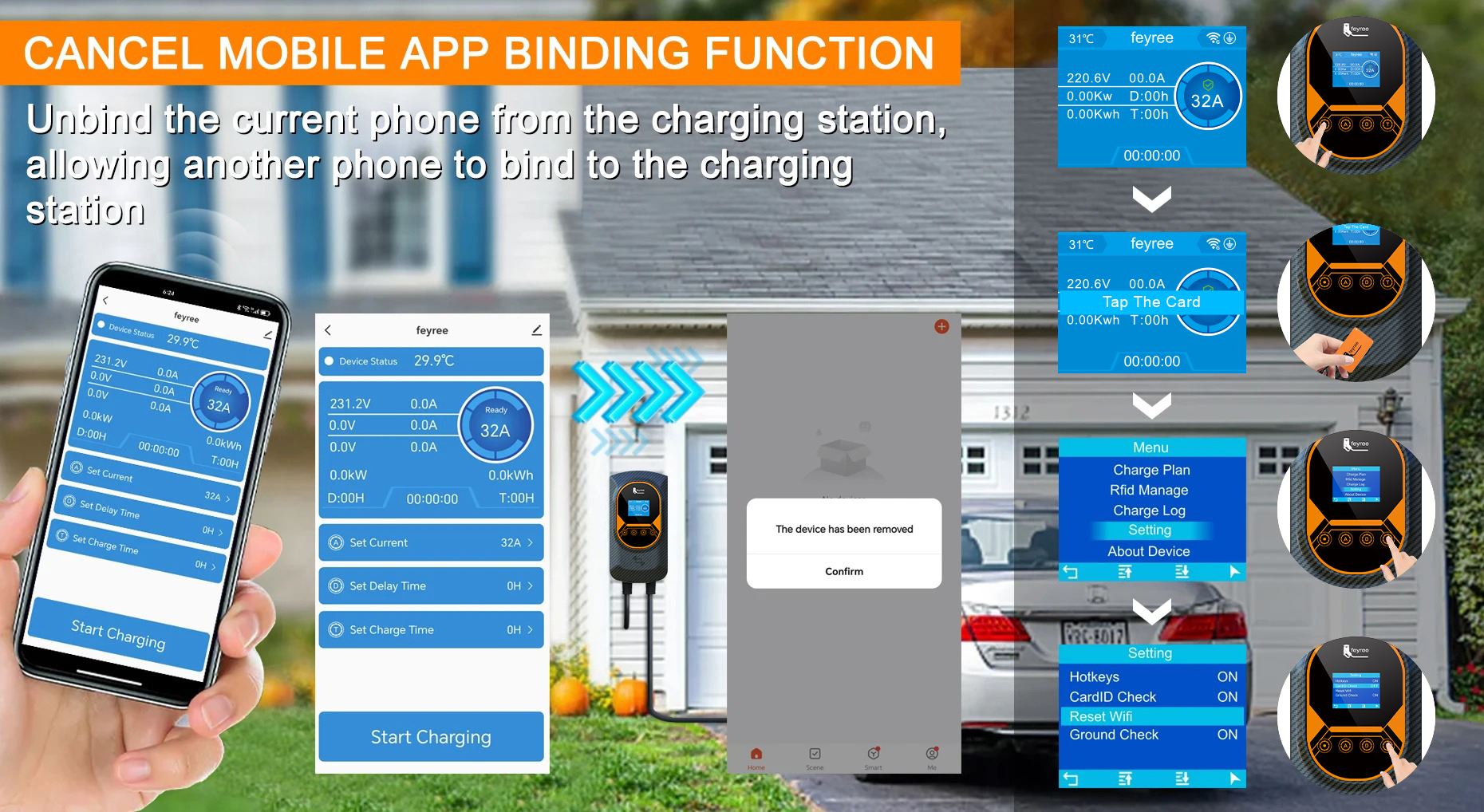

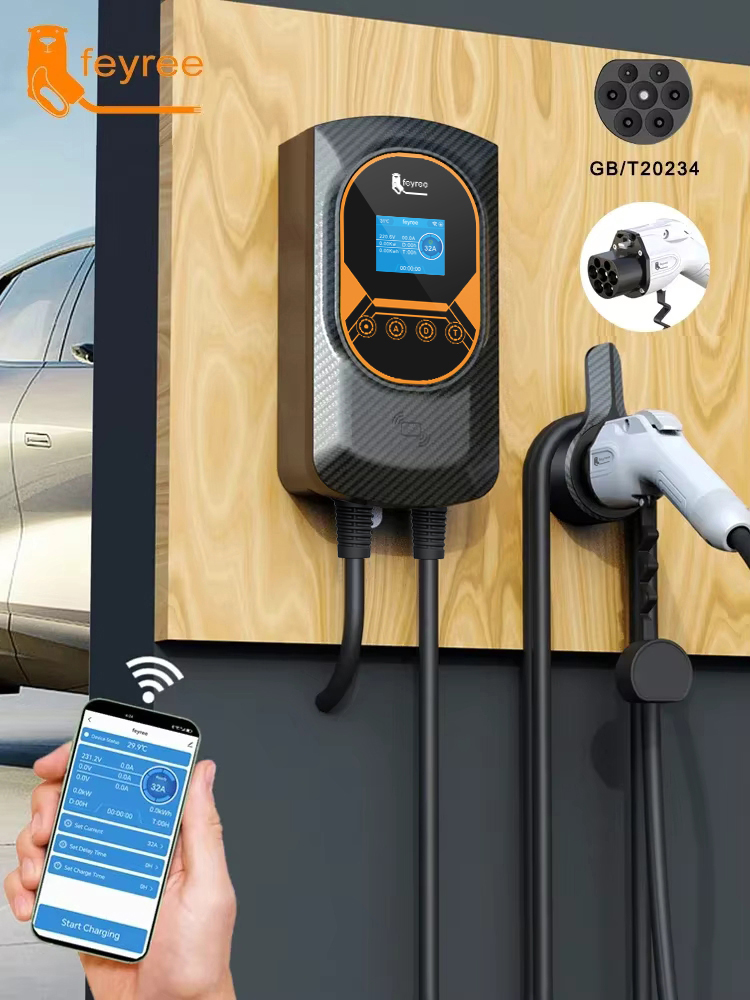

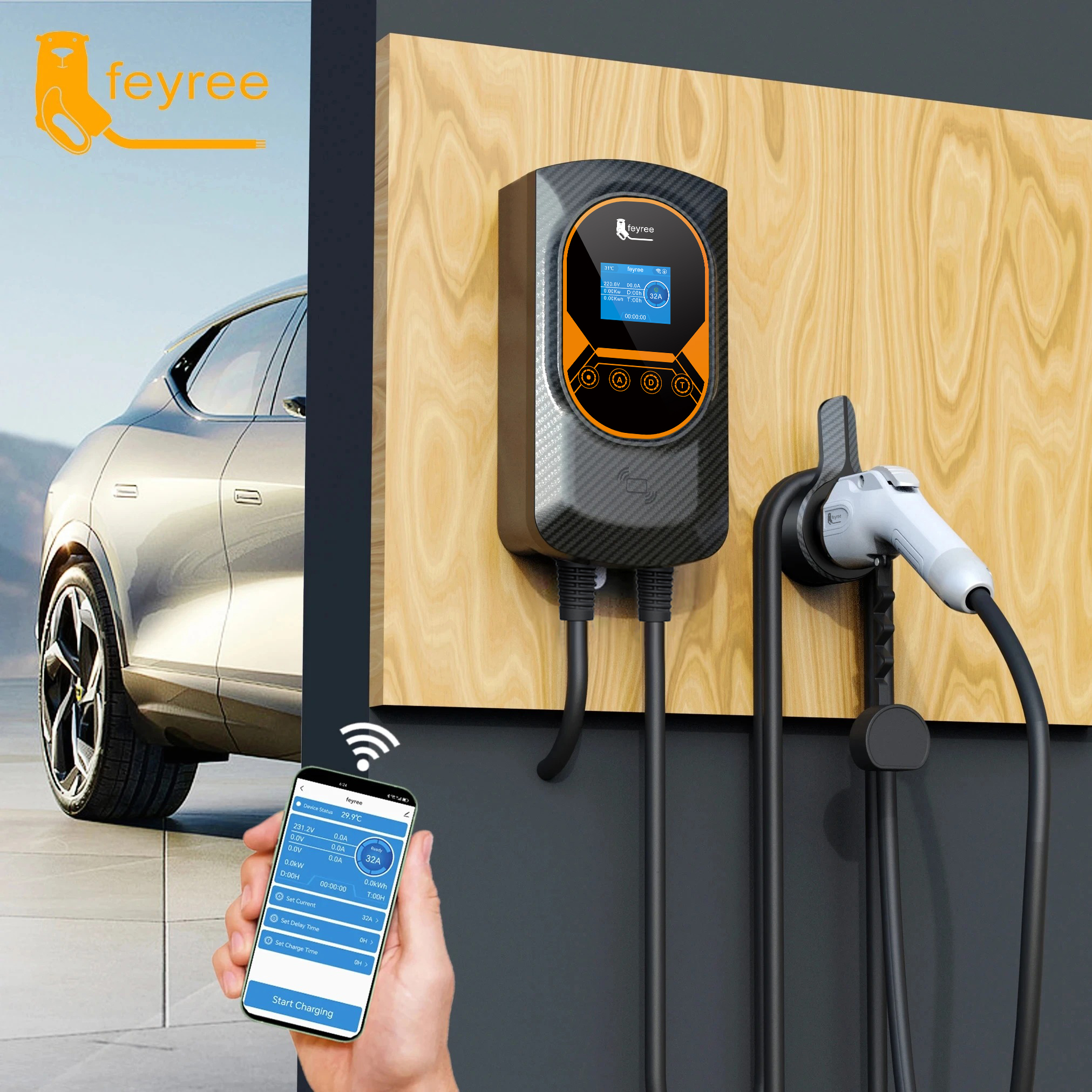

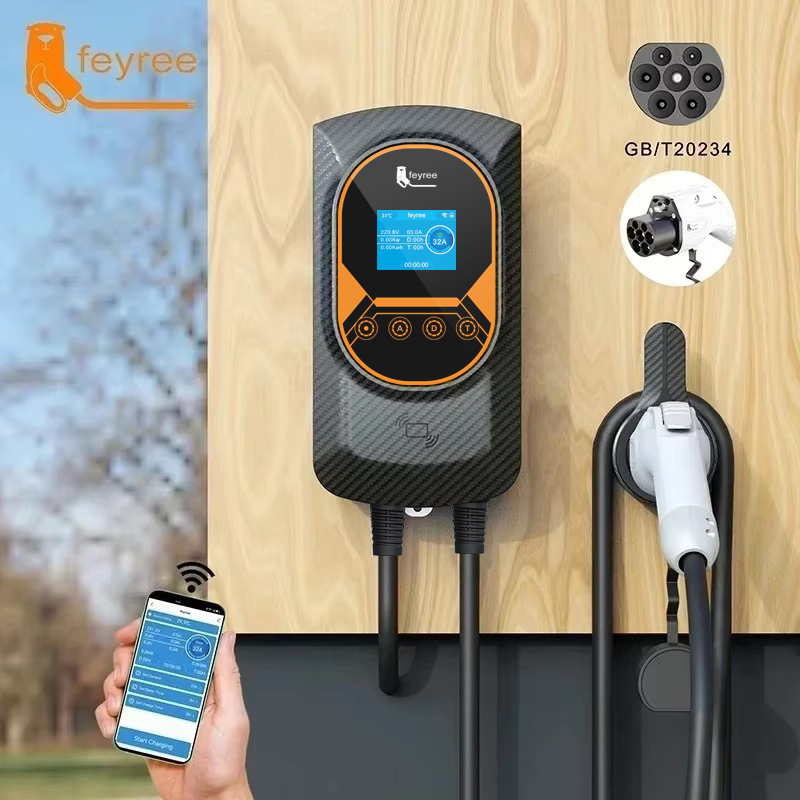

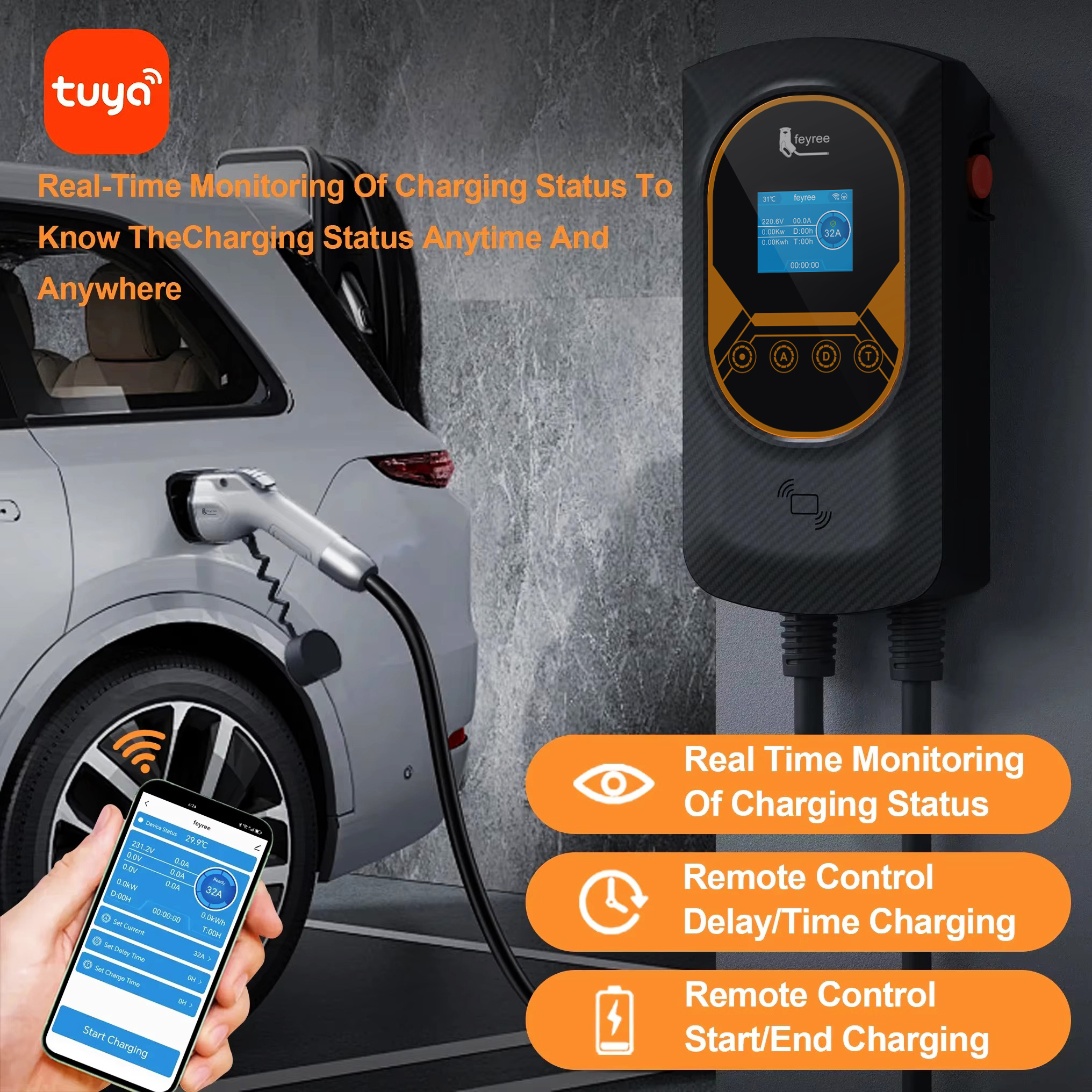

Remote Control via App
Via the app, you can control the wallbox/charging station in the easiest and most effective way. Monitor charging status, set start or stop of the charging process, determine charging power or current, and read charging data records — all from the palm of your hand.
- Free mobile application on App Store and Google Play.
- Compatible with both Android and iOS devices.
- Real-time monitoring of charging current, voltage and status.
- Remote start/stop control for maximum convenience.
- Set and adjust charging power or current remotely.

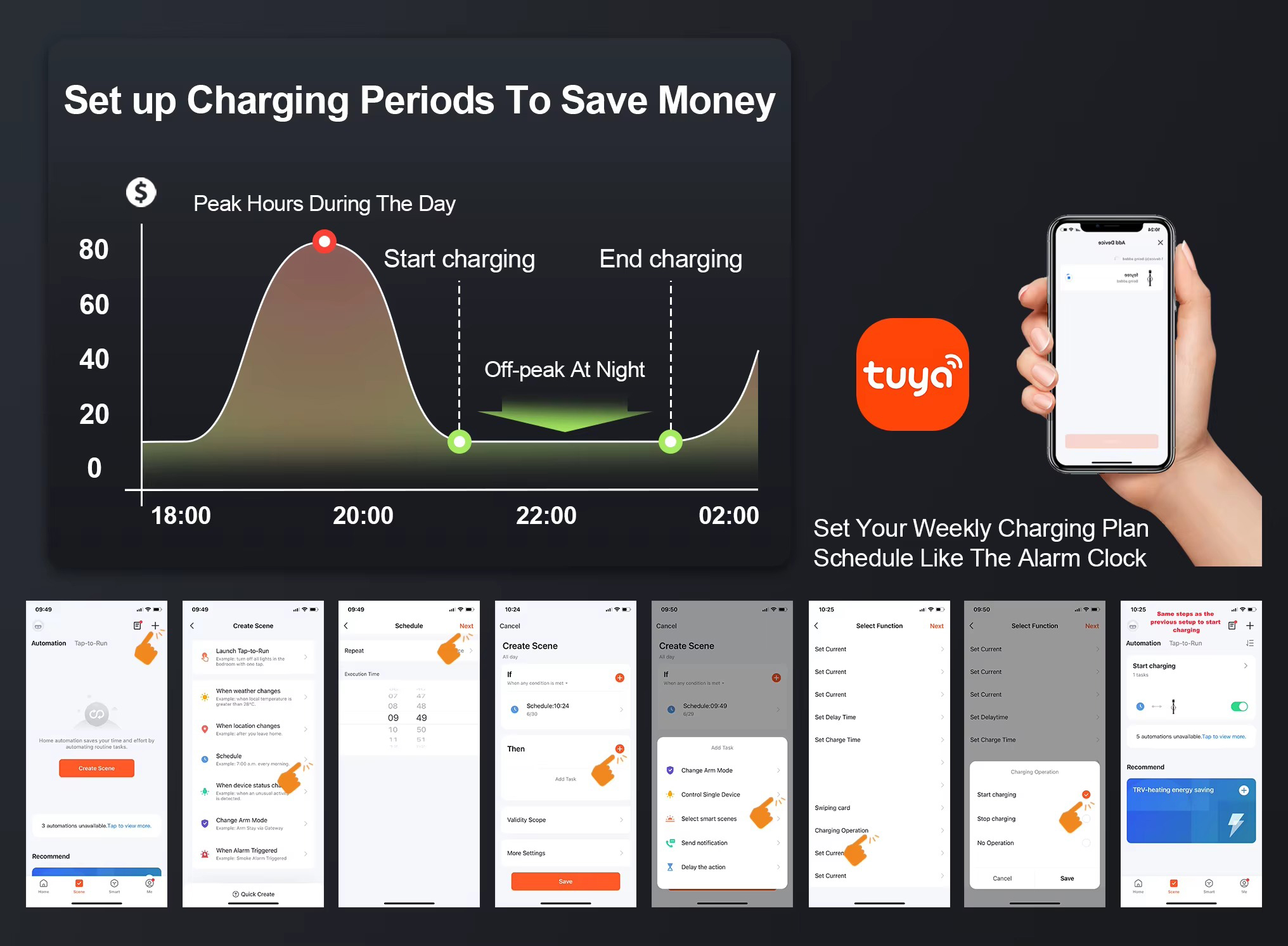

Flexible Weekly Charging Plans
The intuitive app interface allows you to configure precise weekly charging schedules, automatically executing your charging plan each day to ensure you always benefit from the cheapest electricity tariffs available in your region.
- Day-by-day weekly schedule customization via app.
- Automatically repeats plan every week without re-configuration.
- Visual timeline interface for easy plan management.
- Works seamlessly with time-of-use electricity pricing plans.
Offline Intelligence: App Control Without WiFi
This feature ensures that users can still manage their charging sessions intelligently in areas with no WiFi signal, such as underground garages or remote outdoor locations.
- Initial Hotspot Pairing: For the first-time setup, users can connect their phone and the charger using a personal mobile hotspot to establish the initial link.
- 10-Meter Bluetooth Control: Once paired, the charger can be controlled via Bluetooth within a 10-meter range, allowing for operation even when completely offline from a local network.
- Full Feature Access: Even without WiFi, the app retains its core capabilities, including real-time monitoring, current adjustment, and scheduling of delayed or timed charging.
- Cellular Signal Requirement: To maintain the logic of the Tuya ecosystem during this process, the user's smartphone must have an active SIM card with a data signal.
- Overcoming Environmental Limits: This dual-connection technology eliminates the common pain point of smart chargers requiring a constant home WiFi connection, making it ideal for diverse installation environments.

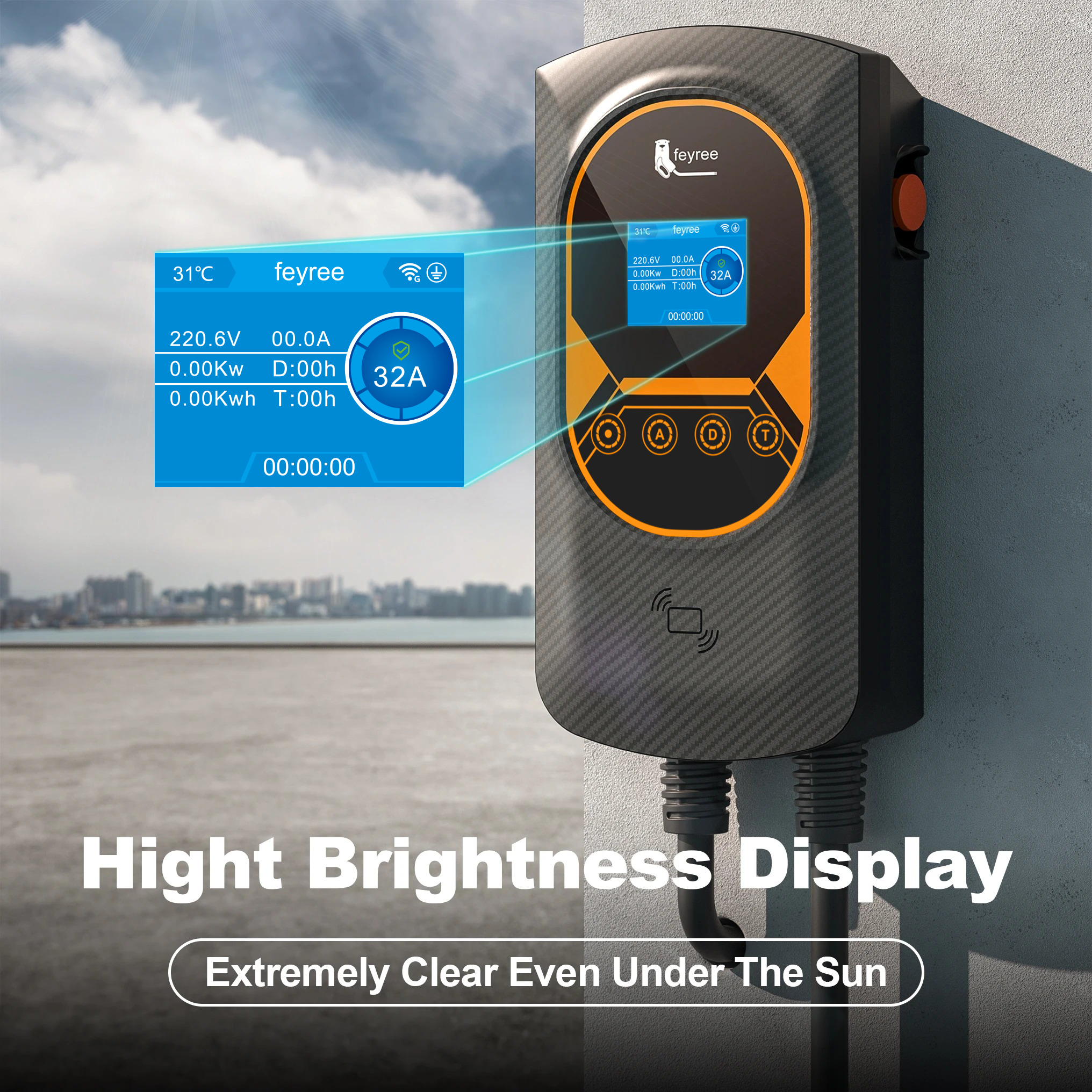

High-Brightness LCD Display
Equipped with a large, high-brightness LCD screen that clearly displays charging current, voltage, and temperature in real time. The screen remains clearly readable even in direct sunlight, ensuring you always have instant visibility of your charging status.
- High-brightness screen readable in direct outdoor sunlight.
- Real-time display of current (A), voltage (V), and temperature.
- Shows active power output in kW and total energy in kWh.
- View charging duration and countdown timer at a glance.
- 2.8-inch LCD with intuitive menu navigation.

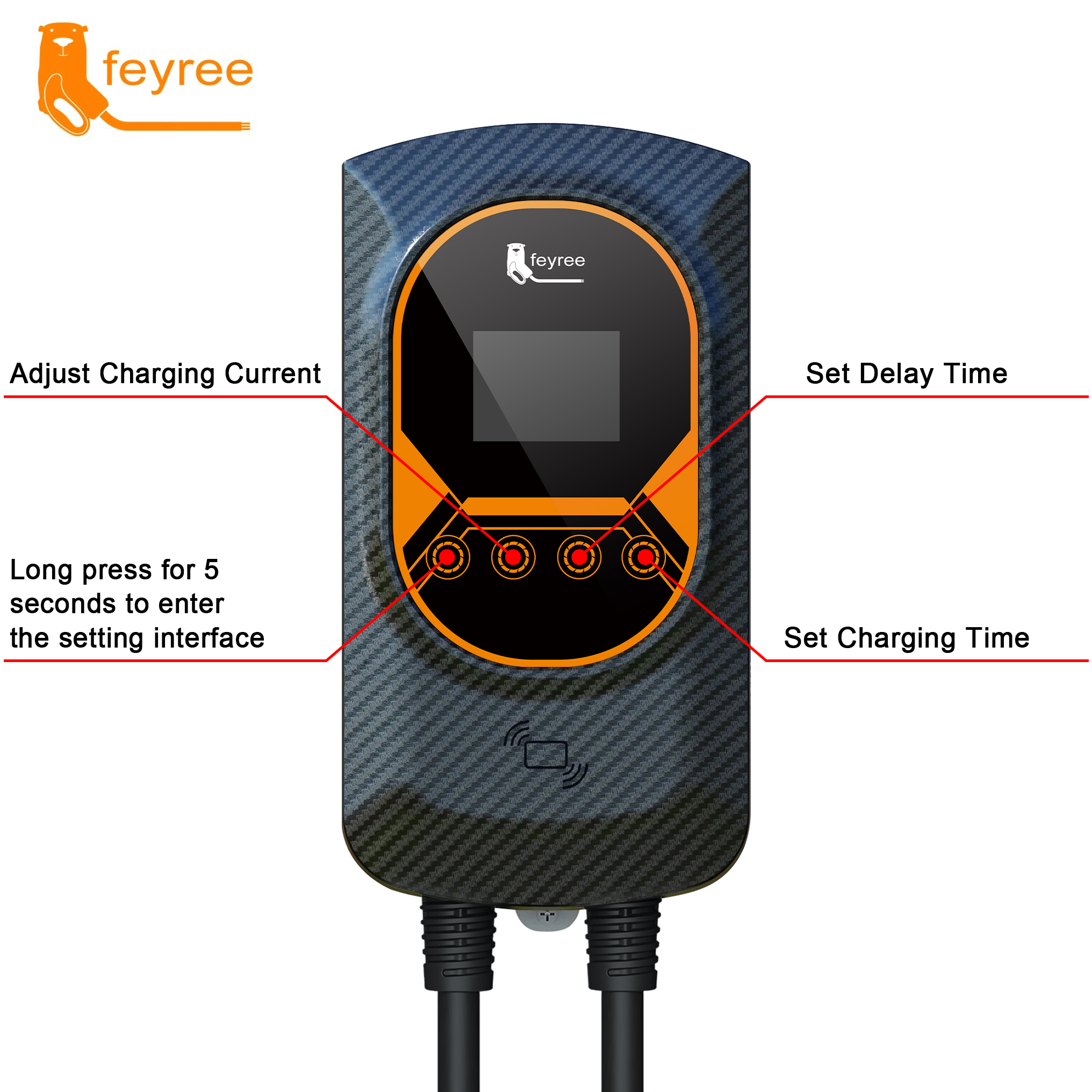

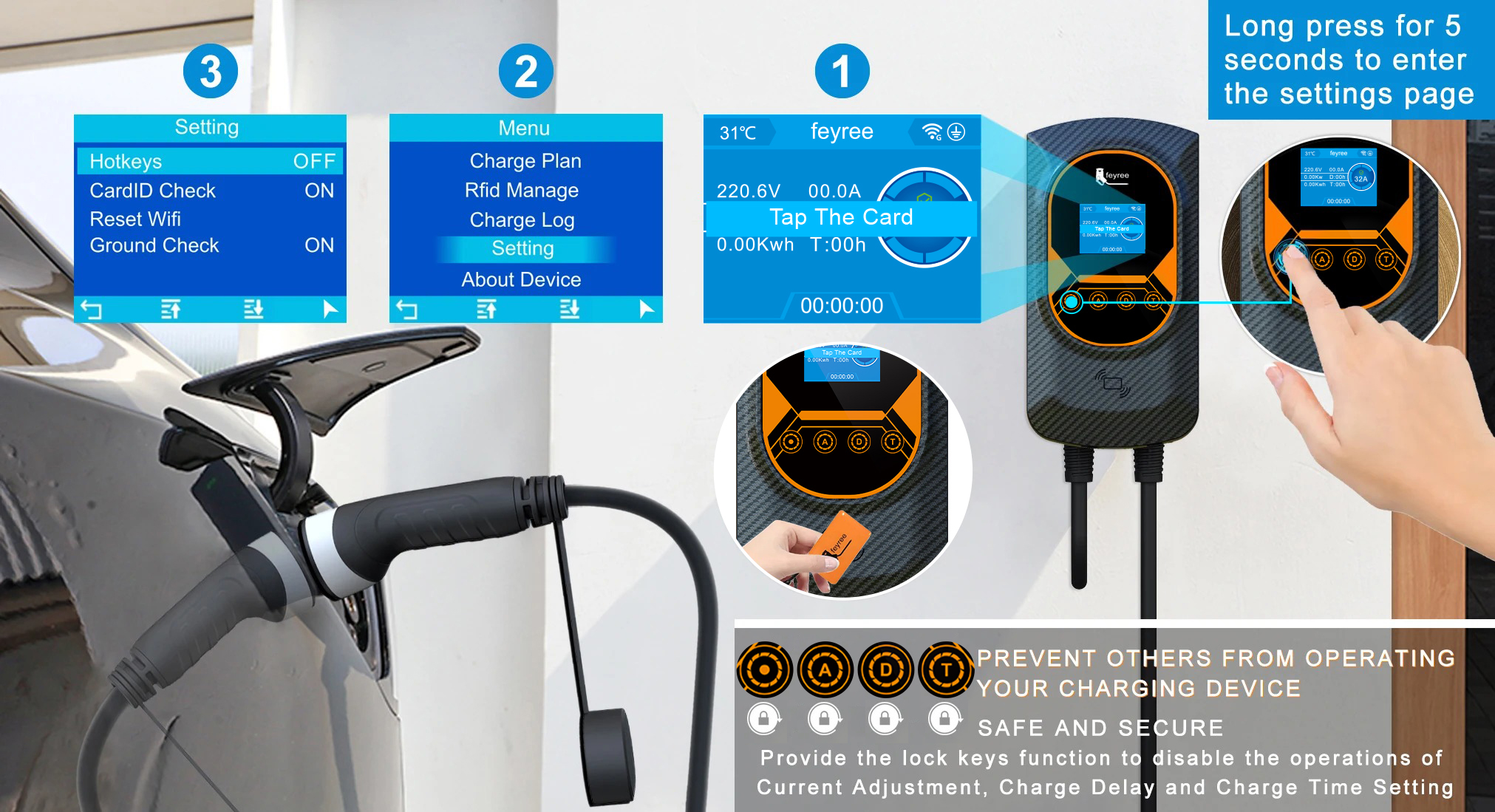

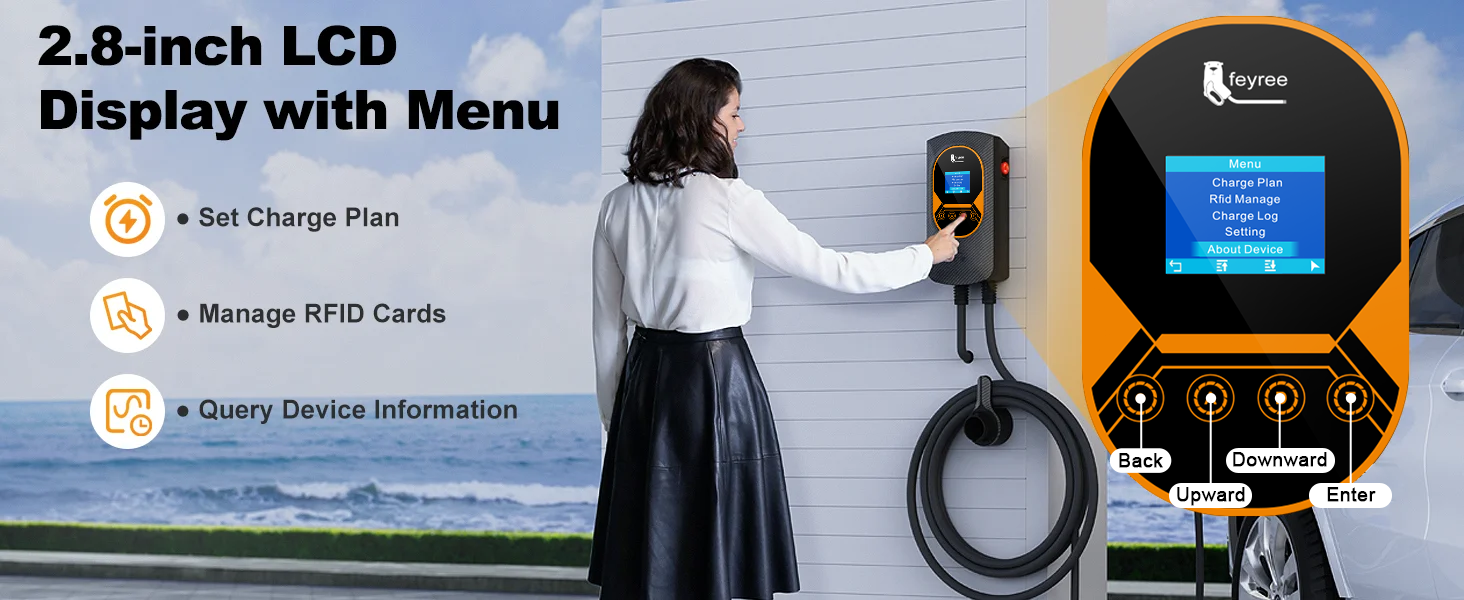

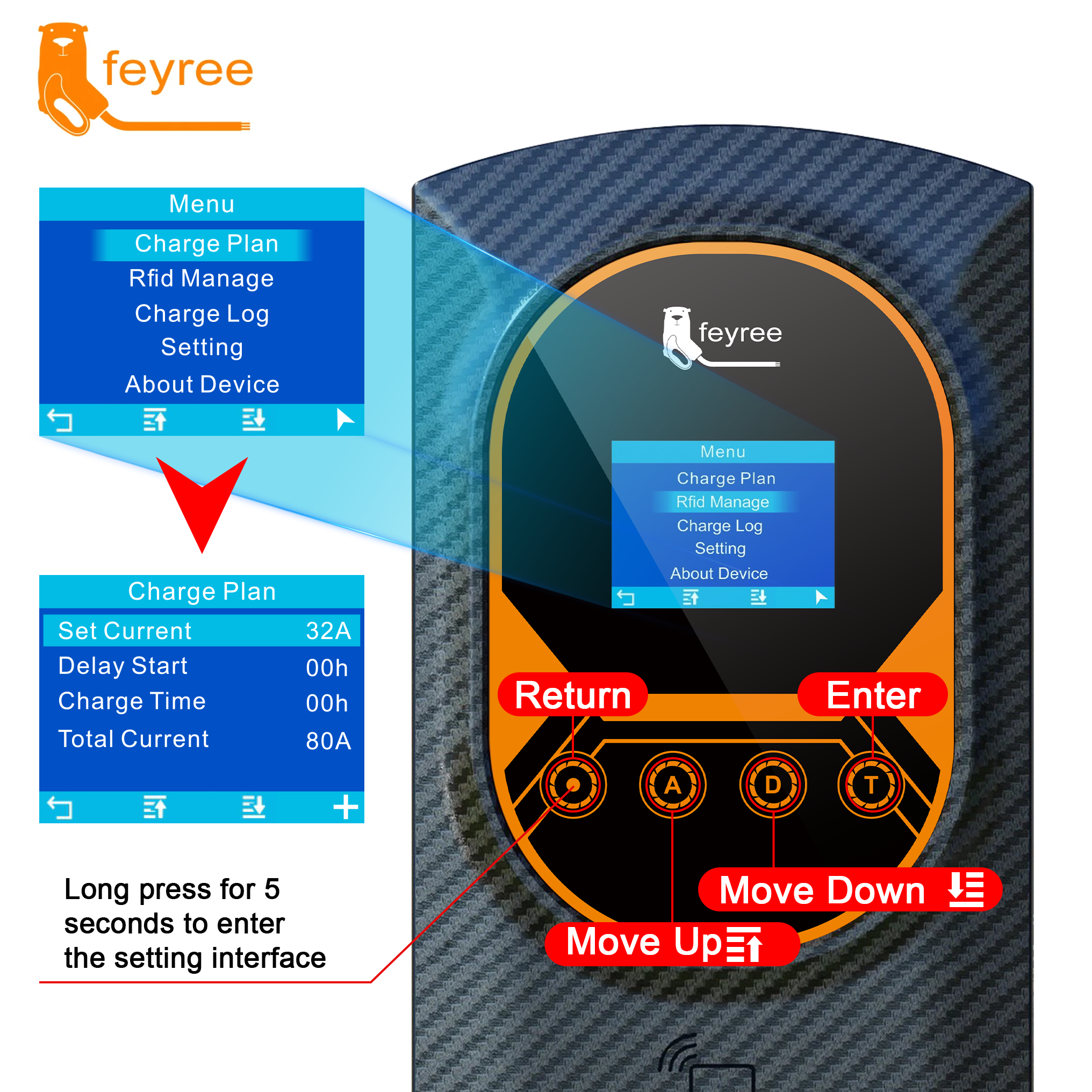

Smart LCD Menu & Button Functions
The integrated LCD menu and physical buttons provide comprehensive manual control over all charging parameters. Simple short and long press combinations give you access to every function directly on the device without needing the app.
- Adjust charging current via the dedicated "A" button.
- Set delayed start time (0–15 hours) using the "D" button.
- Configure charging duration using the "T" button.
- Intuitive long and short press button navigation.
- RFID card registration and management through menu.
- All settings accessible and configurable offline.

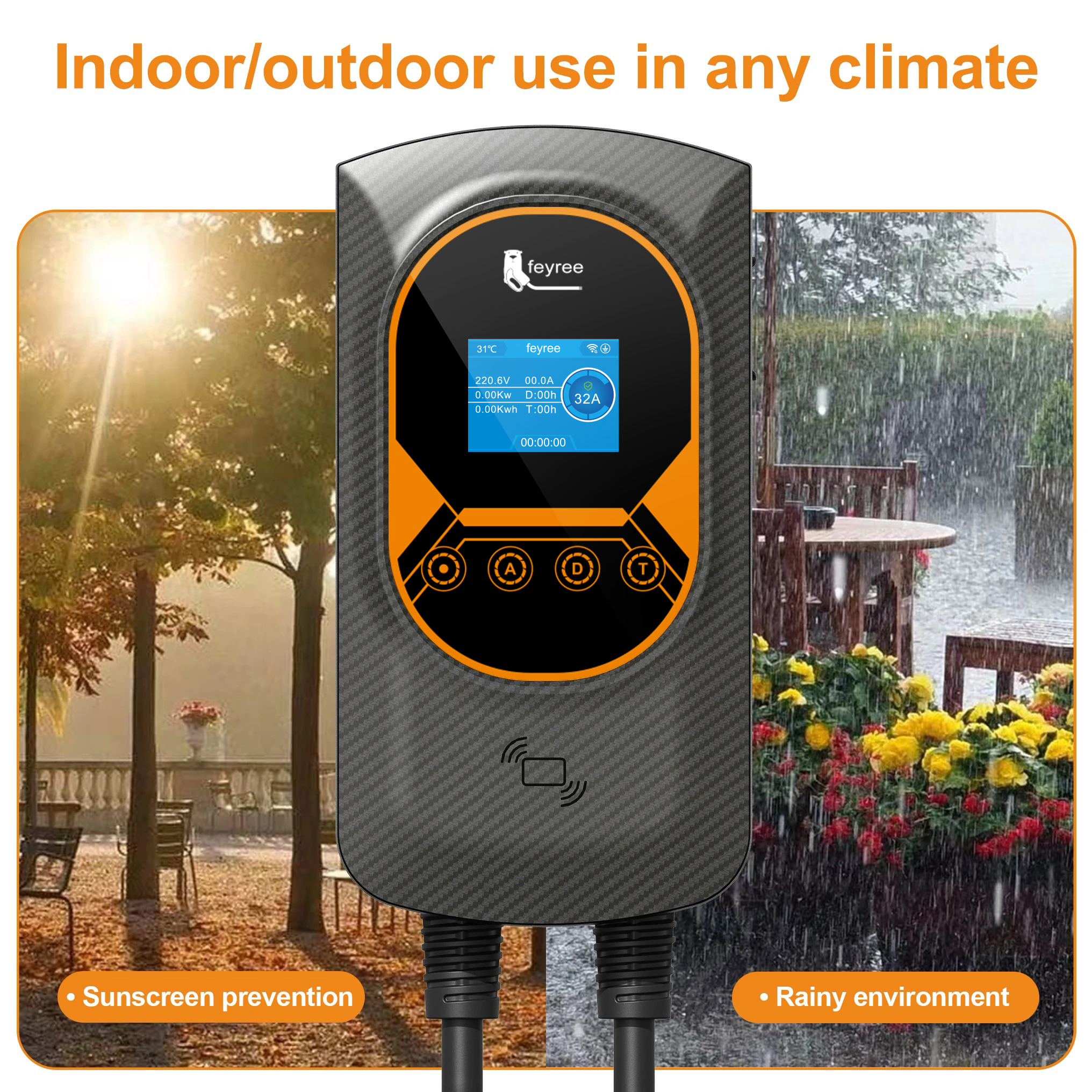

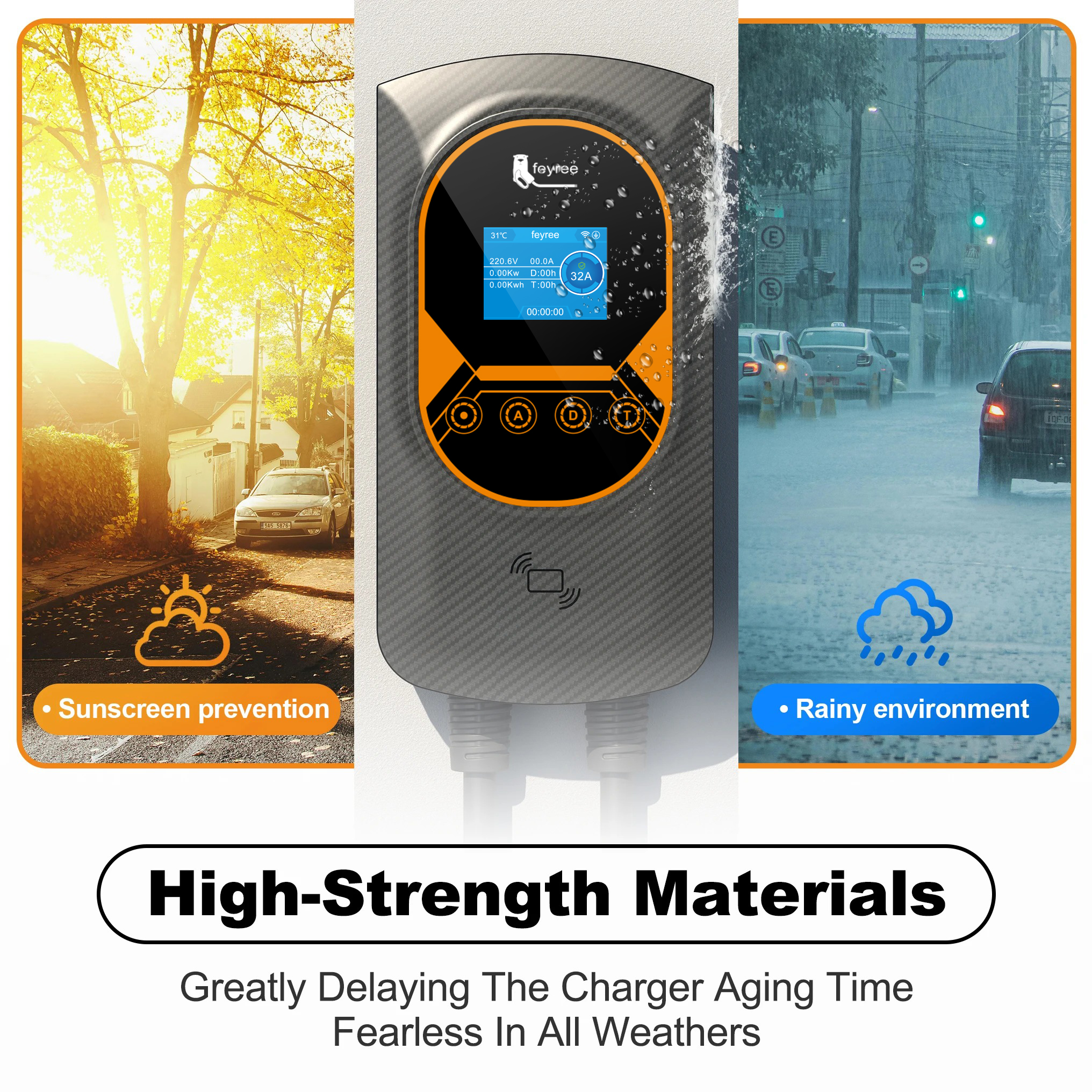

All-Weather Durability & High-Strength Materials
The wall-mounted charging unit is engineered with premium protective materials, ensuring stable long-term operation in diverse and extreme climates.
- Universal Climate Adaptability: The device is designed for both indoor and outdoor use, maintaining performance during intense sun exposure (sunscreen prevention) and heavy rainy environments.
- High-Strength Construction: Manufactured with high-strength materials, the casing is specifically built to greatly delay the aging process caused by outdoor exposure.
- Fearless Performance: The product is marketed as being "Fearless In All Weathers," providing users with reliable power safety regardless of external conditions.
- Robust Housing Design: The carbon fiber-textured shell combined with an LCD color screen offers a balance of modern aesthetics and industrial-grade resilience.
- Flexible Installation: Its rugged build makes it equally suitable for private indoor garages or open-air public parking spaces.

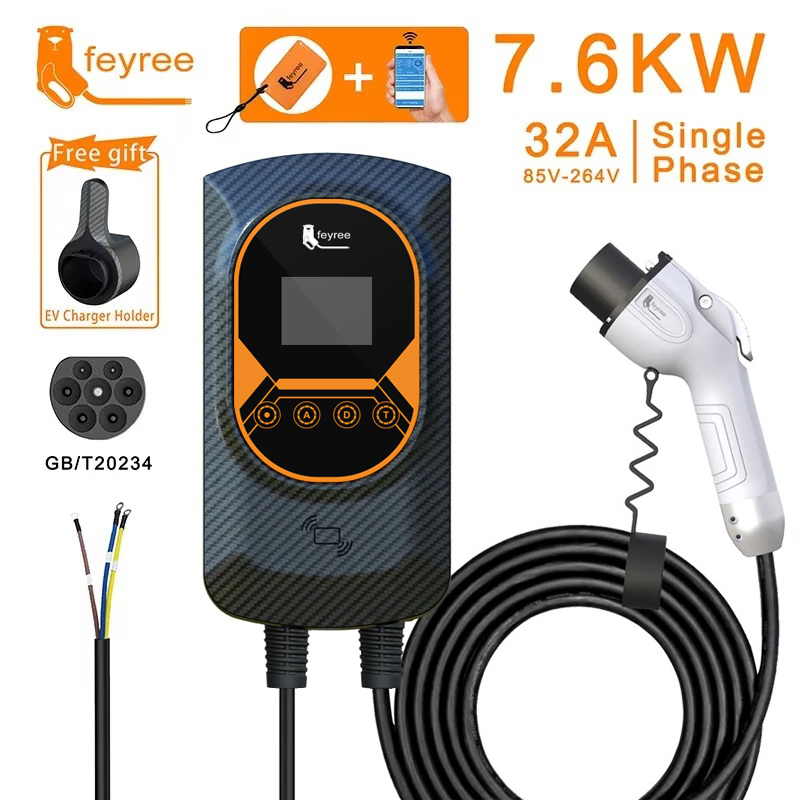

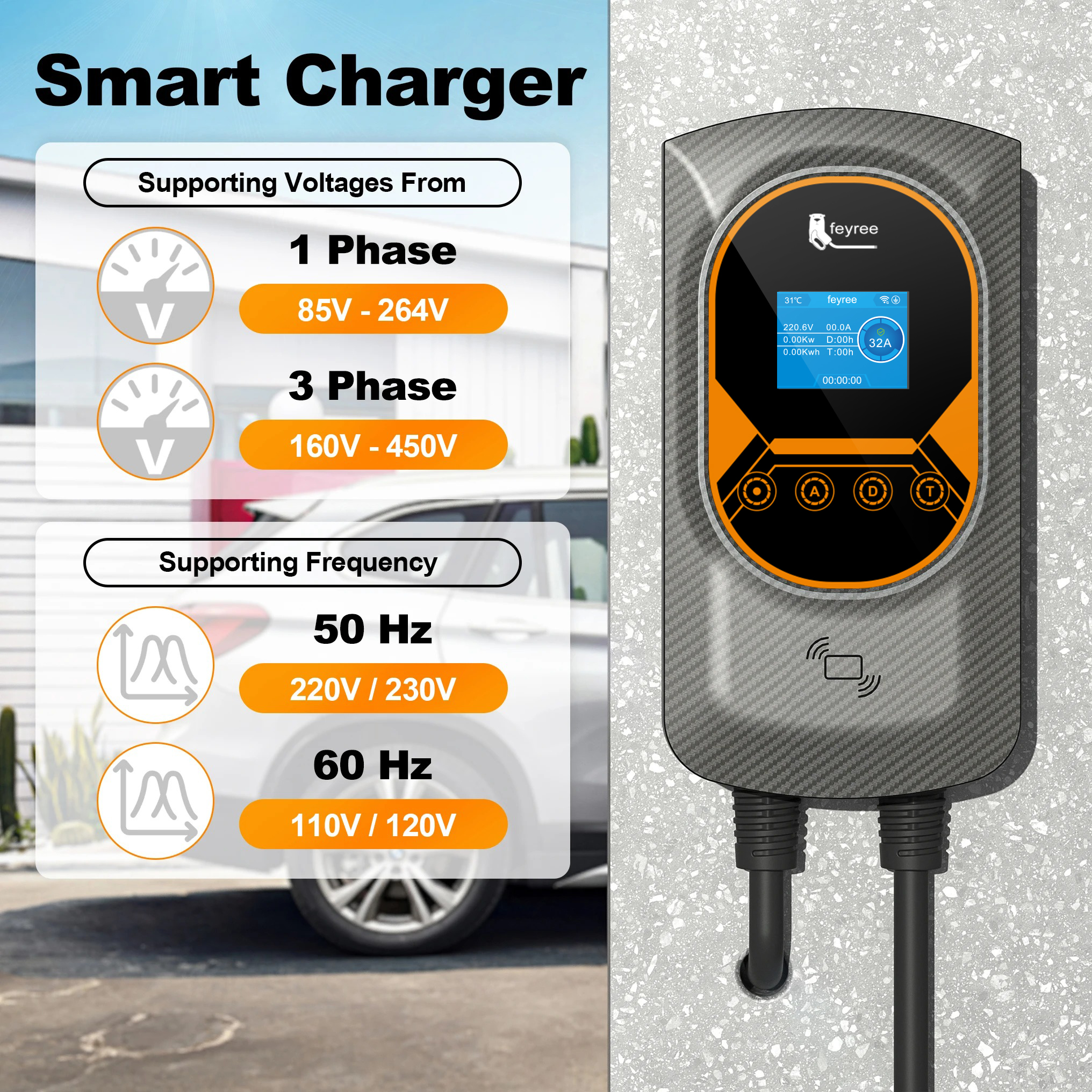

Single & Three Phase Support
With support for both single-phase and three-phase power configurations, this charger adapts to different household and commercial electrical installations. The 50Hz/60Hz frequency compatibility ensures it can be used globally across different regions.
- Single-phase (7.6kW) and three-phase (11kW/22kW) support.
- 50Hz / 60Hz frequency compatibility for global use.
- Adjustable current: 8A / 10A / 13A / 16A / 20A / 32A.
- Compatible with all household electrical installations.
- Easy selection of phase configuration during installation.

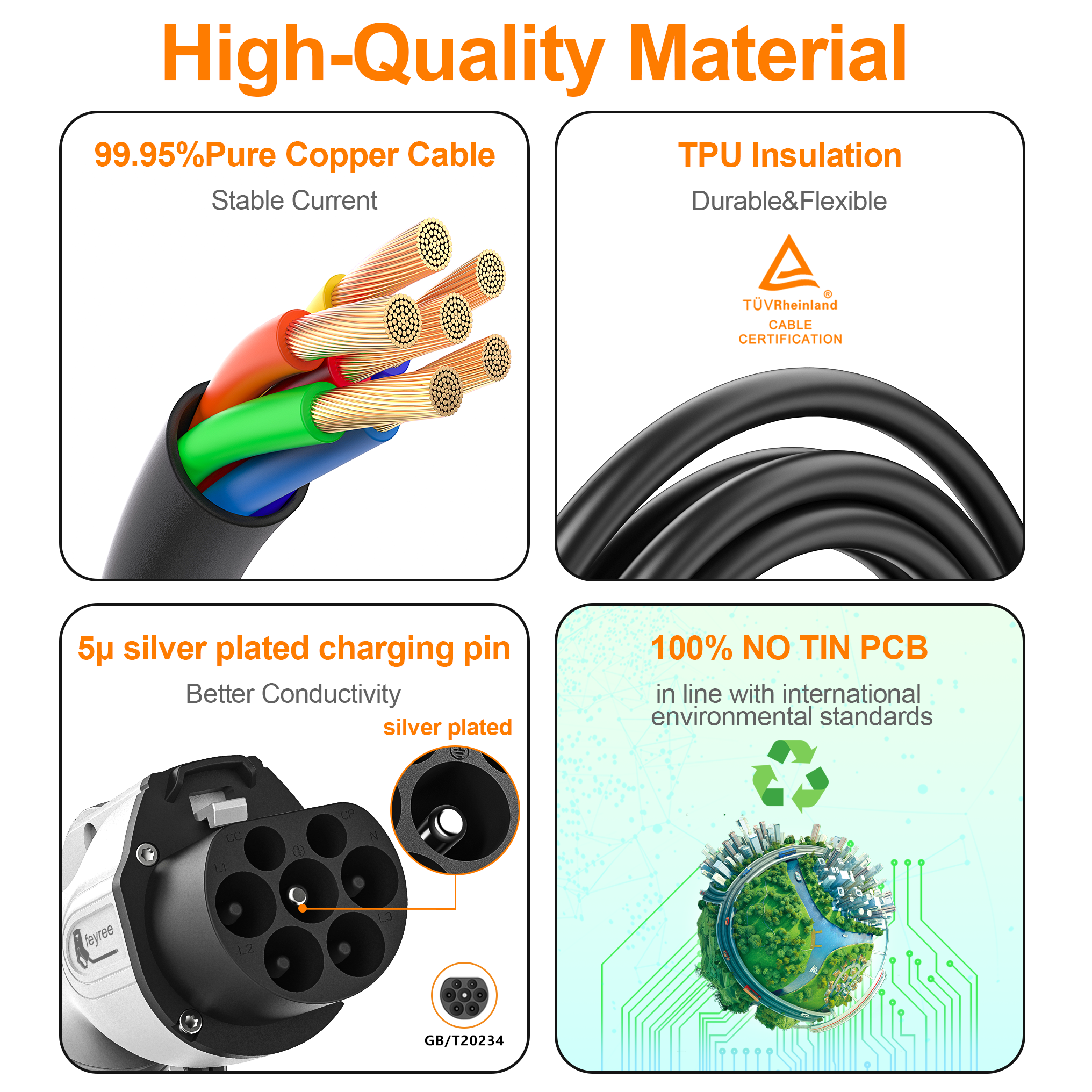

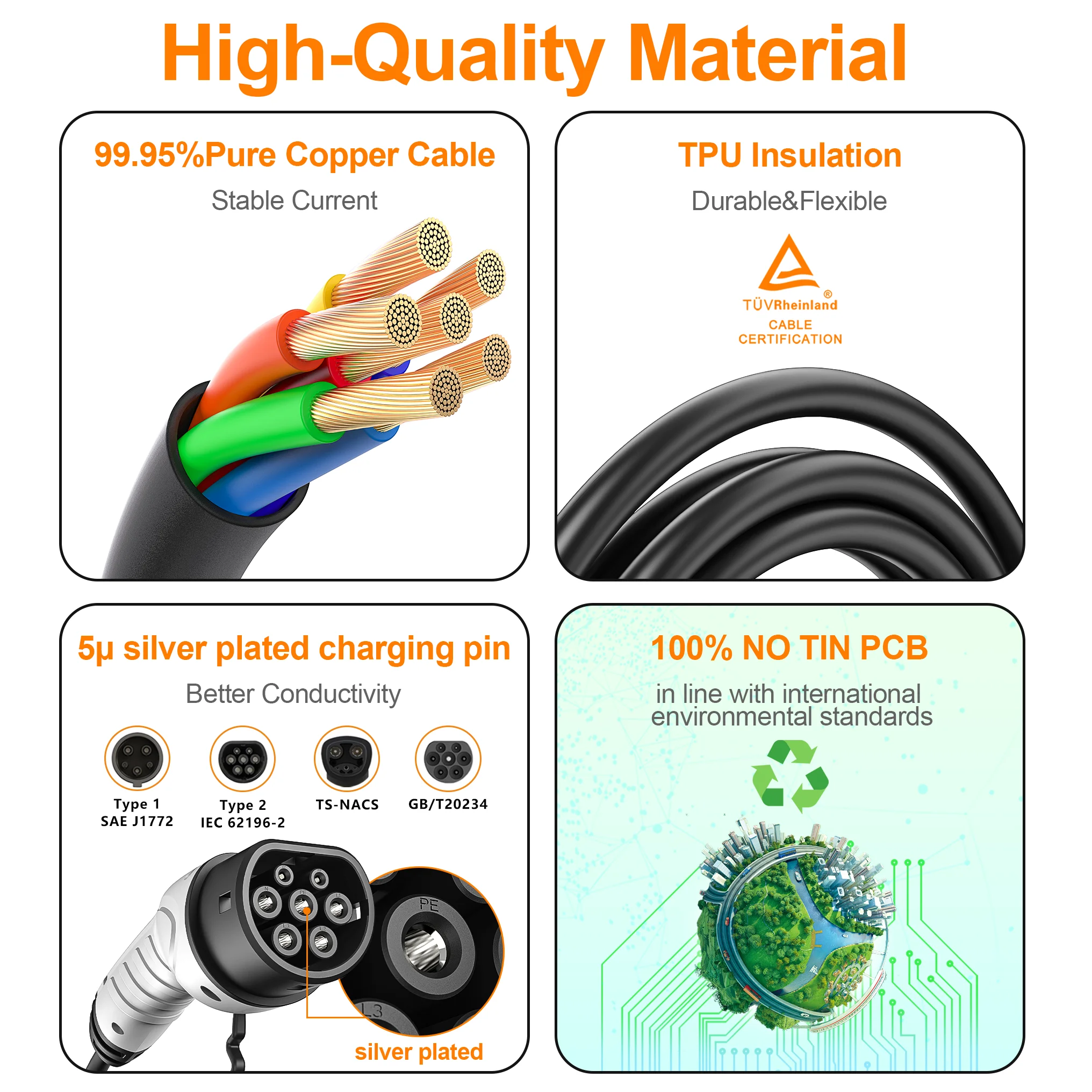

High-Quality 5m Charging Cable
The included 5-metre charging cable is constructed from 99.95% pure copper wire with TUV Rheinland certified TPU insulation, ensuring maximum conductivity, flexibility, and long-term durability in all weather conditions.
- 5-metre cable provides ample reach between car and station.
- 99.95% pure copper wire for superior electrical conductivity.
- TUV Rheinland certified TPU insulation for safety compliance.
- Flexible and durable in both cold and hot environments.
- 5μ silver plated charging pins for better contact performance.
- 100% NO TIN PCB — eco-friendly and internationally compliant.
4 Flexible Charging Modes
The charger supports four distinct charging modes, giving you complete flexibility in how you start and manage your charging sessions. Choose the method that suits your situation — whether at home, shared parking, or on the go.
- WiFi App Mode: Control remotely from anywhere via Tuya App.
- Bluetooth App Mode: Local control within 10M without WiFi.
- RFID Card Mode: Tap-to-charge with authorized RFID cards.
- Plug & Charge Mode: Simply plug in and charging starts automatically.
- Seamlessly switch between modes based on your preference.

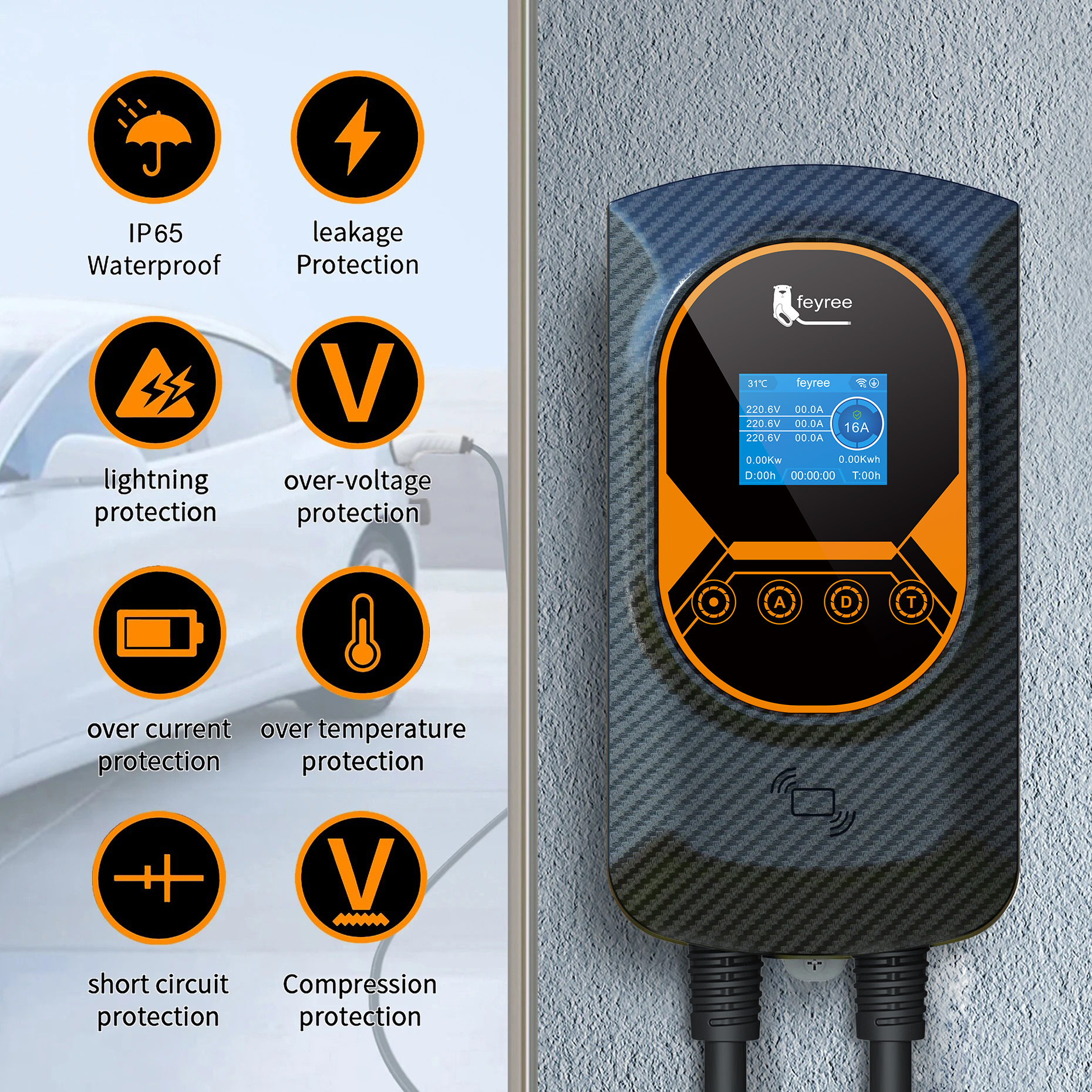

Comprehensive Electrical Safety Protection System
The charging unit is equipped with a multi-layered intelligent monitoring system to ensure stable and secure power delivery under various complex conditions.
- Environmental & Physical Defense: Features IP65 Waterproofing for wet conditions and Compression Protection to withstand physical stress or impact.
- Circuit Safety Guard: Includes Leakage Protection, Over Current Protection, and Short Circuit Protection to instantly respond to electrical anomalies and prevent equipment damage.
-
Grid & Lightning Shield: Provides Over-Voltage Protection and Lightning Protection to safeguard the vehicle's battery from grid fluctuations or storm-related surges.

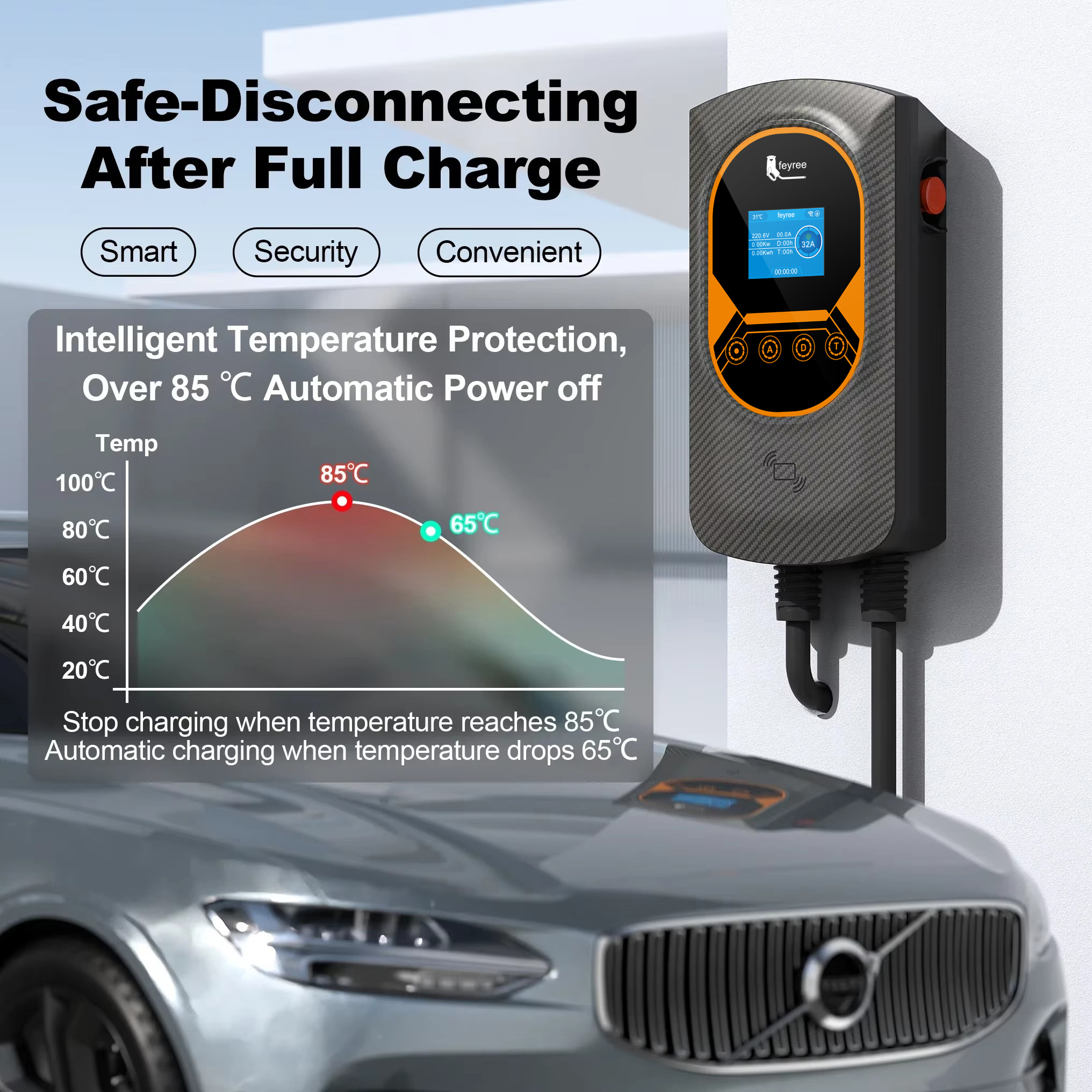

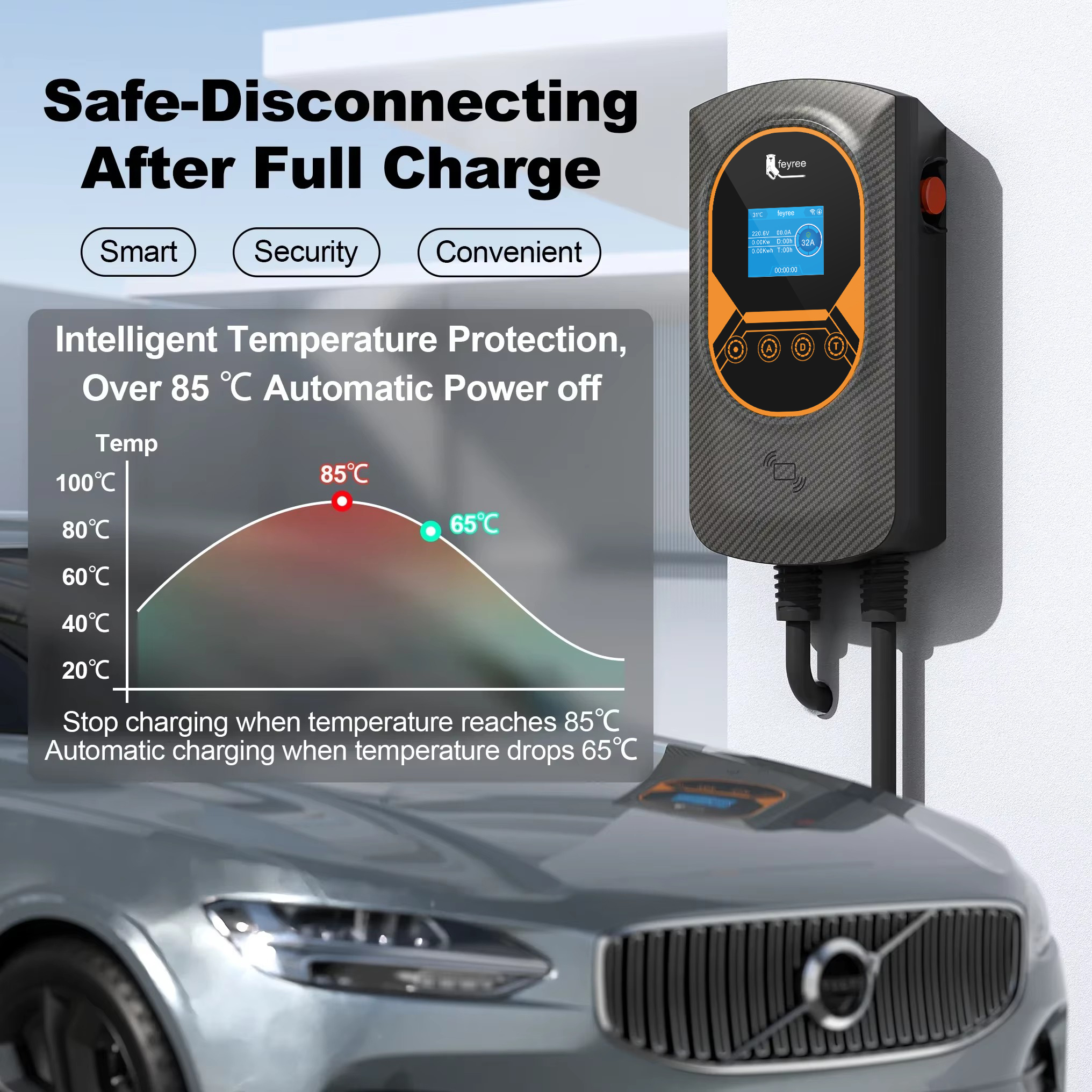

- Thermal Management: Integrated Over Temperature Protection continuously monitors internal heat levels to prevent risks associated with long-term high-load operation.
-
Industrial Design: The control box combines high safety standards with a carbon-fiber texture and an LCD screen for real-time data visibility.

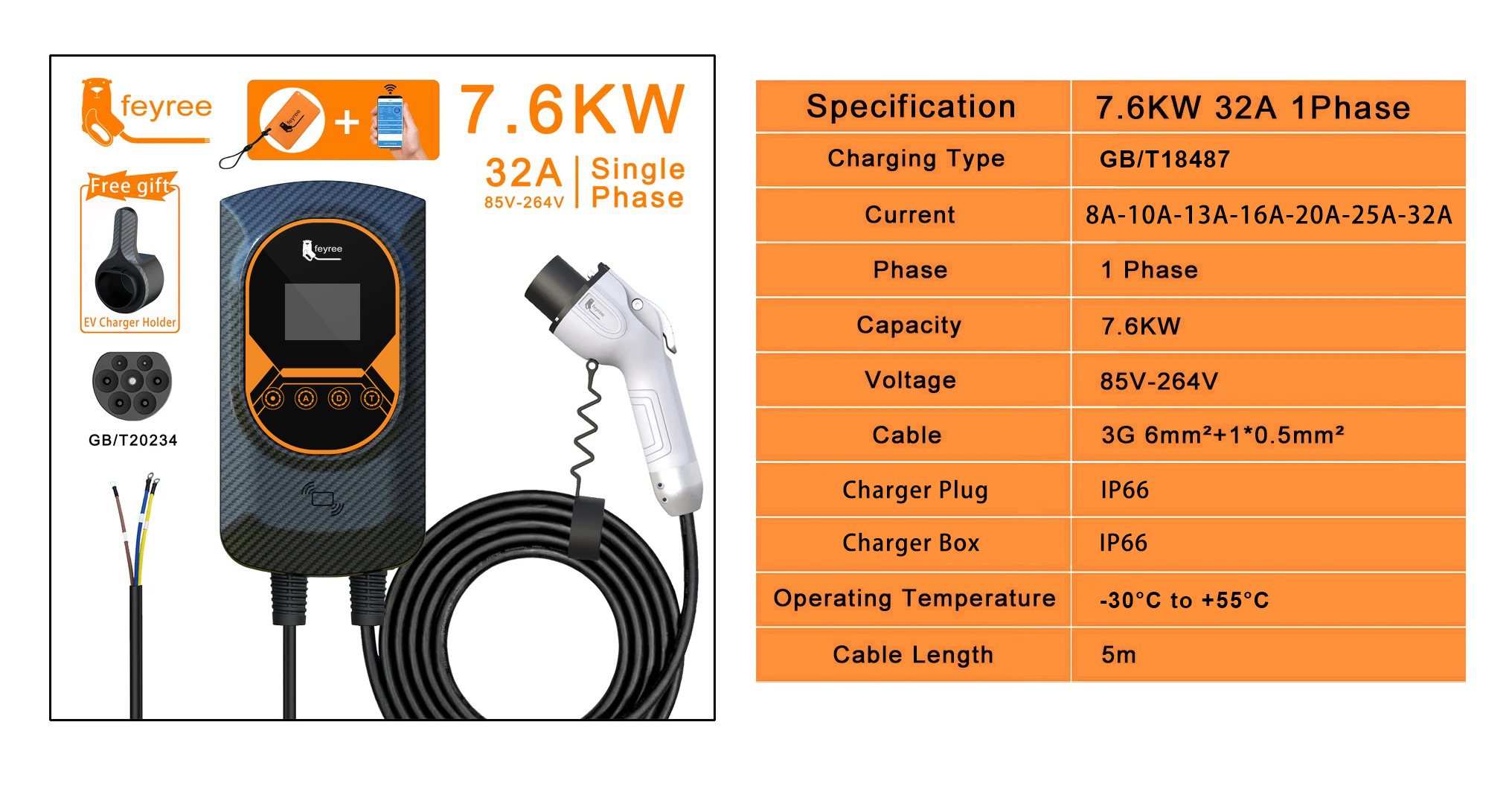

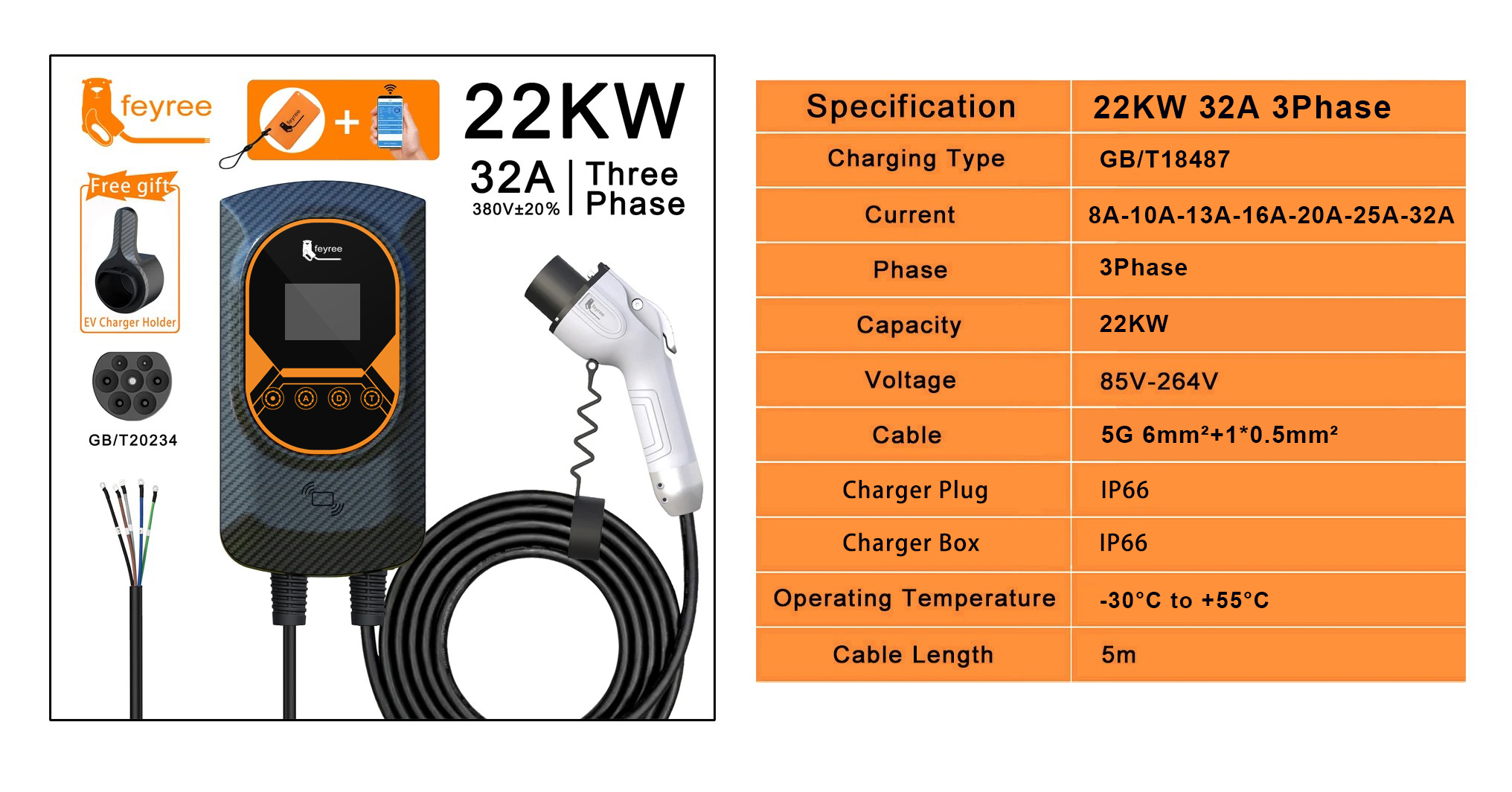

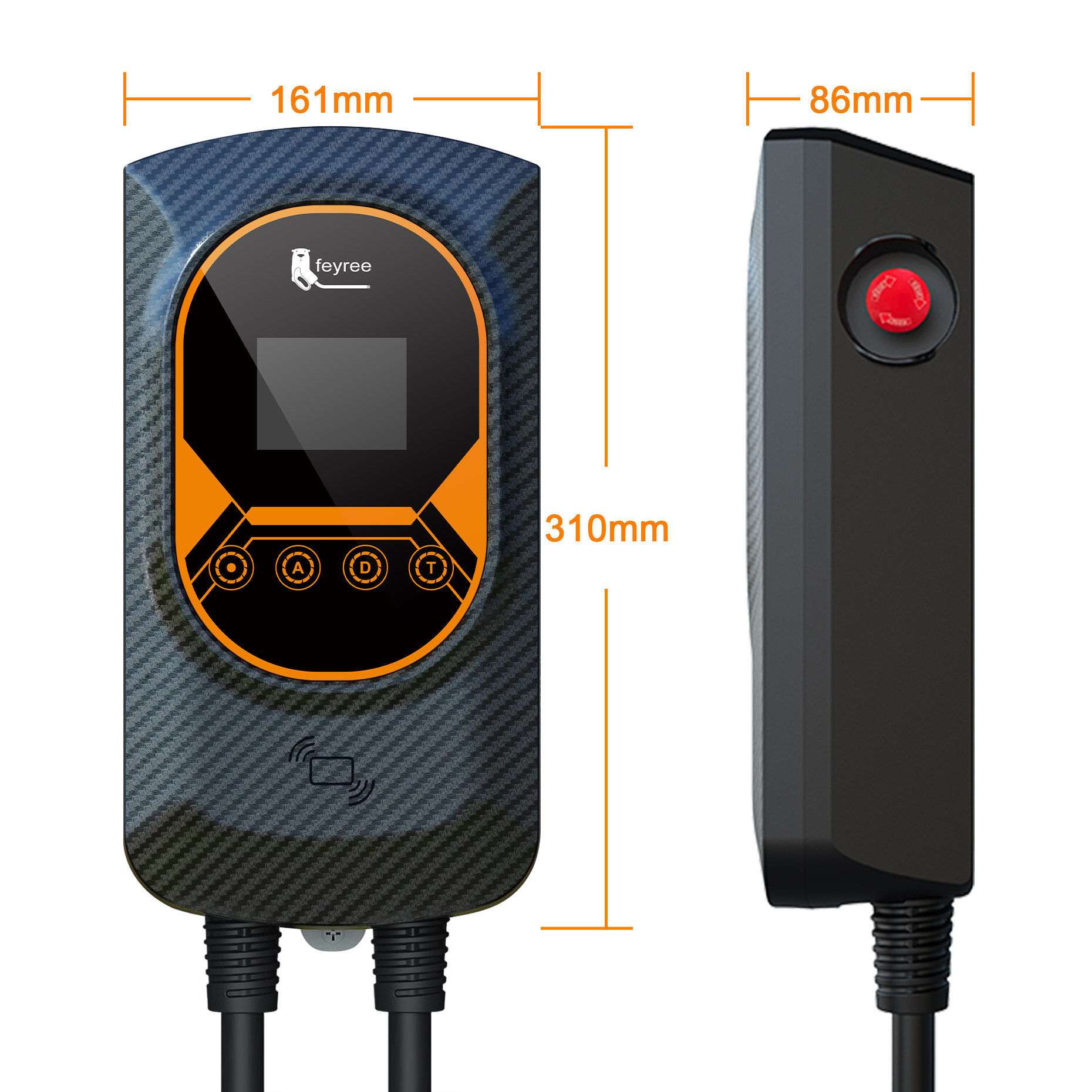

Product Specifications
Feyree Charger: First-Time Setup & Button Controls

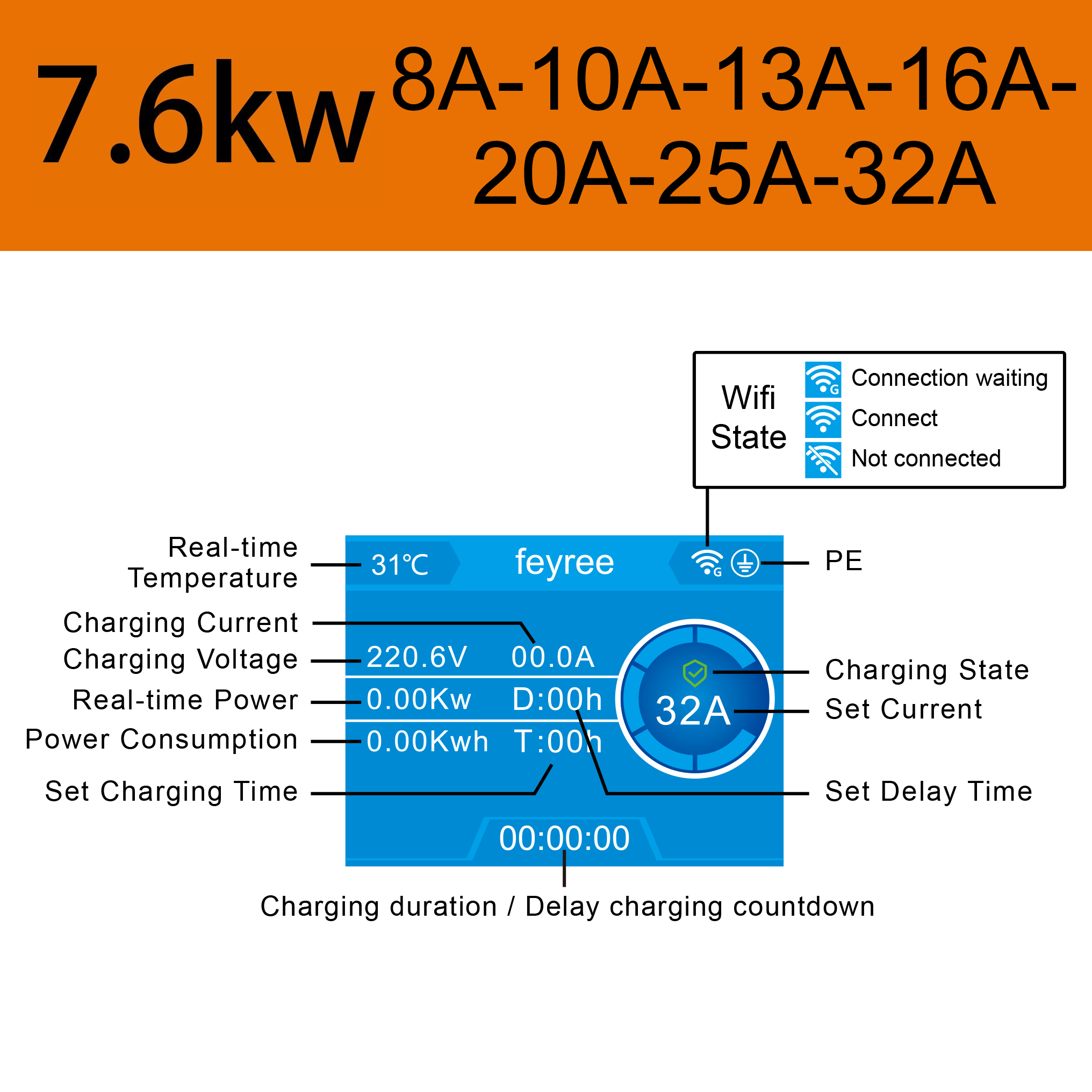

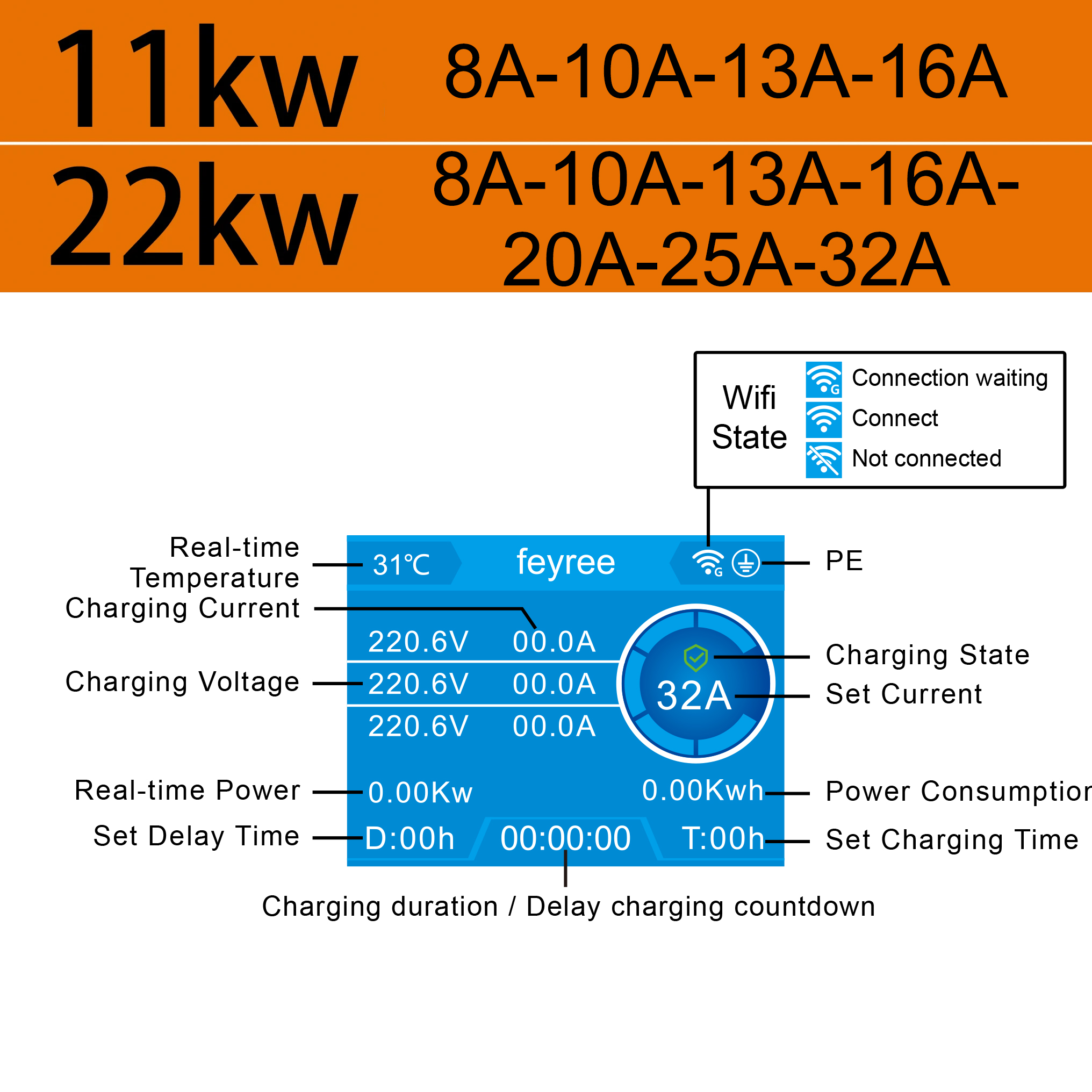

LCD Display Interface & Specifications

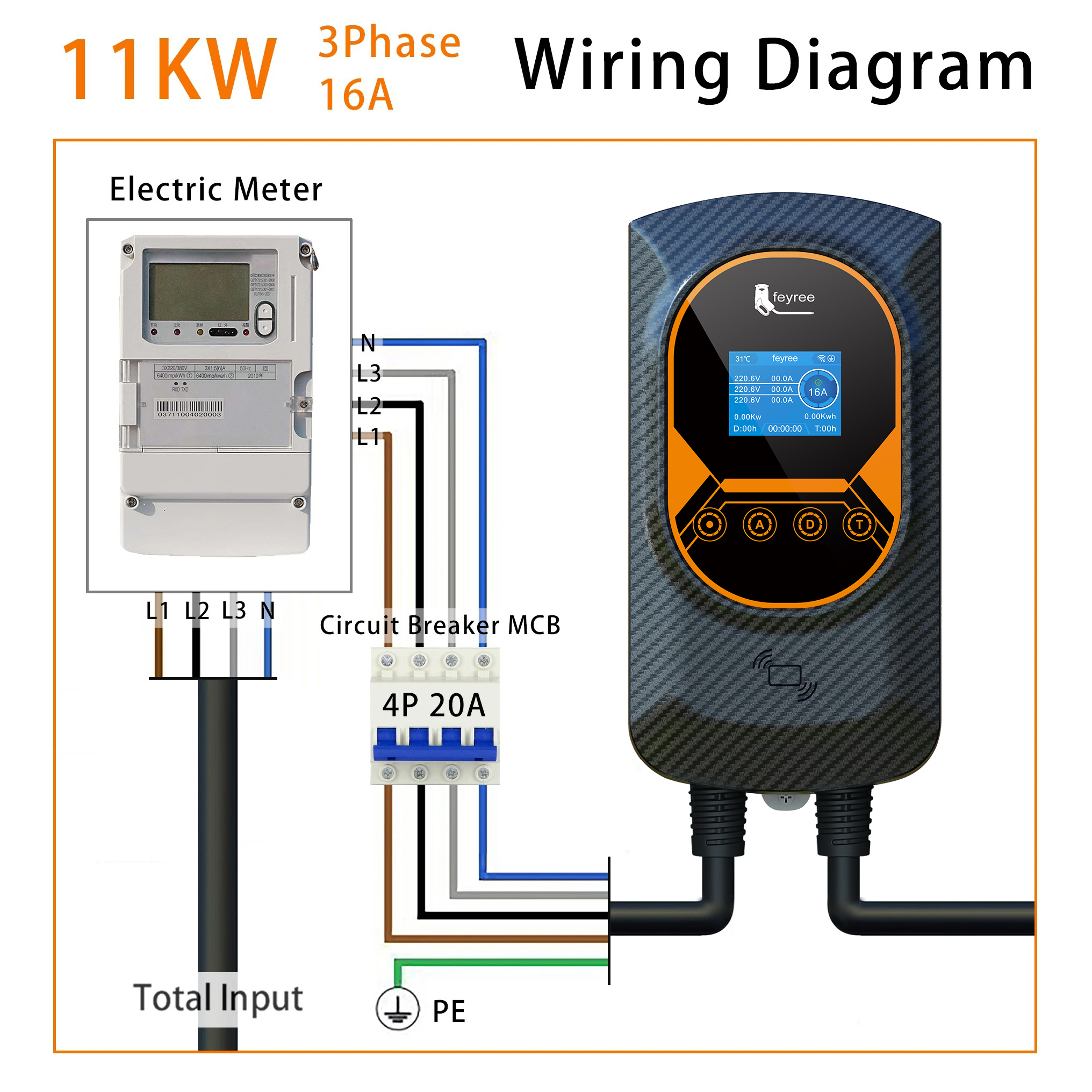

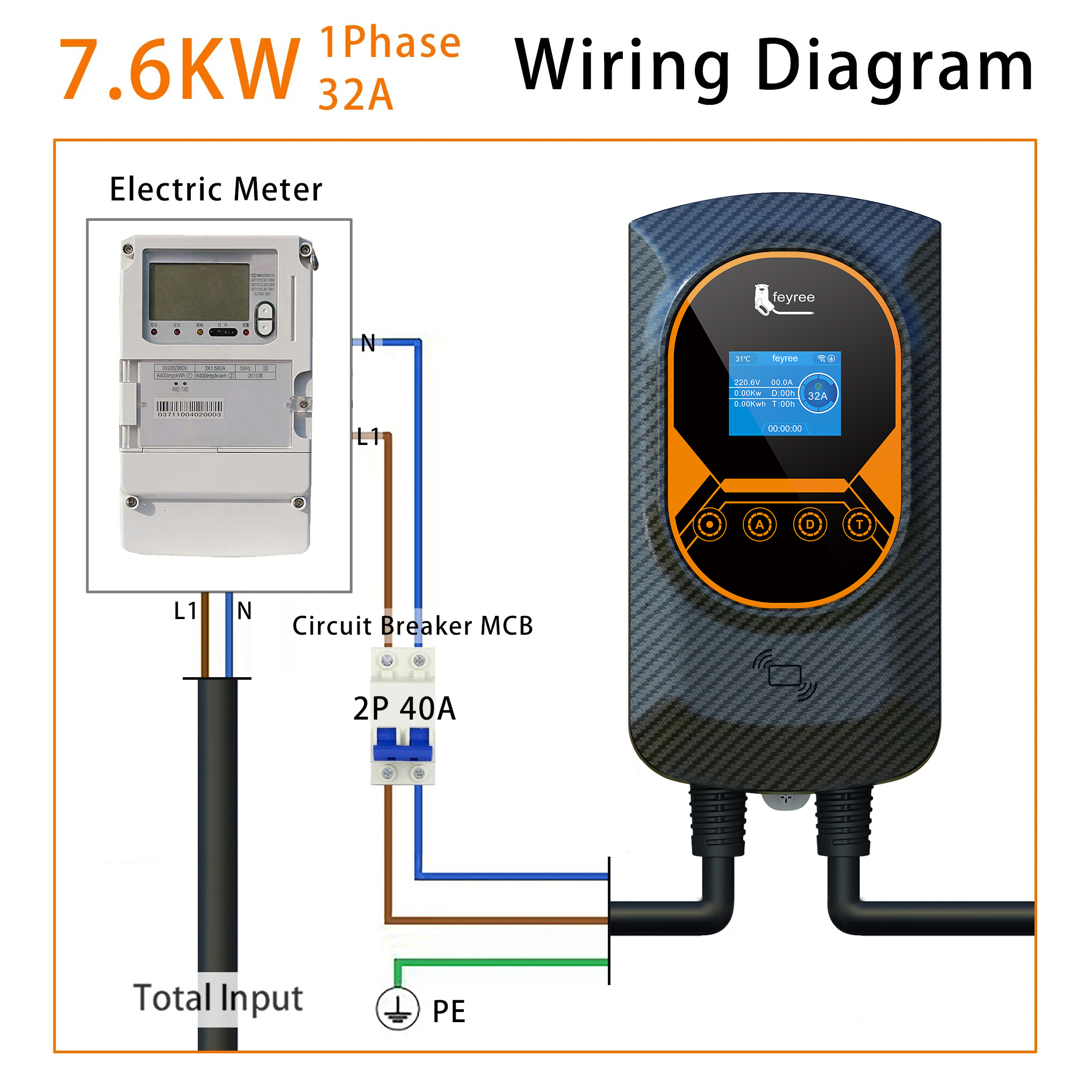

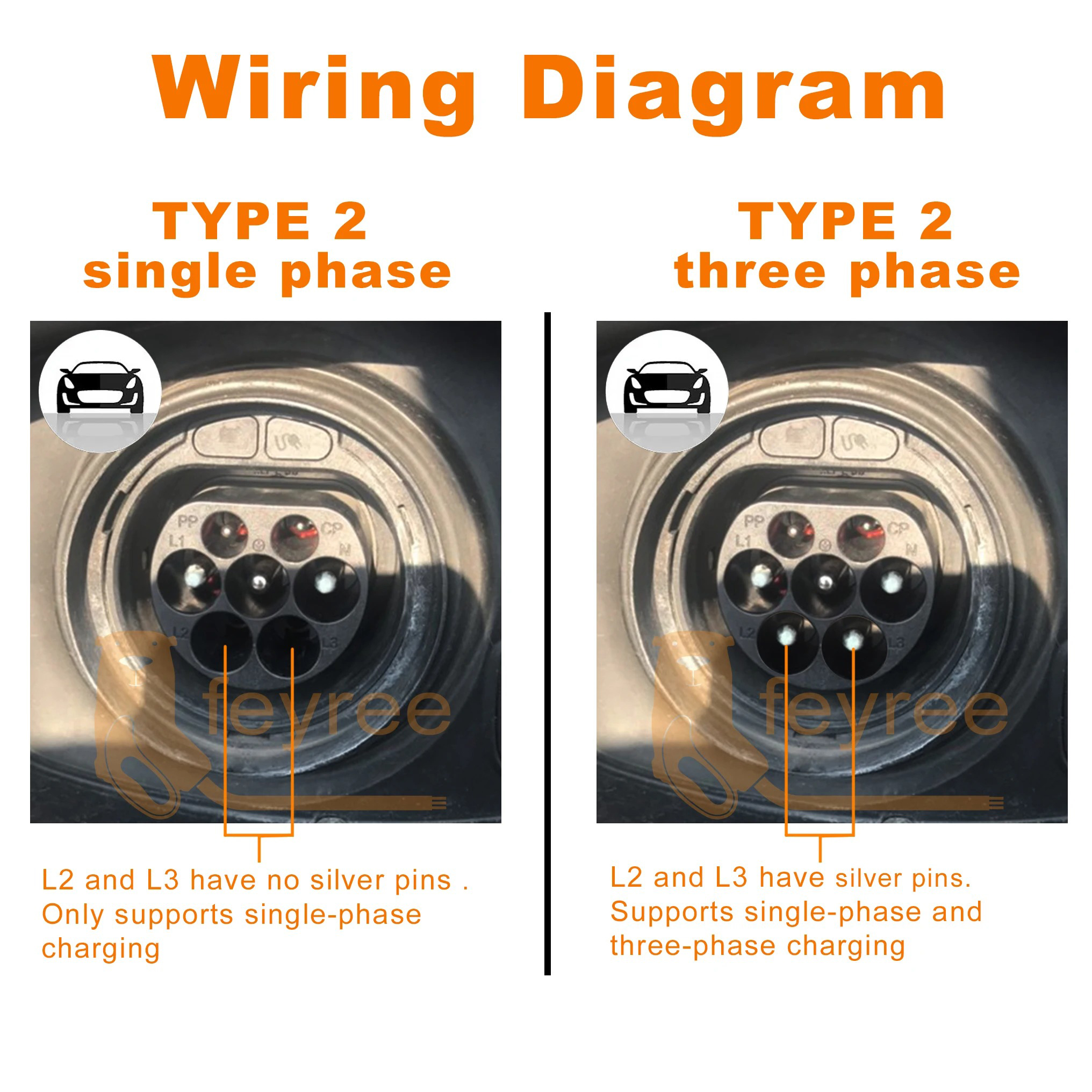

Wiring Diagram

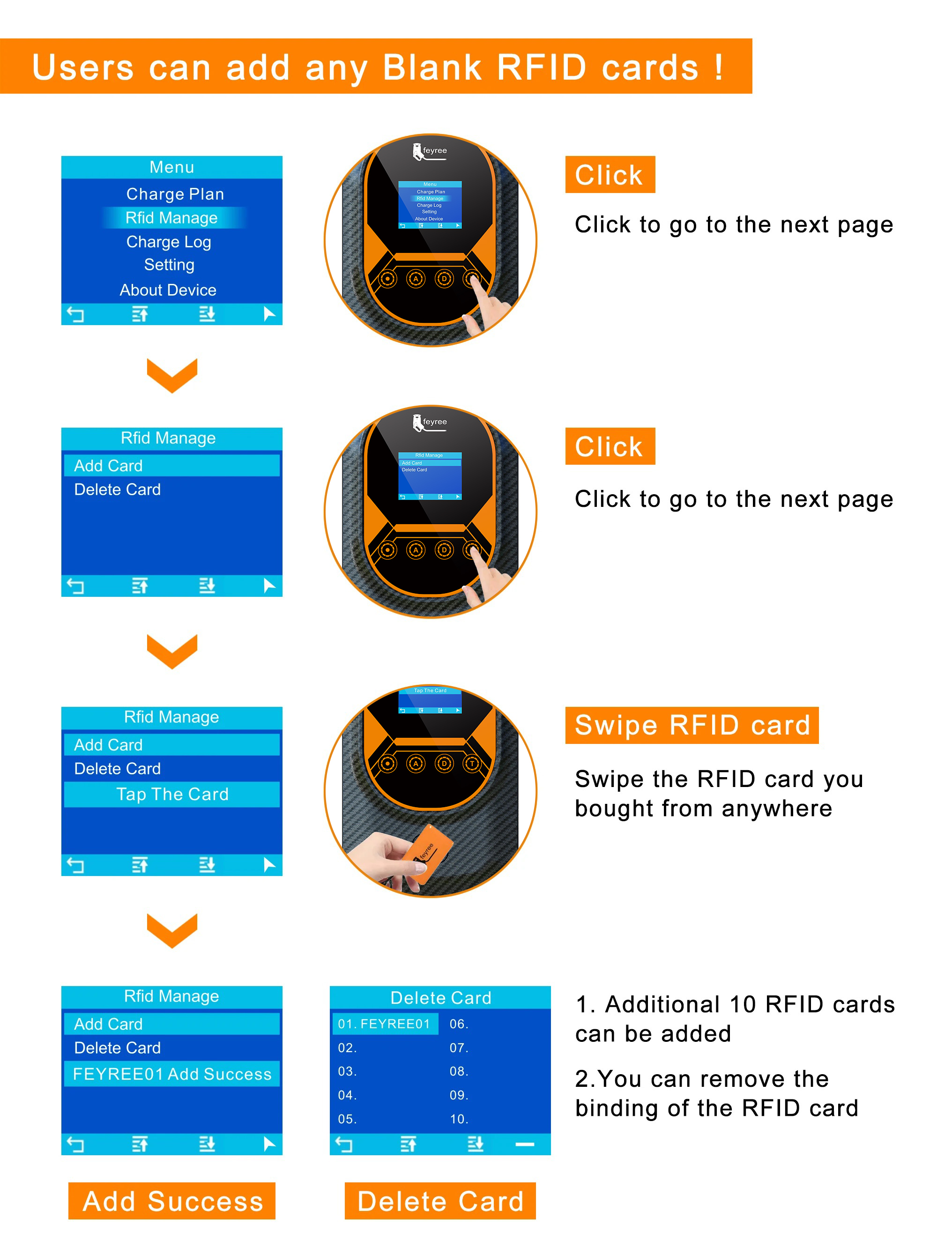

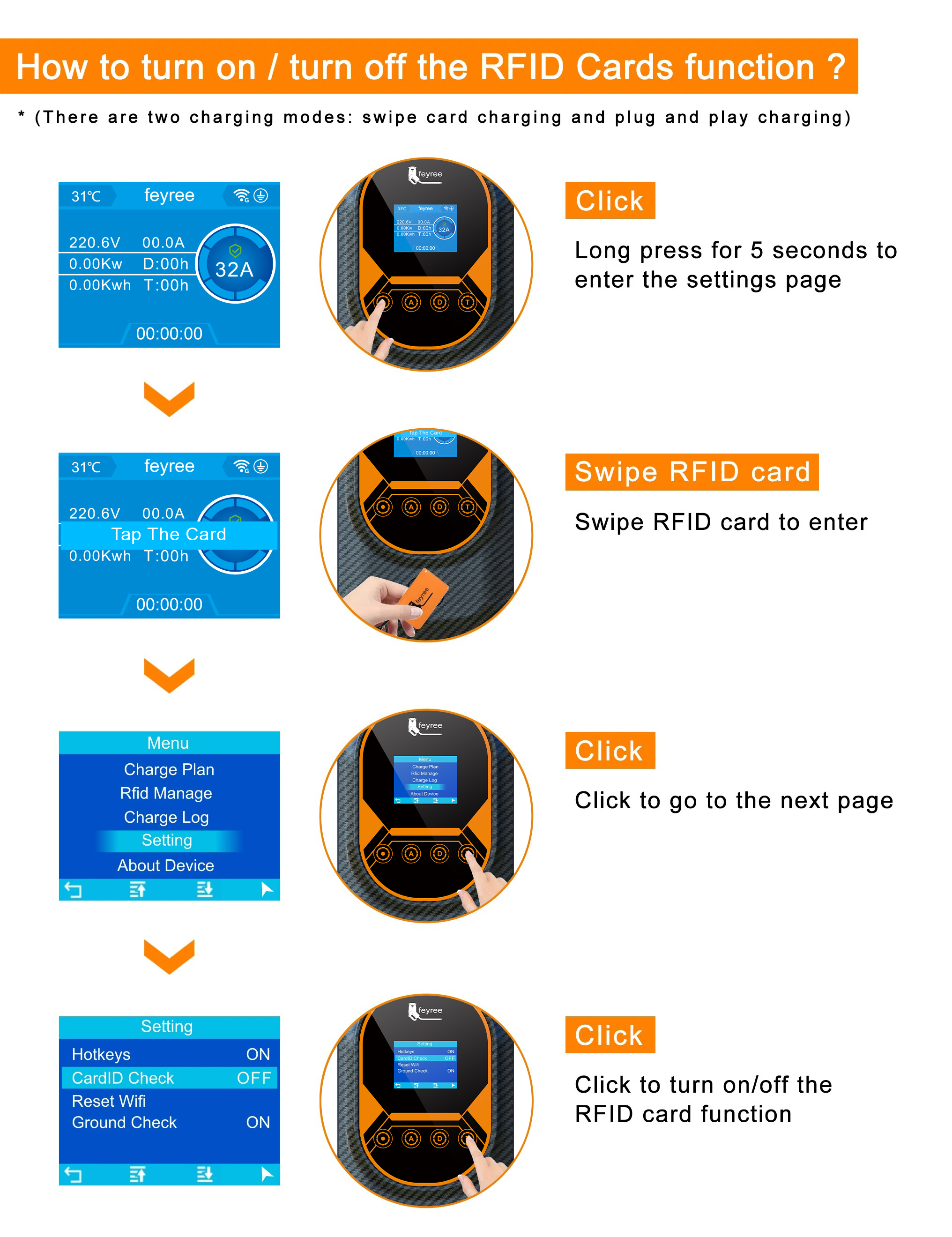

RFID Card Configuration & Management Guide

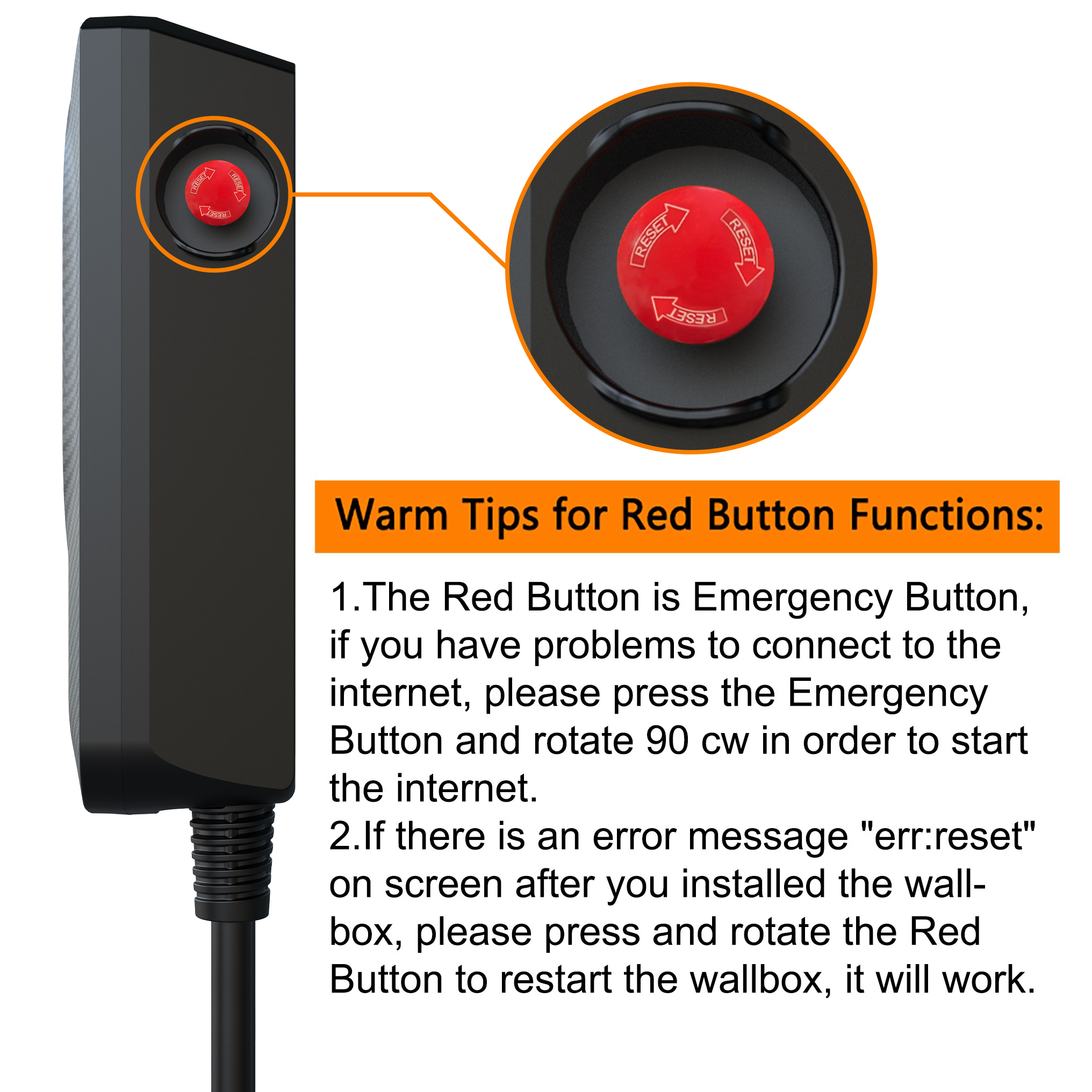

Wallbox Emergency Button Instructions

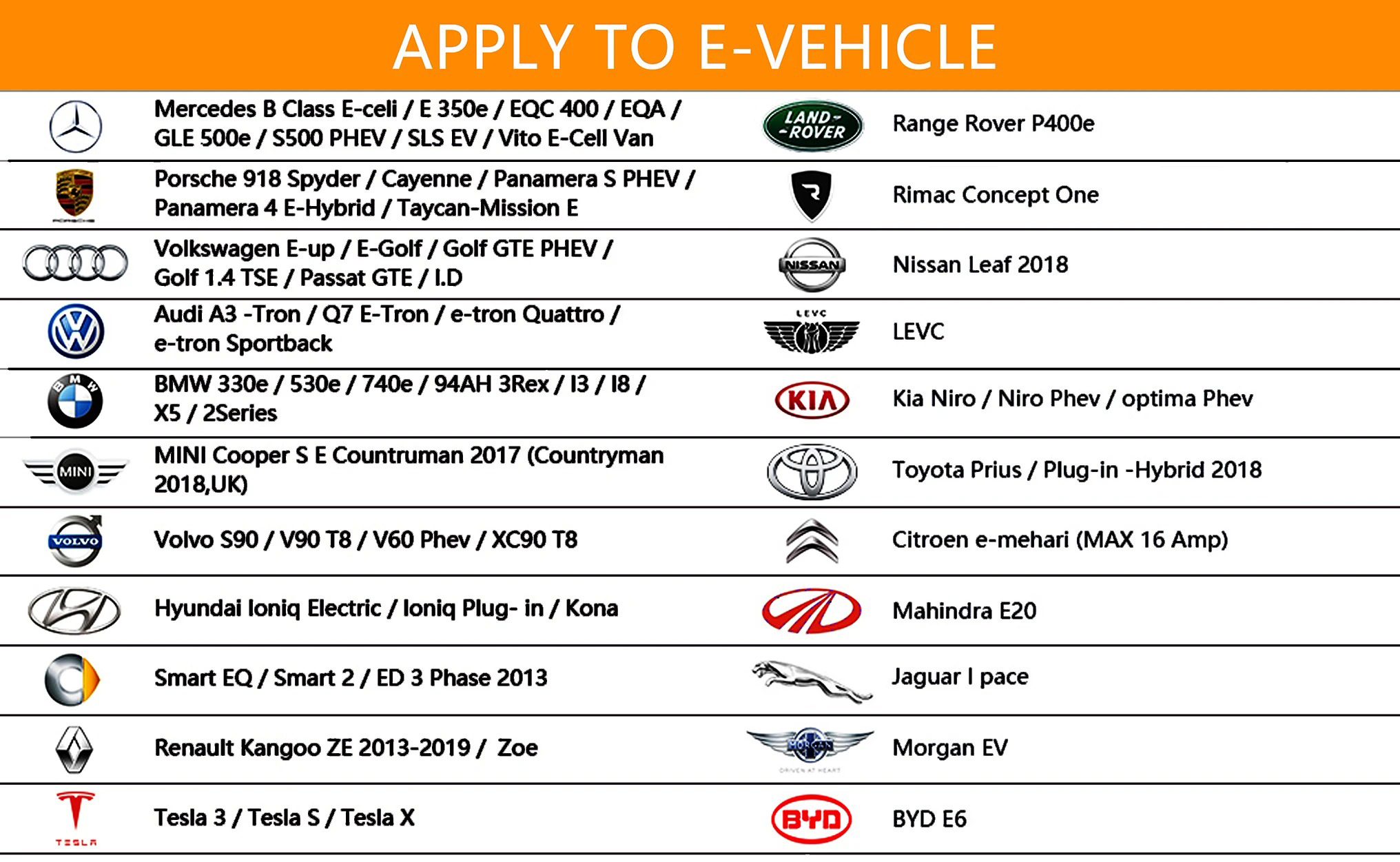

Wide Compatibility

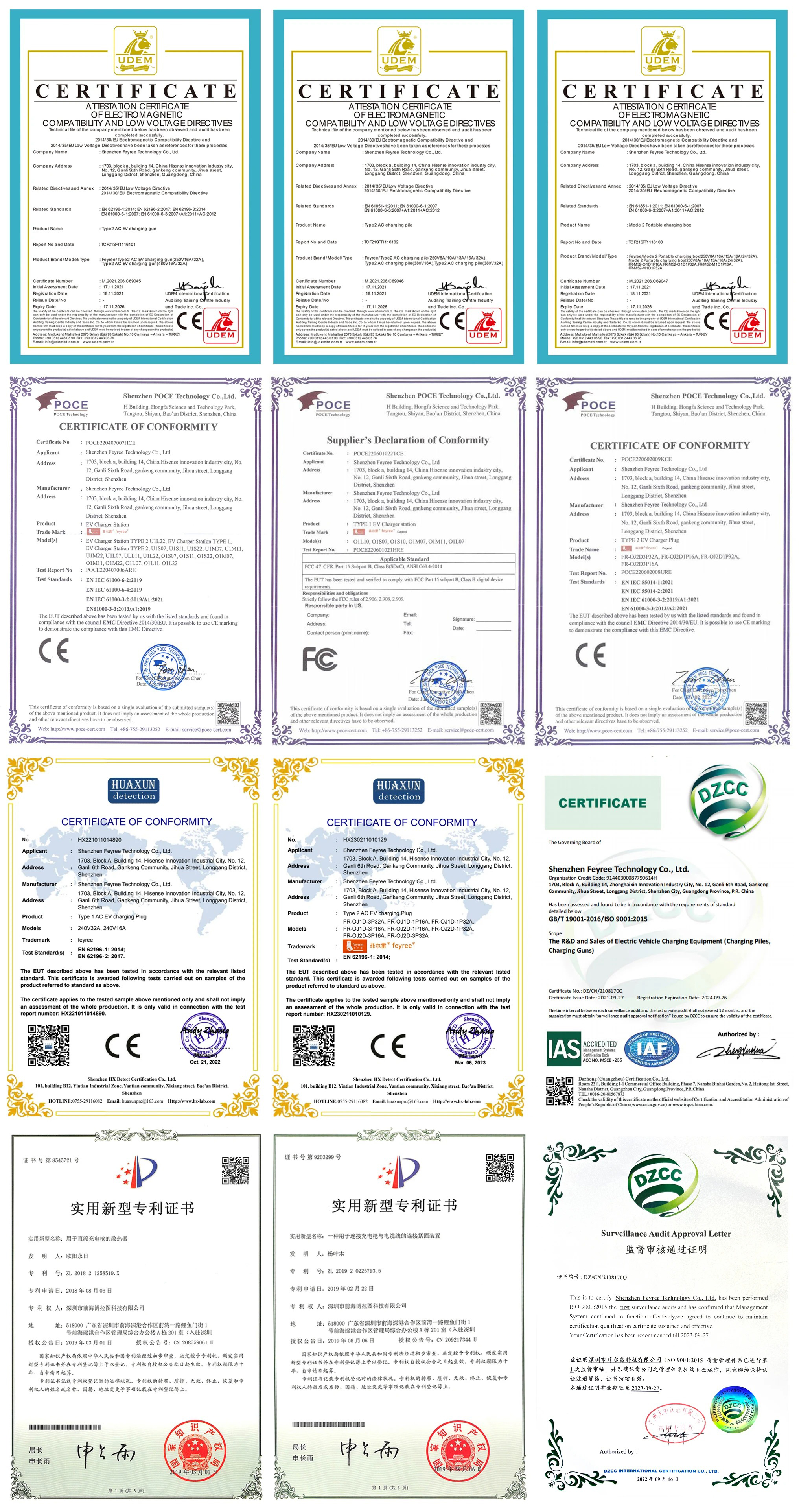

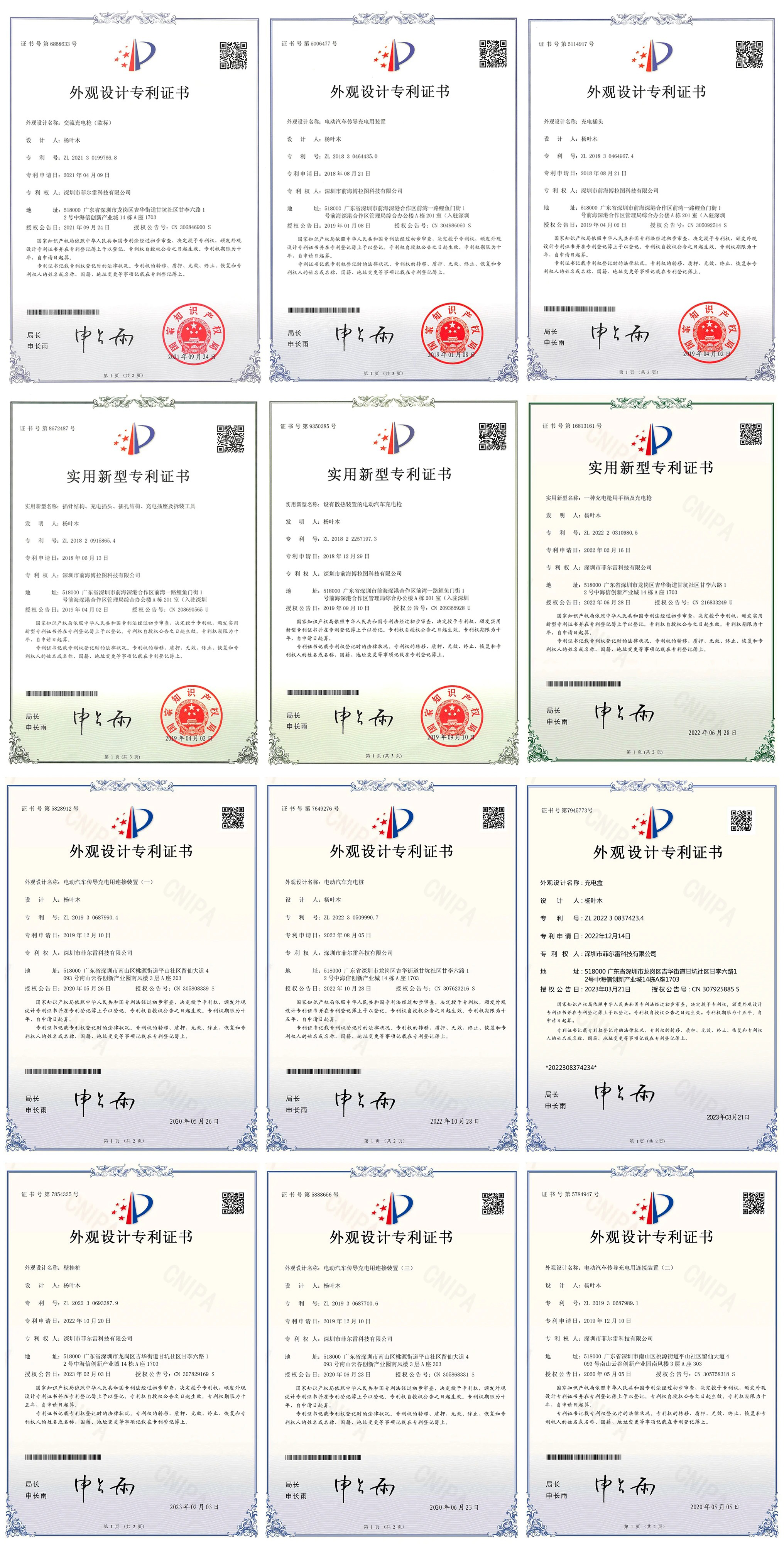

Safety Certifications
