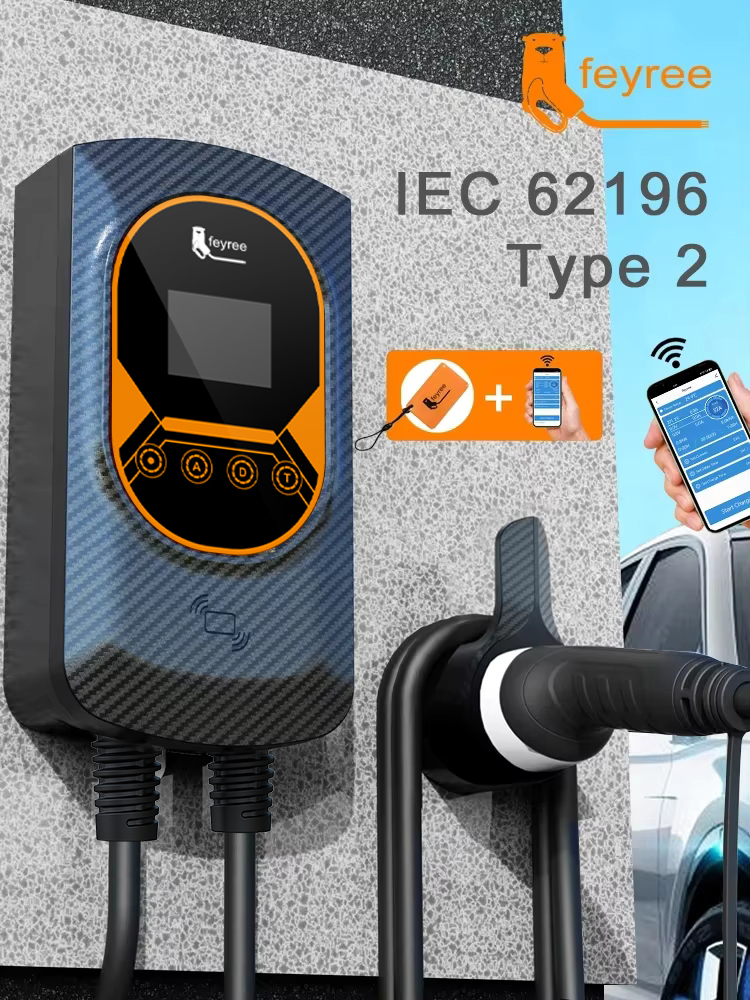

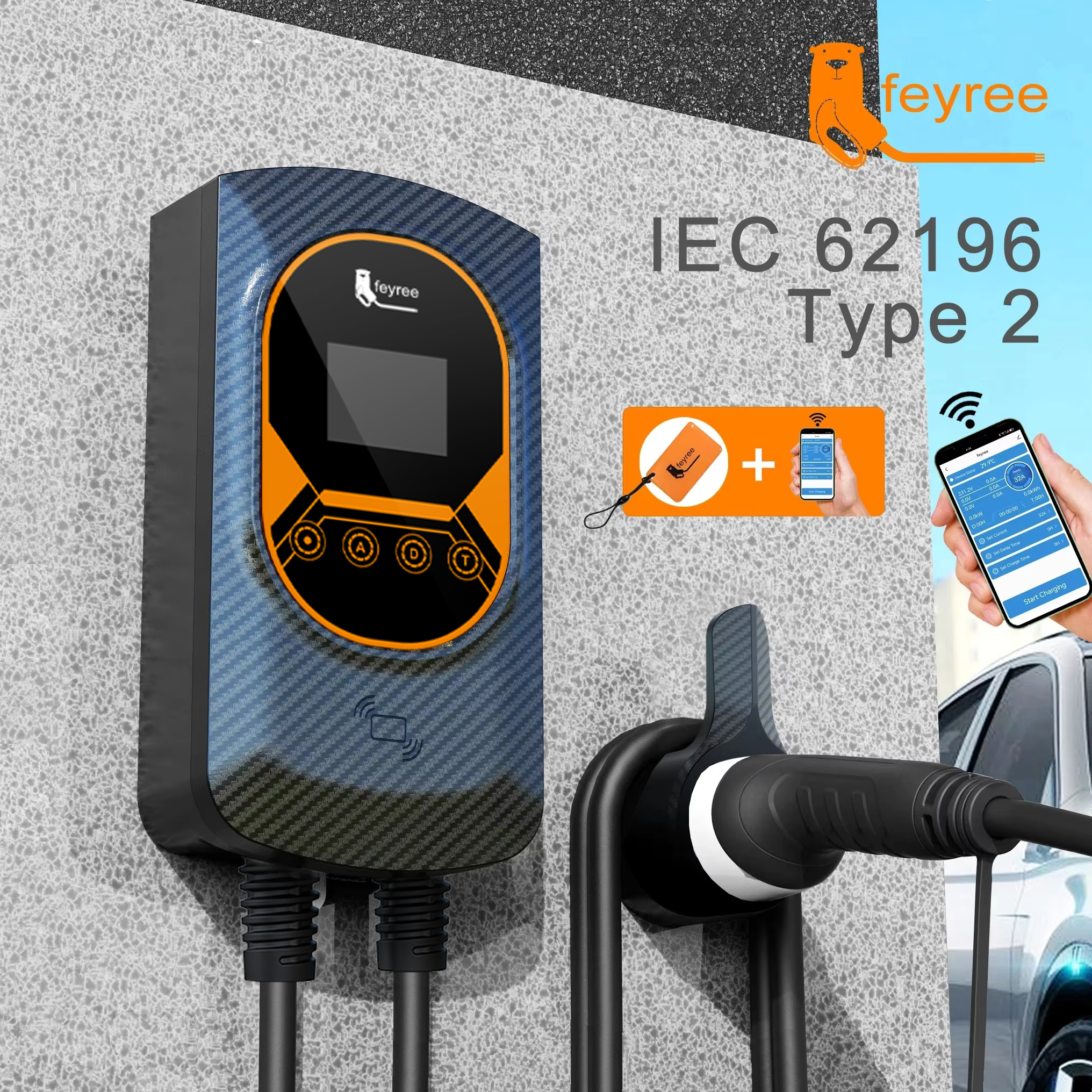

Full Model Lineup: 7kW / 11kW / 22kW — Carbon Fiber Wallbox (2nd Gen)
The smart EV charging station is available in three power configurations to match your vehicle and home electrical setup — all featuring carbon fiber texture casing, adjustable current, IP66 weatherproofing, and a clear 2.8-inch LCD display. Compatible with any EV with a Type 2 AC socket.

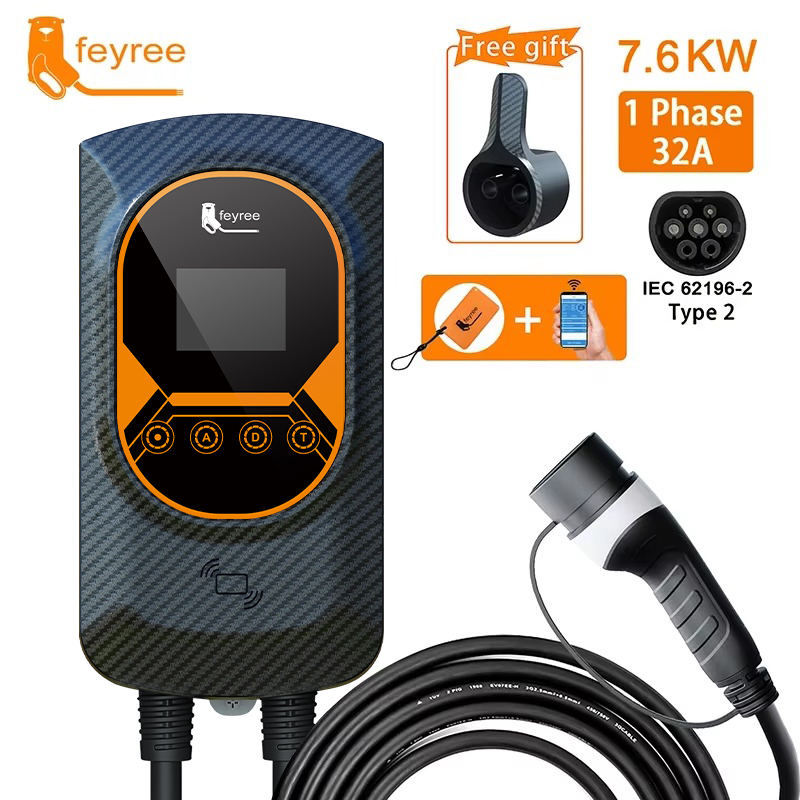

- 7kW (1-Phase 32A): Ideal for home charging with standard single-phase supply.
- 11kW (3-Phase 16A): Balanced three-phase charging for faster turnaround.

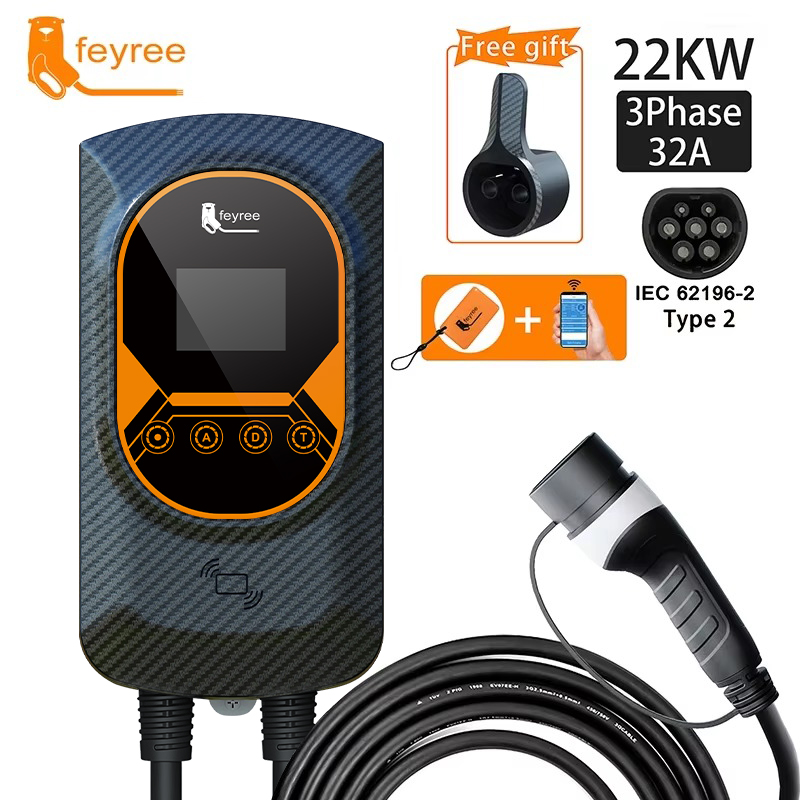

- 22kW (3-Phase 32A): Maximum power for the quickest home AC charging available.
- Current adjustable at 8A / 10A / 13A / 16A / 20A / 25A / 32A across all models.
- Carbon fiber texture casing with second-generation charger hardware for superior performance.
Smart Tuya App: Full Remote Control & Real-Time Monitoring
Designed with an intelligent chip that monitors all conditions during the charging process, complemented by full remote management through the free Tuya Smart App.
- Monitor voltage, current, charging time, and power consumed in real time via the app.
- Wi-Fi connectivity for remote start, stop, and scheduling from anywhere.
- Get push notifications when your car is fully charged — no need to check manually.
- Adjust current levels and configure schedules directly from your smartphone.
- Compatible with both Tuya Smart App and Smart Life App.
High-Brightness 2.8-Inch LCD: Live Data at a Glance
The high-brightness 2.8-inch display gives you an instant overview of your charging session — without needing to open the app. Clear readability even in direct sunlight.
- Displays real-time voltage, current, charging time, and power consumed simultaneously.
- LED charge status indicators help identify the charger's working condition at a glance.
- 2.8-inch LCD menu for setting charge plans and managing RFID cards on-device.
- Four touch buttons for current, delay, time, and settings menu navigation.
- High-brightness panel ensures readability in bright outdoor environments.
Intelligent Control Box: 8-Layer Protection Built In
The control box integrates a comprehensive suite of protections that self-monitor and self-recover, ensuring maximum safety for you, your vehicle, and your home electrical system.
- Leakage protection with automatic restart recovery.
- Over-voltage and under-voltage protection with self-checking recovery.
- Lightning protection and overcurrent protection.
- Overheat protection — auto power-off at 85°C.
- Ground fault protection.
- RFID card access control for session security.
- Adjustable current: 8A / 10A / 13A / 16A / 20A / 25A / 32A.
Money-Saving Mode: Schedule Charging at Off-Peak Rates
Programme the charger once and let it automatically charge at the cheapest times, every day of the week — no manual intervention needed.
- Set peak period start and end times to automatically avoid high electricity rates.
- Configure a weekly charging timetable with different start/stop times for each day.
- Delay charging start after plugging in for full flexibility with time-of-use tariffs.
- Set a maximum charging duration to avoid over-charging and reduce unnecessary energy draw.
- All schedules sync automatically to the charger over Wi-Fi once configured.
4 Ways to Charge: Wi-Fi, Bluetooth, RFID & Plug & Charge
Every user scenario is covered — whether you prefer app control, keycard security, Bluetooth proximity, or simply plug-and-go convenience.
- Wi-Fi App: Full remote control and scheduling from anywhere via Tuya Smart App.
- Bluetooth: Direct connection within 10 metres — no home router required.
- RFID Card: Tap to start and stop — 3 cards included, up to 10 additional cards registerable.
- Plug & Charge: Simply connect the cable to start charging immediately.
- Switching between modes takes just a few button presses — no tools needed.
Bluetooth Control: Smart Access Without Wi-Fi
The charger maintains full app functionality even in locations without a Wi-Fi signal — ideal for underground car parks, remote garages, or areas with poor network coverage.
- Direct Bluetooth connection between your smartphone and charger works within 10 metres — no router required.
- All core functions remain accessible via Bluetooth: start/stop, adjust current, and monitor real-time status.
- For first-time Wi-Fi setup without a router, pair using your phone's personal hotspot — mobile data is sufficient.
- Once paired, the charger remembers your device for seamless automatic reconnection on future visits.
IP66 Waterproof: Built for All-Weather Outdoor Use
The robust IP66-rated enclosure means you can install this charger indoors or outdoors with complete confidence — rain, wind, and dust pose no threat.
- IP66 protection class guards against dust ingress and direct water jets from any direction.
- UL94 V-0 flame-retardant housing provides robust physical protection against fire risk.
- Waterproof and breathable membrane enables fast heat dissipation without moisture ingress.
- Suitable for long-term outdoor installation in sun, rain, and freezing temperatures.
- 2-year brand warranty included with every unit.
Intelligent Temperature Protection: Auto Cutoff at 85°C
A dedicated temperature control protection chip monitors heat levels continuously and takes automatic action to protect the charger and your vehicle at all times.
- Monitors internal temperature in real time throughout every charging session.
- Automatically reduces power when temperature climbs toward the threshold.
- Cuts off charging completely at 85°C to prevent hardware damage.
- Resumes normal operation automatically once the unit cools down.
- LCD screen displays live temperature — always visible at a glance.
Premium Cable Materials: Copper Conductor & Silver-Plated Pins
Every material in the charging cable is selected to exceed industry-standard specifications for efficiency, safety, and long-term durability.
- High-purity copper conductor minimises resistive losses and heat generation during high-current charging.
- Silver-plated connector pins provide superior corrosion resistance and low contact resistance after thousands of mating cycles.
- TPU outer jacket is flexible in cold temperatures, UV-resistant, and rated for outdoor use year-round.
- High-quality cable delivers reliable electrical conductivity and faster energy transmission with no safety compromise.
Broad Compatibility: Works with All Major EV Brands
The Type 2 connector is the universal standard for AC charging across Europe and beyond — compatible with virtually every modern electric vehicle on the market.
- Compatible with Mercedes, BMW, Audi, Volkswagen, Tesla (with adapter), Renault, Peugeot, and more.
- Supports both single-phase and three-phase supply: 1-phase 230V and 3-phase 400V.
- Operates across 50Hz and 60Hz networks for global compatibility.
- Type 2 (IEC 62196) plug — the standard connector for AC charging across Europe.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Feyree |
| Connector Standard | Type 2 (IEC 62196) |
| Screen | 2.8-inch LCD |
| Power Options | 7kW / 11kW / 22kW |
| 7kW (1-Phase 32A) | Single-phase 230V |
| 11kW (3-Phase 16A) | Three-phase 400V |
| 22kW (3-Phase 32A) | Three-phase 400V |
| Adjustable Current | 8A / 10A / 13A / 16A / 20A / 25A / 32A |
| Frequency | 50 – 60 Hz |
| Protection Grade | IP66 |
| Flame Resistance | UL94 V-0 |
| Temperature Cutoff | 85°C auto power-off |
| Connectivity | Wi-Fi (Tuya Smart / Smart Life App) |
| Access Control | RFID card (3 included; up to 10 registerable) |
| Dimensions | 161mm (W) × 310mm (H) × 86mm (D) |
| Protections | Leakage, over/under-voltage, lightning, overcurrent, overheat, ground fault |
| Warranty | 2 years |
