Core Product Features
- High Compatibility: Easily connects IEC-62196-2 (Type 2) charging stations with SAE J1772 (Type 1) vehicles.
- Multi-Current Options: Available in 16A and 32A rated current models to meet different charging speed requirements.
- Safe and Durable: Housing made of high-flame-retardant UL94 V-0 thermoplastic material and certified with IP65 protection rating.
- Efficient Conductivity: Pins made of copper alloy with silver plating ensure low resistance, high conductivity, and a mechanical life of over 10,000 cycles.
- Plug and Play: 0.5-meter short cable design, making it easy to carry and operate.

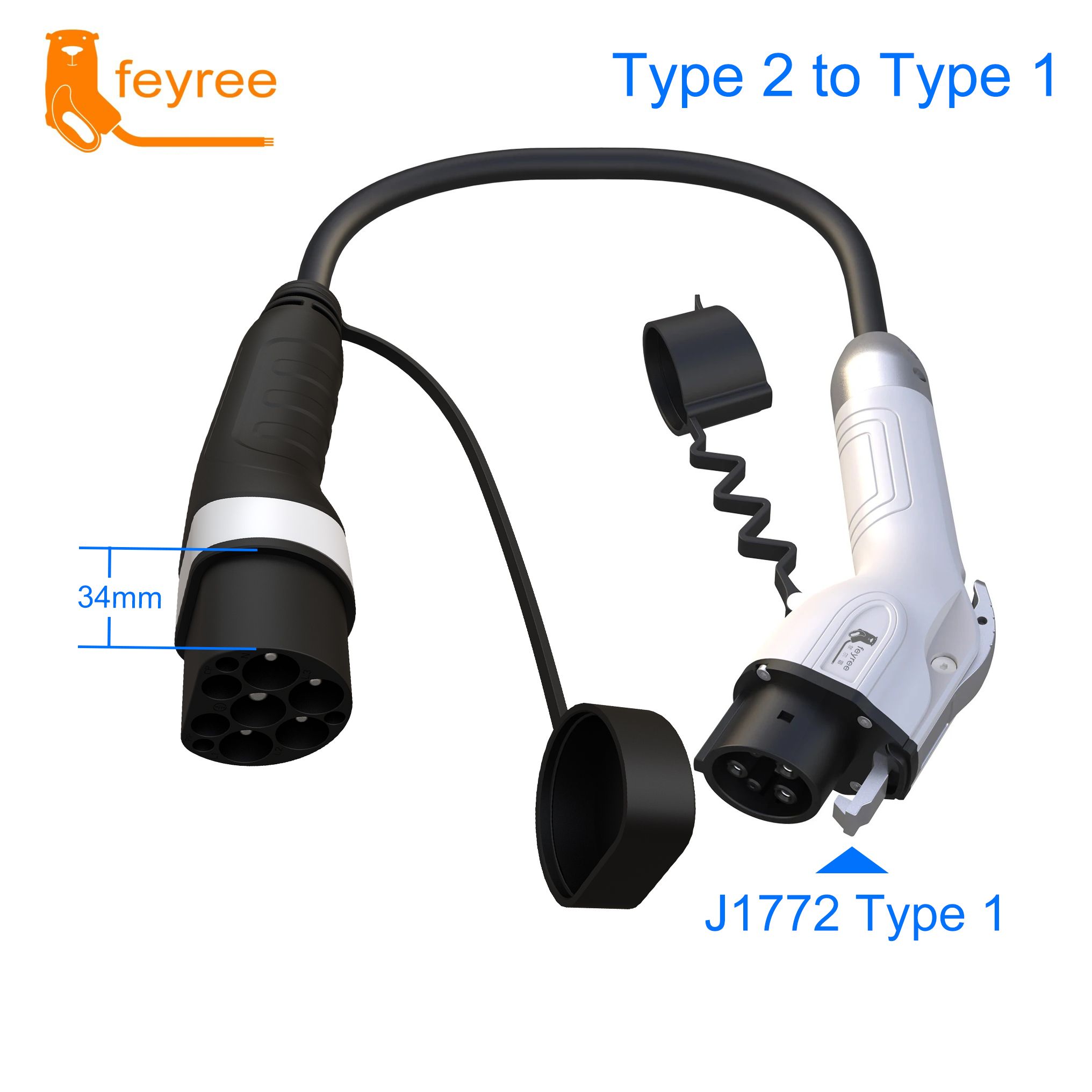

1. Type 2 to Type 1 Adapter Appearance and Dimensions
Product Specifications Overview
- Charger Side Connection: IEC-62196-2 Type 2 Male Plug
- Vehicle Side Connection: SAE J1772 Type 1 Plug
- Rated Current: 16A / 32A AC (Optional)
- Operation Voltage: 110V ~ 240V
- Cable Length: Approx. 0.5m Cable
- Protection Degree: IP65 (Splash-proof)
- Pin Material: Copper Alloy, Silver Plating
- Mechanical Life: > 10,000 times
The image clearly shows the diameter reference (34mm) for the Type 2 end socket and the structure of the Type 1 (J1772) plug.

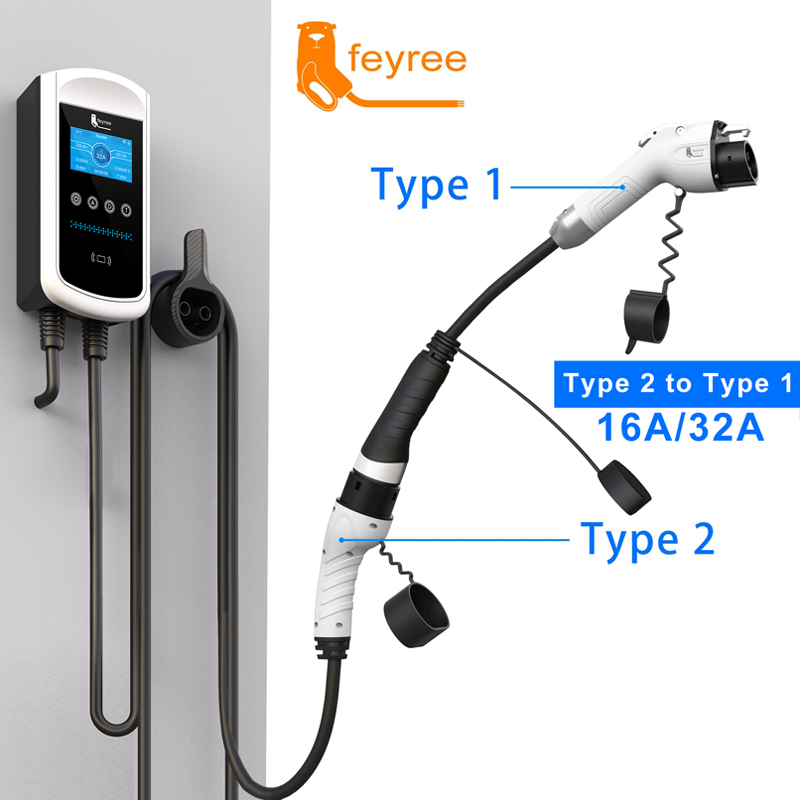

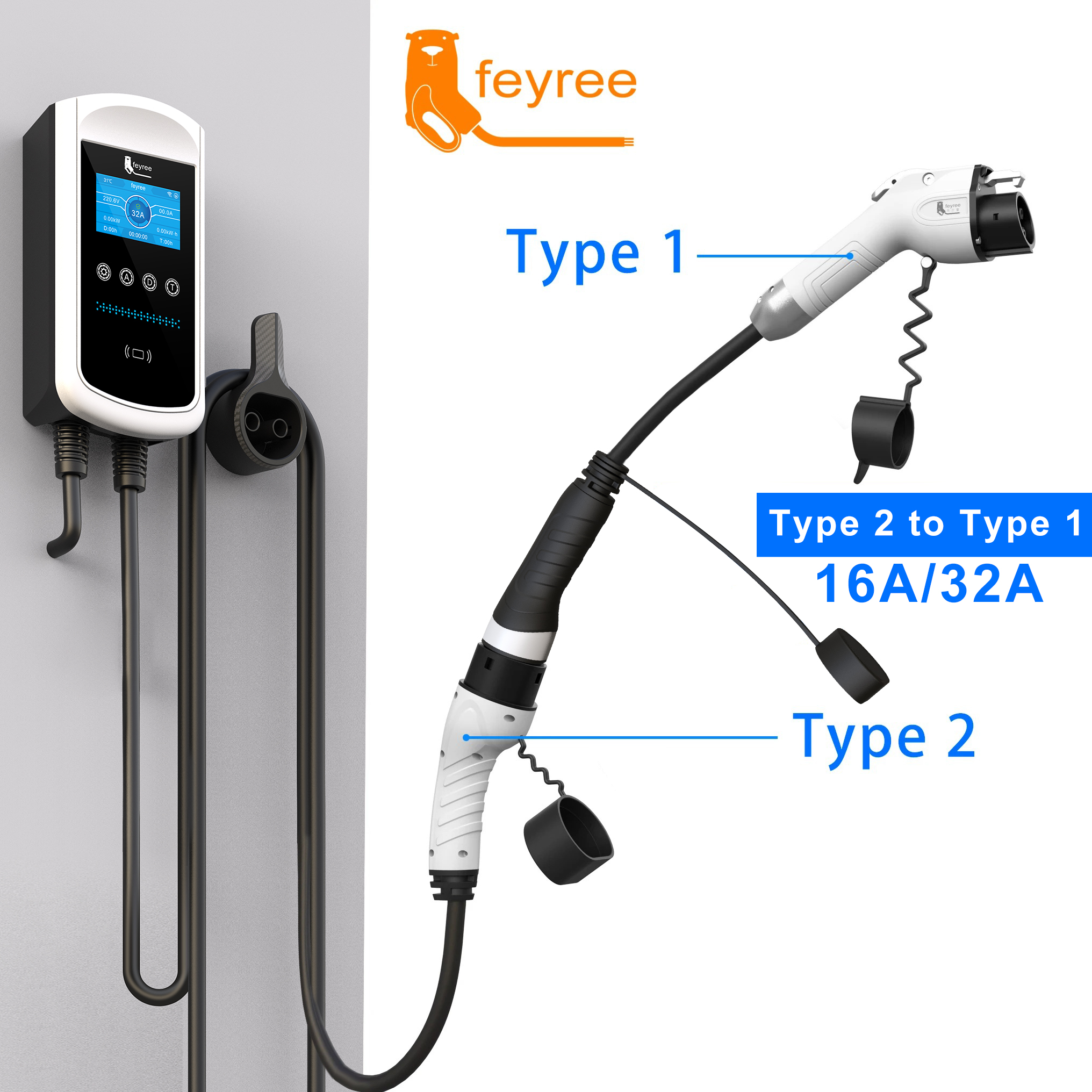

2. Connection Example: Wallbox to Type 1 Car
Usage Scenarios and Convenience
This image demonstrates the typical application of the adapter: connecting a wall-mounted Type 2 AC charging station to your Type 1 standard electric vehicle. No need to replace the charging station or vehicle inlet; charging is made easy with the 0.5-meter short adapter cable.
Technical Highlights:
- Rated Current: Supports a maximum of 32A for efficient charging speed.
- Dual Protection: The adapter comes with protective caps for dust and water resistance, enhancing connection safety.
- Operation Temperature: Adapts to harsh environments from -30℃ to 50℃.

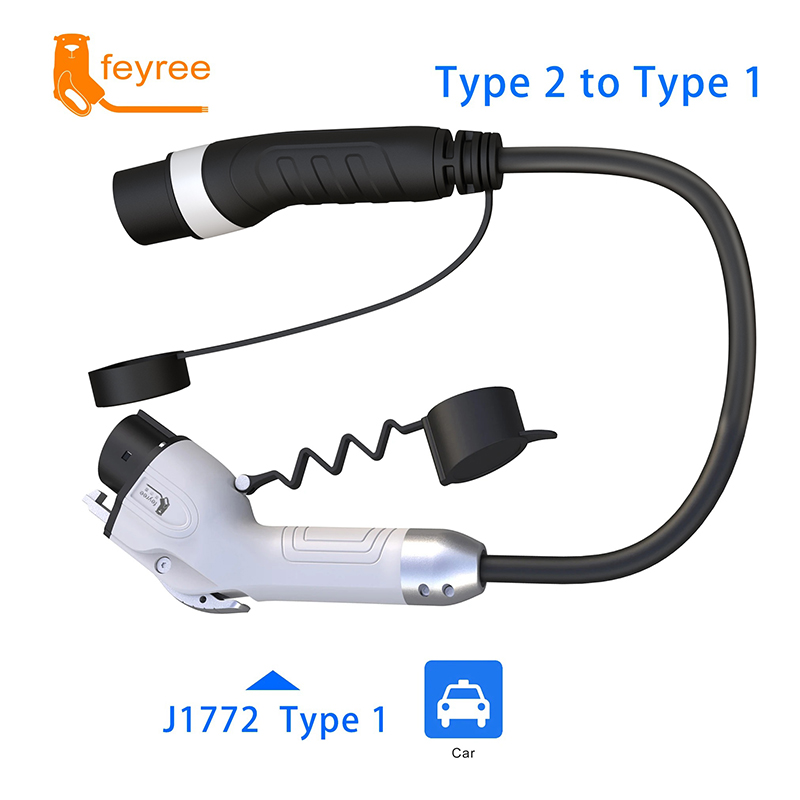

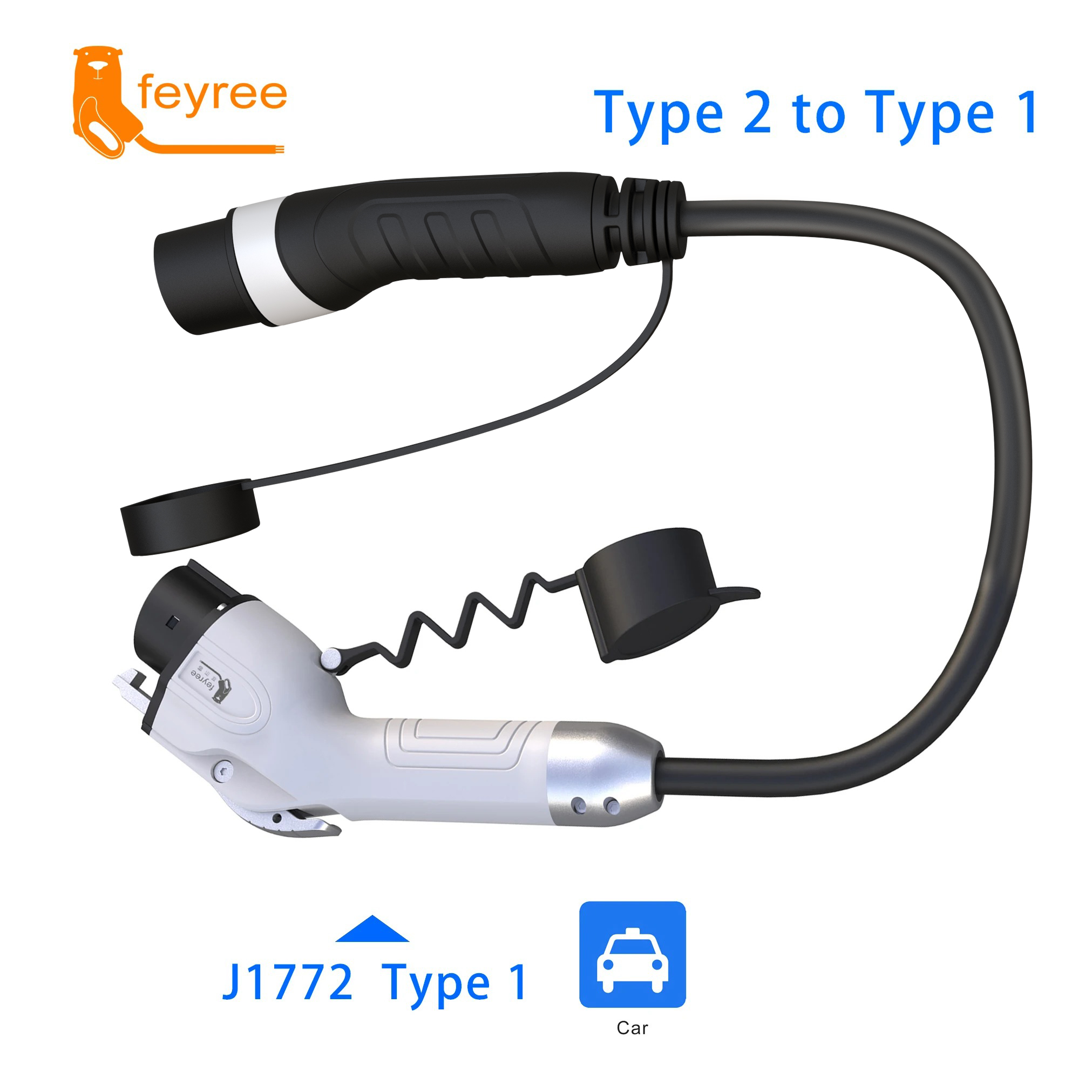

3. Type 2 to Type 1 J1772 Charging Connection Cable
Quality and Material Assurance
Feyree adapters adhere to strict material selection standards to ensure product durability and safety.
- Housing Material: High-quality thermoplastic, meeting the UL94 V-0 flame retardant standard, effectively preventing fire hazards.
- Contacts: High-purity copper alloy, with silver-plated contacts, ensures stable current transmission and minimal heat generation.
- Standard Compliance: Follows IEC 62196-2 and SAE J1772 international standards for broad compatibility.

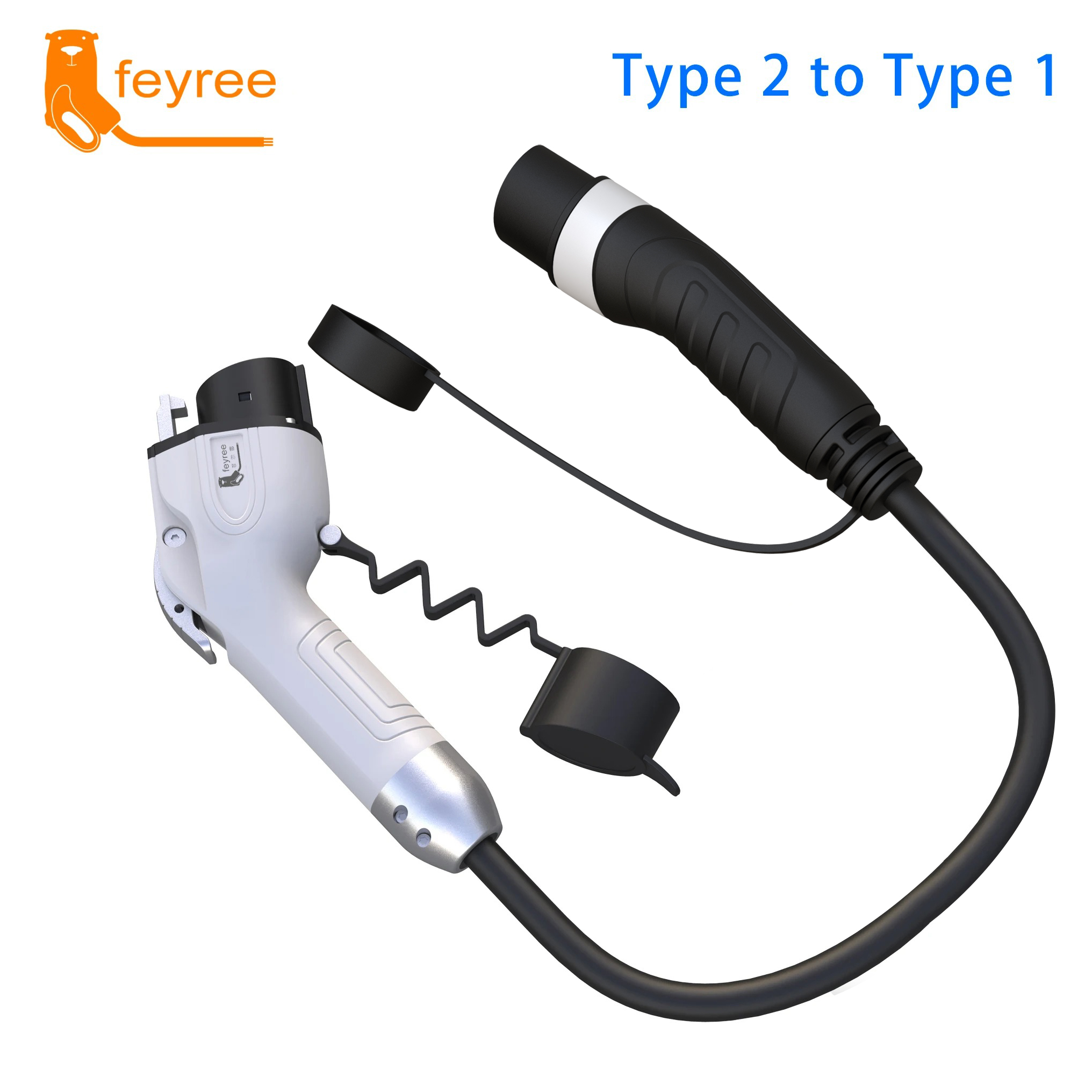

4. Adapter Full View (Complete Form)
Design Details and Ergonomics
Both connector ends of the adapter are designed with ergonomic grips to ensure comfort and a secure hold during plugging and unplugging.
- Anti-slip Design: The Type 2 end features a ripple anti-slip design for easy gripping.
- Easy Operation: The Type 1 end includes a standard latch mechanism, ensuring a reliable connection during charging.
- Short Cable Advantage: The 0.5m cable makes it compact, convenient for storage in the car trunk or a charging bag.

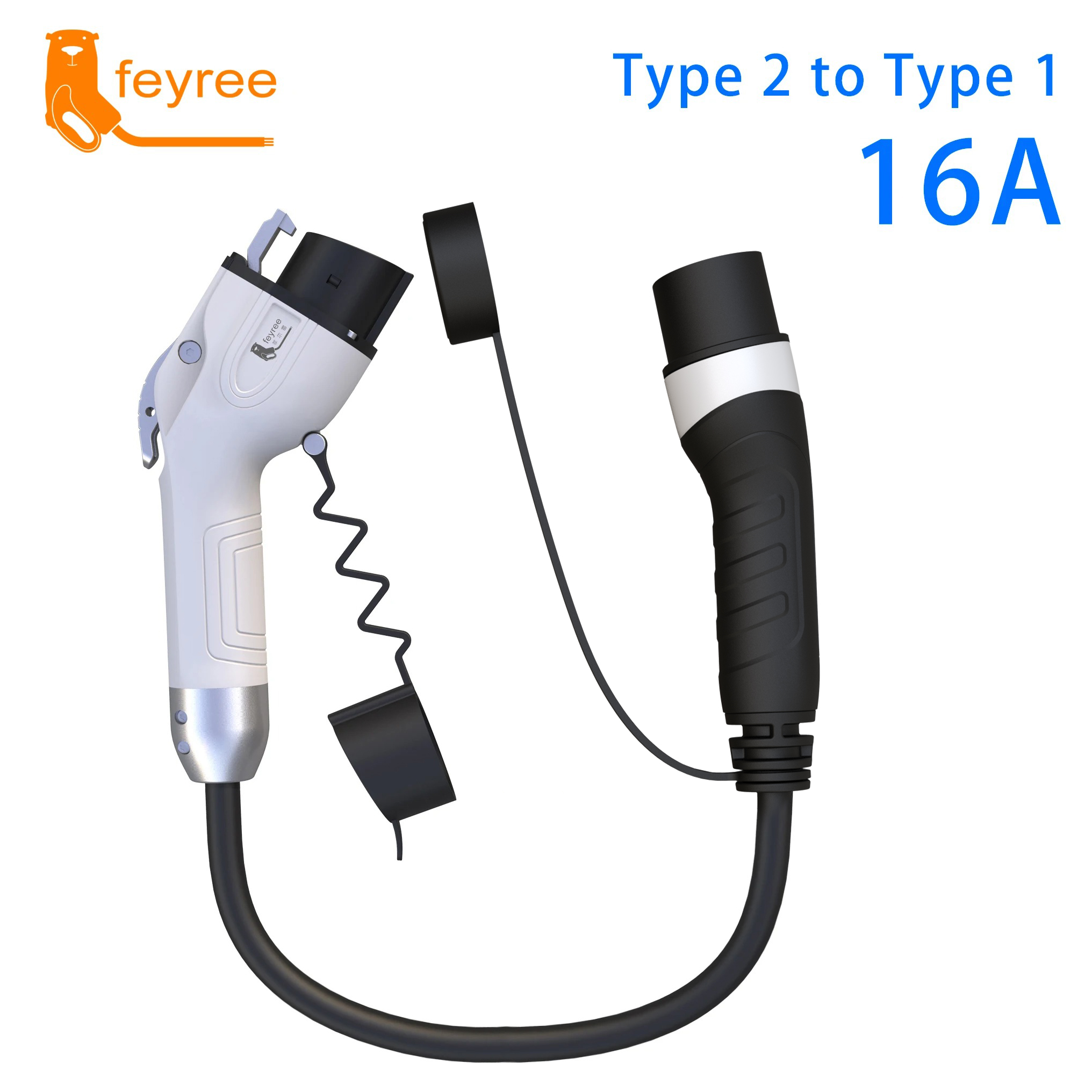

5. 16A Rated Current Model (Standard Version)
16A Version Features
The 16A version of the adapter is suitable for standard home charging or for users who do not require the fastest charging speed. It can deliver approximately 3.8kW of AC charging power at 240V.
- Current Specification: 16A AC
- Applicable Scenarios: Basic slow charging, overnight charging.
- Economical and Practical: Meets the charging needs for most daily commuting vehicles.
6. 32A Rated Current Model (High-Speed Version)
32A Version Features
The 32A version is ideal for users who need faster charging speeds and is compatible with higher-power single-phase charging stations. It can deliver approximately 7.6kW of AC charging power at 240V.
- Current Specification: 32A AC
- Charging Efficiency: Double the speed of the 16A version, significantly reducing waiting time.
- Applicable Scenarios: Quick top-ups, high-power home charging stations.

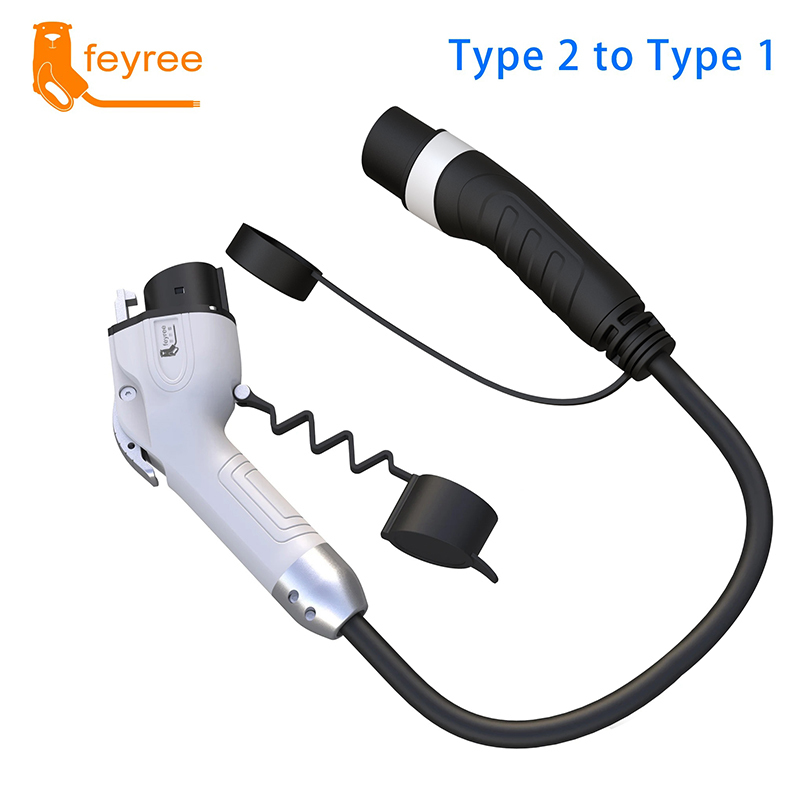

7. Product Multi-Angle View (Detail Showcase)
