Product Features
App Remote Control & Smart Management
Through the dedicated smartphone application, you can enjoy full wireless control and real-time oversight of your vehicle's charging process.
- Real-Time Status Monitoring: Remotely track live data including temperature , voltage, and current directly from your phone.
- Remote Delay & Timed Charging: Conveniently set delay start times or specific charging durations via the app to optimize energy use.
- Instant Start/End Control: Take full command by starting or stopping your charging session with a single tap on the mobile interface.
- Adjustable Power Settings: Easily switch between current modes (e.g., 32A) through the app's intuitive settings menu.
- Seamless Integration: Works in tandem with the physical station and wall-mounted dock to provide a modern, connected charging experience.

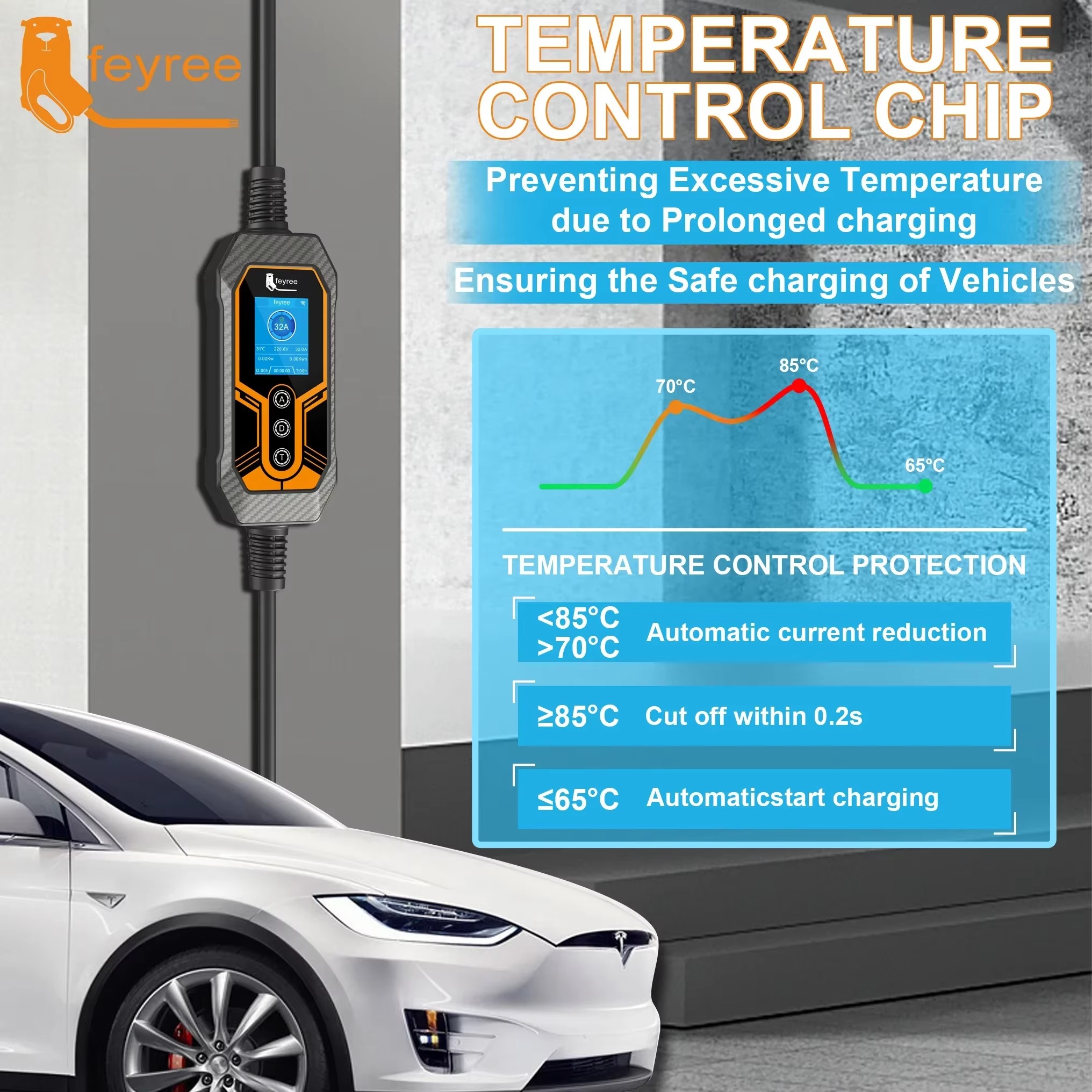

Intelligent Temperature Control Chip
The station features a dedicated temperature control chip designed to prevent excessive heat during prolonged sessions, ensuring the absolute safety of your vehicle.
- Dynamic Thermal Response: Automatically reduces the charging current if the internal temperature rises above 70°C but stays below 85°C.
- Instant Safety Cut-off: Immediately cuts off power within 0.2 seconds if temperatures reach or exceed 85°C to prevent hardware damage.
- Smart Auto-Resume: Automatically restarts the charging process once the device cools down to 65°C or below.
- Continuous Monitoring: The integrated chip provides real-time protection against overheating caused by long-duration high-power charging.

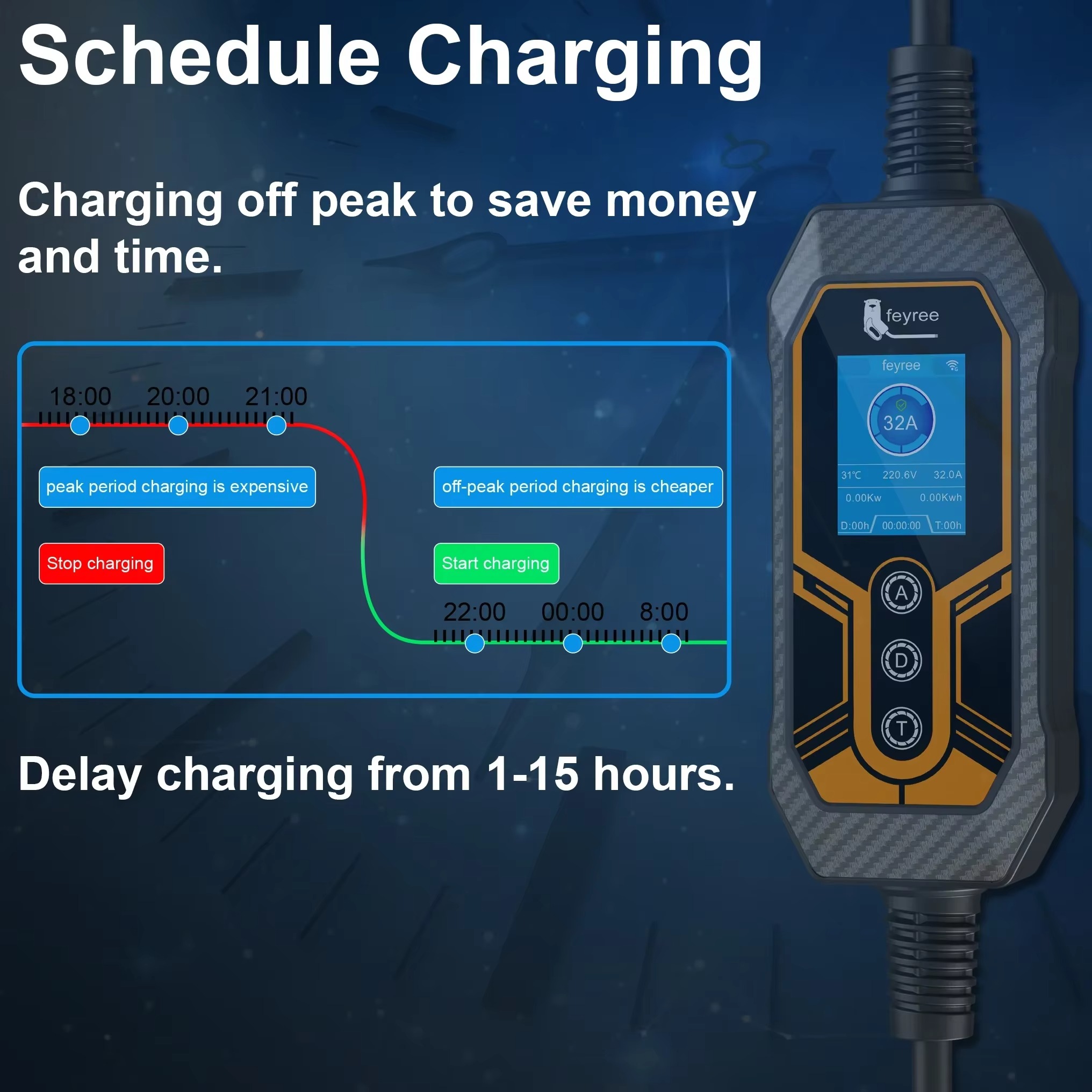

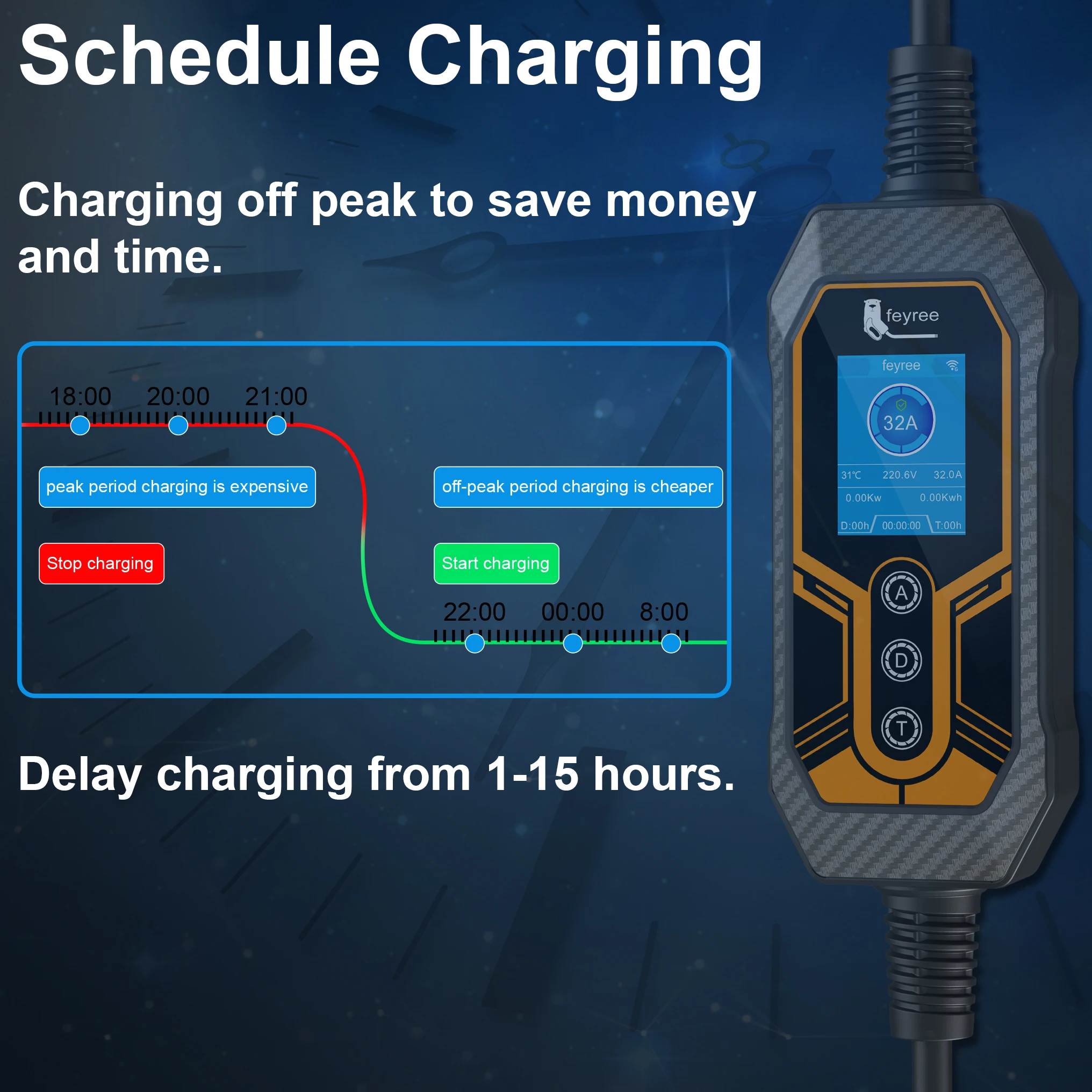

Schedule Charging & Cost Optimization
The charger features intelligent scheduling to help you take advantage of lower energy rates and manage your time more efficiently.
- Off-Peak Savings: Specifically designed to schedule charging during off-peak periods (e.g., late night to early morning) when electricity is cheaper.
- Cost Management: Allows you to stop charging during expensive peak periods and automatically start when rates drop.
- Flexible Delay Function: Supports a delay charging timer that can be set anywhere from 1 to 15 hours.
- Visual Planning Interface: The 2.8-inch screen and integrated app interface provide a clear timeline for tracking peak and off-peak charging cycles.
8 Intelligent Safety Protections
The charging station is built with a comprehensive security suite to ensure stable operation and protect both the vehicle and the user.
- Voltage & Current Regulation: Features Overvoltage Protection and Over Current Protection to manage electrical fluctuations.
- Leakage & Short Circuit Defense: Provides dedicated Leakage Protection and Short Circuit Protection to prevent electrical hazards.
- Thermal & Load Management: Includes Temperature Protection to monitor heat and Overload Protection to prevent system strain.
- Environmental & Grounding Safety: Equipped with Waterproof Protection for all-weather use and Grounding Protection for electrical stability.
- Full Session Security: These eight layers of protection work simultaneously to maintain a safe charging environment from start to finish.

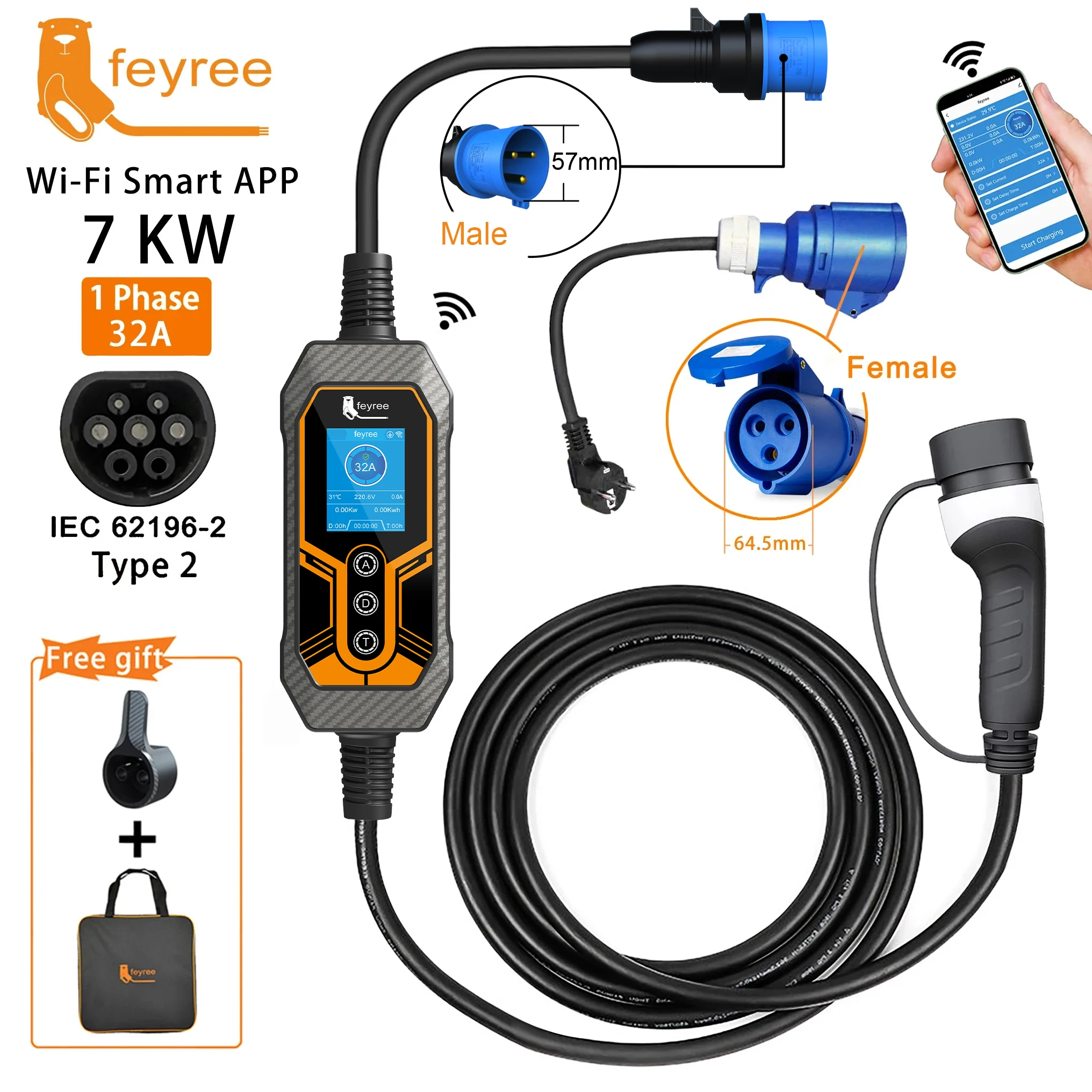

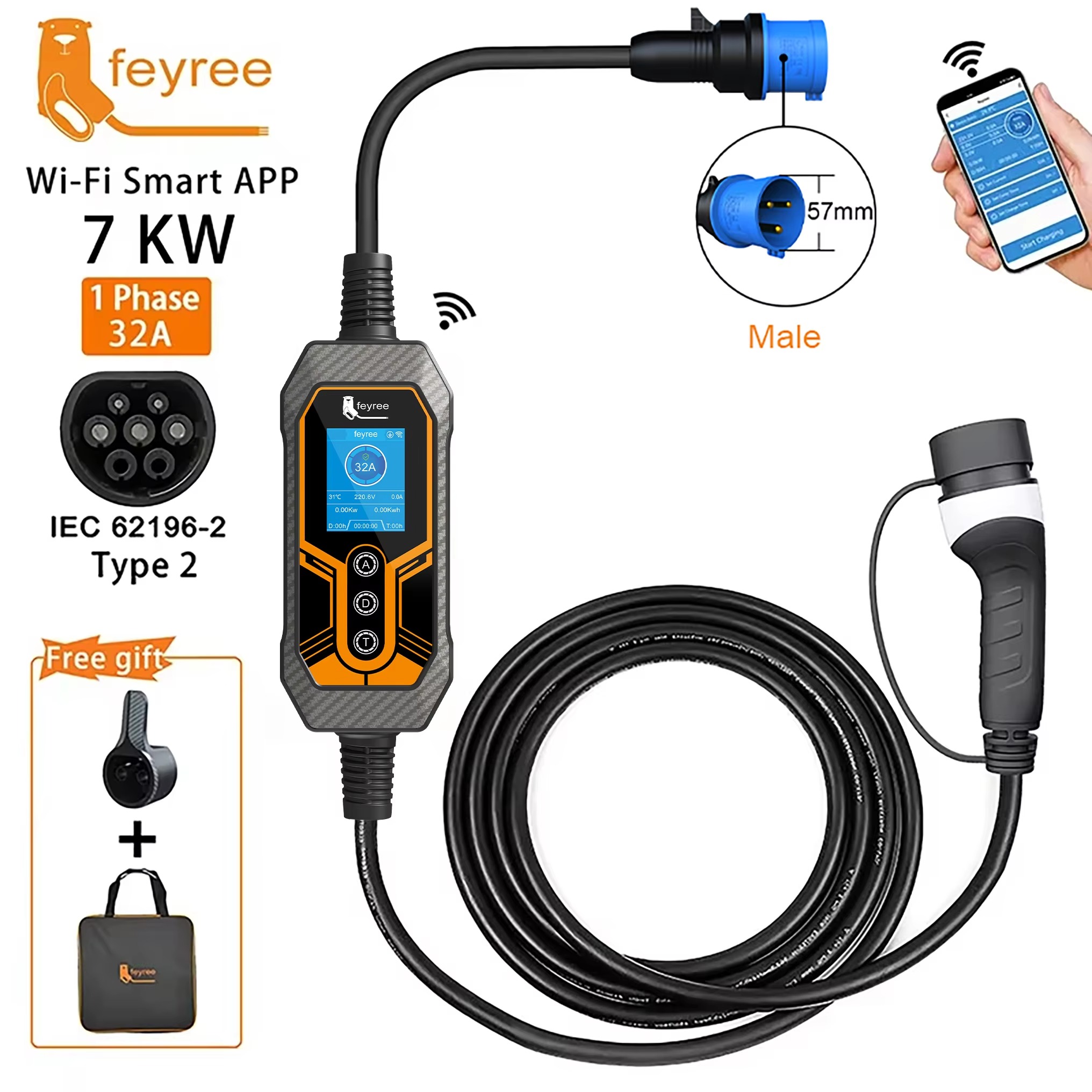

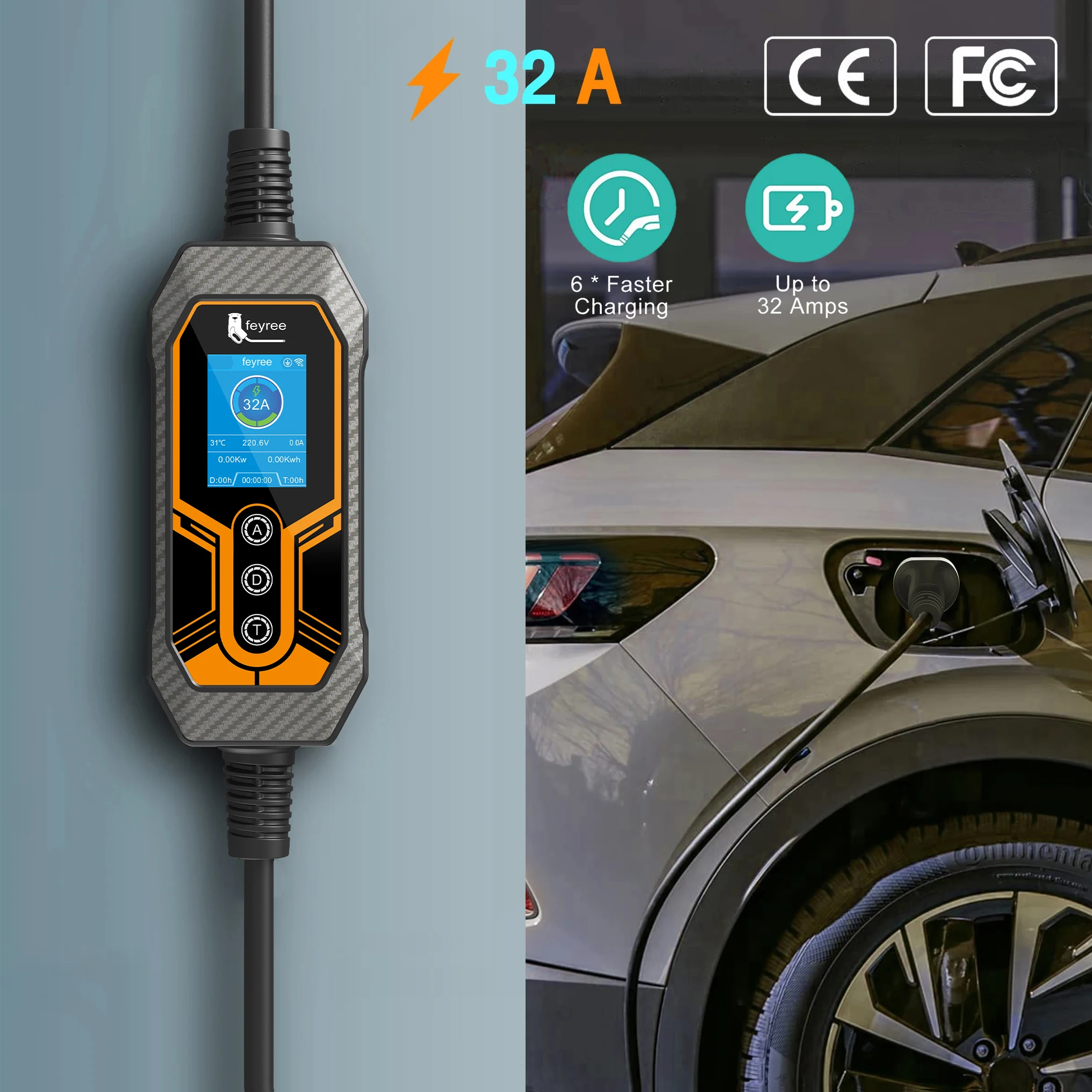

7KW Smart EV Charger Overview

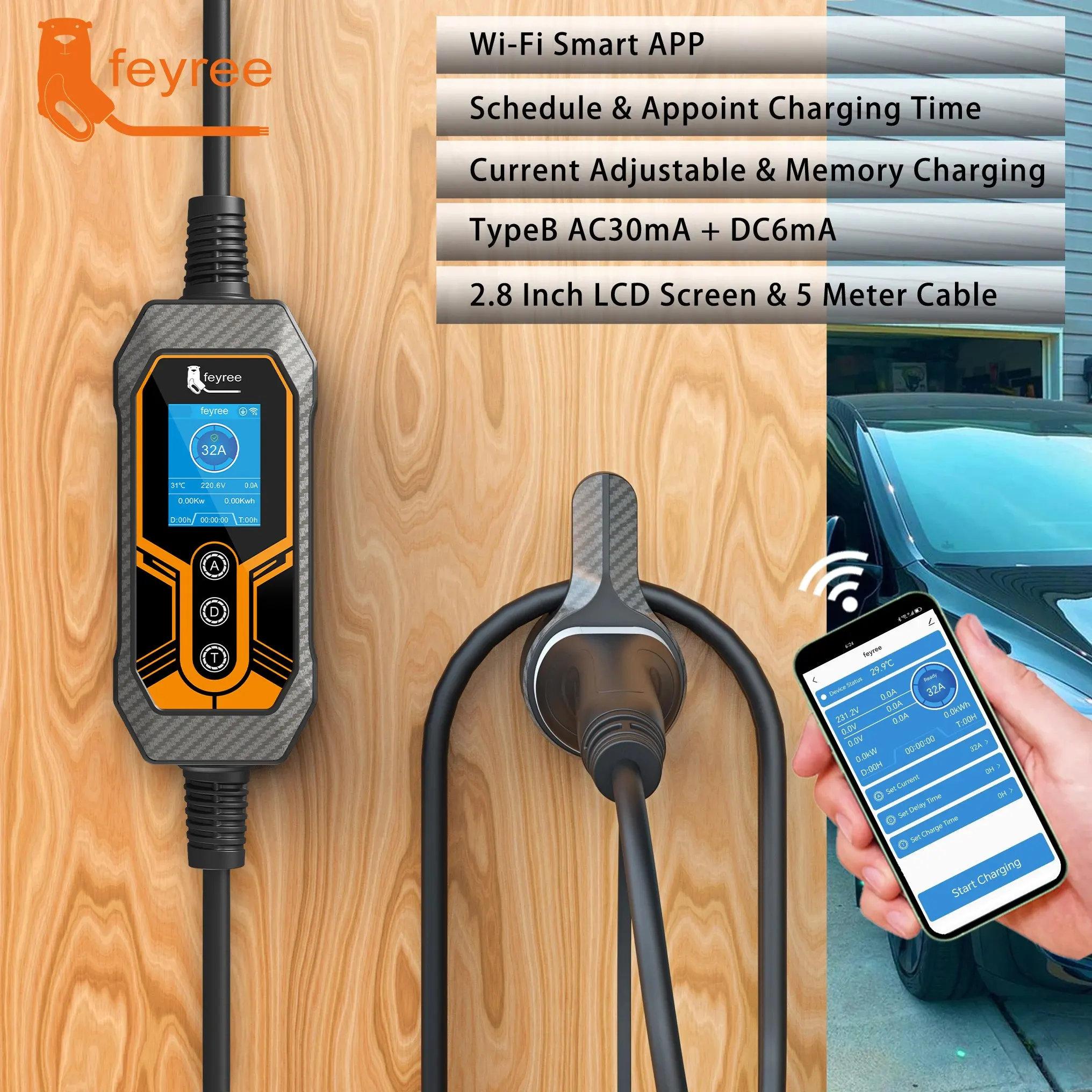

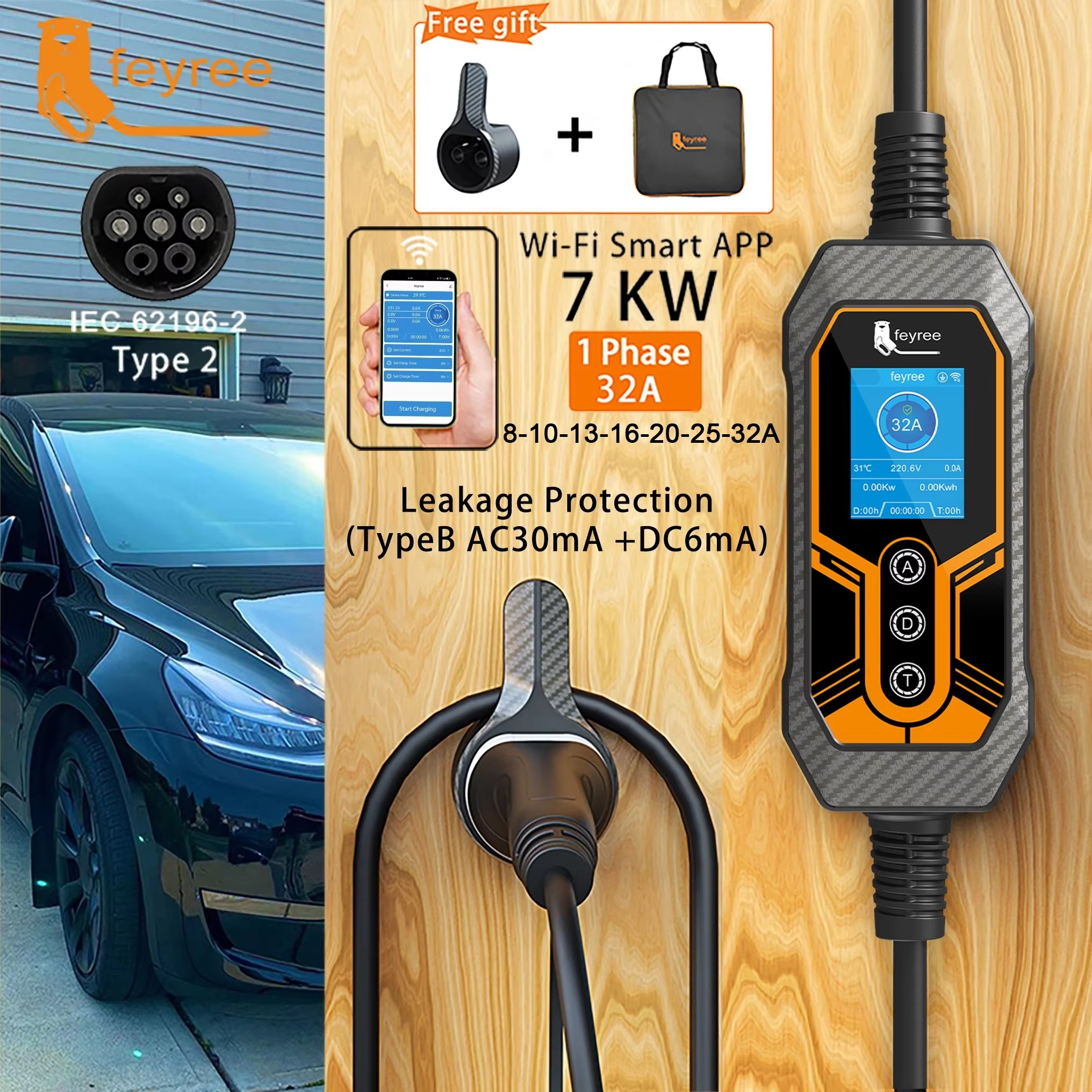

This 7KW Wi-Fi smart charger offers 32A power with Type B leakage protection, a 2.8-inch LCD, and a 5m cable. It features adjustable current settings and App-based scheduling for efficient, safe home charging.
- Power and Performance: This is a 1-Phase 32A charger delivering up to 7KW of power.
- Adjustable Current: It features seven adjustable current levels (8A, 10A, 13A, 16A, 20A, 25A, and 32A) with a memory charging function.
- Smart Connectivity: The device supports the Wi-Fi Smart App for remote management and monitoring.
- Scheduling Features: Users can schedule and appoint specific charging times through the interface.
- Safety Protection: It is equipped with Type B leakage protection (AC30mA + DC6mA).
- Hardware Display: The unit includes a 2.8-inch LCD screen for real-time data and a 5-meter charging cable.
- Standard Compatibility: It utilizes the IEC 62196-2 Type 2 connector standard.
- Included Accessories: The package comes with a free storage bag and a wall-mount bracket for the charging head.
Tuya Smart App & Automated Scheduling
Leverage the Tuya Smart ecosystem to automate your charging cycles, ensuring your vehicle is always ready while minimizing energy costs.
- Dynamic Cost Optimization: Set up specific charging periods to avoid expensive peak hours during the day and start charging automatically during cheaper off-peak hours at night.
- Weekly Charging Plans: Schedule your charging sessions with the same ease as setting an alarm clock, allowing for a fully automated weekly routine.
- Scenario-Based Automation: Create custom "Scenes" within the App that trigger charging based on specific conditions like weather changes, location, or device status.
- Remote Operational Control: Use the mobile interface to manually start/stop charging, set delay times, and select the desired amperage (Current) remotely.
- Real-Time Push Notifications: Configure the app to send notifications directly to your phone regarding charging progress or completion.
Adjustable Current & Memory Function
The charger allows for precise power management through its physical interface, ensuring your settings are saved for every session.
- Seven Current Levels: Manually select between 8A, 10A, 13A, 16A, 20A, 25A, or 32A using the tactile buttons on the station.
- Automatic Memory Feature: Once configured, your chosen current setting is automatically memorized by the device for future use.
- Charging Speed Reference: Provides clear "miles per hour" estimates for each current level, ranging from 5.44 mph at 8A to 21.74 mph at 32A.

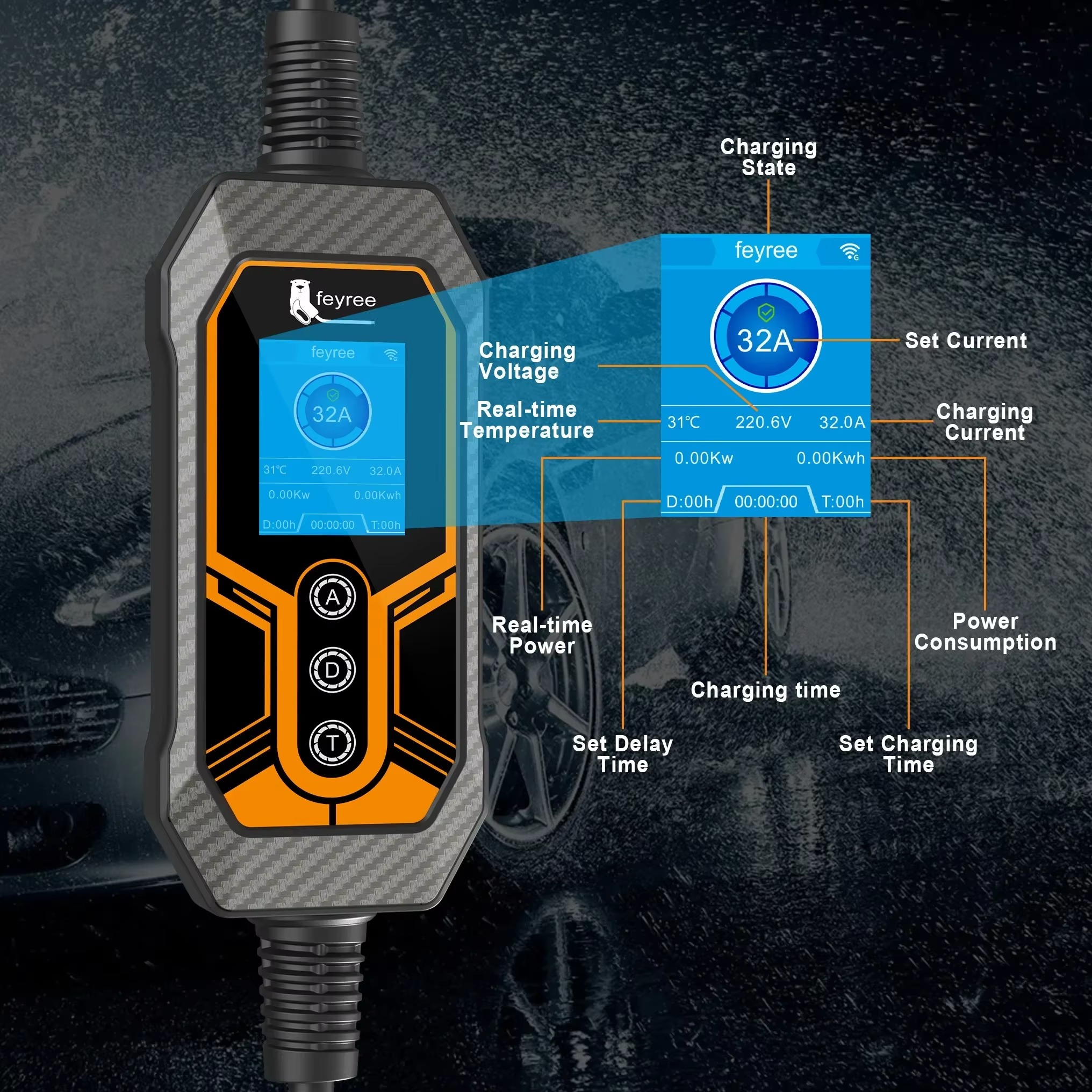

- Real-time Interface: The 2.8-inch display confirms your current selection and provides immediate visual feedback during the adjustment process.
Premium Hardware & Sustainable Materials
The charger is built with high-grade components to ensure maximum conductivity, durability, and environmental compliance.
- 99.95% Pure Copper Cable: Features high-purity copper wiring to maintain a stable current flow during heavy use.
- TPU Insulation: The cable is protected by a flexible and durable TPU jacket with official TÜV Rheinland certification.
- 5μSilver-Plated Charging Pins: Provides superior conductivity and is compatible with Type 1 (SAE J1772), Type 2 (IEC 62196-2), TS-NACS, and GB/T20234 standards.
- 100% NO TIN PCB: The internal circuit board is manufactured without tin to meet international ecological and environmental standards.

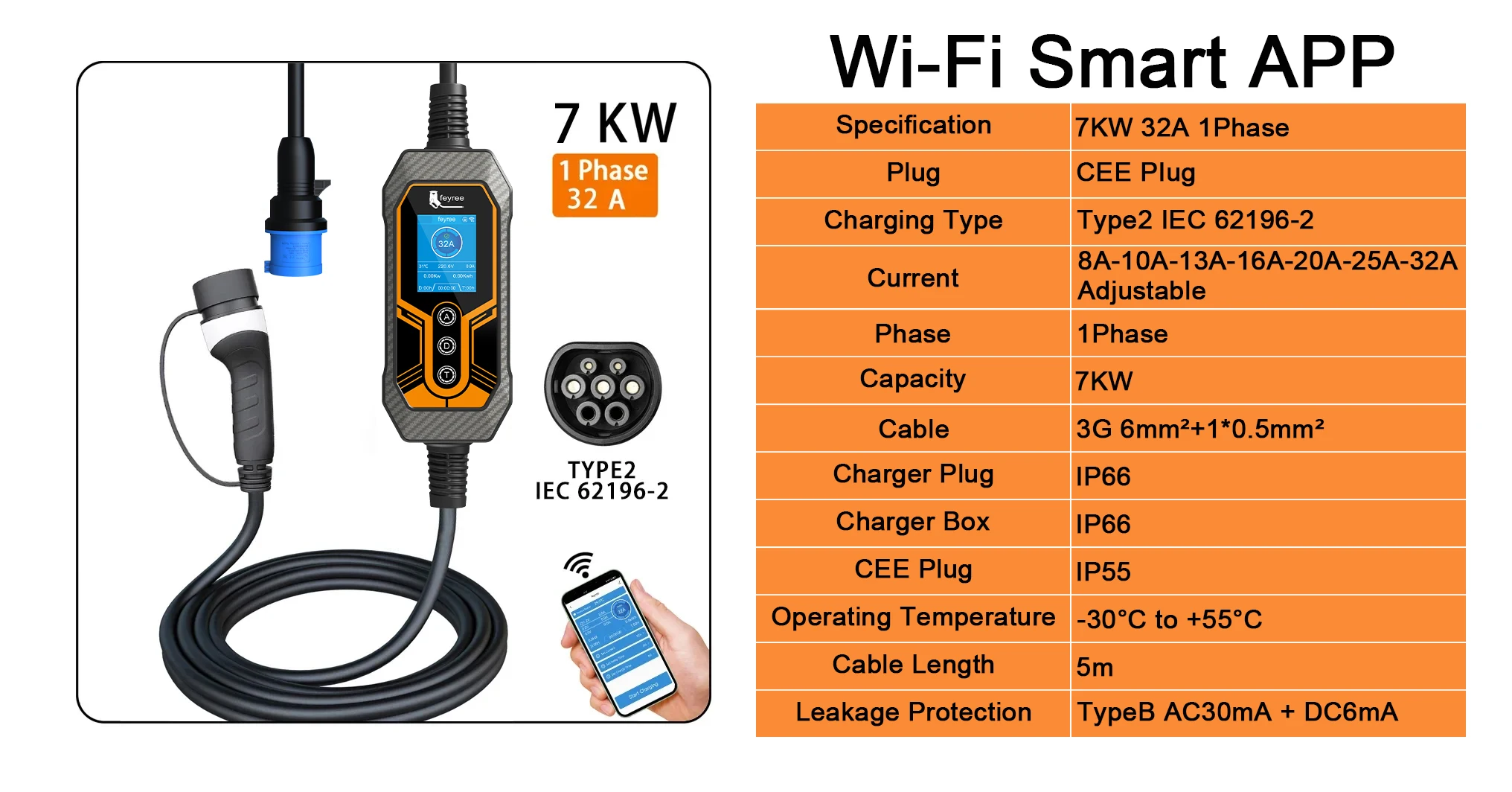

Technical Specifications
Product Details
Smart OLED Interface
Smart Operation, Anywhere
Intelligent Interaction

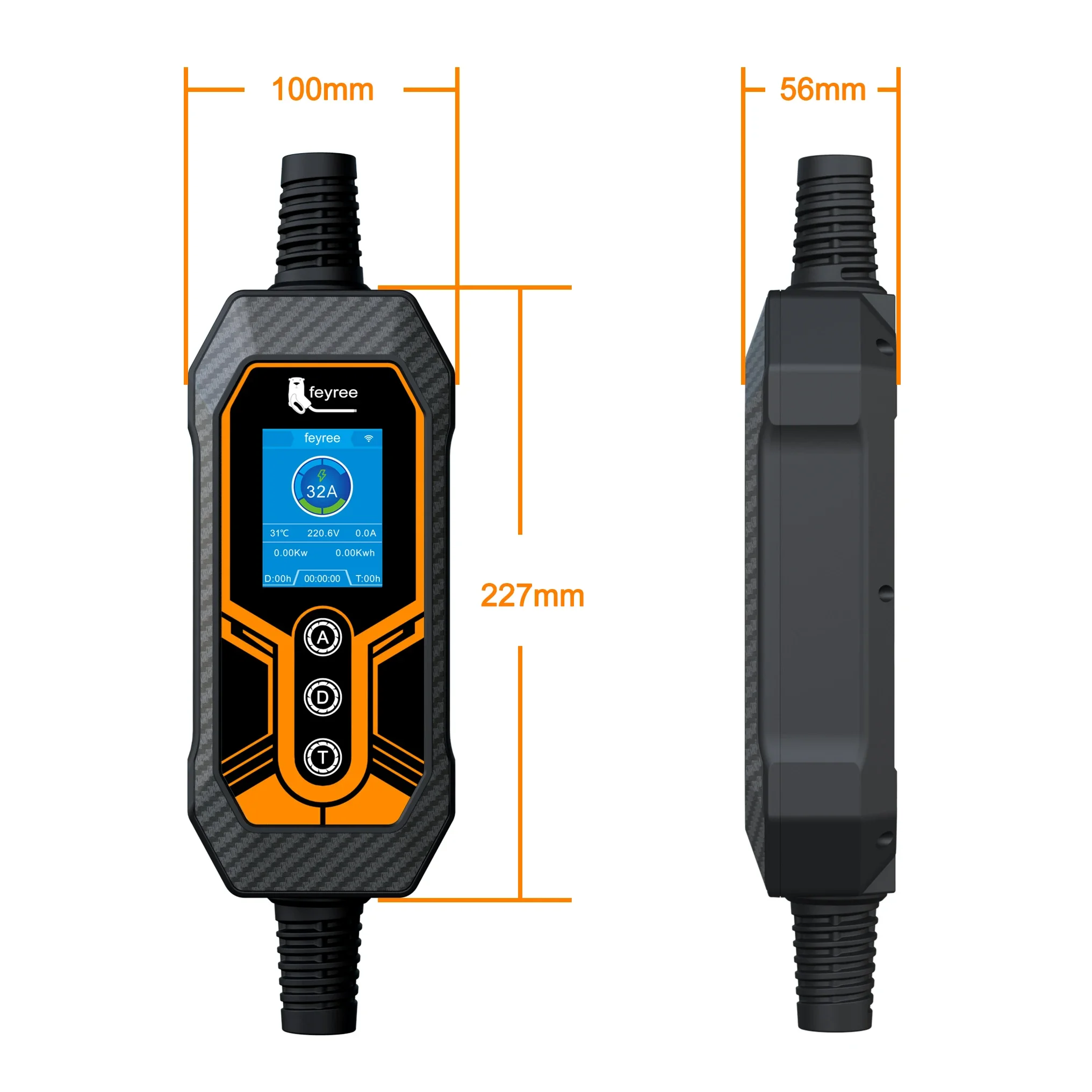

Dimensions & Components
Powerfully Simple. Intelligently Connected.
Extensive Vehicle Support
