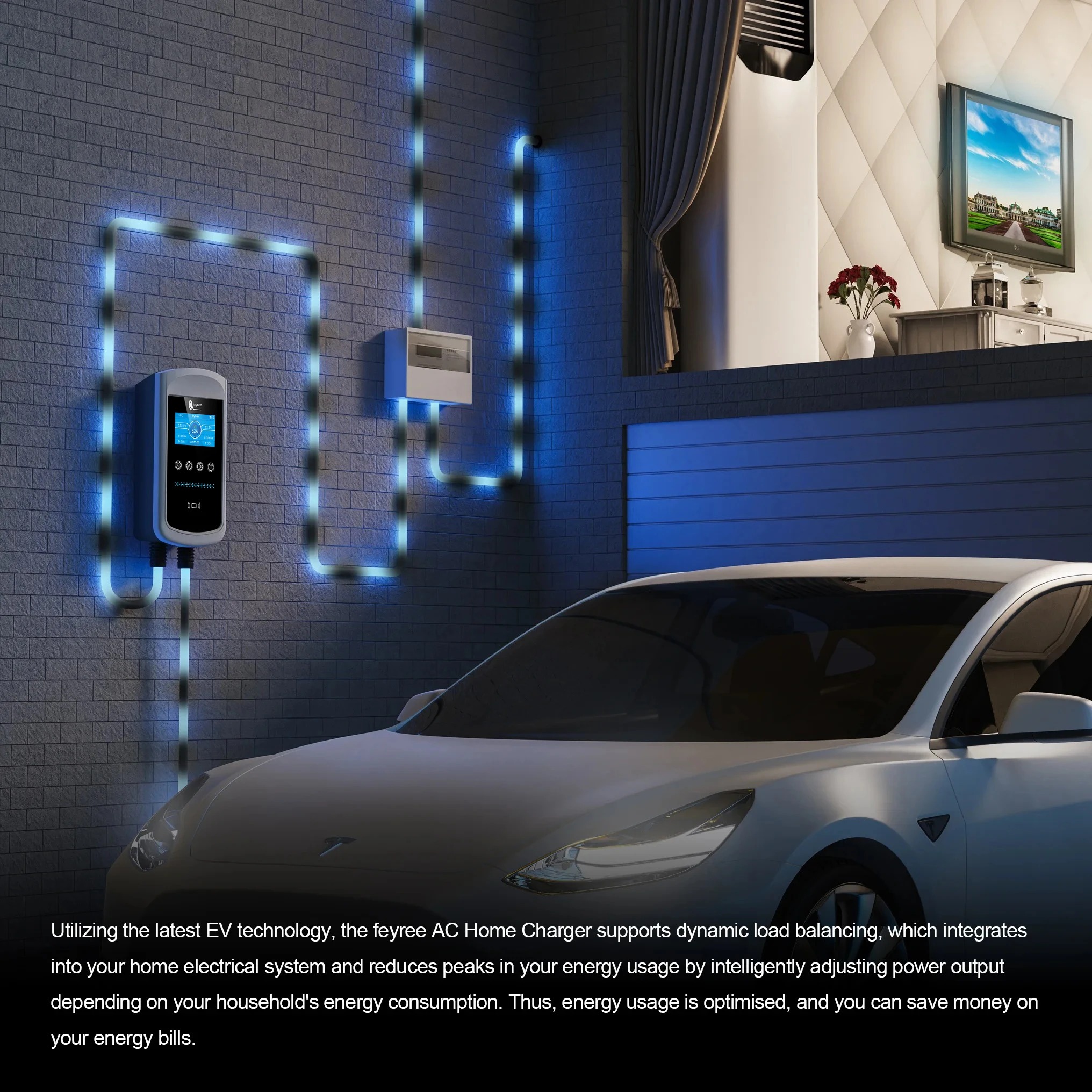

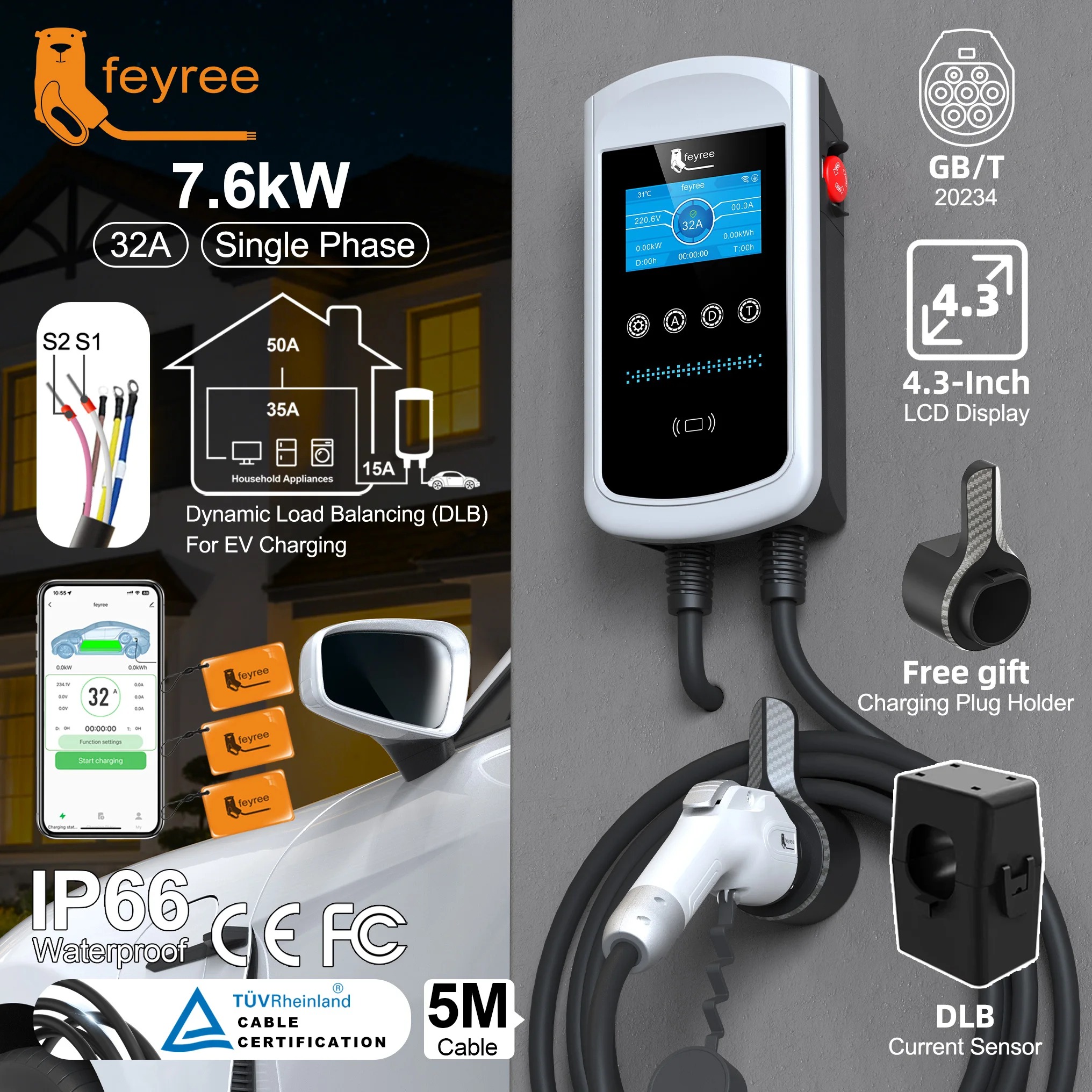

Dynamic Load Balancing (DLB): Intelligent Home Protection
A CT sensor is installed on the live wire of your household's main circuit, measuring real-time total current output and transmitting it to the Wallbox, which then intelligently adjusts or stops charging based on your home's actual energy consumption.
- Available power ≥ 8A: The Wallbox adjusts charging current intelligently and charges normally.
- Available power < 8A: Charging pauses automatically to protect your home circuit.
- Works on both single-phase and three-phase home electrical systems.
- Prevents nuisance tripping from simultaneous EV charging and heavy appliance use (ovens, air conditioners, dryers).
- Optimises energy use so maximum available grid capacity always goes to your EV without exceeding safe limits.
4.3-Inch Smart LCD: Full Charging Data at a Glance
Designed with a large 4.3-inch colour screen that monitors all conditions during the charging process — including Voltage, Current, and Charging Time — without needing to open the app.
- Displays live charging current (A), supply voltage (V), and instantaneous power (kW) simultaneously.
- Session energy counter (kWh) shows total energy delivered in the current charging session.
- Status icons indicate charger state: standby, charging, scheduled, fault, and Wi-Fi connectivity.
- High-brightness panel ensures readability in bright outdoor conditions.
- Time and date can be synchronised via Zone Time under Wi-Fi, or set manually without a network.

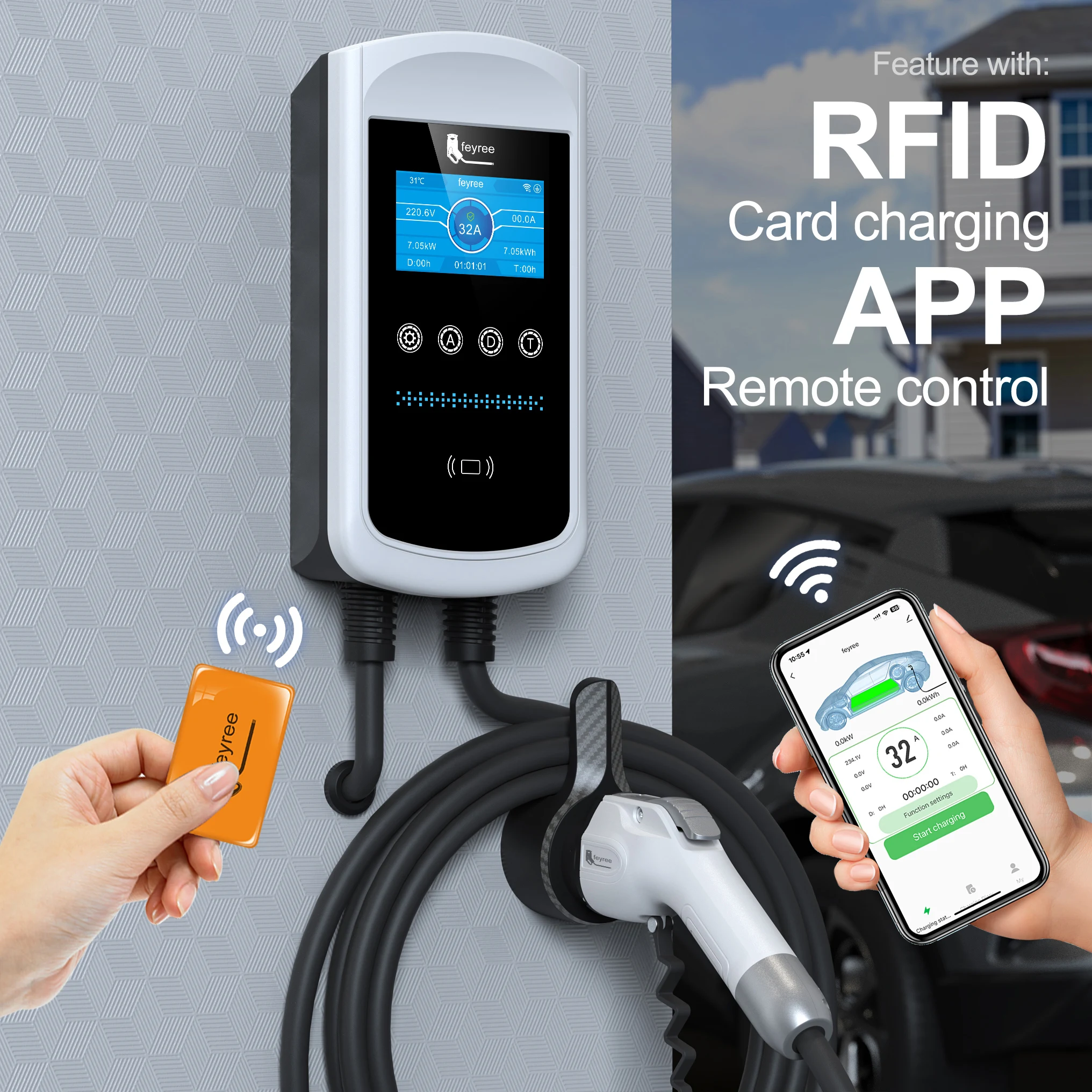

Smart App Control via Tuya: Full Remote Management
The free Tuya Smart / Smart Life App (iOS & Android) gives you complete control over your charger from anywhere — turning your smartphone into a powerful charging management centre.
- Start, stop, or pause charging sessions remotely at any time from anywhere.
- Monitor real-time charging current, voltage, and power output directly from the app.
- View detailed charging history and energy consumption records for the past 12 months.

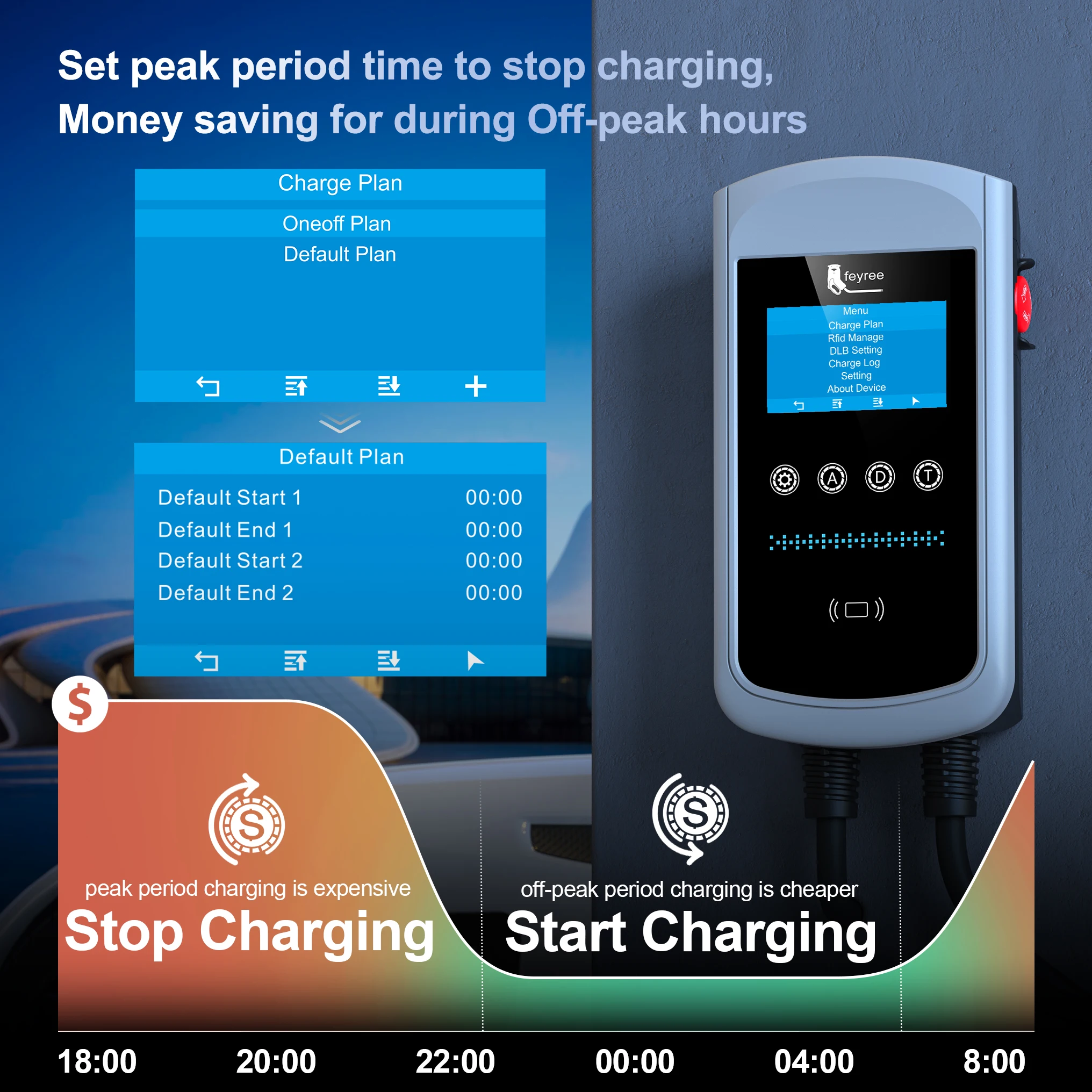

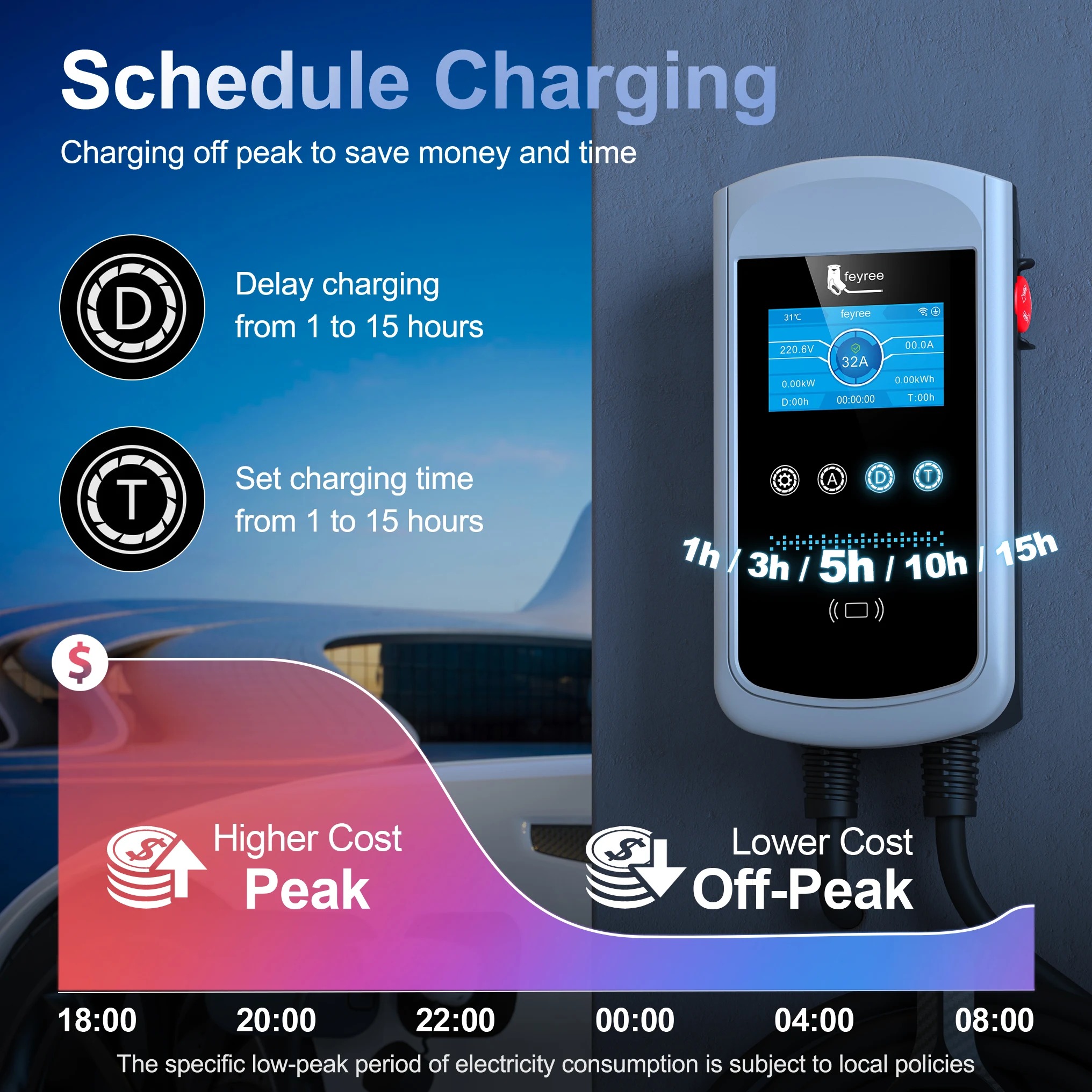

- Money-Saving Mode: Schedule charging during off-peak hours to reduce electricity bills.
- Receive push notifications for charging start, completion, and any fault alerts.
- Compatible with both Tuya Smart App and Smart Life App.
Intelligent Log Management: 500 Charging + 100 Fault Records
Complete historical records are stored on-device so you can review past sessions or diagnose issues quickly — no cloud subscription required.
- Charging Log: Stores up to 500 recent entries covering duration, power consumption, and date.
- Fault Log: Records the last 100 faults including charging time and error codes.

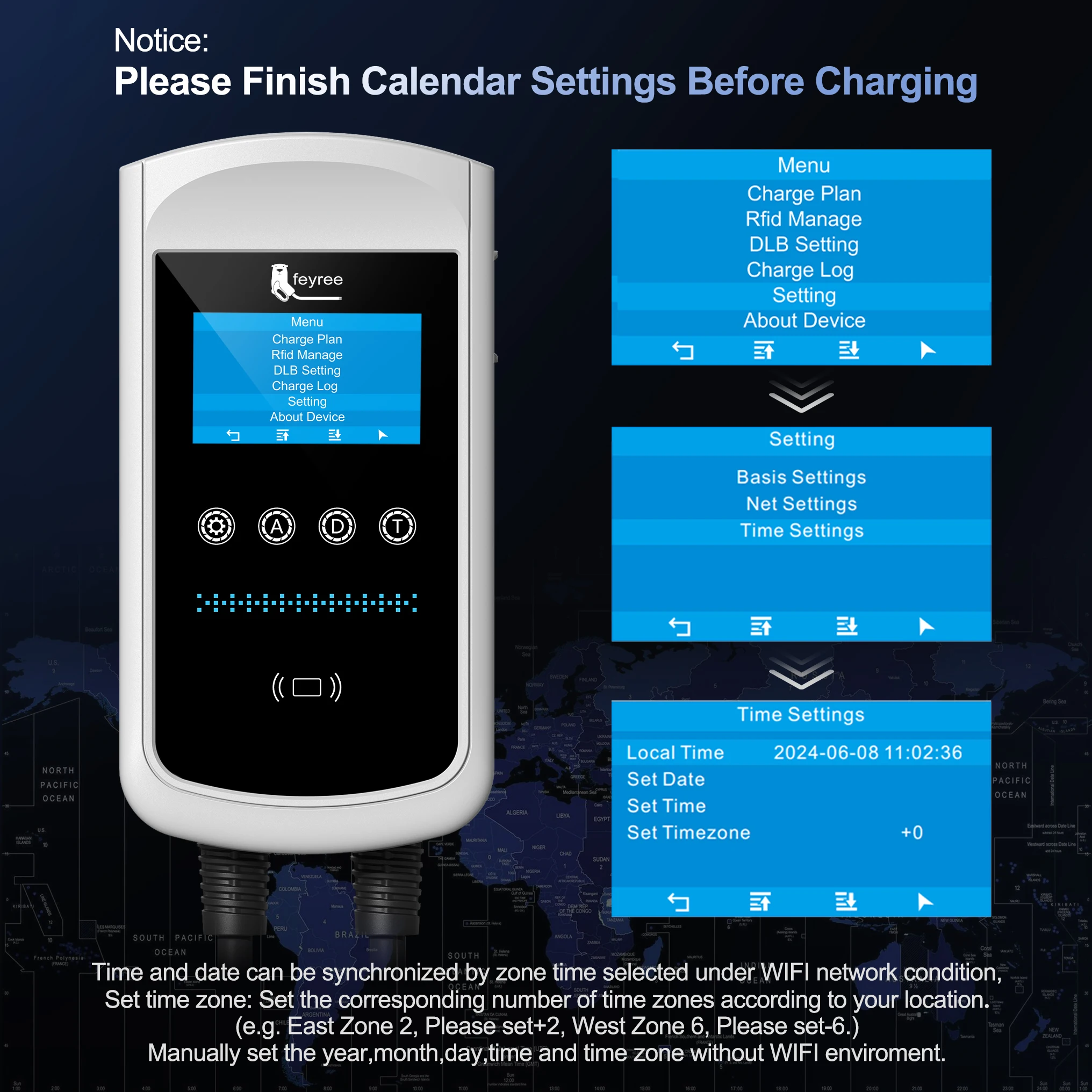

- Calendar Settings: time and date can be synchronised by timezone under Wi-Fi, or set manually.
- All log data is also accessible and exportable through the Tuya Smart App for 12-month trend analysis.

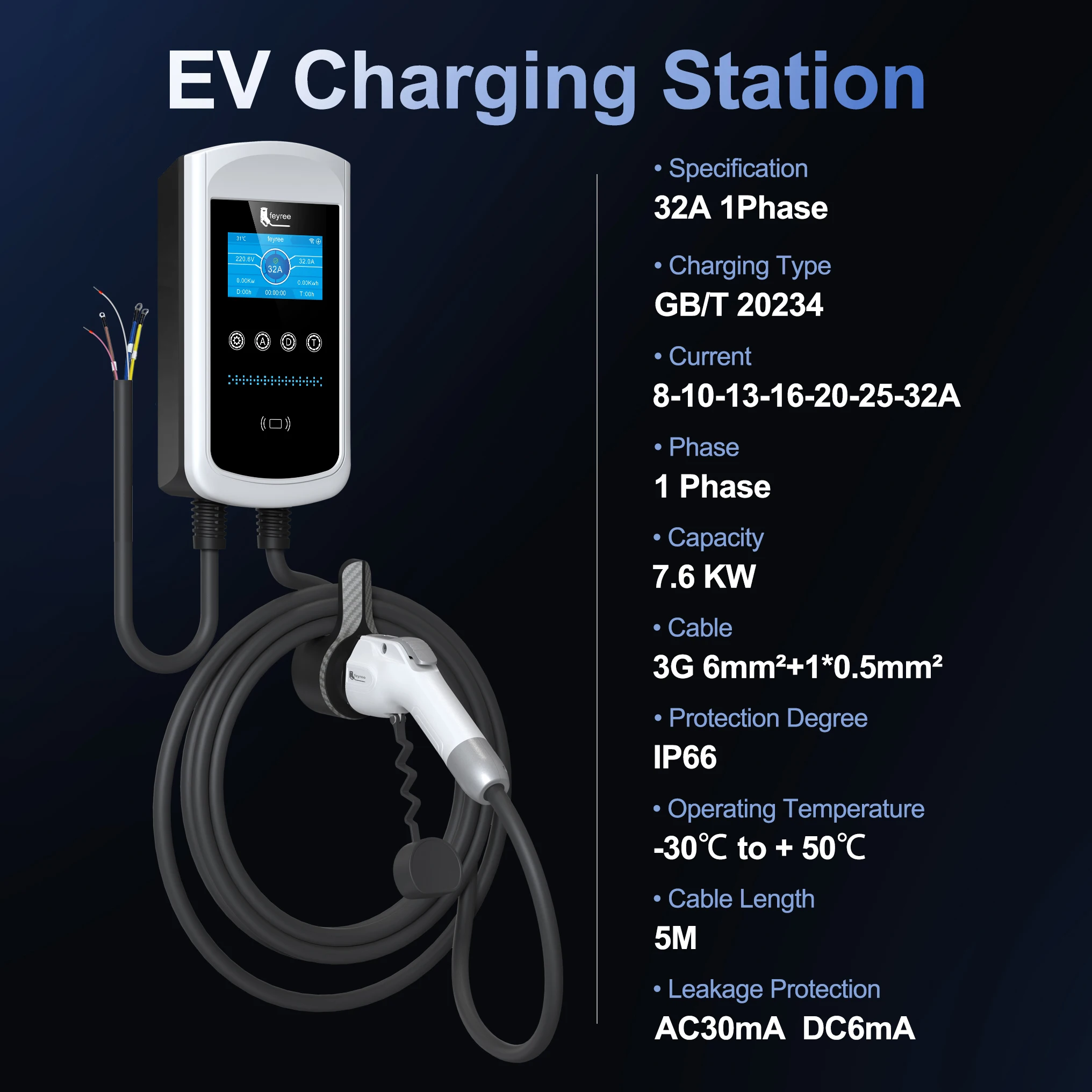

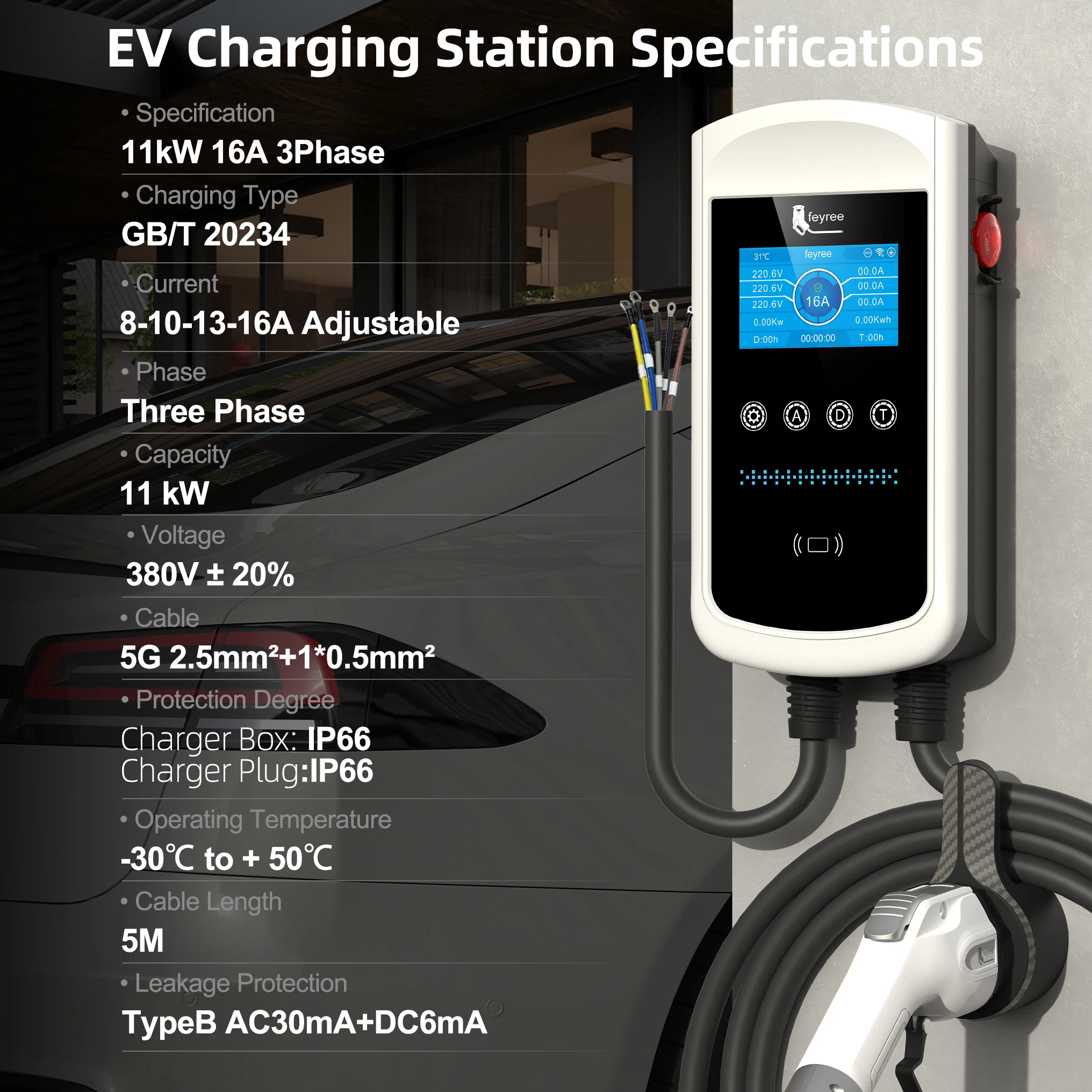

Flexible Current Adjustment: 8A to 32A
Select the exact current level to match your home's available capacity or your vehicle's preferred charge rate — giving you full control over speed and cost.
- 7kW & 22kW versions: 8A / 10A / 13A / 16A / 20A / 25A / 32A adjustable.
- 11kW version: 8A / 10A / 13A / 16A adjustable to suit three-phase grid limits.
- Compatible with all electric vehicles featuring a Type 2 charging port.
- Current can be adjusted from the front panel, LCD menu, or remotely via app.
- Faster Charging: Available in 7kW, 11kW, and 22kW configurations to match your vehicle's requirements.
8 Intelligent Safety Protections: Type B Leakage & Beyond
Safety is built into every layer of this charger, from the housing to the internal electronics, meeting the most stringent international standards for home EV charging.
- Type B Leakage Protection (AC 30mA + DC 6mA): Detects both AC and DC residual currents — the highest level of personal protection for EV chargers.
- Lightning-proof surge protection guards the charger and vehicle electronics against voltage spikes.
- Overvoltage and under-voltage protection (self-checking recovery).
- Overcurrent protection and overheat protection with auto temperature cutoff.

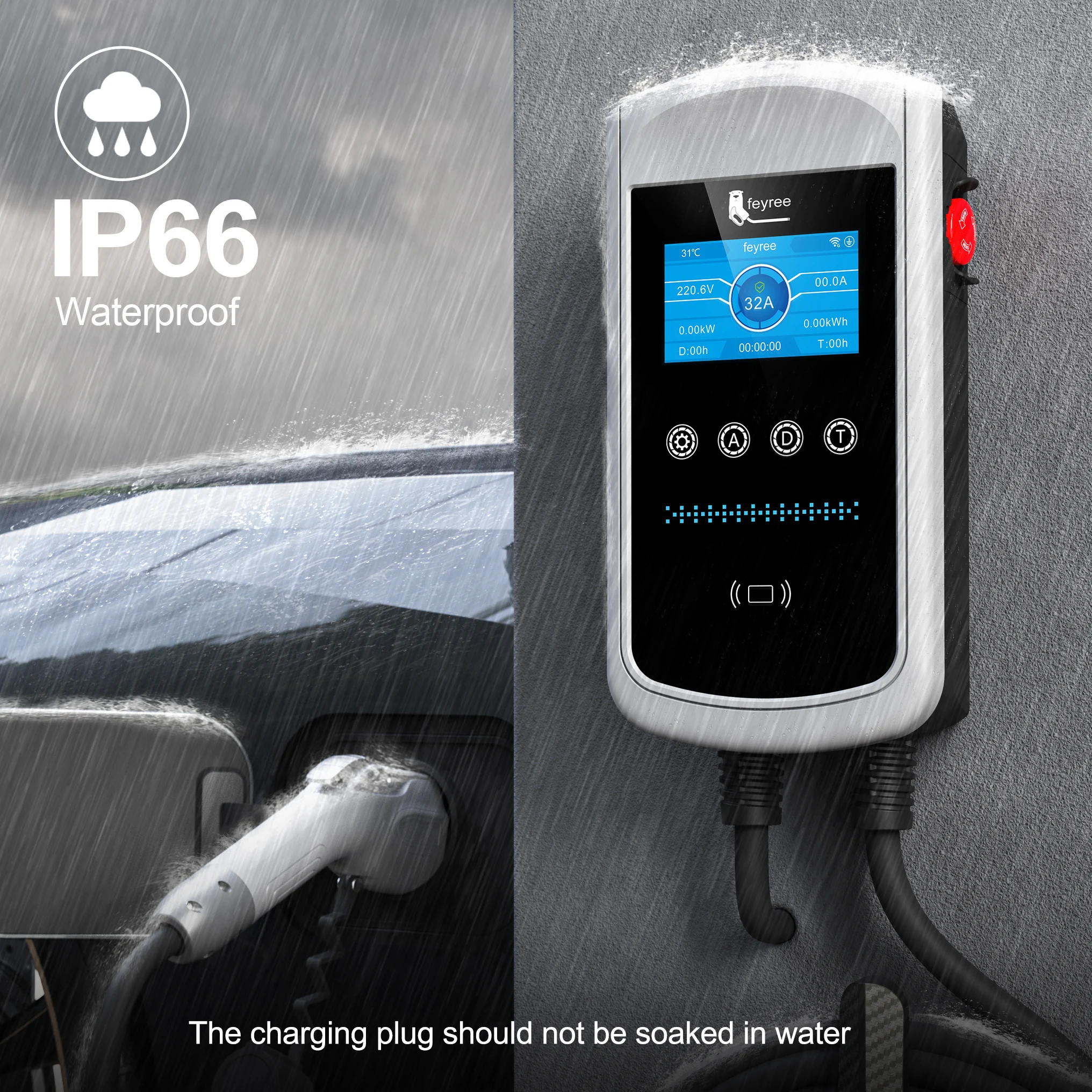

- IP65-rated waterproof enclosure and UL94 V-0 flame-retardant housing for indoor and outdoor use.
- Earth (ground) fault detection and LED charge status indicators on the control box.
Single-Phase DLB Scenarios: Intelligent Power Adjustment
See how the DLB system responds intelligently across different household usage scenarios, ensuring your EV always gets the maximum safe charge rate available.
- Low household load: Full available current is allocated to EV charging, maximising speed during low-demand periods such as overnight.
- High household load: The charger automatically steps down its draw to keep total consumption within the safe rated limit.
- Load spike: When a large appliance switches on, the charger responds within seconds to reduce output and prevent tripping.
- Load recovery: As household appliances switch off, the charger ramps back up to reclaim available capacity without interrupting the session.

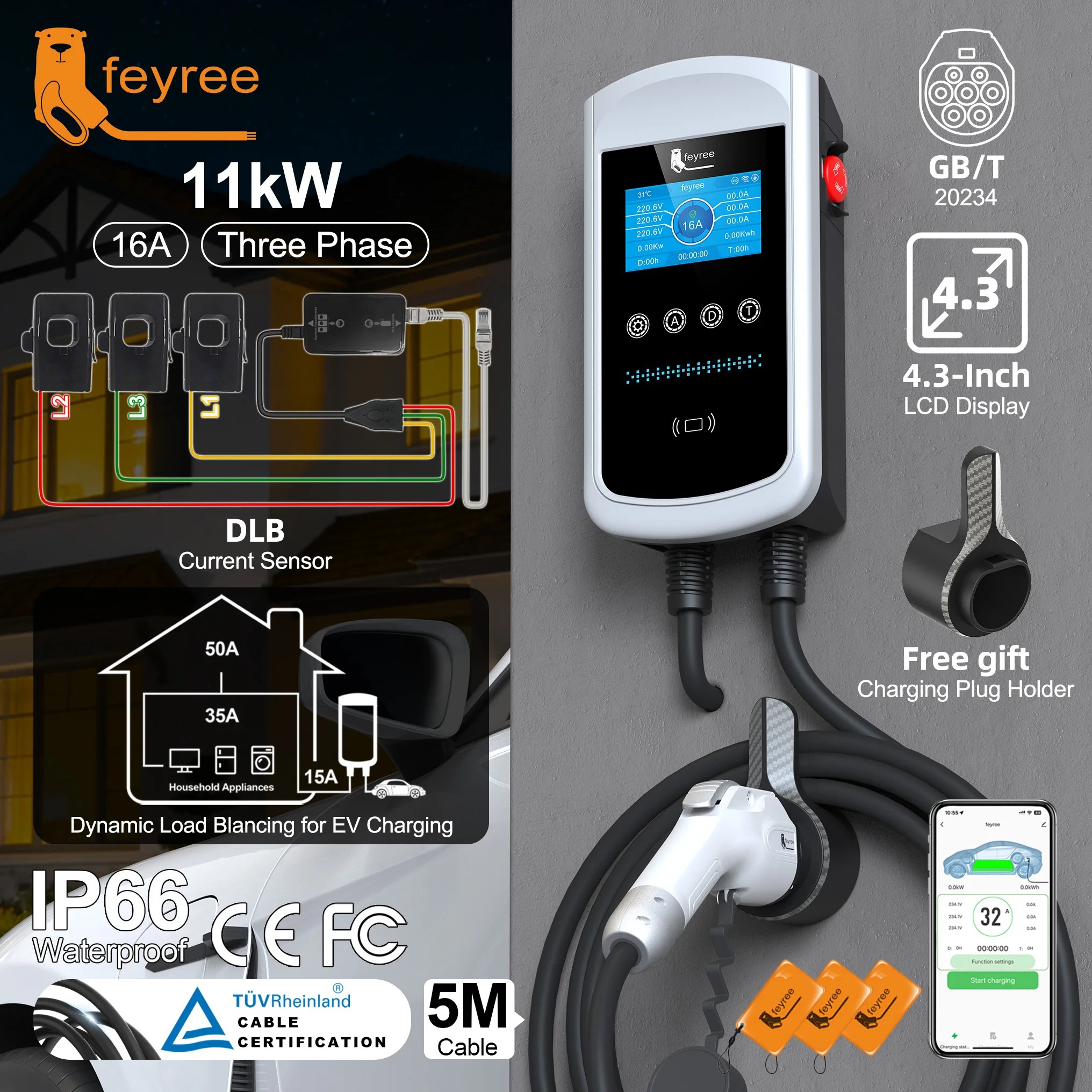

Three-Phase DLB: Real-Time Per-Phase Power Management
The on-screen DLB interface gives a live view of per-phase load distribution, helping users and installers verify that power is being managed correctly across all three phases.
- Displays real-time current values on each of the three phases (L1, L2, L3) simultaneously.
- Shows the charger's active output current alongside measured household consumption for full transparency.
- Visual indicators make it immediately clear when load balancing is actively adjusting charging current.

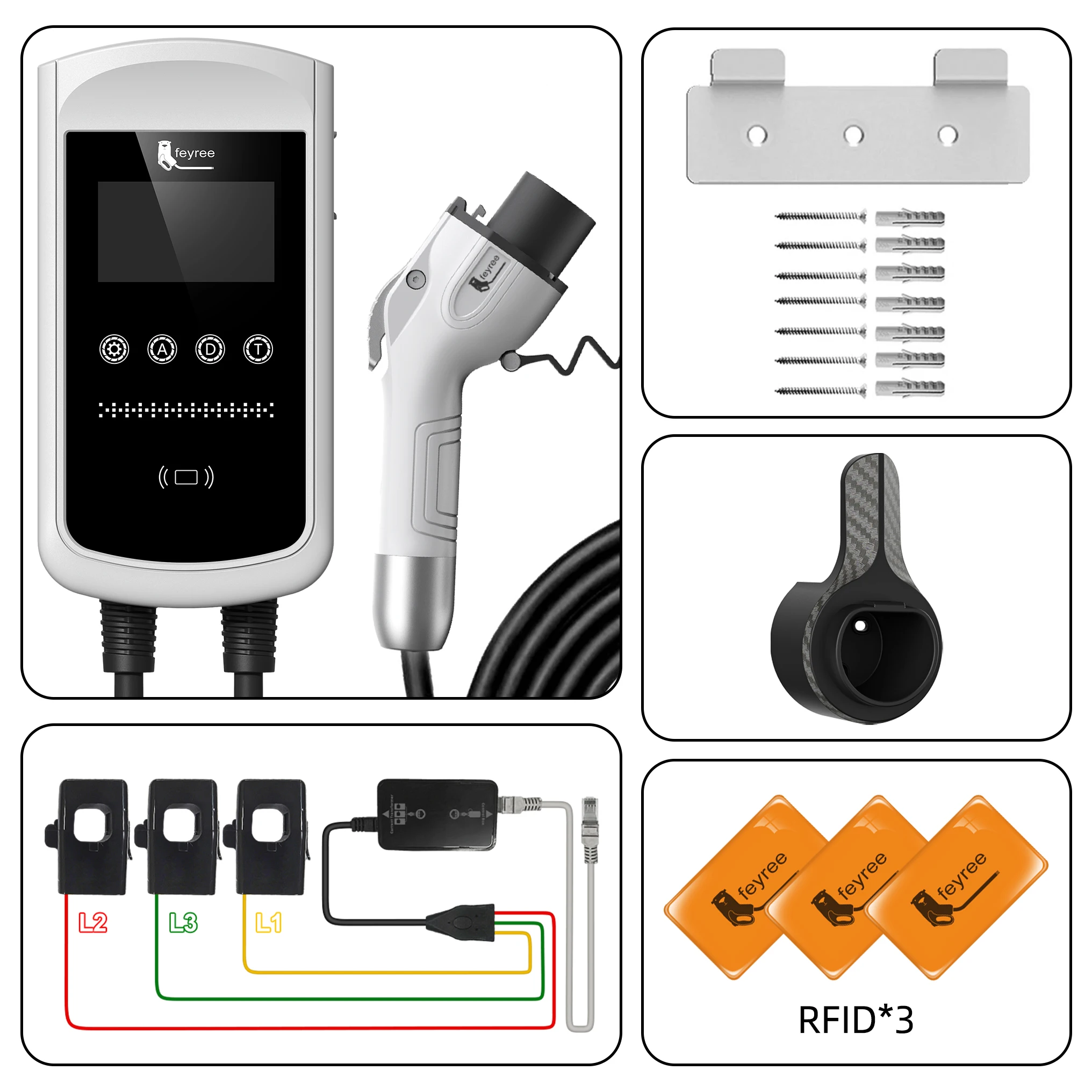

- RS485 communication protocol connects the CT sensor to the charger for reliable, low-latency data transfer.
Premium Cable Materials: 99.95% Pure Copper & Silver-Plated Pins
Every material in the charging cable is selected to exceed industry-standard specifications for efficiency, safety, and durability.
- 99.95% pure copper conductor: Minimises resistive losses and heat generation.
- 5µm silver-plated connector pins: Superior corrosion resistance and low contact resistance after thousands of mating cycles.
- TUV-certified TPU outer jacket: Flexible in cold temperatures, UV-resistant, and rated for year-round outdoor use.

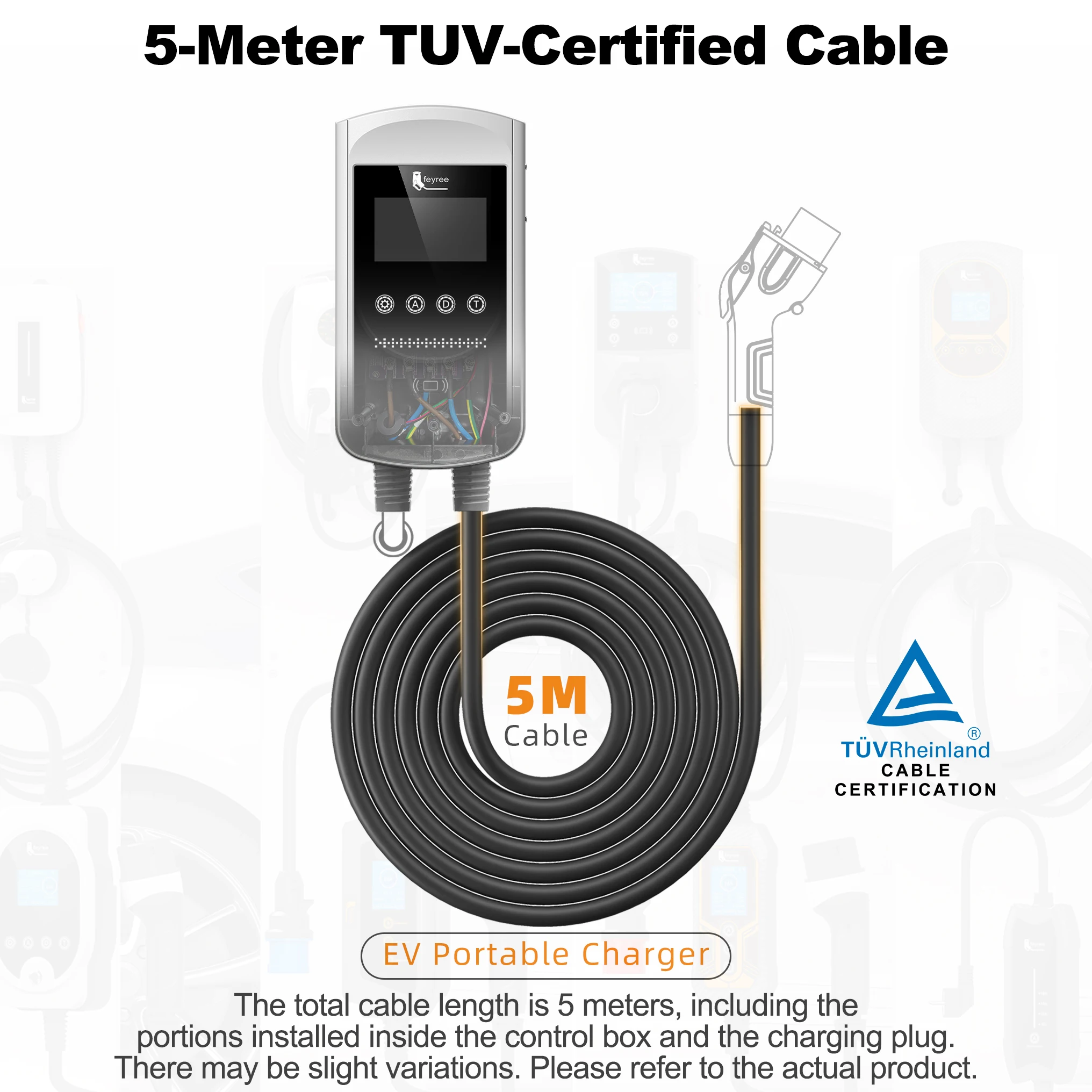

- 5-metre standard length provides comfortable reach from most wall-mounted positions to vehicle charge port.

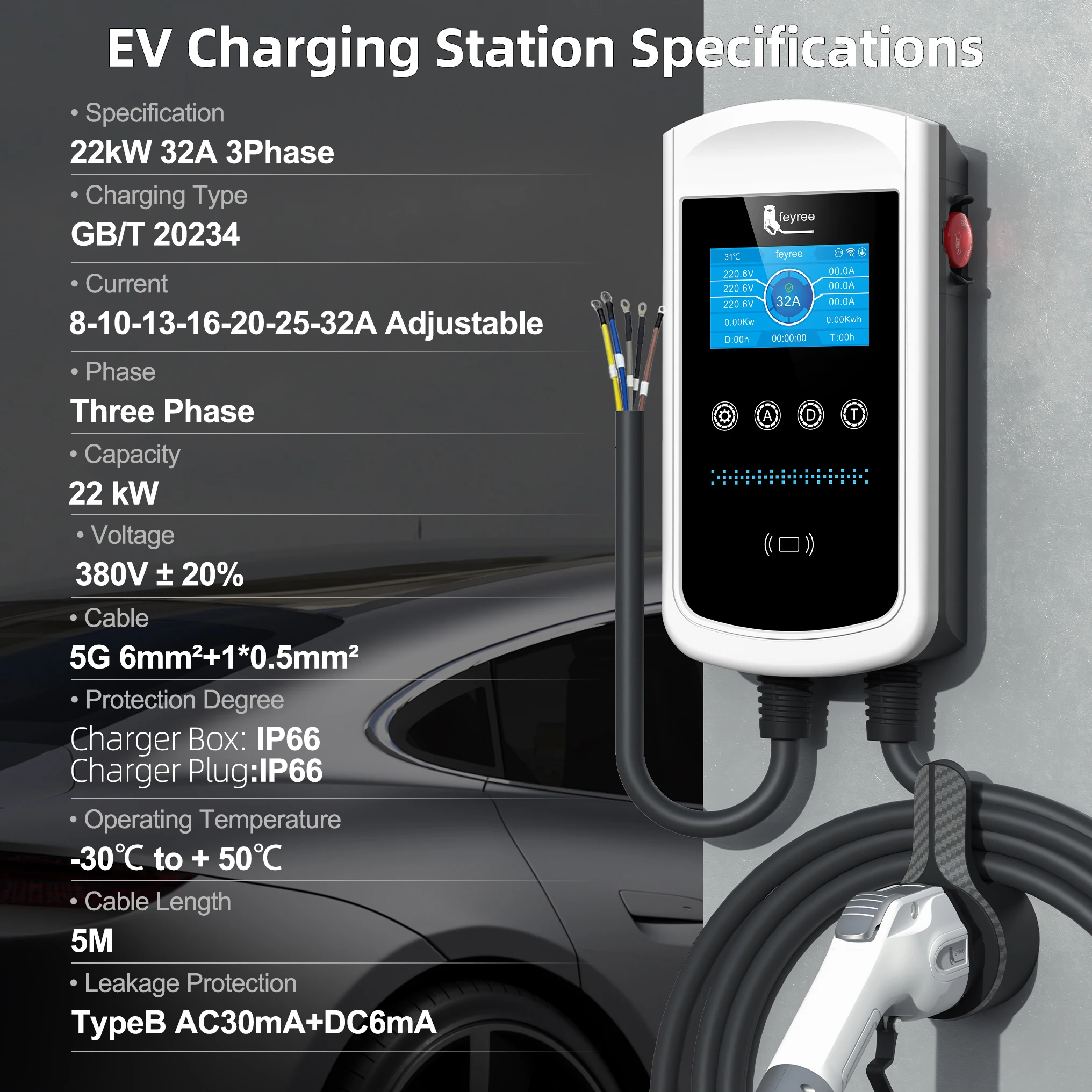

Technical Specifications
