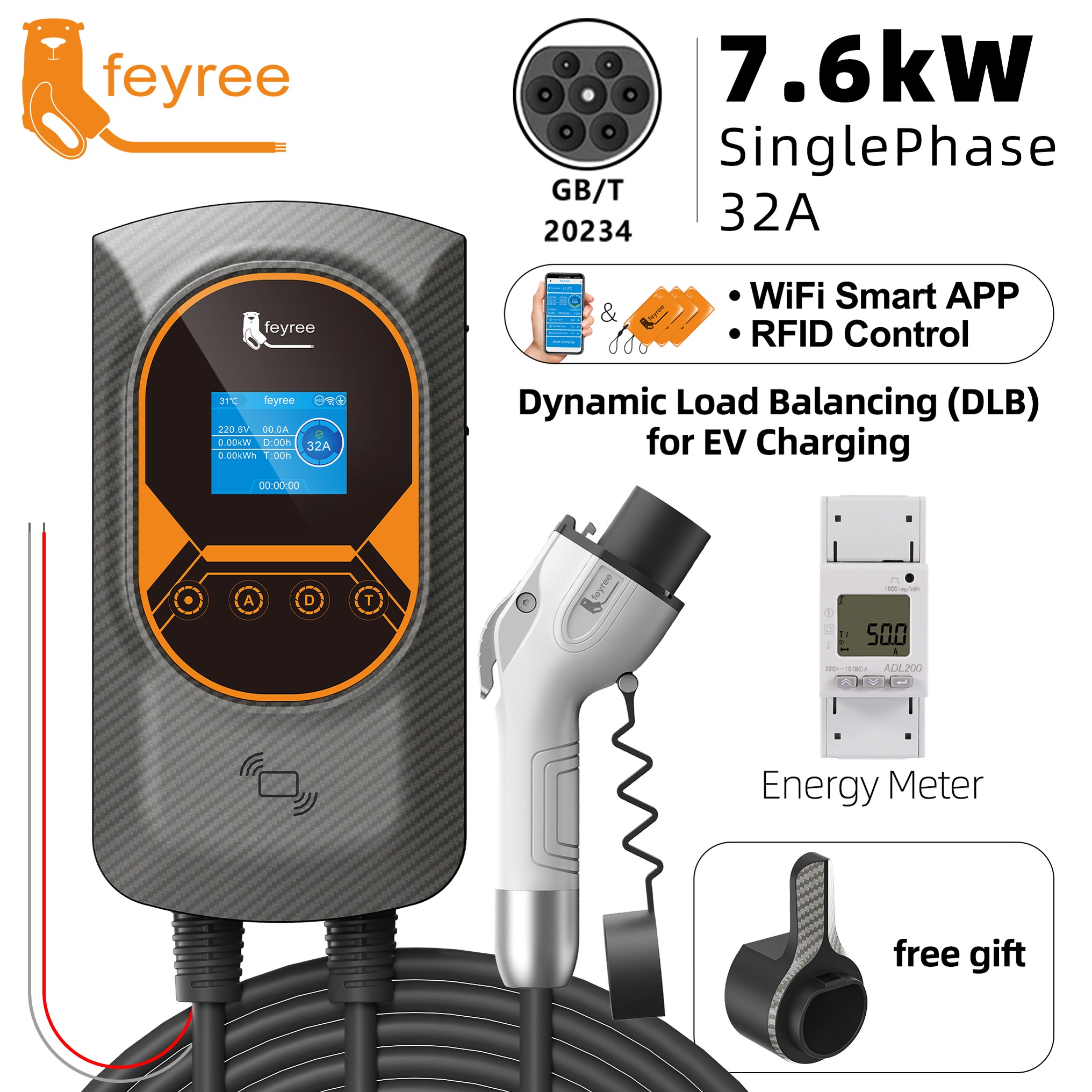

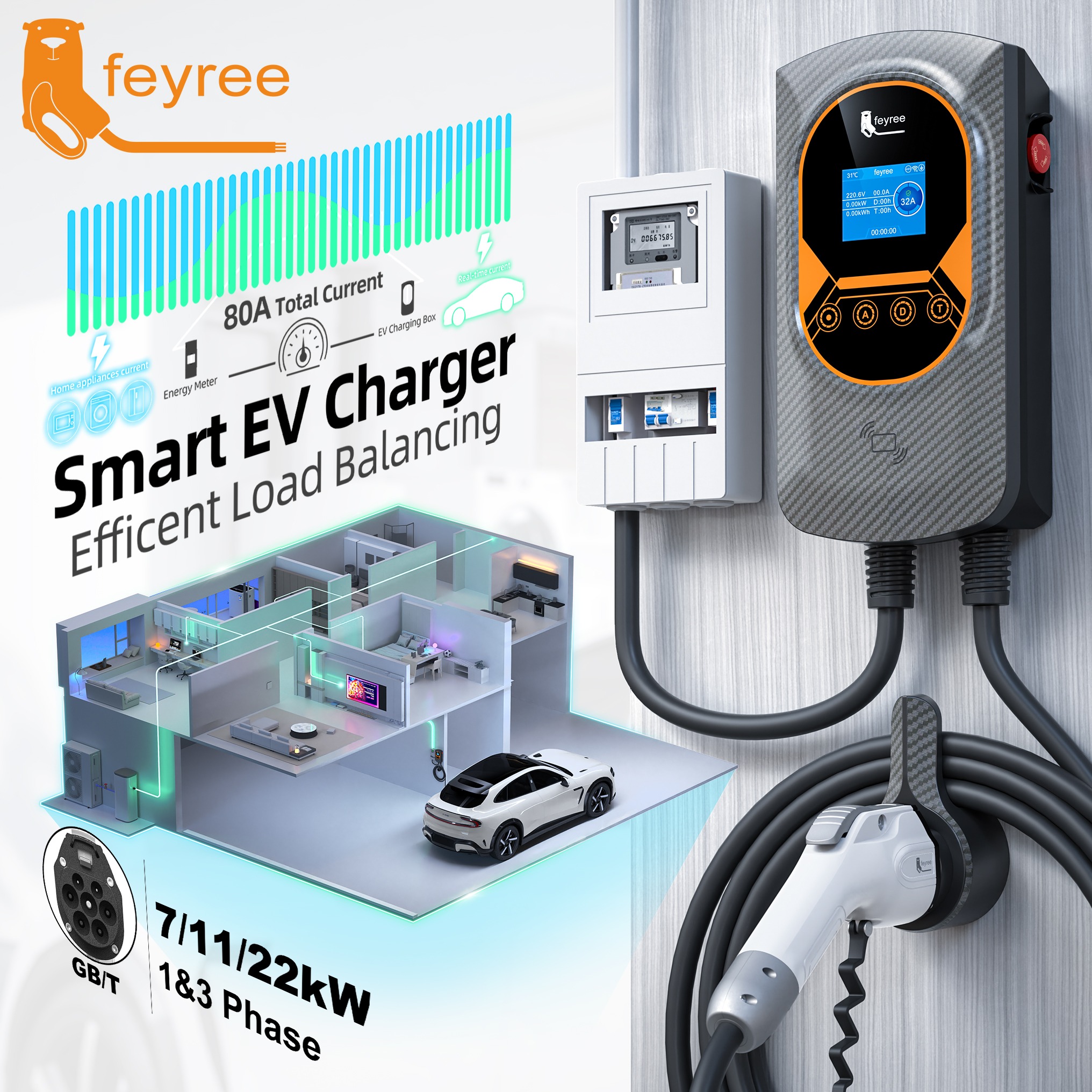

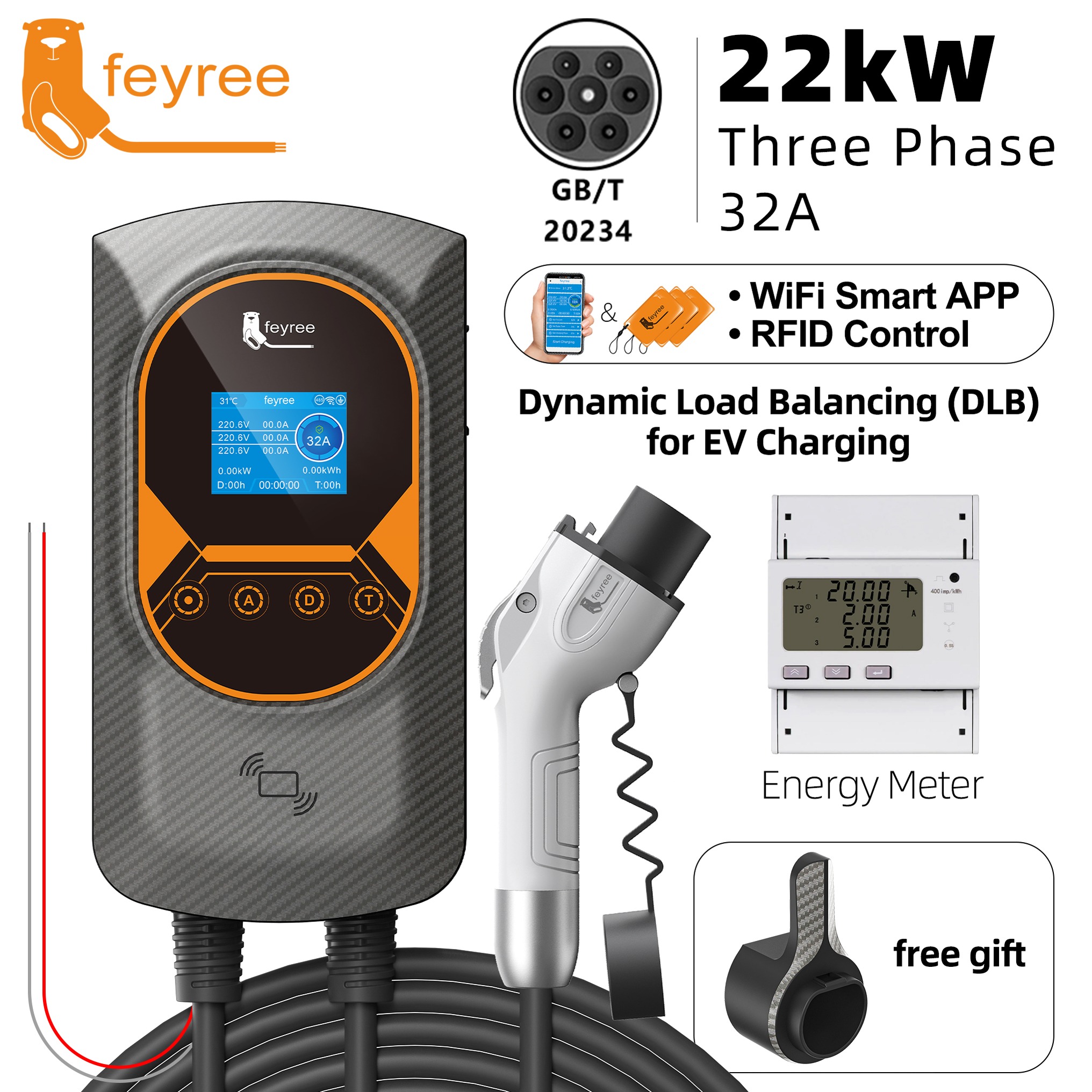

feyree Taurus Series GB/T EV Wallbox: 22kW 32A 3-Phase, Dynamic Load Balancing (DLB), RFID Card & Smart APP Control, IP65 Outdoor EV Charging Station

Main Features:

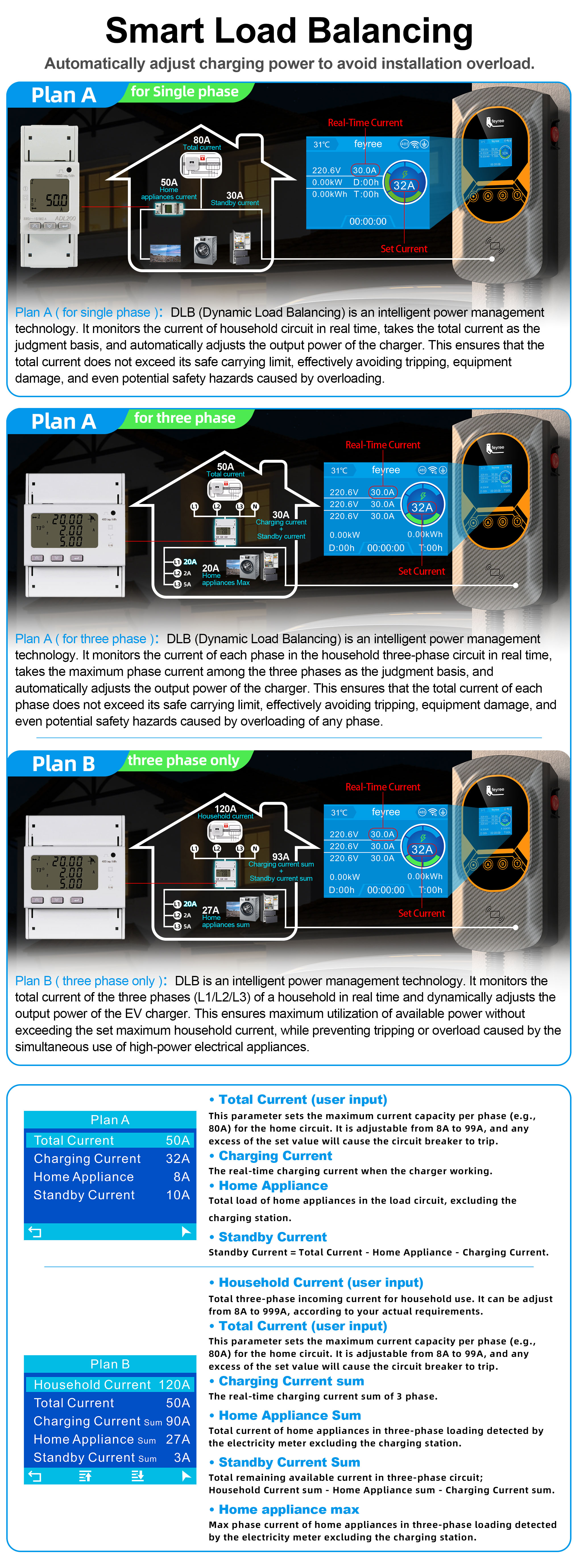

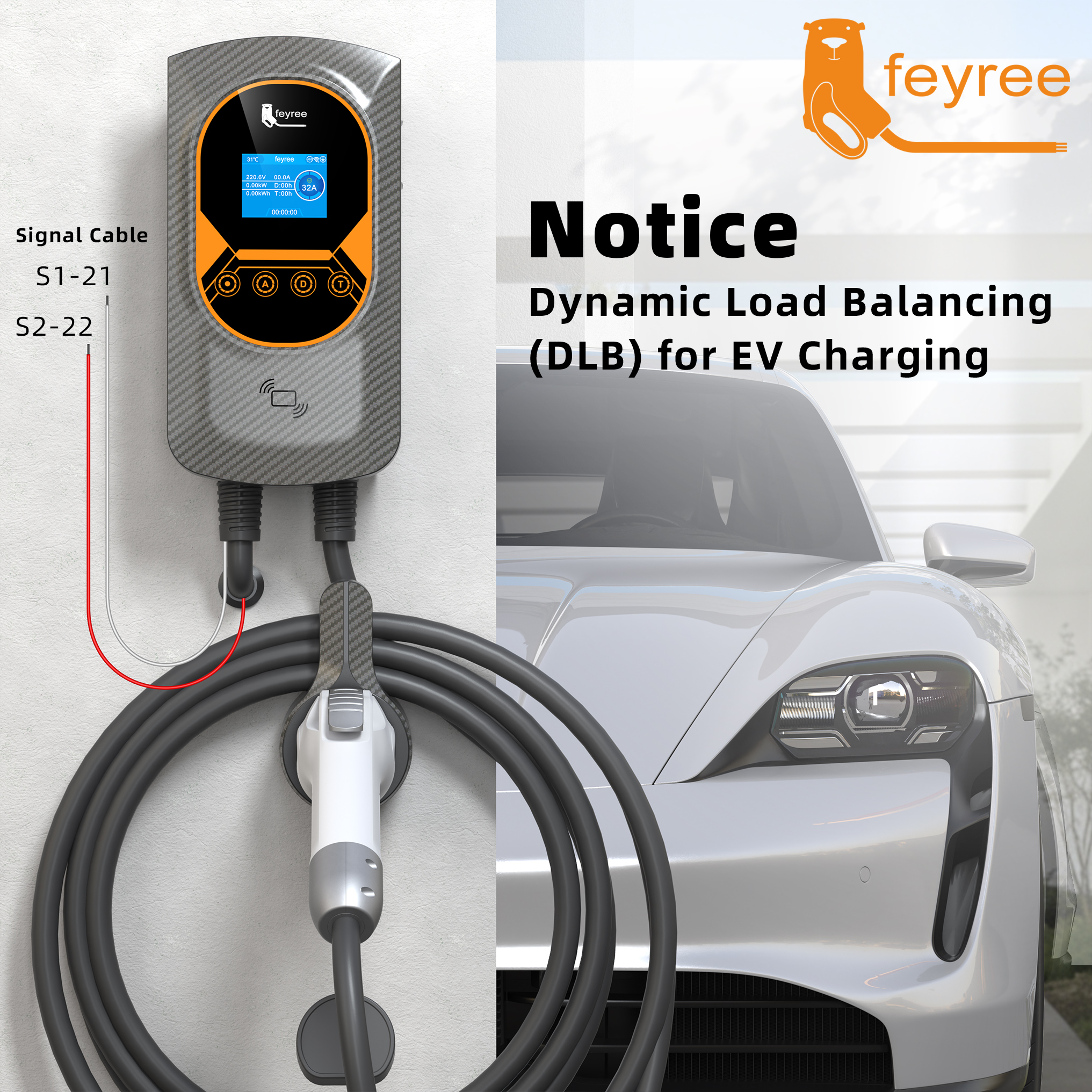

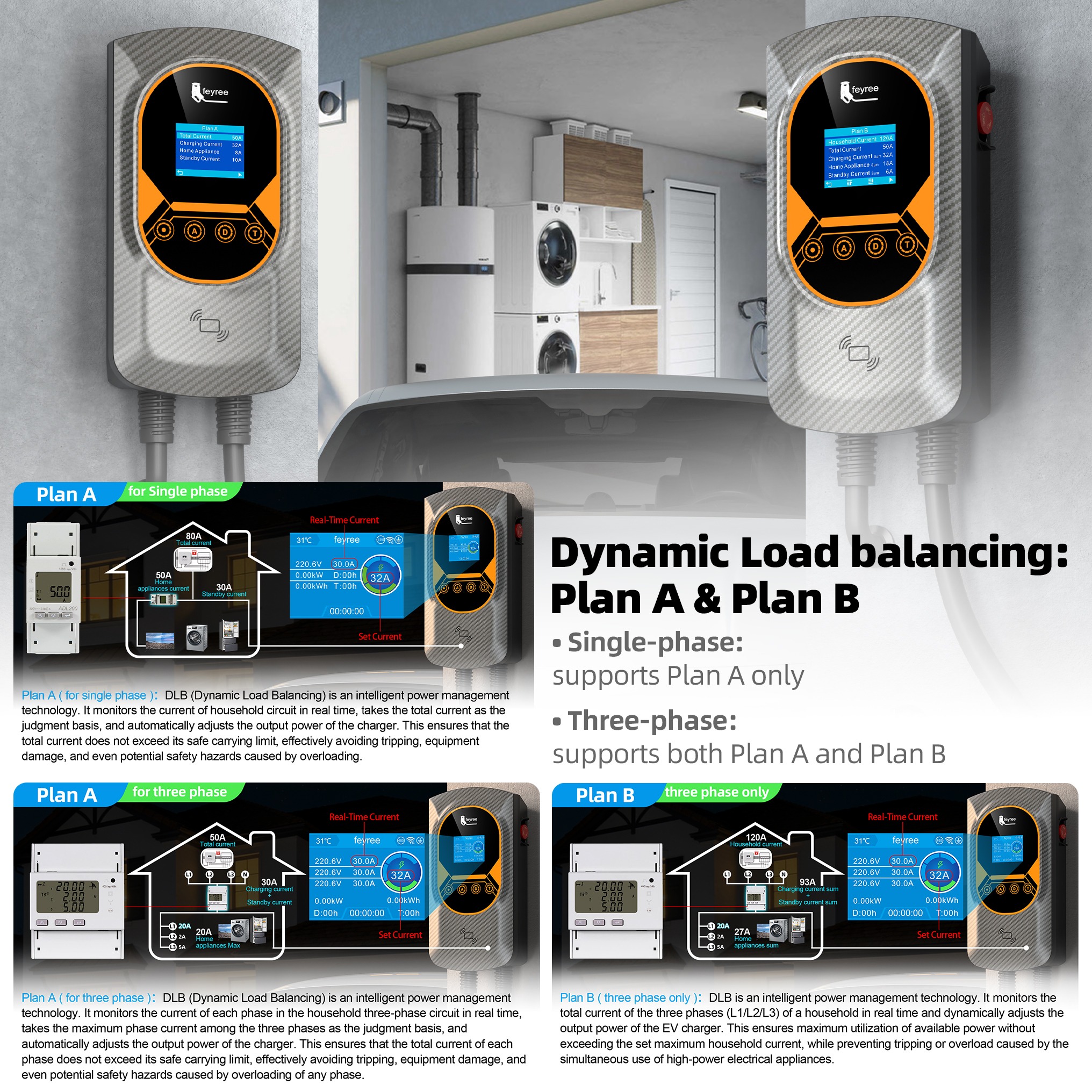

Plan A(for single phase)：DLB (Dynamic Load Balancing) is an intelligent power management technology. It monitors the current of household circuit in real time, takes the total current as the judgment basis, and automatically adjusts the output power of the charger. This ensures that the total current does not exceed its safe carrying limit, effectively avoiding tripping, equipment damage, and even potential safety hazards caused by overloading.

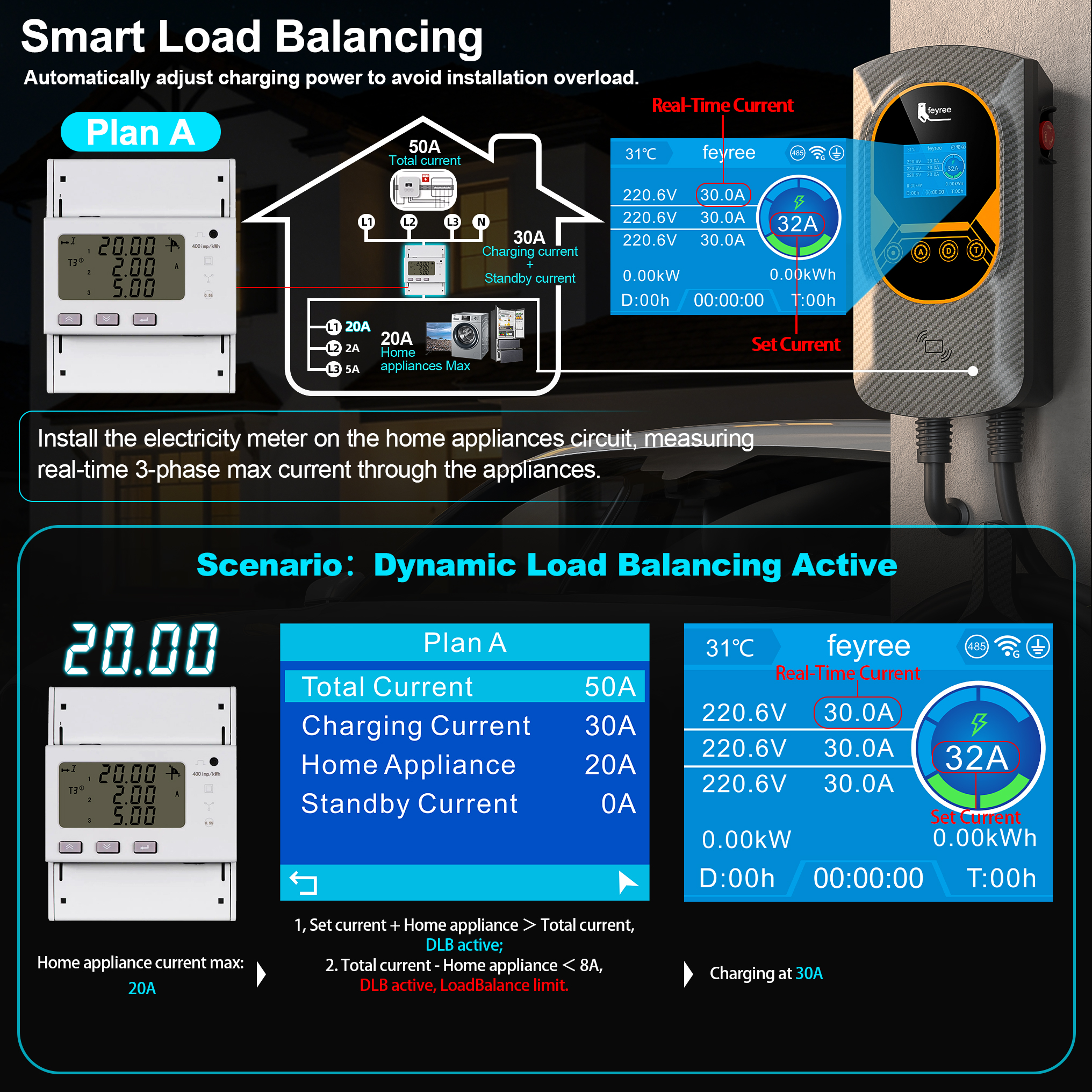

Plan A(for three phase)：DLB (Dynamic Load Balancing) is an intelligent power management technology. It monitors the current of each phase in the household three‑phase circuit in real time, takes the maximum phase current among the three phases as the judgment basis, and automatically adjusts the output power of the charger. This ensures that the total current of each phase does not exceed its safe carrying limit, effectively avoiding tripping, equipment damage, and even potential safety hazards caused by overloading of any phase.

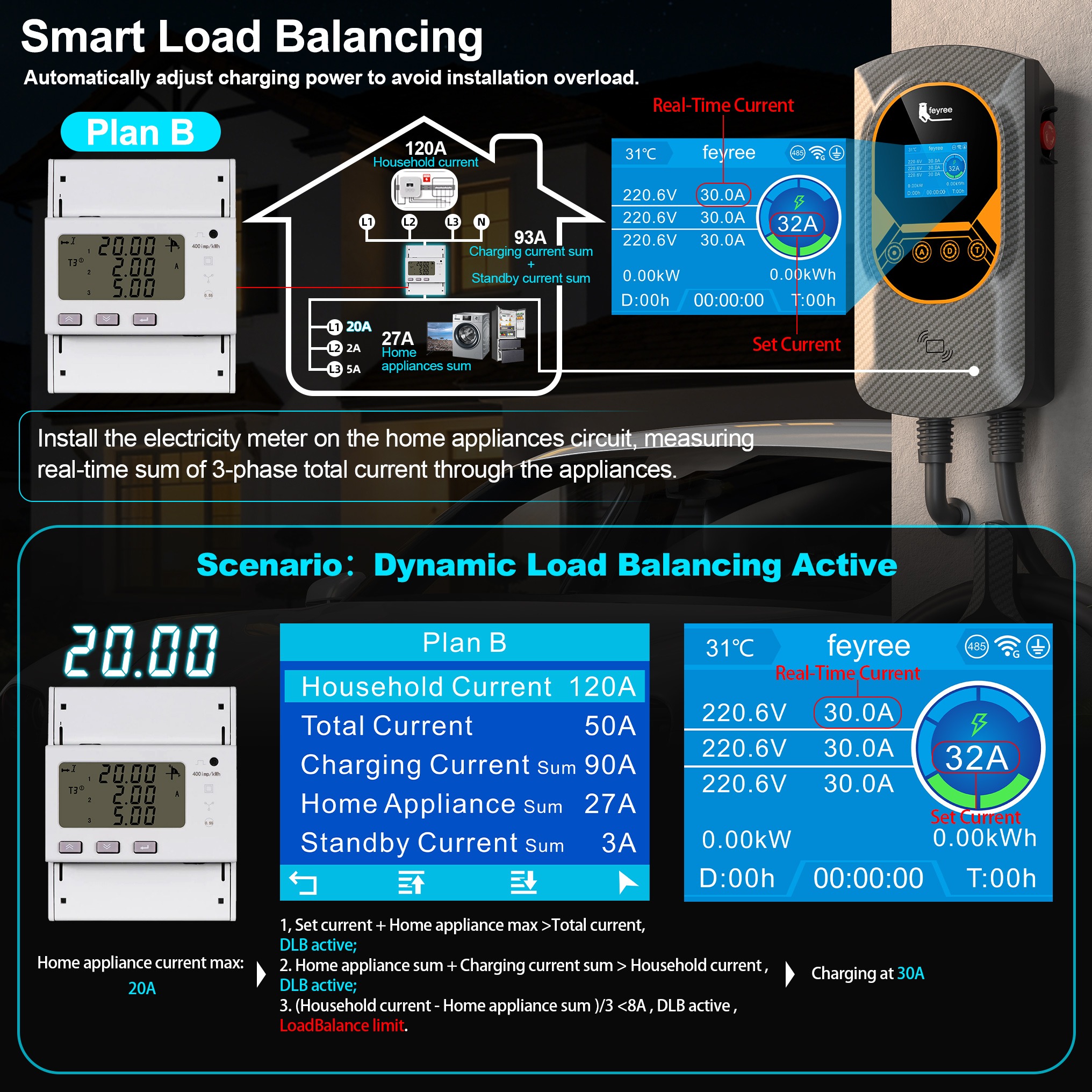

Plan B (3 phase only) : DLB is an intelligent power management technology. It monitors the total current of the three phases (L1/L2/L3) of a household in real time and dynamically adjusts the output power of the EV charger. This ensures maximum utilization of available power without exceeding the set maximum household current, while preventing tripping or overload caused by the simultaneous use of high-power electrical appliances.


Household Current (user input): Current（L1+L2+L3)Total three-phase incoming current for household use. It can be adjust from 8A to 999A, according to your actual requirements.
Total Current (user input): This parameter sets the maximum current capacity per phase (e.g., 80A) for the home circuit. It is adjustable from 8A to 99A, and any excess of the set value will cause the circuit breaker to trip.
Charging Current: The real-time charging current when the charger working.
Home Appliance:Total load of home appliances in the load circuit, excluding the charging station
Standby Current: Standby Current = “Total Current” - “Home Appliance”-“Charging Current”
Charging Current Sum: The real-time charging current sum of 3 phase.
Home Appliance Sum:Total current of home appliances in three-phase loading detected by the electricity meter excluding the charging station
Standby Current Sum: Total remaining available current in three-phase circuit
Standby Current Sum: = “Household Current sum” - “Home Appliance sum”-“Charging Current sum"
Home Appliance Sum:Max phase current of home appliances in three-phase loading detected by the electricity meter excluding the charging station

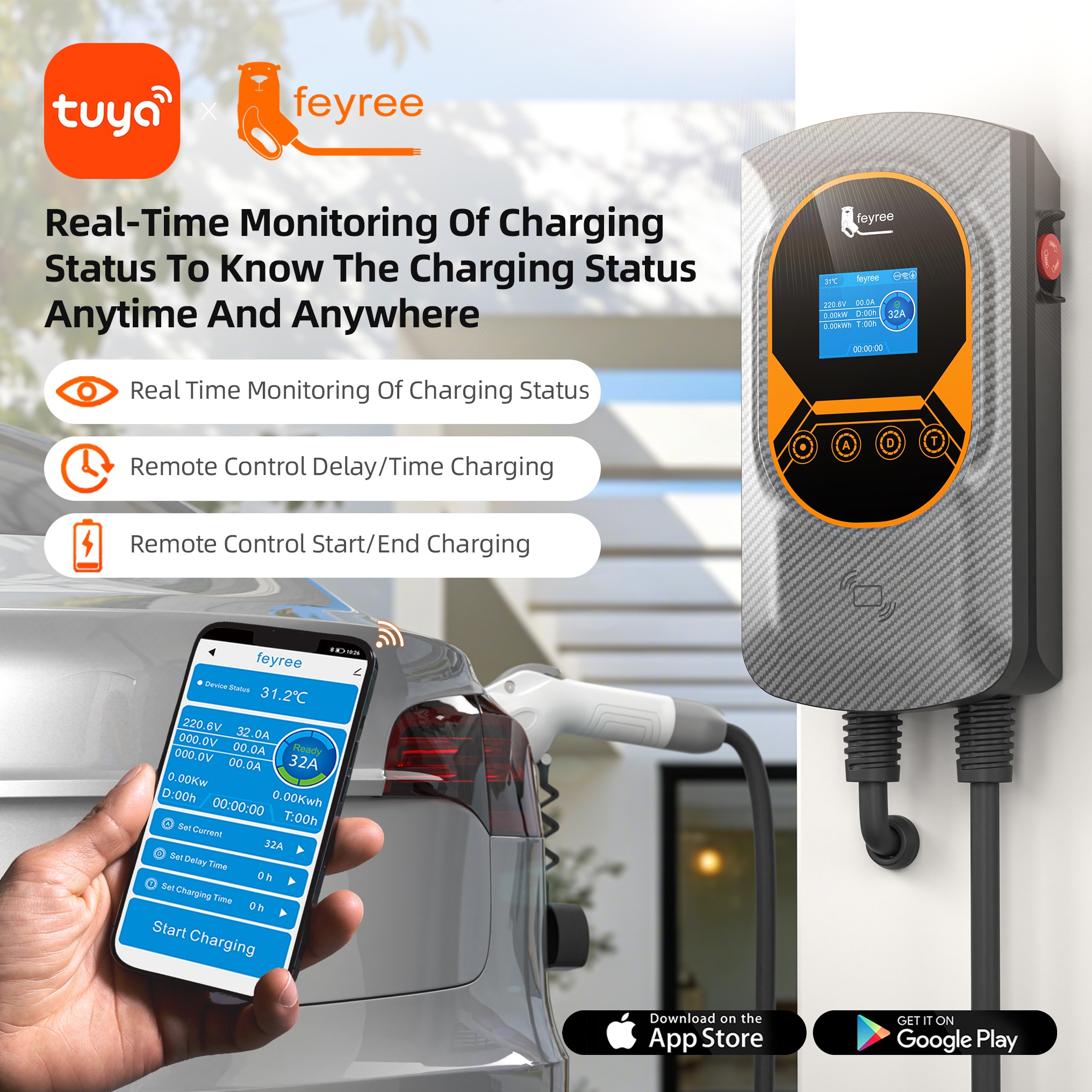

Remote control: via the app, you can control the wallbox/charging station in the easiest and most effective way, e.g. monitor charging, set start or stop of the charging process, determine charging power or charging current, read charging data records and so on. The mobile application is free and can be accessed via the App Store and Google Play, valid for Android and iOS.

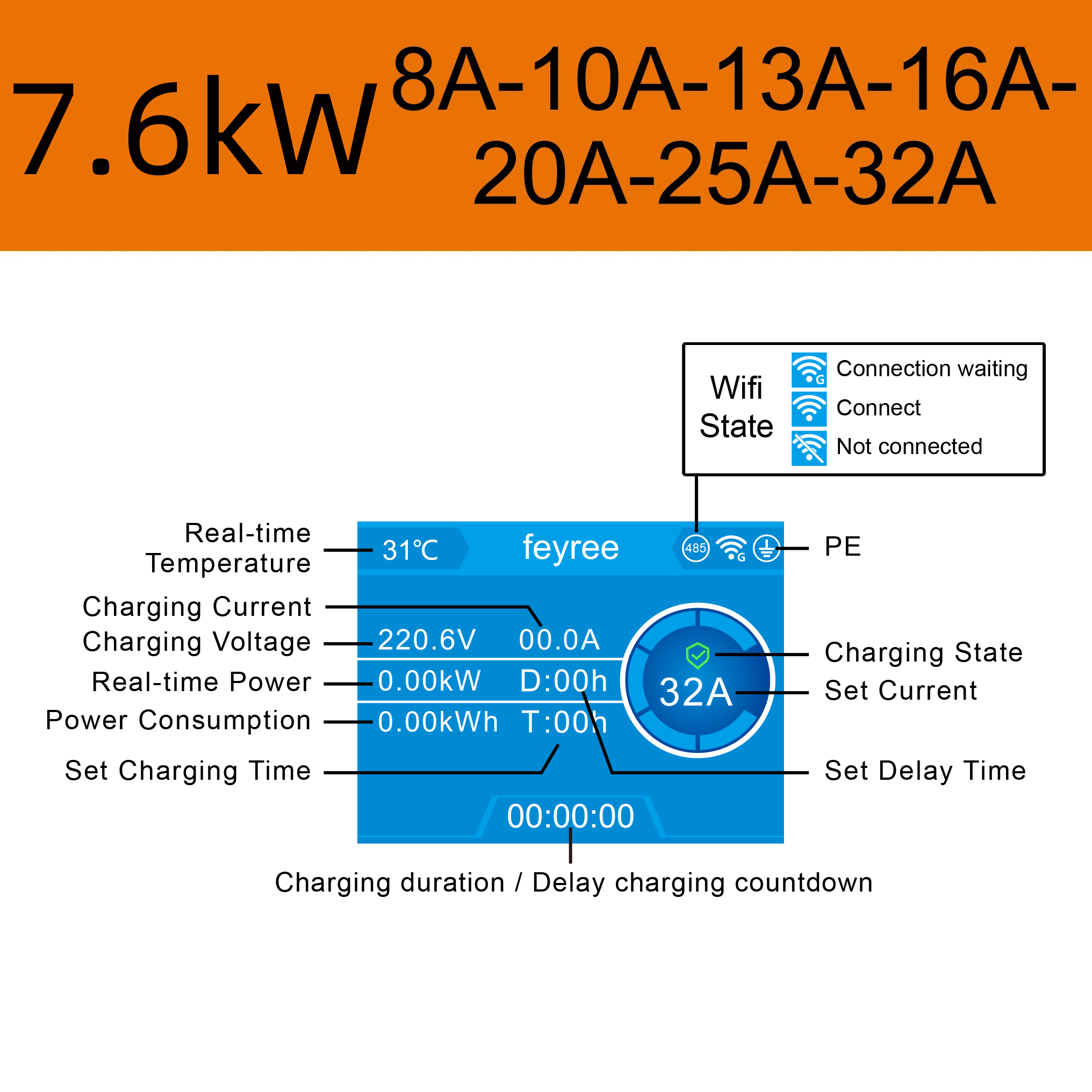

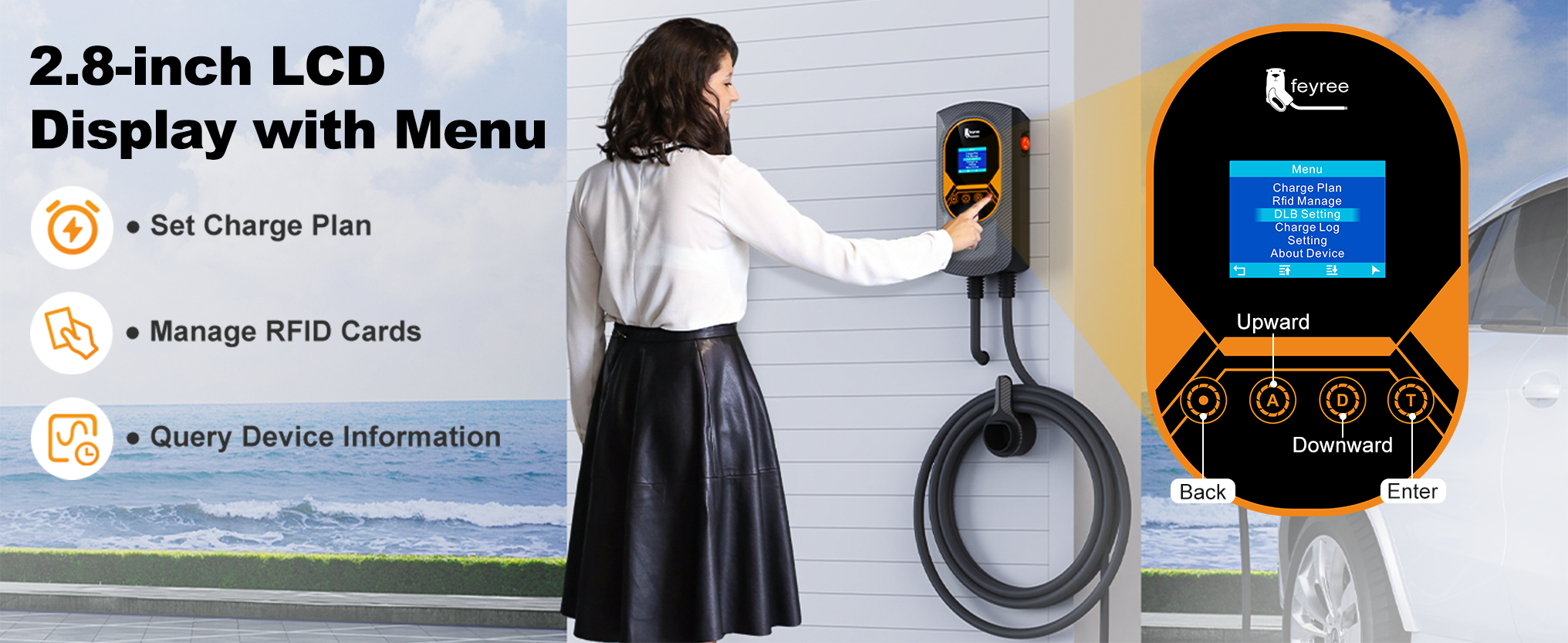

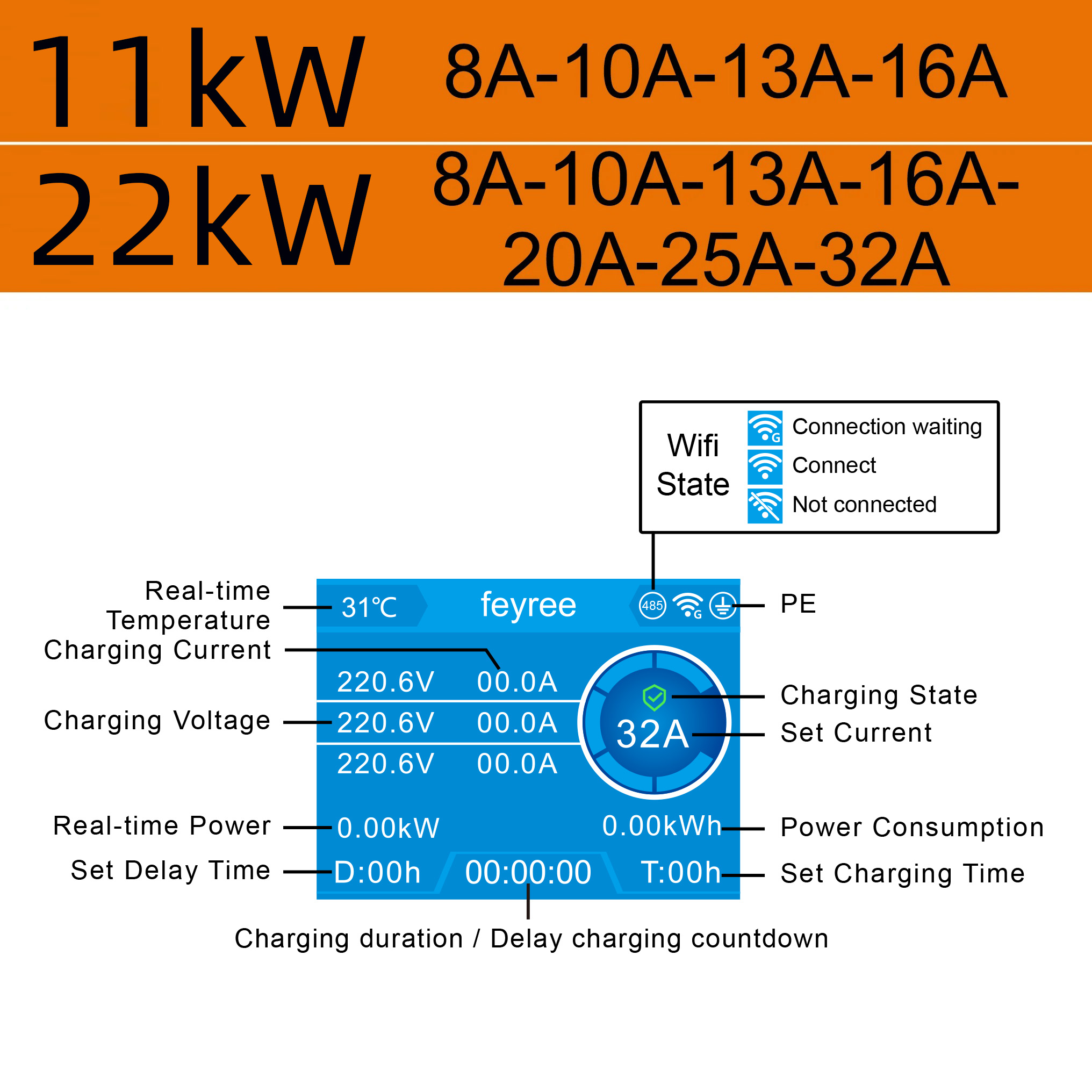

Large screen and high compatibility: LCD screen showing charging current, charging voltage and temperature. The charging station also has a 5m charging cable and is equipped with a GBT plug. The screws are inserted into the box, so you don't have to worry about the screen falling off. The 5 metre long cable leaves enough space between your car and the charging station.

Easy installation: Practical and intuitive wallbox/charging station for electric vehicles and plug-in hybrid, suitable for indoor and outdoor use thanks to IP66 certification (garage, carport). It is compatible with all household installations and with electric vehicles available on the market and plug-in hybrids with GBT plug the maximum power for your car and achieve more efficient consumption.

Weather and heat resistant: The connectors on both ends of the cable has achieved the effect of heat and drop resistance. High-quality cable provides good electrical conductivity and faster transmission speed, avoiding safety risk. The protection class IP66 protects against dust, rain and wind, thus guarantees safe long-term outdoor charging.

Support Tuya APP wireless connection, mobile phone remote control

Features:

• Charging plug meet GBT standard.

• Control box meet GB/T 20234 principle.

• Excellent protection performance,protection grade IP66-Working condition.

• Operating temperature:-30℃ to 55℃.

• Protection level: IP66 (working state)

• Number of phases: 1-phase/ 3- phase

• Contact bush: copper alloy, silver plating

Control Box Function:

• Leakage protection (restart recover).

• Over voltage under-voltage protection (self-checking recover).

• Lightning protection.

• Over current protection.

• Overheat protection.

• Ground protection.

• Change the current: 8A/10A/13A/16A/20A/25A/32A adjustable

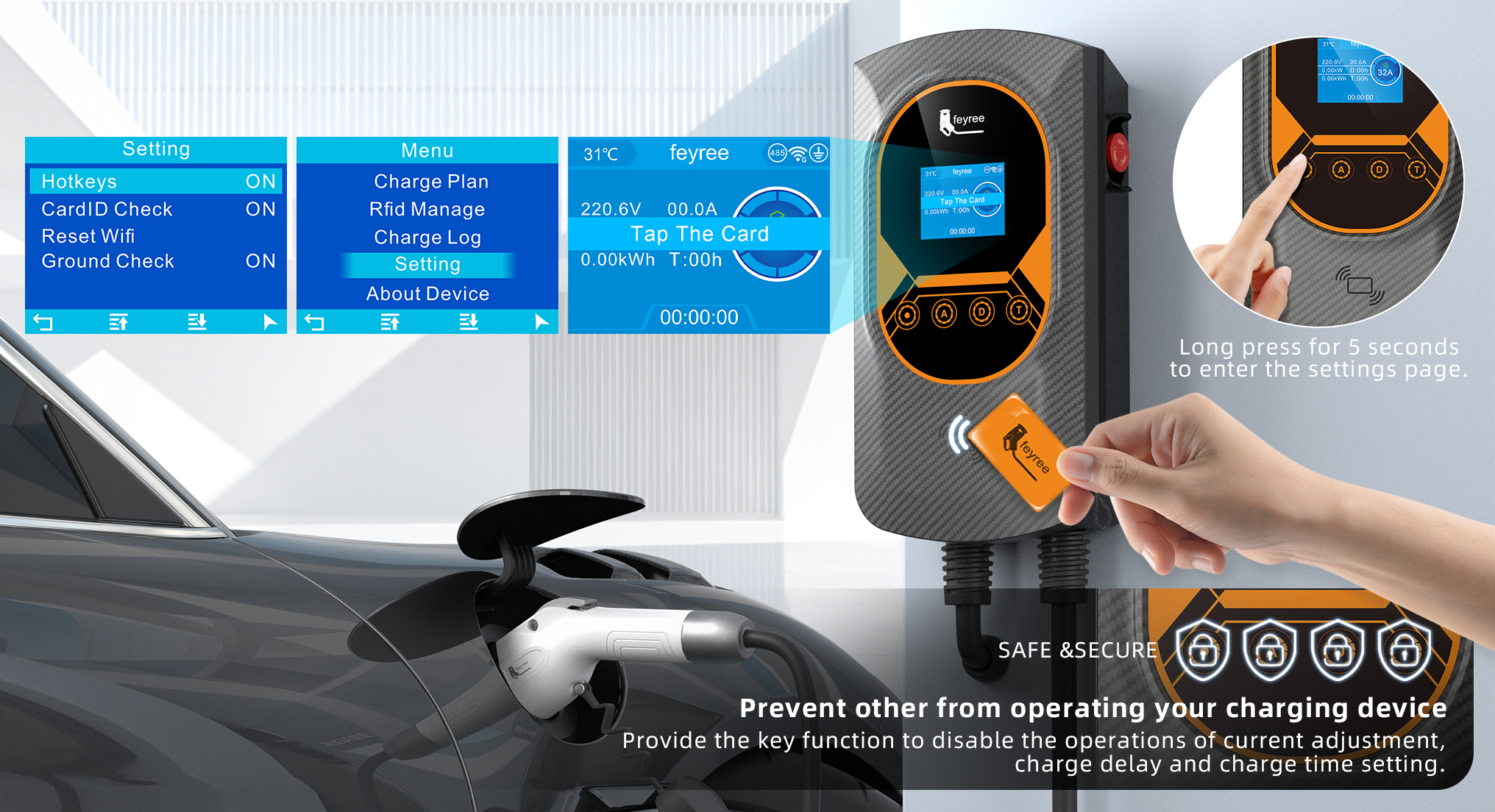

• RFID card function

• Charging time to make an appointment

• APP WIFI version
