A Comprehensive Guide to Types of RCDs

A Residual Current Device (RCD) is one of the most critical components in modern electrical safety systems. Its fundamental operating principle is straightforward: it continuously monitors the difference between the current flowing into a circuit and the current returning from it. Under normal conditions, these two values are equal. When a fault occurs — such as a person accidentally touching a live conductor — some current leaks to earth, creating an imbalance. Once this residual current exceeds a preset threshold, the RCD trips and disconnects the circuit within milliseconds, protecting people from electric shock and preventing electrical fires.
However, RCDs are not a single, uniform product. The term encompasses a broad family of devices, each designed with specific technical characteristics to address distinct hazard profiles and installation environments. Selecting the wrong type can leave critical gaps in protection. This article systematically examines the main RCD types — RCCB, RCBO, S-Type RCCB, and Type B RCD — analysing their working principles, technical parameters, and ideal application scenarios through a structured comparison.

RCCB — Residual Current Circuit Breaker (Without Overcurrent Protection)

2.1 Working Principle

The RCCB is the most fundamental RCD type. Its detection mechanism relies on a toroidal current transformer through which all live conductors (phase and neutral) pass. Under normal operation, the magnetic fields produced by the outgoing and returning currents cancel each other out, yielding a net flux of zero. When leakage to earth occurs, the current balance is disrupted, inducing a voltage in the toroidal coil that energises a trip solenoid, causing the device to open the circuit almost instantaneously.

2.2 Variants and Ratings

RCCBs are available in 2-pole (2P) configurations for single-phase circuits and 4-pole (4P) configurations for three-phase systems. Standard rated residual operating currents (IΔn) include 10 mA, 30 mA, 100 mA, 300 mA, and 500 mA. The 30 mA rating is the internationally recognised threshold for personal protection against electric shock, as it sits below the threshold of ventricular fibrillation. Higher ratings — 100 mA to 500 mA — are typically deployed for fire protection rather than direct personnel safety.

2.3 Application Scenarios

2P RCCBs are standard in residential wiring, particularly in wet or high-risk locations such as bathrooms, kitchens, garages, and outdoor socket circuits. 4P RCCBs serve industrial and commercial three-phase distribution boards protecting motors, heating elements, and large machinery. A critical limitation to note is that the RCCB provides no protection against overloads or short-circuit currents. It must therefore always be paired with a Miniature Circuit Breaker (MCB) to form a complete protection scheme.

RCBO — Residual Current Circuit Breaker with Overcurrent Protection

3.1 Principle and Key Advantages

The RCBO integrates the functionality of both an RCCB and an MCB within a single device. Internally, it combines a thermal-magnetic trip mechanism — which responds to sustained overloads and instantaneous short-circuit currents — with a residual current detection module. This dual-function design means that a single RCBO can protect a circuit against electric shock, overload heating, and short-circuit damage simultaneously, without requiring separate devices.

3.2 Application Scenarios

RCBOs are the preferred solution for protecting individual circuits where space in the consumer unit is limited, as each RCBO occupies only a single DIN-rail module slot compared to the two slots required by an MCB-plus-RCCB combination. Common applications include dedicated socket circuits in kitchens and bathrooms, individual workstation circuits in offices, and point-of-use protection for commercial equipment. Their self-contained design also simplifies fault diagnosis: a tripped RCBO immediately indicates which specific circuit has developed a fault, unlike a shared RCCB whose trip could be triggered by any of its downstream circuits.

S-Type RCCB — Selective (Time-Delayed) Residual Current Circuit Breaker

4.1 Time-Delay Operation Principle

The S-Type RCCB (also designated as Type S in IEC standards) incorporates an intentional time delay in its trip response, typically between 130 ms and 500 ms. This delay is a deliberate design feature rather than a limitation. In a correctly designed distribution system with multiple levels of RCD protection, the downstream devices should operate first in response to a fault. The time delay of the S-Type RCCB ensures it remains closed long enough for the downstream RCD to clear the fault, and only trips if the downstream protection fails to operate — a principle known as discrimination or selectivity.

4.2 Application Scenarios

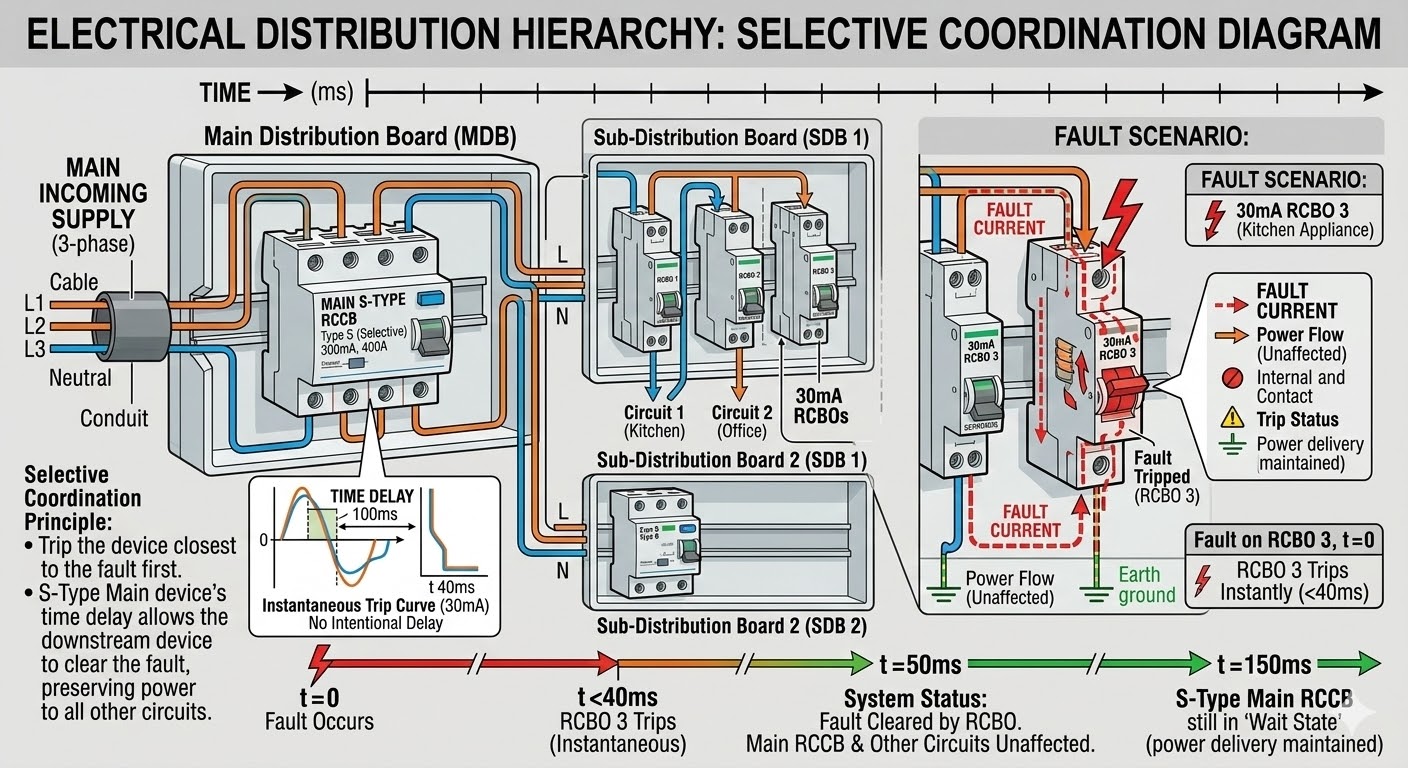

S-Type RCCBs are installed at the main incoming level of a distribution board or at intermediate busbar positions, never at the final circuit level. In a typical tiered protection scheme, 30 mA standard RCCBs or RCBOs protect individual circuits at the load end. An S-Type RCCB rated at 100 mA to 300 mA sits upstream, providing backup protection should any downstream device fail. This architecture is essential in facilities where a total supply interruption would be unacceptable, such as hospitals, data centres, hotels, supermarkets, and multi-storey commercial buildings, where a single fault in one area must not plunge the entire facility into darkness.

Type B RCD — DC-Sensitive Residual Current Device

5.1 Technical Background

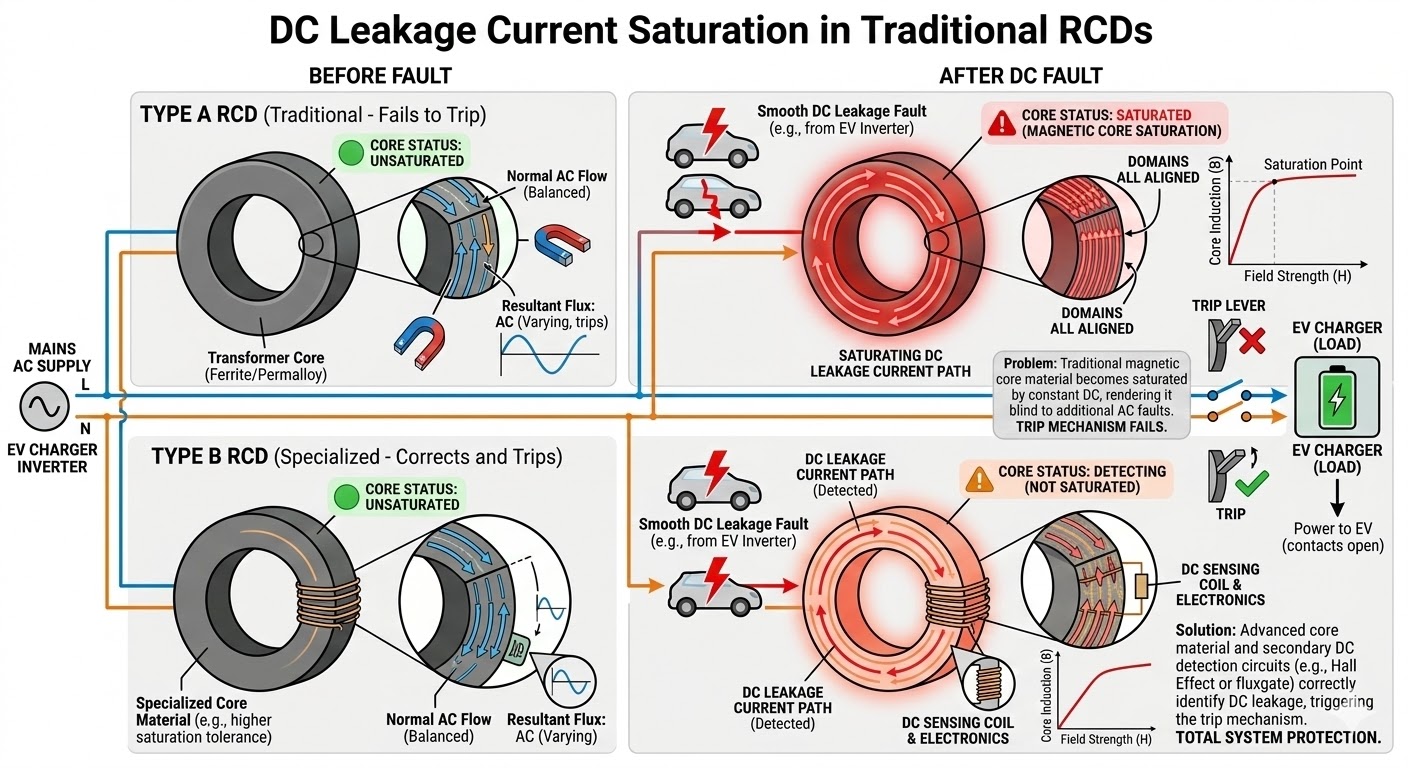

The proliferation of power electronics — including variable frequency drives (VFDs), photovoltaic inverters, and electric vehicle (EV) charging equipment — has introduced a new category of leakage current that traditional RCDs cannot reliably detect. Conventional Type AC RCDs detect only sinusoidal AC residual currents. Type A RCDs extend this to include pulsating DC residual currents. However, neither type can respond to smooth (pure) DC residual currents, which are characteristic of faults in the DC stages of inverters and rectifiers. If such a DC leakage current flows through the core of a Type AC or Type A RCD, it can magnetically saturate the toroidal transformer, effectively blinding the device and preventing it from tripping even when a dangerous fault exists.

5.2 Application Scenarios

Type B RCDs are capable of detecting AC residual currents, pulsating DC residual currents, and smooth DC residual currents at frequencies up to 1000 Hz, providing comprehensive protection across the full spectrum of fault current waveforms. They are mandatory or strongly recommended in the following applications: AC Mode 3 electric vehicle charging stations (as specified in IEC 62955 and required by many national grid codes), industrial variable frequency drives and servo motor controllers, grid-connected photovoltaic solar inverter systems, medical IT systems incorporating DC-powered medical devices, and any industrial automation installation with significant rectifier stages. While Type B RCDs carry a substantially higher cost than Type AC or Type A equivalents, they are the only devices that can guarantee protection integrity in these environments.

Comparative Overview of RCD Types

The table below summarises the key technical parameters and application positioning of each RCD type discussed, providing a quick reference for engineering selection:

Type	Working Principle	Rated Sensitivity	Response Time	Typical Applications
2P RCCB	Detects L/N current imbalance (AC)	10–300 mA	< 300 ms	Residential single-phase circuits
4P RCCB	Same, for 3-phase + neutral	30–500 mA	< 300 ms	Industrial three-phase equipment
RCBO	Leakage + overload/short-circuit	10–30 mA	< 300 ms	Single-circuit all-in-one protection
S-Type RCCB	Time-delayed leakage detection	100–500 mA	130–500 ms	Main distribution, selective protection
Type B RCD	AC + DC smooth leakage detection	30–300 mA	< 300 ms	VFDs, EV chargers, PV inverters

Selection Principles and Engineering Guidance

Choosing the correct RCD type requires a careful evaluation of several interdependent factors:
Protection objective and location type. For residential final circuits in wet zones (bathrooms, kitchens, outdoor sockets), a 30 mA RCBO is the optimal choice, combining personal shock protection with overload protection in a single compact device. Industrial three-phase circuits should use a 4P RCCB (100–300 mA) in conjunction with a suitably rated MCB. Locations with heightened shock risk — such as swimming pools, construction sites, and agricultural installations — demand 10 mA high-sensitivity devices.
Supply continuity requirements. Installations where uninterrupted power is critical must employ a tiered protection architecture. Final circuits use standard 30 mA RCCBs or RCBOs; main distribution uses an S-Type time-delayed RCCB (100–300 mA). This ensures that a fault on one circuit does not interrupt supply to the rest of the facility.
Load characteristics and waveform content. When supplying variable frequency drives, EV charging points, solar inverters, or any load with significant DC components in its leakage current, Type B RCDs are non-negotiable. Installing a Type AC or Type A device in such applications creates a latent safety hazard that may go undetected until a serious incident occurs.
Applicable standards and regulations. Selection must comply with the relevant national and international standards, including IEC 61008 and IEC 61009 for RCCB and RCBO respectively, IEC 62423 for Type B RCDs, BS 7671 (18th Edition) in the UK, and local building codes and grid connection requirements in the jurisdiction of installation.

Conclusion

The RCD family — spanning the straightforward RCCB, the all-in-one RCBO, the system-level S-Type, and the future-ready Type B — represents a carefully structured toolkit for electrical protection. Each type occupies a defined role in the safety hierarchy, and no single device can fulfil all roles. As buildings become smarter, electric vehicles become mainstream, and distributed renewable energy generation becomes ubiquitous, the demands placed on residual current protection will only continue to grow. A thorough understanding of the differences between RCD types is therefore not merely academic; it is a practical prerequisite for designing electrical installations that are genuinely safe, compliant, and resilient.
